Product Description

80 Chain Sprockets are manufactured in accordance with ANSI B29.1 Standards and are made for 1" pitch 80 and heavy-duty 80H roller chains. Being manufactured to The American National Standards Institutes dimensions means that these sprockets directly interchange with other manufacturers. Up to 30-teeth, our 80 sprockets feature hardened teeth for a dynamic performance factor increase and increased sprocket longevity. Out standard steel sprockets utilize a black-oxide coating for added corrosion protection, they are also manufactured from a premium high-strength grade of mild steel for an additional increase in sprocket life.

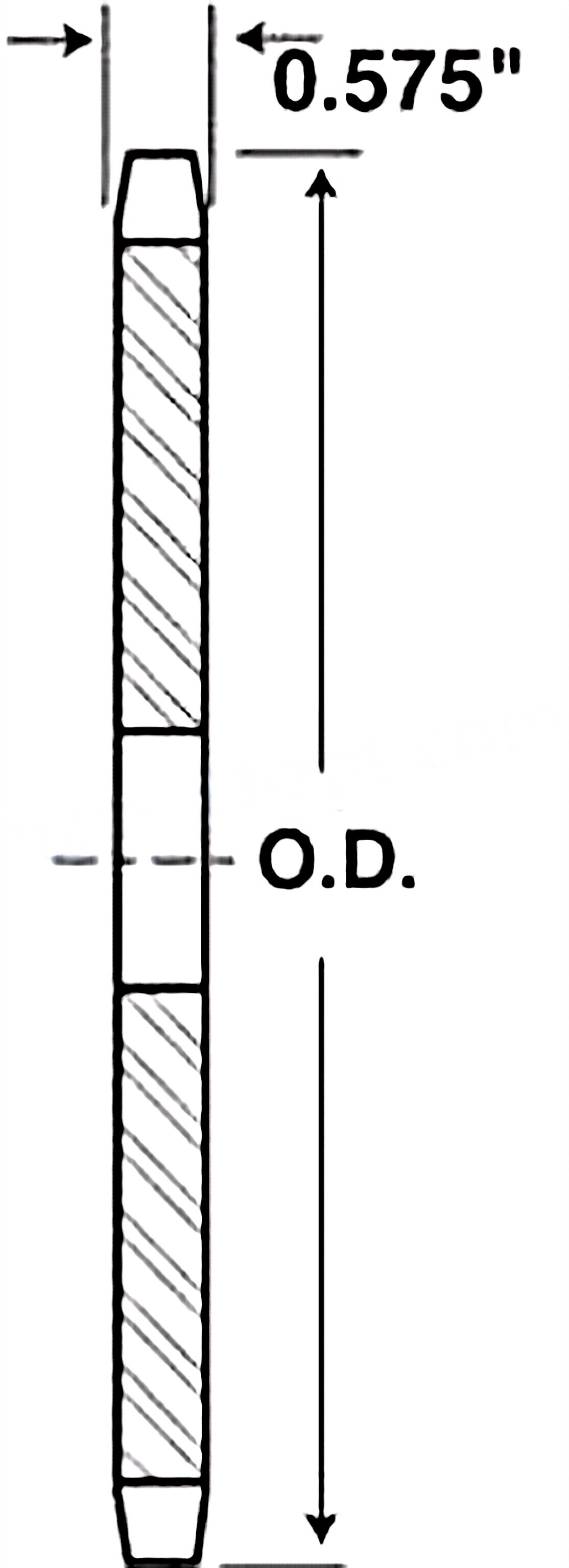

80 A-Plate Sprockets

Size	Type	Tooth Count	Stock Bore	Weight (LBS)
80A09	A	9	15/16"	0.8
80A10	A	10	15/16"	1.0
80A11	A	11	15/16"	1.3
80A12	A	12	15/16"	1.5
80A13	A	13	15/16"	1.8
80A14	A	14	15/16"	2.2
80A15	A	15	15/16"	2.5
80A16	A	16	15/16"	2.9
80A17	A	17	15/16"	3.3
80A18	A	18	15/16"	3.7
80A19	A	19	15/16"	4.1
80A20	A	20	15/16"	4.7
80A21	A	21	15/16"	4.9
80A22	A	22	15/16"	5.5
80A23	A	23	15/16"	6.3
80A24	A	24	15/16"	6.7
80A25	A	25	15/16"	7.2
80A26	A	26	1-3/16"	7.8
80A27	A	27	1-3/16"	8.6
80A28	A	28	1-3/16"	9.3
80A29	A	29	1-3/16"	9.8
80A30	A	30	1-3/16"	10.7
80A31	A	31	1-3/16"	11.3
80A32	A	32	1-3/16"	12.1
80A33	A	33	1-3/16"	13.6
80A34	A	34	1-3/16"	14.3
80A35	A	35	1-3/16"	14.8
80A36	A	36	1-3/16"	16.1
80A37	A	37	1-3/16"	16.8
80A38	A	38	1-3/16"	17.2
80A39	A	39	1-3/16"	17.9
80A40	A	40	1-3/16"	18.9
80A41	A	41	1-1/4"	21.0
80A42	A	42	1-1/4"	21.8
80A43	A	43	1-1/4"	23.6
80A44	A	44	1-1/4"	24.3
80A45	A	45	1-1/4"	25.2
80A46	A	46	1-1/4"	26.6
80A47	A	47	1-1/4"	26.4
80A48	A	48	1-1/4"	27.8
80A49	A	49	1-1/4"	28.9
80A50	A	50	1-1/4"	30.9
80A51	A	51	1-1/4"	32.2
80A52	A	52	1-1/4"	33.0
80A53	A	53	1-1/4"	34.9
80A54	A	54	1-1/4"	36.6
80A55	A	55	1-1/4"	37.5
80A56	A	56	1-1/4"	39.4
80A57	A	57	1-1/4"	40.4
80A58	A	58	1-1/4"	41.3
80A59	A	59	1-1/4"	42.9
80A60	A	60	1-1/4"	45.3
80A65	A	65	1-1/4"	52.2
80A70	A	70	1-1/2"	59.8
80A72	A	72	1-1/2"	65.7
80A76	A	76	1-1/2"	70.2
80A80	A	80	1-1/2"	79.6
80A84	A	84	1-1/2"	86.1
80A90	A	90	1-1/2"	101.0
80A96	A	96	1-1/2"	120.0
80A112	A	112	1-1/2"	165.0

80 B-Hub Sprockets

Size	Type	Tooth Count	Stock Bore	Recommend Max. Bore	Hub Diameter	Length Thru Bore	Weight (LBS)
80B8	B	8	1"	1"	1-15/16"	1-5/8"	1.4
80B9	B	9	1"	1-5/16"	2-1/4"	1-5/8"	1.6
80B10	B	10	1"	1-1/2"	2-9/16"	1-5/8"	2.2
80B11	B	11	1"	1-5/8"	2-13/16"	1-5/8"	3.2
80B12	B	12	1"	1-7/8"	3-1/8"	1-5/8"	3.4
80B13	B	13	1"	2"	3"	1-1/2"	3.5
80B14	B	14	1"	2-1/4"	3-1/4"	1-1/2"	4.1
80B15	B	15	1"	2-1/2"	3-13/16"	1-1/2"	5.3
80B16	B	16	1"	2-3/4"	4"	1-1/2"	5.9
80B17	B	17	1"	2-3/4"	4"	1-1/2"	6.6
80B18	B	18	1"	2-3/4"	4-1/4"	1-1/2"	7.3
80B19	B	19	1"	2-3/4"	4-1/4"	1-1/2"	7.8
80B20	B	20	1"	2-3/4"	4-1/4"	1-1/2"	8.4
80B21	B	21	1"	2-3/4"	4-1/4"	1-1/2"	9.4
80B22	B	22	1"	2-3/4"	4-1/4"	1-1/2"	10.0
80B23	B	23	1"	2-3/4"	4-1/4"	1-1/2"	10.7
80B24	B	24	1"	2-3/4"	4-1/4"	1-1/2"	11.3
80B25	B	25	1"	2-3/4"	4-1/4"	1-1/2"	11.9
80B26	B	26	1-1/4"	3-1/4"	4-1/4"	2"	14.3
80B27	B	27	1-1/4"	3-1/4"	4-3/4"	2"	15.4
80B28	B	28	1-1/4"	3-1/4"	4-3/4"	2"	16.0
80B29	B	29	1-3/16"	3-1/4"	4-3/4"	2"	17.1
80B30	B	30	1-3/16"	3-1/4"	4-3/4"	2"	17.4
80B31	B	31	1-3/16"	3-1/4"	4-3/4"	2"	18.7
80B32	B	32	1-3/16"	3-1/4"	4-3/4"	2"	19.5
80B33	B	33	1-3/16"	3-1/4"	4-3/4"	2"	19.6
80B34	B	34	1-3/16"	3-1/4"	4-3/4"	2"	21.3
80B35	B	35	1-3/16"	3-1/4"	4-3/4"	2"	22.1
80B36	B	36	1-3/16"	3-1/4"	4-3/4"	2"	23.1
80B37	B	37	1-3/16"	3-1/4"	4-3/4"	2"	23.8
80B38	B	38	1-3/16"	3-1/4"	4-3/4"
