085 Metric Roller Chain Sprockets

Raydafon Group presents the 085 Metric Roller Chain Sprockets: precision-engineered, durable components ideal for industrial machinery and automotive applications, delivering smooth power transmission with high wear resistance. Its robust design ensures long-lasting performance, solving reliability issues for engineers and manufacturers in demanding environments. Experience enhanced efficiency and reduced downtime through superior quality. Stand out with Raydafon's trusted innovation—upgrade your system today for unmatched precision and durability.

Send Inquiry

Product Description

085 roller chain sprockets are manufactured for metric 085 roller chain and are manufactured in accordance with ISO, DIN, and BS228 standards. Our sprockets are precision manufactured from high-quality steel, directly interchange with other manufacturers, and are engineered for superb performance and durability. Common styles of these sprockets include B-Hub, C-Hub, and taper bushed type but others are available upon request. 085 Metric Roller Chain Sprockets

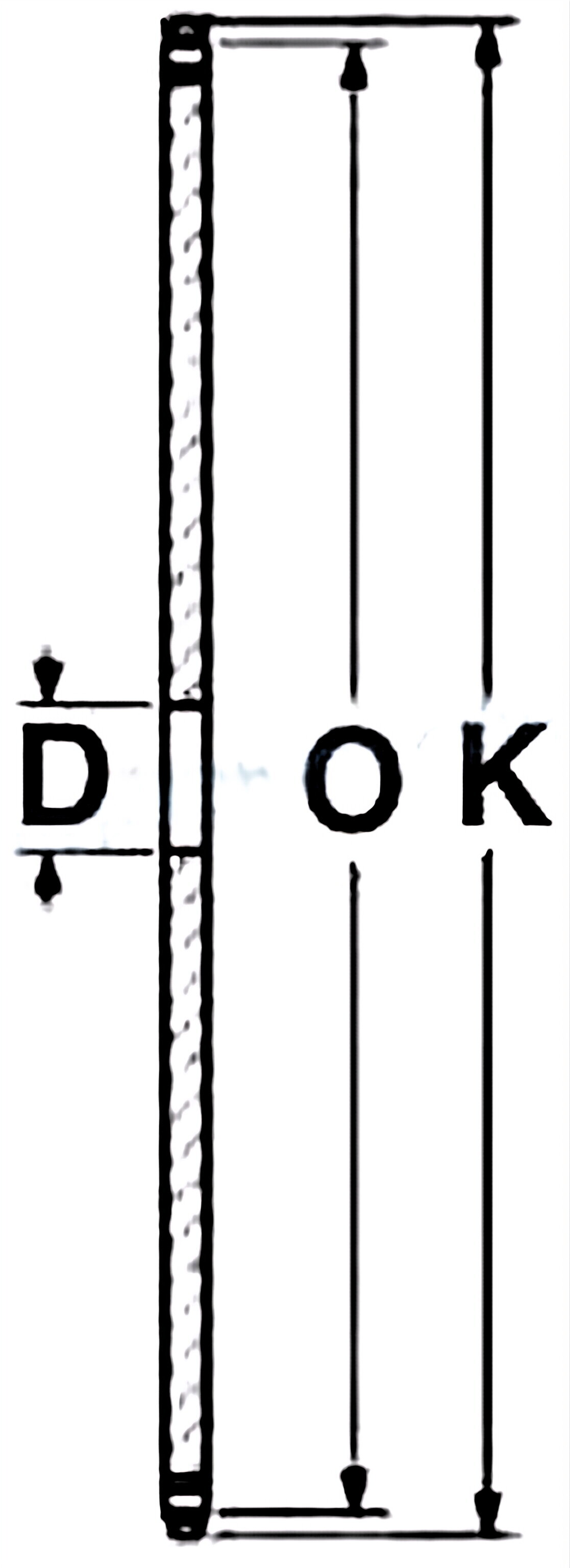

085 A-Plate Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter (O)	Outside Diameter (K)	Stock Bore (D)	Weight (kG)
085B-8A	8	33.18mm	39.5mm	8mm	0.1
085B-9A	9	37.13mm	43.4mm	8mm	0.1
085B-10A	10	41.10mm	47.4mm	8mm	0.1
085B-11A	11	45.07mm	51.4mm	8mm	0.1
085B-12A	12	49.07mm	55.4mm	8mm	0.1
085B-13A	13	53.06mm	59.4mm	8mm	0.1
085B-14A	14	57.07mm	63.4mm	8mm	0.1
085B-15A	15	61.09mm	67.4mm	8mm	0.1
085B-16A	16	65.10mm	71.4mm	10mm	0.1
085B-17A	17	69.11mm	75.4mm	10mm	0.1
085B-18A	18	73.14mm	79.4mm	10mm	0.2
085B-19A	19	77.16mm	83.5mm	10mm	0.2
085B-20A	20	81.19mm	87.5mm	10mm	0.2
085B-21A	21	85.22mm	91.5mm	10mm	0.2
085B-22A	22	89.24mm	95.5mm	10mm	0.2
085B-23A	23	93.27mm	99.6mm	10mm	0.3
085B-24A	24	97.29mm	103.6mm	10mm	0.4
085B-25A	25	101.33mm	107.6mm	10mm	0.4
085B-26A	26	105.36mm	111.7mm	12mm	0.4
085B-27A	27	109.40mm	115.7mm	12mm	0.5
085B-28A	28	113.42mm	119.7mm	12mm	0.5
085B-29A	29	117.46mm	123.8mm	12mm	0.5
085B-30A	30	121.50mm	127.8mm	12mm	0.52
085B-31A	31	125.54mm	131.8mm	12mm	0.54
085B-32A	32	129.56mm	135.9mm	12mm	0.6
085B-33A	33	133.60mm	139.9mm	12mm	0.6
085B-34A	34	137.64mm	143.9mm	12mm	0.6
085B-35A	35	141.68mm	148.0mm	12mm	0.6
085B-36A	36	145.72mm	152.0mm	16mm	0.65
085B-37A	37	149.76mm	156.1mm	16mm	0.8
085B-38A	38	153.80mm	160.1mm	16mm	0.8
085B-39A	39	157.83mm	164.1mm	16mm	0.8
085B-40A	40	161.87mm	168.2mm	16mm	0.8
085B-41A	41	165.91mm	172.7mm	16mm	0.9
085B-42A	42	169.95mm	176.7mm	16mm	0.9
*085B-43A*	43	173.99mm	180.8mm	16mm	0.9
085B-44A	44	178.03mm	184.8mm	16mm	1.0
085B-45A	45	182.07mm	188.9mm	16mm	1.1
085B-46A	46	186.10mm	192.9mm	20mm	1.1
085B-47A	47	190.14mm	196.9mm	20mm	1.3
085B-48A	48	194.18mm	201.0mm	20mm	1.5
085B-49A	49	198.22mm	205.0mm	20mm	1.5
085B-50A	50	202.26mm	209.1mm	20mm	1.5
085B-51A	51	206.30mm	213.1mm	20mm	1.54
085B-52A	52	210.34mm	217.1mm	20mm	1.6
085B-53A	53	214.37mm	221.2mm	20mm	1.6
085B-54A	54	218.43mm	225.2mm	20mm	1.6
085B-55A	55	222.46mm	229.3mm	20mm	1.62
085B-56A	56	226.50mm	233.3mm	20mm	1.62
085B-57A	57	230.54mm	237.3mm	20mm	1.7
085B-58A	58	234.58mm	241.4mm	20mm	1.7
085B-59A	59	238.62mm	245.4mm	20mm	1.8
085B-60A	60	242.66mm	249.5mm	20mm	1.8
085B-62A	62	250.75mm	257.5mm	20mm	1.8
085B-64A	64	258.82mm	265.6mm	20mm	1.9
085B-65A	65	262.86mm	269.7mm	20mm	1.9
085B-66A	66	266.90mm	273.7mm	25mm	2.0
085B-68A	68	274.99mm	281.8mm	25mm	2.5
085B-70A	70	283.07mm	289.9mm	25mm	2.7
085B-72A	72	291.16mm	298.0mm	25mm	2.8
085B-75A	75	303.27mm	310.1mm	25mm	3.0
085B-76A	76	307.33mm	314.1mm	25mm	3.0
085B-78A	78	315.40mm	322.2mm	25mm	3.1
085B-80A	80	323.48mm	330.3mm	25mm	3.2
085B-85A	85	343.69mm	350.5mm	25mm	3.5
085B-90A	90	363.90mm	370.7mm	25mm	3.5
085B-95A	95	384.11mm	390.9mm	25mm	4.0
085B-100A	100	404.31mm	411.1mm	25mm	4.0
085B-110A	110	444.74mm	451.5mm	25mm	4.5
085B-114A	114	460.90mm	467.7mm	25mm	4.5
085B-120A	120	485.16mm	492.0mm	25mm	5.0
085B-125A	125	505.37mm	512.2mm	25mm	5.0

085 B-Hub Sprockets:

Hot Tags: 085 Metric Roller Chain Sprockets, Roller Chain Sprockets Manufacturer, Metric Sprockets for Sale

Send Inquiry

Contact Info



Address

Luotuo Industrial Area, Zhenhai District, Ningbo City, China


Tel

86-574-87167707


E-mail

[email protected]

Get customized quotes for transmission components, gearboxes, and machinery. Our engineers will respond within 24 hours.

News Recommendations

What are the different types of industrial components used in machinery?View More >>

What are the key components of a standard hydraulic cylinder?View More >>

How to choose the right replacement Harvester Oil Cylinder for your combine?View More >>

What tools are needed for a typical baler part replacement or repair job?View More >>

Can locking assemblies be used in high-speed or high-temperature applications?View More >>

Can a PTO shaft be repaired or should it always be replaced?View More >>

Online

Raydafon

We use cookies to offer you a better browsing experience, analyze site traffic and personalize content. By using this site, you agree to our use of cookies. Privacy Policy

Reject Accept

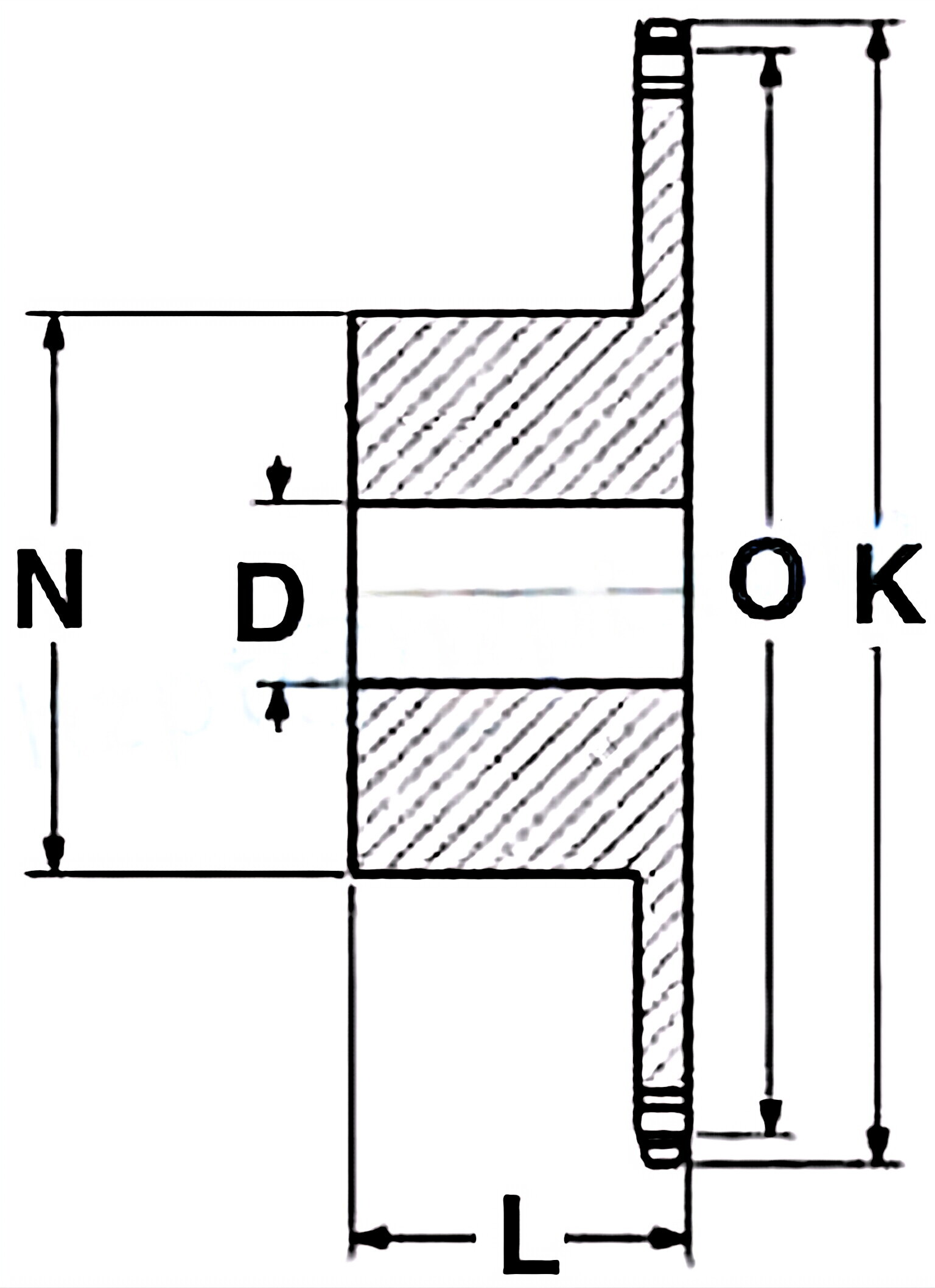

Sprocket Size	Tooth Count	Pitch Diameter (O)	Outside Diameter (K)	Hub Diameter (N)	Stock Bore (D)	Maximum Bore	Length Thru Bore (L)	Weight (kg)
085B-8B	8	33.18mm	39.5mm	20mm	10mm	16mm	25mm	0.06
085B-9B	9	37.13mm	43.4mm	24mm	10mm	18mm	25mm	0.08
085B-10B	10	41.10mm	47.4mm	26mm	10mm	21mm	25mm	0.10
085B-11B	11	45.07mm	51.4mm	29mm	10mm	23mm	25mm	0.15
085B-12B	12	49.07mm	55.4mm	33mm	10mm	26mm	25mm	0.20
085B-13B	13	53.06mm	59.4mm	37mm	10mm	28mm	28mm	0.25
085B-14B	14	57.07mm	63.4mm	41mm	10mm	31mm	28mm	0.30
085B-15B	15	61.09mm	67.4mm	45mm	10mm	31mm	28mm	0.40
085B-16B	16	65.01mm	71.4mm	50mm	12mm	35mm	28mm	0.50
085B-17B	17	69.11mm	75.4mm	52mm	12mm	38mm	28mm	0.50
085B-18B	18	73.14mm	79.4mm	56mm	12mm	40mm	28mm	0.60
085B-19B	19	77.16mm	83.5mm	60mm	12mm	42mm	28mm	0.70
085B-20B	20	81.19mm	87.5mm	64mm	12mm	44mm	28mm	0.80
085B-21B	21	85.22mm	91.5mm	68mm	14mm	44mm	28mm	0.80
085B-22B	22	89.24mm	95.5mm	70mm	14mm	44mm	28mm	0.90
085B-23B	23	93.27mm	99.6mm	70mm	14mm	44mm	28mm	1.00
085B-24B	24	97.29mm	103.6mm	70mm	14mm	44mm	28mm	1.10
085B-25B	25	101.33mm	107.6mm	70mm	14mm	44mm	28mm	1.15
085B-26B	26	105.36mm	111.7mm	70mm	16mm	44mm	30mm	1.20
085B-27B	27	109.40mm	115.7mm	70mm	16mm	44mm	30mm	1.30
085B-28B	28	113.42mm	119.7mm	70mm	16mm	44mm	30mm	1.35
085B-29B	29	117.46mm	123.8mm	80mm	16mm	50mm	30mm	1.40
085B-30B	30	121.50mm	127.8mm	80mm	16mm	50mm	30mm	1.50
085B-31B	31	125.54mm	131.8mm	90mm	16mm	56mm	30mm	1.60
085B-32B	32	129.56mm	135.9mm	90mm	16mm	56mm	30mm	1.73
085B-33B	33	133.60mm	139.9mm	90mm	16mm	56mm	30mm	1.77
085B-34B	34	137.64mm	143.9mm	90mm	16mm	56mm	30mm	1.85
085B-35B	35	141.68mm
