1.5KW Without Cooling Fan Standard Hydraulic Power Unit Pack

1.5KW Without Cooling Fan Standard Hydraulic Power Unit Pack

The 1.5KW Without Cooling Fan Standard Hydraulic Power Unit Pack is a high-performance hydraulic power unit that provides reliable and efficient power for various industrial applications. With its robust power output, compact design, and absence of a cooling fan, this power unit offers optimal functionality and versatility in hydraulic systems that require a compact and fanless solution. Whether used in machine tools, material handling equipment, or other hydraulic-powered machinery, the 1.5KW Without Cooling Fan Standard Hydraulic Power Unit Pack ensures consistent power delivery and efficient operation.

Standard Hydraulic Power Unit Packs Model Description:

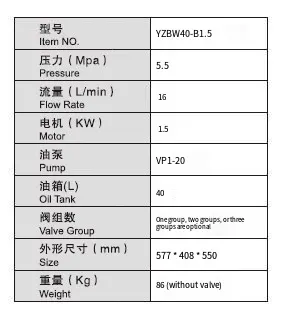

1.5KW Without Cooling Fan Standard Hydraulic Power Unit Pack Parameter:

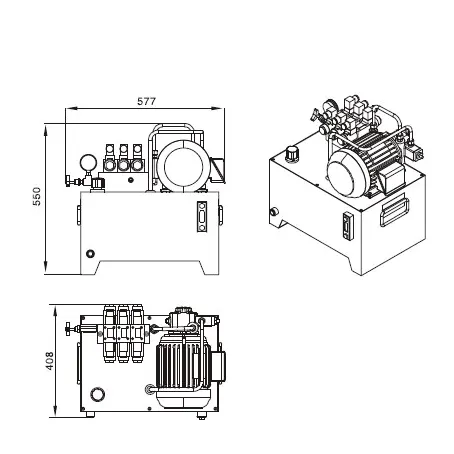

Standard Hydraulic Power Unit Packs Specification:

Standard Hydraulic Power Unit Packs Optional Parts:

Standard Hydraulic Power Unit Packs Schematic diagram:

Key Characteristics and Benefits Of Standard Hydraulic Power Unit Packs:

1. Powerful Performance:

• The 1.5KW Without Cooling Fan Standard Hydraulic Power Unit Pack features a robust 1.5KW power rating, providing ample power for a wide range of hydraulic applications.
• Its high-performance motor ensures reliable and consistent power delivery, enabling smooth operation of hydraulic machinery.

2. Compact Design:

• This power unit is designed with a compact form factor, making it ideal for installations with limited space or tight configurations.
• Its small footprint allows for easy integration into existing hydraulic systems without compromising performance or power output.

3. Fanless Cooling System:

• The 1.5KW Without Cooling Fan Standard Hydraulic Power Unit Pack is designed without a cooling fan, eliminating the need for regular fan maintenance and reducing the risk of fan-related failures.
• The absence of a cooling fan also results in reduced noise levels, contributing to a quieter working environment.

4. Standard Configuration:

• Equipped with standard hydraulic components, such as a motor, pump, reservoir, and control valves, this power unit offers compatibility with a variety of hydraulic systems.
• The standard configuration simplifies installation and replacement, ensuring ease of use and compatibility with existing hydraulic setups.

How To Disassemble Hydraulic Cylinder?

To disassemble a hydraulic cylinder, follow these general steps:

1. Safety Precautions:
   • Before starting, ensure the hydraulic system is depressurized and the power source is disconnected.
   • Use appropriate personal protective equipment, such as gloves and safety goggles, to protect yourself from any potential hazards.
2. Positioning and Support:
   • Place the hydraulic cylinder on a stable work surface, ensuring it is adequately supported to prevent accidental movement or damage.
3. Remove External Components:
   • Disconnect any external components attached to the cylinder, such as hoses, fittings, or mounting brackets.
   • Use suitable tools, such as wrenches or pliers, to loosen and remove these components carefully.
4. Drain Hydraulic Fluid:
   • Locate the drain plug or valve on the cylinder and remove it to allow the hydraulic fluid to drain into a suitable container.
   • Position the cylinder in a way that facilitates complete drainage.
5. Disassemble End Caps:
   • Identify the end caps of the hydraulic cylinder. They are usually located at each end of the cylinder barrel.
   • Remove bolts, screws, or fasteners, securing the end caps using the appropriate tools.
   • If necessary, gently tap the end caps with a rubber mallet to break any seal or adhesive bond.
6. Separate Cylinder Components:
   • With the end caps removed, carefully slide out the piston and piston rod from the cylinder barrel.
   • Please pay attention to any seals, bearings, or bushings present and remove them as necessary.
   • Take note of the order and orientation of the components for easier reassembly.
7. Inspect and Clean Components:
   • Inspect each disassembled component for signs of wear, damage, or contamination.
   • Clean all components using an appropriate solvent or cleaner to remove dirt, debris, or old lubricant.
   • Use a soft cloth or brush to gently clean the surfaces without causing any damage.
8. Replace or Repair Components:
   • If any components show significant wear or damage, consider replacing them with new ones.
   • Repair or rebuild components, such as replacing seals or reconditioning the piston rod.
9. Reassembly:
   • Follow the reverse order of disassembly to reassemble the hydraulic cylinder, ensuring proper alignment and orientation of components.
   • Lubricate the appropriate parts with recommended hydraulic fluid or lubricant during reassembly.
   • Tighten all fasteners to the manufacturer's specifications, using a torque wrench if necessary.
10. Testing and Inspection:

• Once reassembled, conduct a thorough inspection to ensure all components are correctly aligned and secured.
• Test the hydraulic cylinder in a controlled manner to verify its functionality and check for any leaks or abnormal operation.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of hydraulic power unit packs. It maintains a leading position in China's market segment of hydraulic power unit packs. In 2020, the domestic market share was around 29%. We produce Industrial hydraulic cylinders, Aerial work vehicle hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The hydraulic power unit packs production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
