0.75KW Without Cooling Fan Standard Hydraulic Power Unit Pack

0.75KW Without Cooling Fan Standard Hydraulic Power Unit Pack

The 0.75KW Without Cooling Fan Standard Hydraulic Power Unit Pack is a high-quality and efficient hydraulic power unit designed to provide reliable hydraulic power for various industrial applications. With its compact design, powerful performance, and absence of a cooling fan, this power unit offers optimal functionality and versatility in hydraulic systems that require a compact and fanless solution. Whether used in machine tools, material handling equipment, or other hydraulic-powered machinery, the 0.75KW Without Cooling Fan Standard Hydraulic Power Unit Pack ensures consistent power delivery and efficient operation.

Standard Hydraulic Power Unit Packs Model Description:

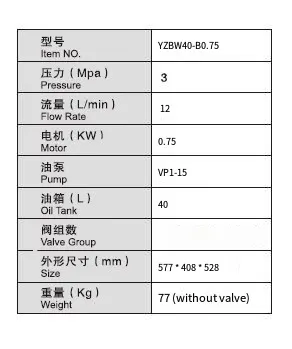

0.75KW Without Cooling Fan Standard Hydraulic Power Unit Pack Parameter:

Standard Hydraulic Power Unit Packs Specification:

Standard Hydraulic Power Unit Packs Optional Parts:

Standard Hydraulic Power Unit Packs Schematic diagram:

Key Characteristics and Benefits Of Standard Hydraulic Power Unit Packs:

1. Compact Design:

• The 0.75KW Without Cooling Fan Standard Hydraulic Power Unit Pack features a compact and space-saving design, making it ideal for installations with limited space or tight configurations.
• Its small footprint allows for easy integration into existing hydraulic systems without compromising performance or power output.

2. Powerful Performance:

• With its 0.75KW power rating, this hydraulic power unit delivers sufficient power for various hydraulic applications.
• The power unit ensures reliable and consistent performance, enabling smooth and efficient operation of hydraulic machinery.

3. Fanless Cooling System:

• The 0.75KW Without Cooling Fan Standard Hydraulic Power Unit Pack is designed without a cooling fan, which eliminates the need for regular fan maintenance and reduces the risk of fan-related failures.
• The absence of a cooling fan also reduces noise levels, contributing to a quieter working environment.

4. Standard Configuration:

• This power unit is equipped with standard hydraulic components, such as a motor, pump, reservoir, and control valves, making it compatible with a variety of hydraulic systems.
• The standard configuration simplifies installation and replacement, ensuring ease of use and compatibility with existing hydraulic setups.

How Does A One Way Hydraulic Cylinder Work?

A one-way, single-acting hydraulic cylinder operates using a hydraulic system to generate linear motion in one direction. It consists of a cylinder barrel, piston, piston rod, and hydraulic fluid. Here's how it works:

1. Hydraulic Fluid Supply:
   • The hydraulic system supplies pressurized fluid, typically oil, to the cylinder through a hydraulic pump or power source.
2. Cylinder Extension:
   • When hydraulic fluid is supplied to the cylinder, it enters the cylinder barrel through an inlet port.
   • The pressurized fluid pushes against the piston, causing it to move in the desired direction (typically extending the piston rod).
   • As the fluid pressure increases, it overcomes the resistance or load on the piston, resulting in the extension of the piston rod.
3. Sealing Mechanism:
   • The cylinder barrel is sealed to prevent fluid leakage. It typically incorporates seals around the piston and piston rod, such as O-rings or lip seals.
   • These seals ensure that the pressurized fluid acts only on one side of the piston, creating a pressure imbalance that drives the piston in the desired direction.
4. Return Stroke:
   • After the extension stroke, the hydraulic fluid is released or vented from the cylinder.
   • The hydraulic system may use gravity, a spring, or an external force to retract the piston and piston rod to their initial positions.
   • During the return stroke, the hydraulic fluid flows out of the cylinder through an outlet port.
5. Load Support:
   • The piston rod of the hydraulic cylinder is often connected to a load or mechanism that requires linear motion or force.
   • As the piston extends or retracts, it provides the necessary force to move or support the load.
6. Control and Valves:
   • To control the extension and retraction of the one-way hydraulic cylinder, the hydraulic system incorporates valves, such as check valves or directional control valves.
   • These valves regulate the flow of hydraulic fluid, allowing it to enter and exit the cylinder in the desired direction.
7. Application Specifics:
   • One-way hydraulic cylinders are commonly used in applications where force or motion is required in only one direction, such as lifting, pushing, or clamping.
   • They are often found in hydraulic jacks, hydraulic presses, dump trucks, and various other industrial and mobile equipment.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of hydraulic power unit packs. It maintains a leading position in China's market segment of hydraulic power unit packs. In 2020, the domestic market share was around 29%. We produce Industrial hydraulic cylinders, Aerial work vehicle hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The hydraulic power unit packs production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
