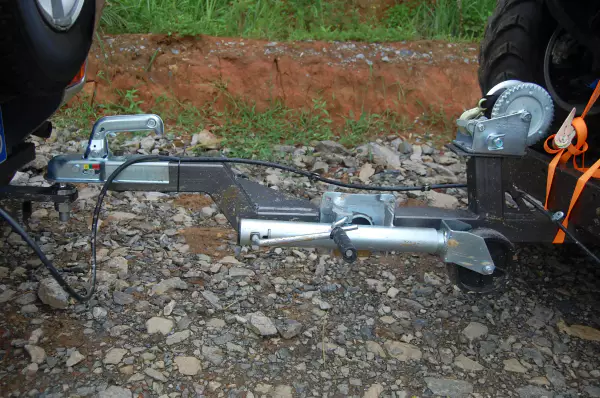

1000lbs Trailer Jack JW1602 Jockey Wheel 6″ Solid Wheel With Hardware

1000lbs Trailer Jack

We produce reliable heavy-duty products such as freight trucks, multi-purpose drilling rigs (for pickup trucks), and livestock trailers. The jack is certified to comply with ASABE-S485 (American Society of Agricultural and Biological Engineers) standards and is recognized as a world-class standard in terms of performance for telescopic (screw) jack models.When searching for a trailer jack, make sure you have a jack that meets your requirements. Take our jack as an example. Circular jacks support light loads for coupling, separation, and fixed support. Square and heavy-duty models are very suitable for mixing medium and heavy-duty reinforcement, coupled and decoupled, as well as storing trailers.Rack and pinion jacks are the best choice for improving stability and are also the support for trailers with heavier traction frames.

Load	1000lbs
Lifting height	10"
Pipe Size	51mm/44mm
thickness of pipe	2mm
Wheel	6" solid wheel
Surface	zinc plated

The Measurement Method for Trailer Jacks

In summary, the three most important attributes of a marine trailer jack that you need to understand are:1) its weight capacity2) its bracket size 3) its lifting height.Please remember that the jack does not need to lift the entire trailer, only the trailer tongue, which accounts for approximately 10-15% of the total weight. Standard jack brackets should be suitable for most frames, but if the frame height is greater than 3 inches or the depth is greater than 5 inches, a jack with adjustable brackets is required. As for the lifting height, marine trailer jacks typically use a combination of landing legs and inner tube extension to generate a total lift. Please remember that these three attributes will help you choose the best jack for your boat trailer.

Correct Use of Trailers

1. Before each departure, the components should be carefully inspected. For trailers using a towing frame, check the towing hook, towing frame, connecting pins, nuts, suspension rings, buffer springs, locking pins, etc; For trailers using a turntable, it is necessary to check the center bolt of the turntable, as well as the safety chain, wheel hub screws, steel plate springs and bolts, carriage, etc., to see if they are loose, bent, or cracked; Check the brake connection pipes, light wires, and other devices such as protective nets, signal lights, etc. to see if they are complete, if the connections are secure, and if the accompanying tools and items are ready.2. The loaded goods should be placed evenly and evenly, and it is not allowed to arbitrarily increase or lengthen the carriage. Overloading is not allowed. For long-term loading and parking, the carriage should be padded to prevent tire deformation.3. When starting, the clutch should be slowly and steadily engaged. When the trailer hook is tightened, the weight of the trailer is felt, and the tires begin to roll, the clutch pedal should be released; When shifting gears, strive for stability and quick and agile movements; When shifting gears, if the trailer collides with the main vehicle, it should be taken out of gear and coasted for a certain distance, and then shifted forward when the speed of the front and rear vehicles gradually becomes consistent.When driving, it is generally not advisable to slide out of gear. When encountering steep slopes or downhill turns, it is absolutely prohibited to slide out of gear. When going downhill, shift into the appropriate low gear in advance according to the length and gradient of the ramp, and control the speed with the resistance of the engine. When braking is necessary, the brake pedal must be pressed slowly to avoid emergency braking to prevent tire wear or tread peeling. The braking time should not be too long to prevent brake heating and reduce braking efficiency.

Types of Trailer Jack



JW1605	JW1602	TR1823	TR1819
Load:1500lbsLifting height:10"Pipe Size:51mm/44mmThickness of pipe: 2mmWheel:6"double solid wheel	Load:1000lbsLifting height:10"Pipe Size:51mm/44mmThickness of pipe: 2mmWheel:6"solid wheel	Lift load capacity:7000lbsSupport capacity: 8000lbsTravel:15" +13"Colse height:25.50"Expanded height:53.50"Pipe Size:65mm/57mm/51mm	Load capacity:2000lbsTravel:15"Pipe Size:57mm/51mmSurface: Black powder coatedOuter tube,Galvanized inner tube
TW510	TJ310	TJ715
Load capacity:5000lbsTravel:10"Colse height:480mmExpanded height:730mmPipe Size:57mm/51mmSurface: Black powder coated outer tubeGalvanized inner tube	Capacity: 3500lb 10" lifting	7000lbs capacity15" lifting13" drop legsqare tubeTop wind
