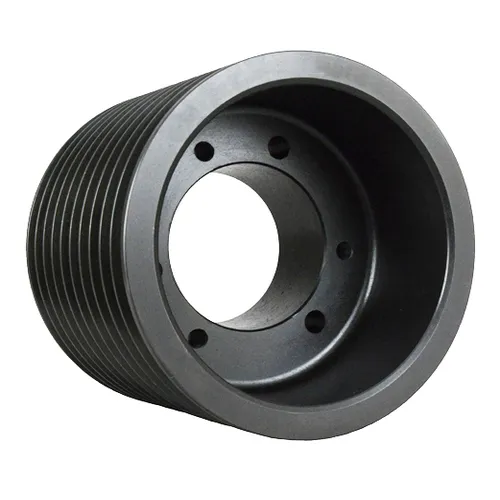

10D series ten-groove QD bushed sheaves are manufactured for D-series classic v-belts and D-banded belts; they range from 12.64" to 58.64" in diameter. Depending on the sheave size, they are made to use M, N, or P QD (quick detachable) bushings, which we also stock. Most of our 10D QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

10D QD Sheave Size Chart

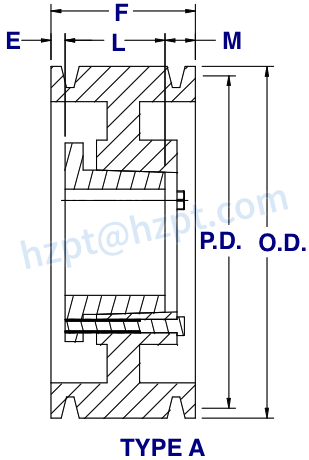

Size	Bushing Type	Type	Pitch Diameter	Outside Diameter	(E)	(F)	(L)	(M)	Sheave Weight (LBS)
10D120M	M	A	12.0"	12.64"	2-11/32"	14-11/16"	6-3/4"	5-19/32"	190
10D130M	M	A	13.0"	13.64"	2-11/32"	14-11/16"	6-3/4"	5-19/32"	220
10D135M	M	A	13.5"	14.14"	2-11/32"	14-11/16"	6-3/4"	5-19/32"	240
10D140M	M	A	14.0"	14.64"	2-11/32"	14-11/16"	6-3/4"	5-19/32"	250
10D145M	M	A	14.5"	15.14"	2-11/32"	14-11/16"	6-3/4"	5-19/32"	260
10D150M	M	A	15.0"	15.64"	2-11/32"	14-11/16"	6-3/4"	5-19/32"	270
10D155M	M	A	15.5"	16.14"	2-11/32"	14-11/16"	6-3/4"	5-19/32"	280
10D160M	M	A	16.0"	16.64"	2-11/32"	14-11/16"	6-3/4"	5-19/32"	290
10D180M	M	A	18.0"	18.64"	2-11/32"	14-11/16"	6-3/4"	5-19/32"	310
10D200M	M	A	20.0"	20.64"	2-11/32"	14-11/16"	6-3/4"	5-19/32"	330
10D220M	M	A	22.0"	22.64"	1-11/32"	14-11/16"	6-3/4"	5-19/32"	350
10D270M	M	A	27.0"	27.64"	1-11/32"	14-11/16"	6-3/4"	6-19/32"	440
10D330N	N	A	33.0"	33.64"	1-3/16"	14-11/16"	8-1/8"	5-5/8"	500
10D400N	N	A	40.0"	40.64"	1-3/16"	14-11/16"	8-1/8"	5-3/8"	650
10D480P	P	A	48.0"	48.64"	1/4"	14-11/16"	8-1/8"	5-1/16"	920
10D580P	P	A	58.0"	58.64"	1/4"	14-11/16"	8-1/8"	5-1/16"	1100

Related Matching D-Series, D-Series Banded V-Belts

(1) D-Series V-Belts

Classic D-Series V-Belts have a 1.25" top-width, 0.75" thickness, and a 40° angle. Additionally, D V-belts are one of the oldest styles of V-Belts in the industry. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium D-series v-belts we supply are manufactured under ISO 9001 specifications, are oil and heat resistant, and directly interchange with other brands. They are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability.

(2) D-Series Banded V-Belts

D-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. D-series v-belts have a 1-1/4" top-width per belt (band/ rib).

Related QD Bushings | Quick Disconnect Bushings

QD bushings are utilized throughout the industrial power transmission and agricultural industry for various sprockets, sheaves, pulleys, and synchronized drives. They are designed for easy installation and easy uninstallation; they are also commonly referred to as quick-disconnect bushings. QD bushings can help conventional mounting with the flange outboard and reverse mounting to where the flange is inboard and utilize a single split that extends through the entire bushing length. Our QD bushings interchange with other brands and are made from high-grade steel precision machined for perfect application fitment. QD bushings' benefits over different styles include; ease of installation/ uninstall, superior holding power, and extreme strengths. We stock all the standard sizes of QD bushings and supply custom QD bushings upon request.

Bushing Type	(A)	(B)	(D)	(E)	(F)	(G)	(L)	Bolt Circle	Cap Screws Required	Min. Stock Bore	Max. Bore W/ KW	Max Bore W/ Shallow KW	Set Screw Size	Avg. Weight (LBS)
M	1.250"	6.500"	9.000"	5.500"	5.188"	0.423"	6.750"	7.875"	4 - 0.75X6.75	1.938"	4.750"	5.500"	0.75 - 10	37.0
N	1.500"	7.000"	10.25"	6.625"	6.250"	0.423"	8.125"	8.500"	4 - 0.875X8.5	2.438"	5.125"	6.000"	0.75 - 10	57.0
P	1.750"	8.250"	11.75"	7.625"	7.250"	0.423"	9.375"	10.00"	4 - 1X9.5	2.938"	5.983"	7.000"	0.875 - 9	120.0

Types of V-Belt Pulleys

Several types of pulleys are used in v-belt transmissions, each with a different implementation. Occasionally flat-belt pulleys are suitable when the back side of the v-belt is used to rotate the pulley in the opposite direction of the driven pulley, as commonly employed with ribbed v-belts.

• Standard pulleys have dimensions with one or multiple grooves, which mate with classic, small-engine, and hexagonal-style v-belts.
• Companion pulleys contain integral spokes which run radially on the pulley. This produces a high strength-to-weight ratio advantageous to fractional horsepower pulleys.
• Idler pulleys are used solely as belt tensioners in many v-belt drives but play an essential part in maintaining the tension required to drive the transmission. Idler pulleys reduce belt service life and the industry's efficiency. Still, they are necessary for messages where the drive must clear obstructions, or the driven pulley does not maintain a good arc of contact with the v-belt to transmit torque. Idlers can interact with either the wedged or flat side of the v-belt since no torque is required to be sent to this axle.
• Variable speed pulleys have a variable pitch that adjusts the driven RPM, often within a range represented as a percentage. These pulleys are also helpful in maintaining belt tension for dynamic loads.
• Step pulleys have two or more non-adjustable grooves with different pitches around the same shaft. These pulleys change the speed ratio of the transmission.
