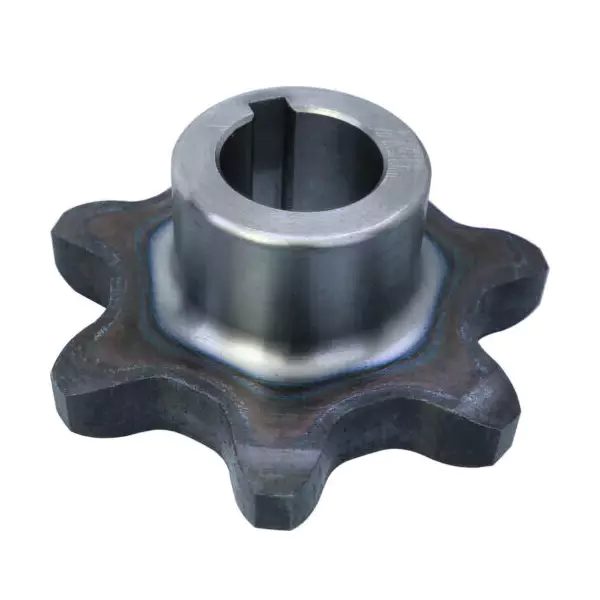

1317192C1 Sprocket for Case-IH Combine Grain Handling Parts

1317192C1 Sprocket for Case-IH Combine Grain Handling Parts

▍1317192C1 Sprocket Fits the following models

1317192C1 sprocket Replacement Chain Drive Fits Case IH Combine: (Upper & Lower Clean Grain Auger) Case-IH COMBINE :1640 1644 1660 1666 1670 1680 1688 2144 2166 2344 2366 (Lower Clean Grain Auger) Case-IH COMBINE: 1682 (Upper Clean Grain Auger) Case-IH COMBINE: 2188 2388 Forage Harvester Case-IH: 2144 Description / Notes: 9 Teeth; 1-1/4″ Diameter Shaft; Hardened Cross Reference Part #: 1317192C1; A-1317192C1; SP122; SP122H Replaces OEM Part Number:1317192C1 Replace the worn Sprockets and Idlers on your combine to extend the life of your chains and improve overall performance

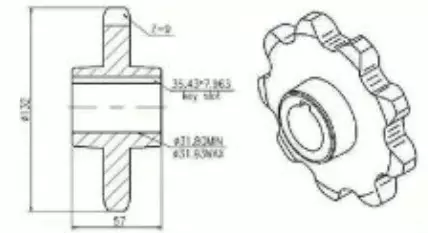

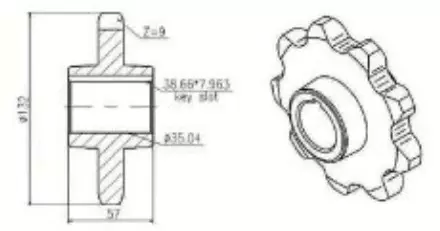

▍Parameters of 1317192C1 Sprocket

Weight, W	kg	1.5
Inner diameter, d	mm	35
Outer diameter, D	mm	132
Number of teeth, Z		9
Pitch, p	mm	41.4
Height, H	mm	57
Outside diameter, D1	mm	50
Key slot	mm	4x8x57

Spare parts for box combine elevator. Ensure that the torque is transmitted through the chain to the working device of the drive unit. This spare part is used to replace worn or damaged parts during maintenance. Steel or cast iron products with complex spatial shapes, with an asterisk, central hole, and fastener. The outer surface of parts is coated with a special coating to prolong the operation life.

▍We can provide customized services

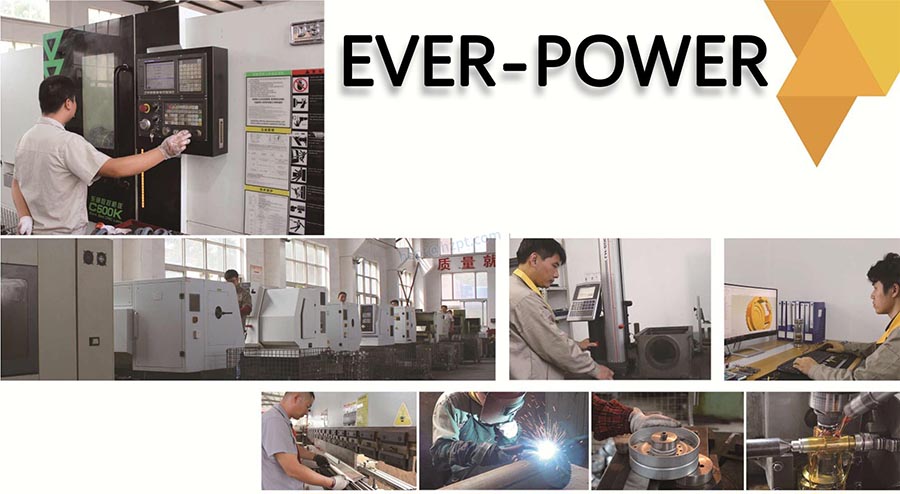

Processing forging, hobbing, precision machining, heat treatment, surface treatment Machining  Equipment Air hammer//electric screw press, imported vertical and horizontal CNC lathe, imported machining center, CNC tapping center, CNC hobbing machine, CNC cylindrical grinder, welding machines, vertical and horizontal hydraulic broaching machine. automatic production lines of high-power CNC heat treatment. Heat Treatment Normalizing/quenching and tempering/ carburizing and quenching /salt bath quenching/vacuum quenching/subzero treatment/liquid nitriding/gas nitriding/carbonnitriding/ QPQ treatment/high-frequency quenching. Surface  Treatment Zinc-plated, non-chromate dacromet treatment, chromium-plated, black oxide treatment, phosphorization, anodic oxidation, nickel-plated Application cover a wide range of sectors including agriculture machinery, logistics warehousing, garage, food Machinery, escalator, and so on. Packing the sprocket is packed in a plywood case lined with corrugated paperboard or carton box or according to customers' requirements.

▍Related Sprocket for New Holland

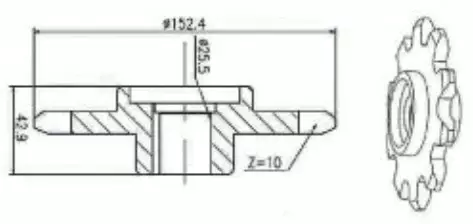

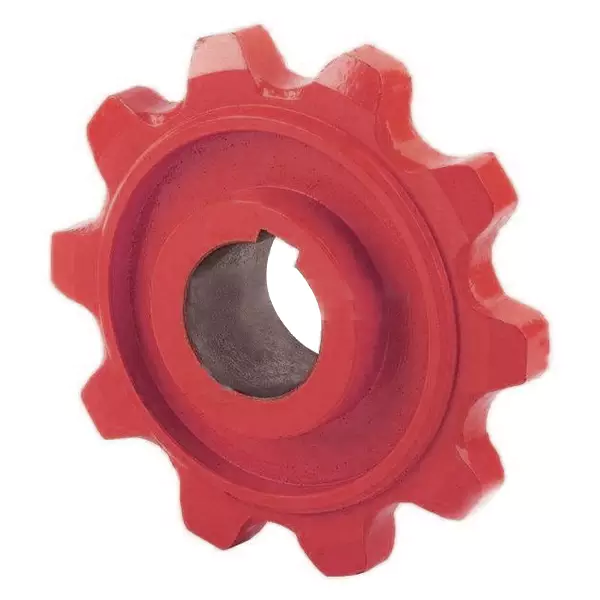

		80392932 Sprocket for New Holland Combine

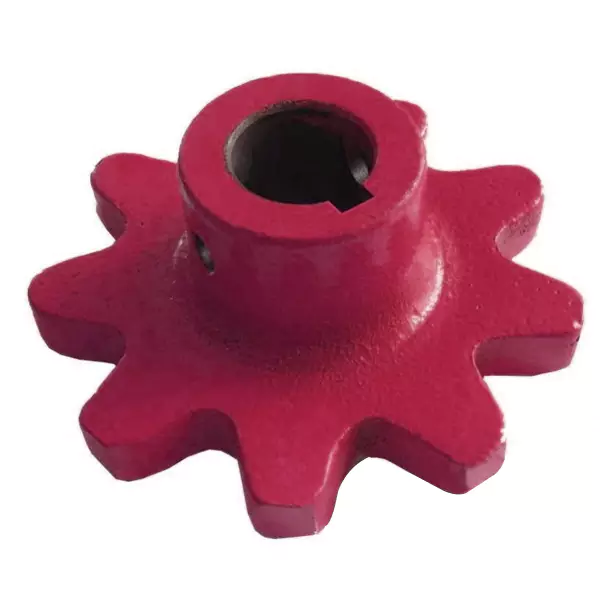

		80417785 Chain sprocket For New Holland Combine Harvest

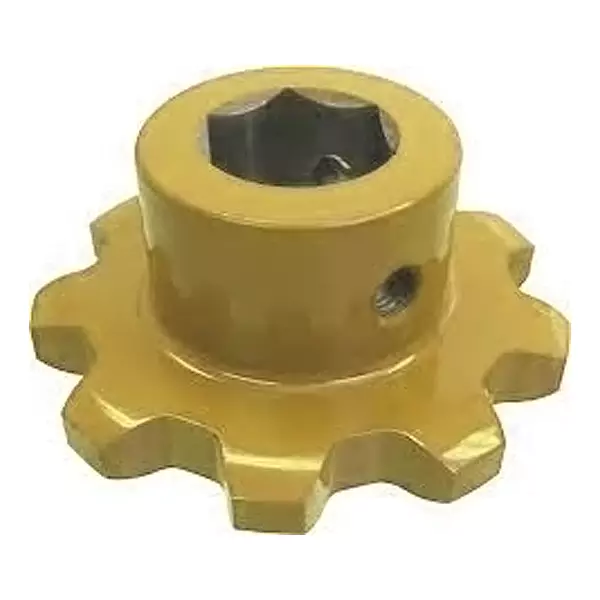

		Case 1970248C1 Feeder House Drive Sprocket For Case-IH Combine

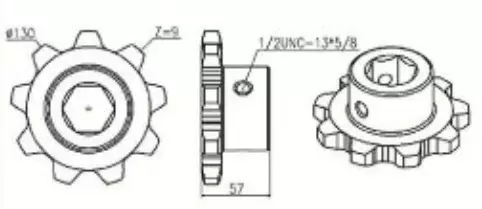

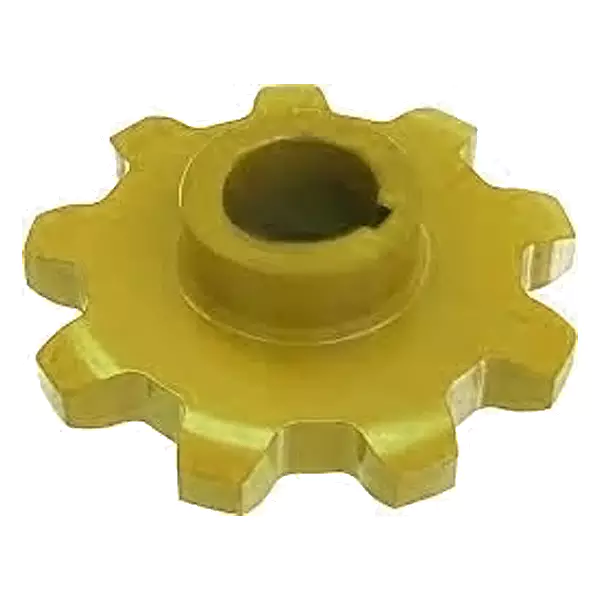

		143960A1 Sprocket For Case-IH Combine Clean Grain Elevator

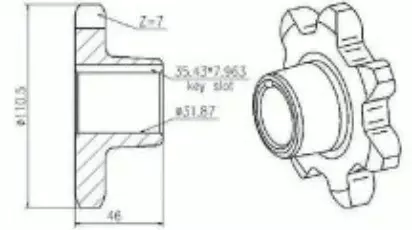

		144031A1/87740180 Sprocket For Case-IH Combine Grain Handling Parts
		1317192C1 Sprocket for Case-IH Combine Grain Handling Parts

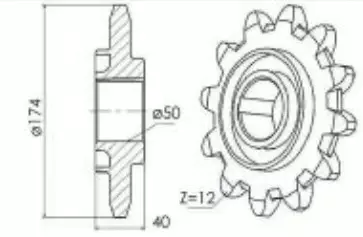

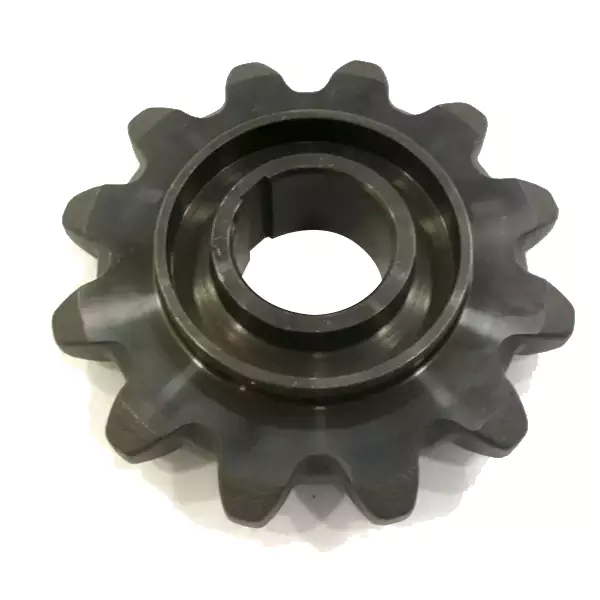

		84072022 Driven Sprocket For New Holland Feeder Chain

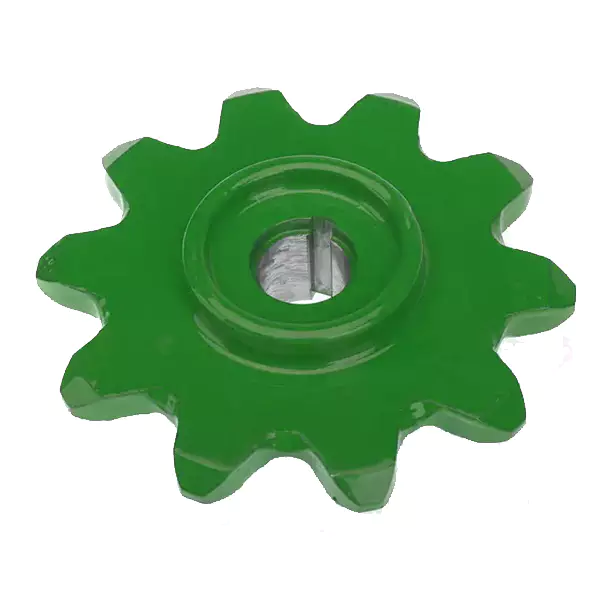

		19949C1/176278C2 Driven Sprocket For Case-IH Corn Head



▍Parts by equipment type

We can supply the following repair replacement parts for John Deere agricultural machinery equipment and accept customization Our products are widely applicable for that tractors and engines such as Massey Ferguson, John Deere, UTB, Fiat, Ford, New Holland, Perkins, Deutz, and so on. Our products have covered more than 6000 kinds of parts.

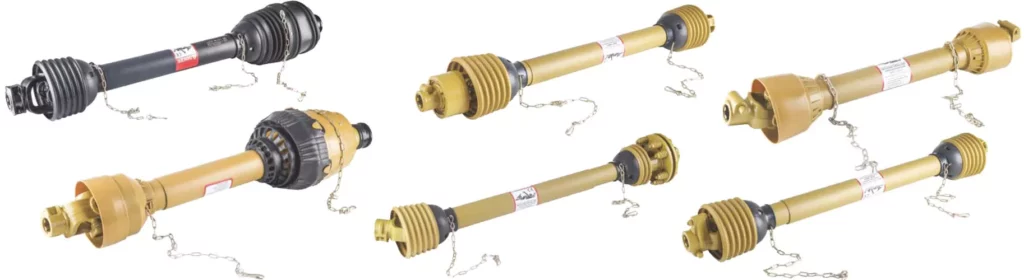

▍We Also Supply PTO Shafts & Agricultural chains
