1318493C2 1303116C1 1317480C2 Clean Grain Elevator Chain Rubber Paddle replaced for CASE-IH agricultural machine parts

1318493C2 1303116C1 1317480C2 Combine Clean Grain Elevator Chain Rubber Paddle Replaced for CASE-IH Agricultural Machine Parts

Introduction

The 1318493C2 1303116C1 1317480C2 Clean Grain Elevator Chain Rubber Paddle is a crucial component used in agricultural machinery. Specifically, it is used in the grain handling system of Case IH agricultural equipment to ensure efficient and effective crop harvesting. The elevator chain and rubber paddle work together to move the harvested grain from the combine's threshing system up to the grain tank.

• Rubber paddle

rubber paddle is used for replacing worn out or damaged parts during repairs. Used in many different models of combine harvester. They are adaptable to all the mayor brands on the market.

• Properties of the Rubber paddle

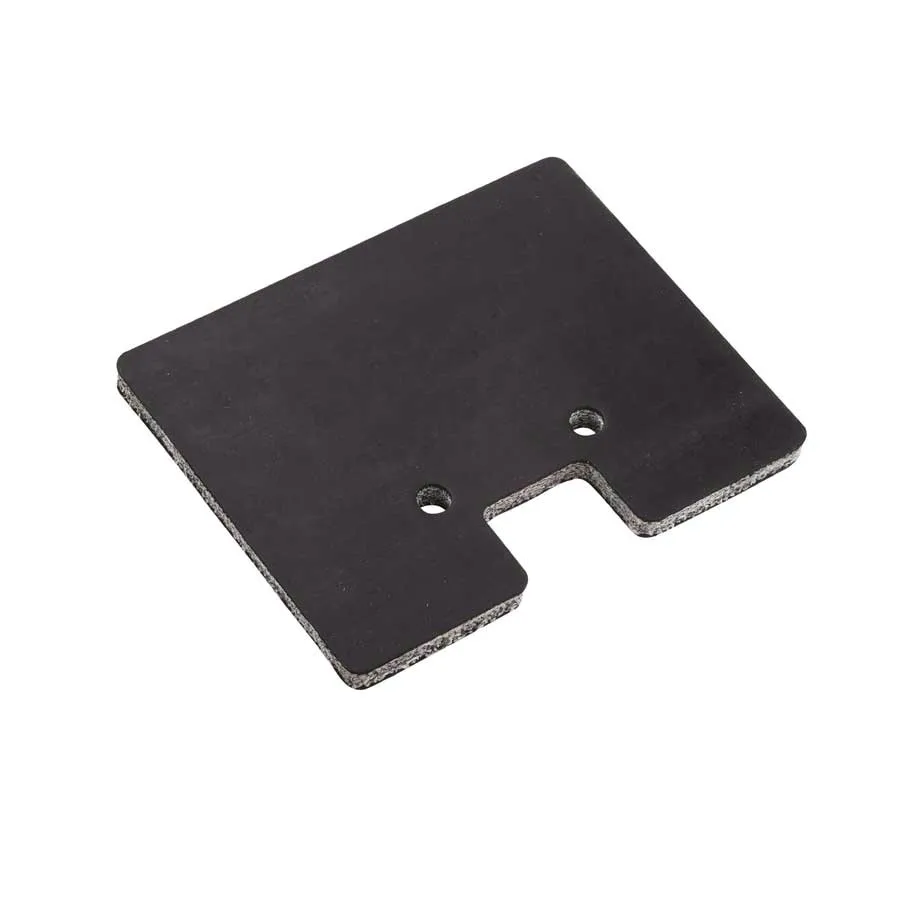

A rectangular component made of special rubber with a cavity cut one one of its sides for the link of the conveyor chain. Fixing openings are executed there as well.

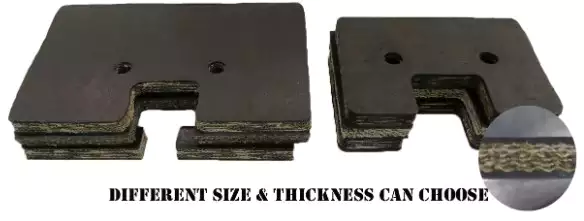

Material： Rubber: natural rubber. No use circle tire- Core of cable : canvas. No nylon line. Description： New natural rubber, hardness 40 HD, high wear-resistingCanvas in middle to provide enough strength Size & Thickness： Different sizes and thickness can choose to match your demand

PRODUCT SPECIFICATIONS



Item Name	Rubber paddle
COMBINE No.	4G1117
OEM Ref. No.	1318493C2
Size	102*192 *11
Weight	0.32kg
Application	Case-IH COMBINE: 1680,1682, 2188, 2377, 2388,2588

Item Name	Rubber paddle
COMBINE No.	4G1084
OEM Ref. No.	1317480C2
Size	144*102*11
Weight	0.086kg
Application	CASE1640,1644,1660,1666,1670,2144,2166,2344,2366

Item Name	Rubber paddle
COMBINE No.	4G1085
OEM Ref. No.	1303116C1
Size	146*71*9
Weight	0.150kg
Application	CASE 1420,1440,1460,1470,1480,1482,1620,1640,1644,1660,1666, 1670,1680,1682,1688,2144,2166,2188,2344,2366,2377,2388

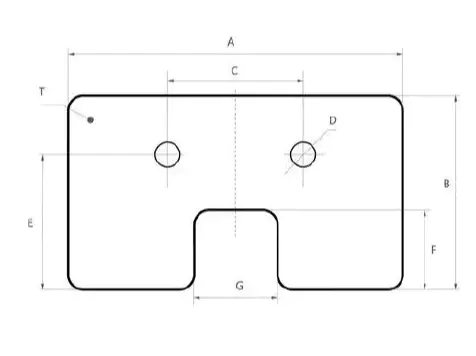

Ref. No.	A	B	C	D	E	F	G	T
101622-B	190	100	113	10	48	38	21	9
H135235	150	80	80	10	39	33	37	12
397856	154	80						9
60545.0	154	100	52	8.5	33	22	36	9
619298.2	107	80	52	8.5	33	22	36	9
642644	154	124	52	8.5	33	22	36	9
H137276	147	107	77	10	37	32	34	12
H137277	195	108	77	10	39	39	35	12
	204	100	88	8.5	45	40	42	9
H1303116C1	145	60	78	10	29	29	39	9
036276	154	78						9
69.9245	110	84						11
71.5466	93	80						11
	107	80	52	8.5	45	29	35	9
	154	100	52	8.5	40	26	34	9
	154	78	52	8.5	43	29	34	9
	154	124	52	8.5	41	26	34	9
	154	127	60	8.5	64	50	34	9
	134	39	52	8.5	53	30	40	9
	184	101	88	8.5	46	15	42	9
	152.5	80	54.5	6.5	34	30	32.5	9
	152	80	88	8.5	37	36	40	9
	120	109	88	8.5	41	33	40	9
	146	110	88	8.5	42	34	40	9
	186	100	88	8.5	41	34	40	9
	148	86	58	6.5	40	35	36	9
	174	85	58	6.5	40	35	34	9
	109	85	58	6.5	39	35	37	9
	146	71	79.4	8.5	44	32	37.4	9
	145	104	79.4	8.5	42	38	39	9

- The data are presented for your reference. - More sizes can be supplied according to your specification.

Applications

The 1318493C2 1303116C1 1317480C2 Combine Clean Grain Elevator Chain Rubber Paddle is typically used in the following agricultural machinery:

• Case IH Axial-Flow Combines
• Case IH Corn Heads
• Case IH Grain Heads

Compatibility

The 1318493C2 1303116C1 1317480C2 Combine Clean Grain Elevator Chain Rubber Paddle is compatible with the following Case IH agricultural machinery models:

Brand	Model
Case IH	1480, 1482, 1680, 1682, 1688, 2188, 2388, 2577, 2588, 5088, 5130, 5140, 6088, 6130, 6140, 7088, 7130, 7140, 7230, 7240, 8010, 8120, 8230, 8240, 9120, 9130, 9140, 9230, 9240

Additional Agricultural Machinery Parts

In addition to the 1318493C2 1303116C1 1317480C2 Combine Clean Grain Elevator Chain Rubber Paddle, we offer a wide range of other agricultural machinery parts, including:

• Agricultural chains
• Agricultural gearbox
• Pulley
• Sprocket
• Coupling
• PTO shaft
• Concave

Signs of Wear and Tear

It is important to replace the 1318493C2 1303116C1 1317480C2 Combine Clean Grain Elevator Chain Rubber Paddle when the following signs of wear and tear appear:

• Excessive material buildup on the elevator chain and/or rubber paddles
• Cracks or breaks on the rubber paddles
• Unusual noises during operation
• Sluggish or uneven grain flow

Choosing the Right Replacement Parts

When choosing replacement parts for your agricultural machinery, it is important to consider the following factors:

• Compatibility with your equipment
• Quality and durability of the parts
• Price and availability

It is recommended to choose replacement parts from a reliable and trustworthy supplier, such as us, to ensure the highest quality and compatibility with your equipment. Author: Miya
