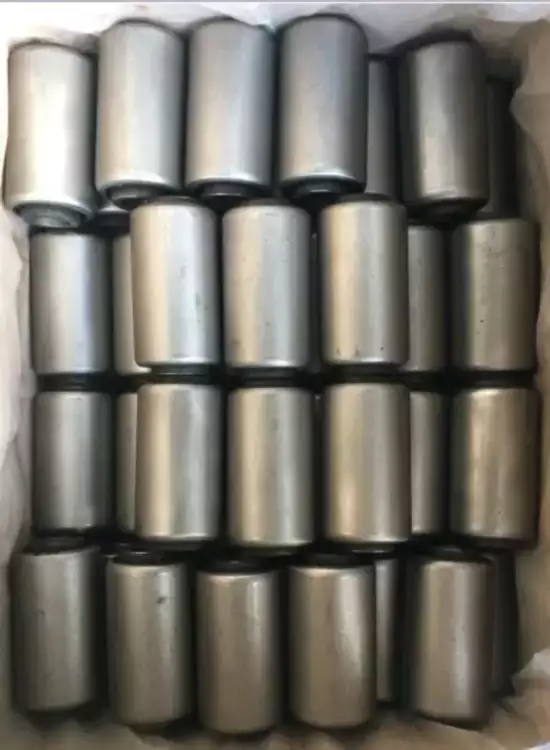

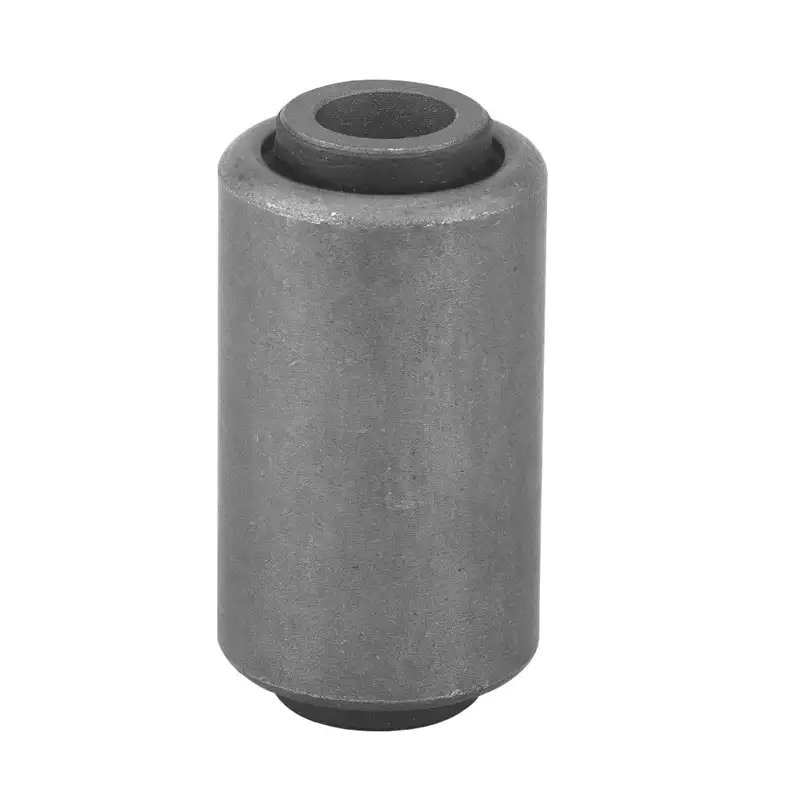

1330323C2 Silent Block Rubber Bushing

1330323C2 Silent Block Rubber Bushing

Silent Block Rubber Bushing, also known as rubber shock absorber, is a type of vibration damper that is commonly used in agricultural machinery. It plays an important role in reducing the shock and vibration caused by the operation of machinery.Here is a list of where Silent Block Rubber Bushing can be used in agricultural machinery:

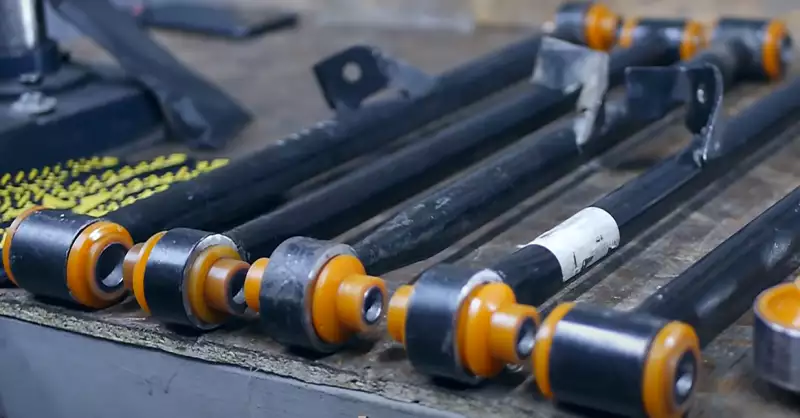

Suspension System

Silent Block Rubber Bushing is used in the suspension systems of agricultural tractors, combine harvesters, seeders, and other farm machinery. It connects the chassis and the suspension arm or the suspension arm and the agricultural implement, providing a cushion effect.

Power Transmission System

Silent Block Rubber Bushing is used in the connection shafts between the engine and the gearbox, between the gearbox and the drive shaft, and between the drive shaft and the wheel hub. It reduces the vibration during the power transmission process.

Control Mechanism

Silent Block Rubber Bushing is used in steering linkages, braking systems, and hydraulic control mechanisms to reduce the impact and vibration of moving parts.

Working Device Connection Point

Silent Block Rubber Bushing is used in the connection points between various working components (such as plows, harrow blades, and cutterbars) and the mainframe of agricultural machinery to adapt to the working conditions of uneven terrain and reduce the impact on the main structure.The 1330323C2 Silent Block Rubber Bushing can be adapted to the following agricultural machinery brands and models:In addition to Silent Block Rubber Bushing, we also offer other agricultural machinery accessories such as agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, concave, and more.Here are some signs that indicate it's time to replace Silent Block Rubber Bushing:

Abnormal Vibration and Noise

When Silent Block Rubber Bushing fails, the vibration that was previously absorbed by it will be transmitted to the entire machinery structure, causing noise such as clicking and clanging.

Decreased Precision

If the precision of the operation of the agricultural machinery is not as good as before, such as unstable steering or difficulty maintaining a straight line during field operations, it may be due to the wear and tear of Silent Block Rubber Bushing in the suspension system or working device connection points, leading to the displacement of parts.

Obvious Signs of Wear and Tear

When inspecting the various parts of the agricultural machinery regularly, if you find that the surface of the rubber bushing has cracks, fractures, severe wear and tear, deformation, or even complete rupture, it means that the bushing has lost its function and must be replaced.

Decreased Performance

When the agricultural machinery is in operation, it feels more bumpy, and the riding comfort is greatly reduced. Or if the agricultural implement has difficulty maintaining contact with the soil during work, it may be due to the failure of the Silent Block Rubber Bushing, which affects the normal operation of the suspension system or working device.To choose the right Silent Block Rubber Bushing, consider the following:

Inner and Outer Diameter Size

Accurately measure the inner and outer diameter and length of the original bushing to ensure that the new bushing can be tightly matched to the installation position.

Installation Method

Pay attention to the design of the bushing, including whether it has threads, flanges, or other special installation structures.

Material

High-quality rubber bushings are usually made of fatigue-resistant and wear-resistant synthetic rubber, such as Nitrile rubber (NBR), Hydrogenated Nitrile Rubber (HNBR), Fluorine rubber (FKM), etc., selected according to specific working conditions.

Damping Requirements

Select rubber materials with suitable damping characteristics according to the vibration characteristics of the agricultural machinery to effectively absorb vibration energy.

Weather Resistance

If the agricultural machinery works outdoors for a long time, the bushing should have good resistance to UV, ozone, grease, and chemical corrosion.Author: Miya
