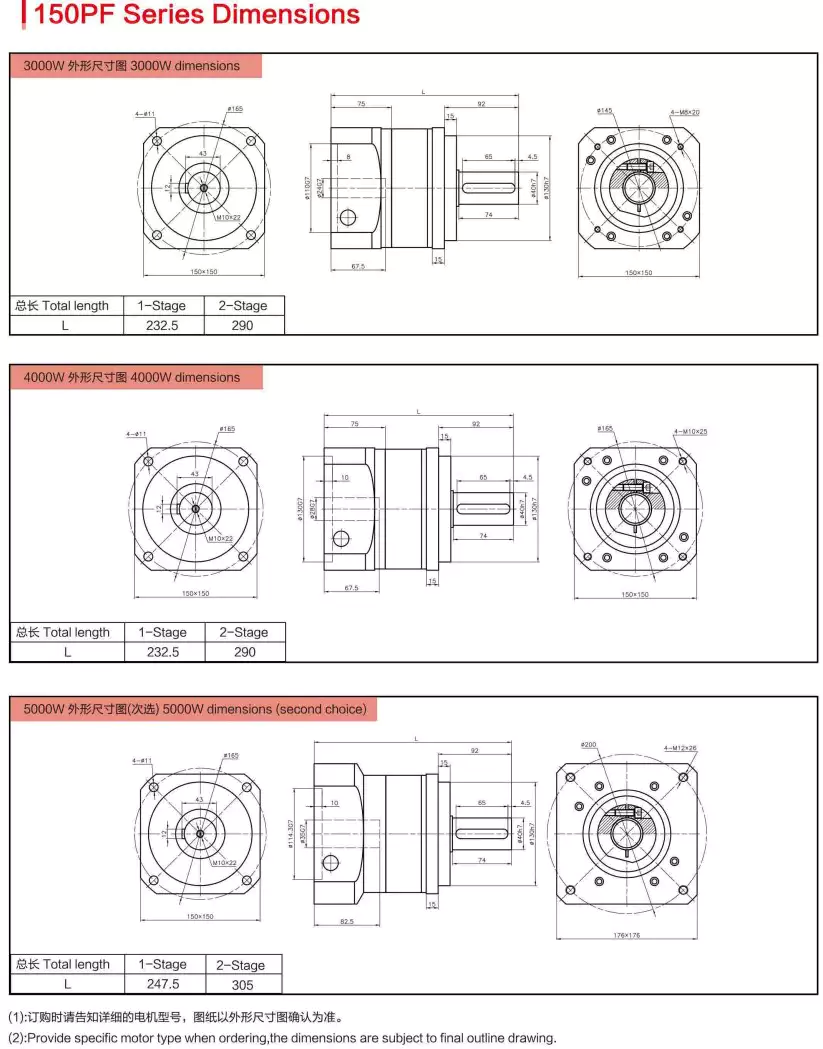

150PF Series High Torque Precision Planetary Gearbox

150PF Series High Torque Precision Planetary Gearbox

The 150PF Series High Torque Precision Planetary Gearbox is a high-precision gearbox used in various industries. It provides excellent performance in terms of torque transmission, power density, and reliability. It is designed to provide precise and efficient motion control in demanding applications.

Overview

The 150PF Series High Torque Precision Planetary Gearbox is a type of gearbox used to transfer power from one rotating element to another. It consists of a sun gear, planetary gears, and ring gear. The planetary gears rotate around the sun gear, while the ring gear remains stationary. This type of gearbox is known for its high torque density, high stiffness, and low backlash.

Features

The 150PF Series High Torque Precision Planetary Gearbox has several unique features that make it stand out in the market. These features include:

1. Precise transmission: The gearbox provides highly precise motion control, making it suitable for applications that require accurate positioning.
2. High torque density: The gearbox has a high torque density, making it ideal for high-load applications.
3. Smooth operation: The gearbox has low vibration and noise levels, ensuring smooth and quiet operation.
4. Reliability and durability: The gearbox is designed to withstand harsh operating conditions and has a long service life.
5. Multiple mounting options and configurations: The gearbox can be mounted in various positions and configurations to fit different applications.
6. Wide speed range: The gearbox can operate at a wide range of speeds, making it suitable for applications that require variable speed control.
7. High adaptability: The gearbox can be customized to fit specific application requirements.
8. High efficiency: The gearbox has high efficiency, ensuring minimal energy loss during operation.
9. Protective measures: The gearbox is equipped with various protective measures to ensure safe and reliable operation.

Internal Structure

The 150PF Series High Torque Precision Planetary Gearbox has a robust internal structure designed to withstand high loads and provide precise motion control. The internal structure consists of the following parts:

1. Integral double wall planet pinion carrier: This part is responsible for holding the planetary gears in place and transmitting torque from the sun gear to the planetary gears.
2. Bearing for the output shaft: This part supports the output shaft and ensures smooth rotation.
3. Steel output flange: This part connects the gearbox to the driven element.
4. Integral inner gear housing: This part houses the planetary gears and provides support for the input shaft.
5. Planetary wheel: This part rotates around the sun gear and transmits torque to the output shaft.
6. Sun wheel: This part is the central gear and is responsible for transmitting torque to the planetary gears.
7. Bearing for the input shaft: This part supports the input shaft and ensures smooth rotation.
8. Integral hoop clamp coupling: This part connects the input shaft to the sun gear.
9. Back cover: This part houses the internal structure and protects it from external elements.

Applications

The 150PF Series High Torque Precision Planetary Gearbox is widely used in various industries, including:

• Industrial automation: The gearbox is used in robotic arms, assembly lines, and other automated systems that require precise motion control.
• Material handling: The gearbox is used in conveyor systems, cranes, and other material handling equipment that require high torque and precise motion control.
• Renewable energy: The gearbox is used in wind turbines, solar trackers, and other renewable energy systems that require high torque and efficient motion control.
• Machine tools: The gearbox is used in CNC machines, milling machines, and other machine tools that require precise motion control.
• Medical equipment: The gearbox is used in CT scanners, X-ray machines, and other medical equipment that require precise and reliable motion control.
• Food processing: The gearbox is used in food processing equipment that requires high torque and efficient motion control.
