16B-3 Metric Roller Chain Sprockets

Raydafon Group's 16B-3 Metric Roller Chain Sprockets deliver precision performance in power transmission systems. Engineered from durable materials, they ensure smooth operation and extended lifespan for industrial machinery. Ideal for engineers and manufacturers, these sprockets enhance efficiency, minimize downtime, and provide reliable solutions for demanding applications. Set yourself apart with Raydafon's quality—experience unmatched durability and performance today!

Send Inquiry

Product Description

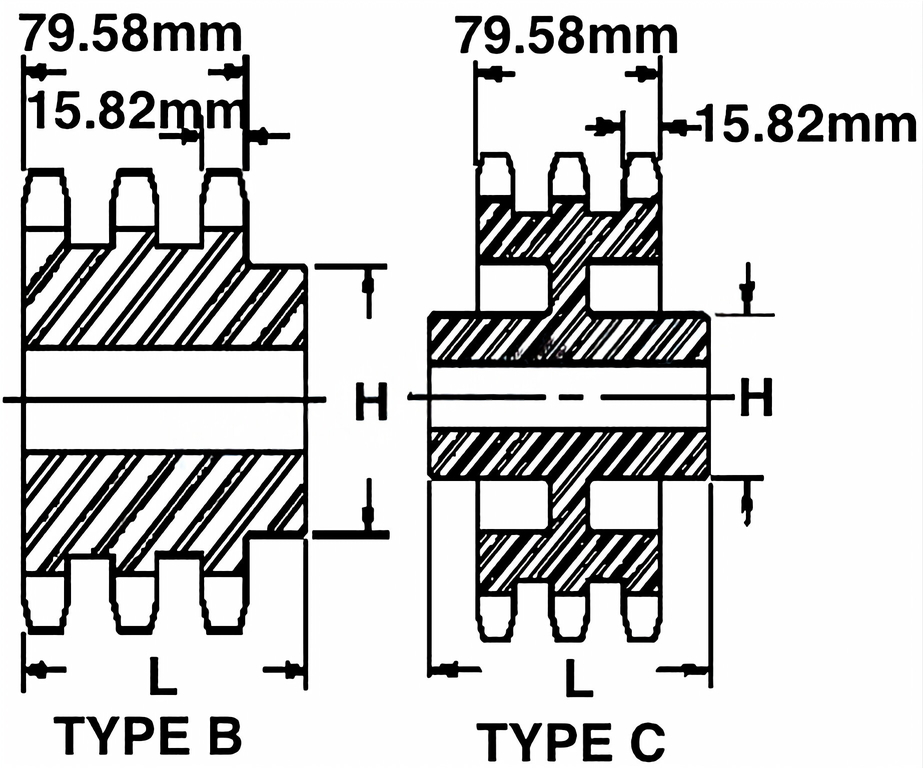

16B-3 roller chain sprockets are manufactured for metric 16B-3 roller chain and are manufactured in accordance with ISO, DIN, and BS228/3 standards. Our sprockets are precision manufactured from high-quality steel, directly interchange with other manufactures, and are engineered for superb performance and durability. Common styles of these sprockets include B-Hub, C-Hub, and taper bushed type but others are available upon request. 16B-3 Metric Roller Chain Sprockets

16B-3 B-Hub & C-Hub Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Maximum Bore	Hub Diameter (H)	Length Thru Bore (L)	Sprocket Weight (kg)
*E16B11*	11	90.16mm	25mm	42mm	63mm	100mm	2.72
*E16B12*	12	98.14mm	25mm	45mm	72mm	100mm	3.59
E16B13	13	106.14mm	25mm	52mm	80mm	100mm	4.13
*E16B14*	14	114.15mm	25mm	58mm	88mm	100mm	4.68
*E16B15*	15	122.17mm	25mm	62mm	96mm	100mm	5.54
*E16B16*	16	130.20mm	30mm	66mm	104mm	100mm	6.81
*E16B17*	17	138.23mm	30mm	74mm	112mm	100mm	8.07
*E16B18*	18	146.27mm	30mm	80mm	120mm	100mm	9.99
*E16B19*	19	154.32mm	30mm	84mm	128mm	100mm	10.89
*E16B20*	20	162.37mm	30mm	85mm	130mm	100mm	11.80
*E16B21*	21	170.42mm	30mm	85mm	130mm	100mm	13.61
*E16B22*	22	178.42mm	30mm	85mm	130mm	100mm	14.07
*E16B23*	23	186.54mm	30mm	85mm	130mm	100mm	14.97
*E16B24*	24	194.60mm	30mm	85mm	130mm	100mm	16.34
*E16B25*	25	202.66mm	30mm	85mm	130mm	100mm	17.70
*E16B26*	26	210.72mm	30mm	85mm	130mm	100mm	19.98
*E16B27*	27	218.79mm	30mm	85mm	130mm	100mm	21.57
*E16B28*	28	226.86mm	30mm	85mm	130mm	100mm	23.15
E16B29	29	234.93mm	30mm	85mm	130mm	100mm	24.74
*E16B30*	30	243.00mm	32mm	95mm	140mm	105mm	26.33
*E16B35*	35	283.36mm	32mm	95mm	140mm	105mm	36.06
E16B36	36	291.43mm	32mm	95mm	140mm	105mm	38.06
E16C38	38	307.58mm	32mm	97mm	152mm	114mm	41.45
E16C42	42	339.89mm	40mm	97mm	152mm	114mm	38.51
E16C45	45	364.12mm	40mm	97mm	152mm	114mm	41.91
E16C57	57	461.08mm	40mm	107mm	159mm	120mm	51.35
E16C60	60	485.33mm	40mm	107mm	159mm	120mm	58.06
E16C68	68	549.98mm	40mm	107mm	159mm	120mm	63.50
E16C76	76	614.64mm	40mm	107mm	159mm	120mm	77.11
E16C95	95	768.22mm	40mm	114mm	171mm	127mm	100.70
E16C114	114	921.81mm	40mm	114mm	171mm	127mm	120.84

16B-3 Taper Bushed Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter	Bushing Size	Max. Bushing Bore	Length Thru Bore (L)	Dimension (H)	Sprocket Weight (kg)
E16ATB17	17	138.22mm	2517	65mm	44.5mm	--	4.20
E16BTB19	19	154.33mm	3030	75mm	76.2mm	--	4.30
E16BTB21	21	170.43mm	3030	75mm	76.2mm	--	6.60
E16BTB23	23	186.53mm	3535	100mm	65.0mm	--	7.00
E16BTB25	25	202.66mm	3535	100mm	65.0mm	--	9.80
E16BTB27	27	218.79mm	3535	100mm	65.0mm	--	12.80
E16BTB30	30	243.00mm	3535	100mm	65.0mm	--	18.00
E16BTB38	38	307.59mm	3535	100mm	89.0mm	178mm	21.50
E16CTB45	45	364.13mm	4040	115mm	102.0mm	216mm	33.50
E16CTB57	57	461.07mm	4040	115mm	102.0mm	216mm	39.50
E16CTB76	76	614.65mm	4040	115mm	102.0mm	216mm	59.50
