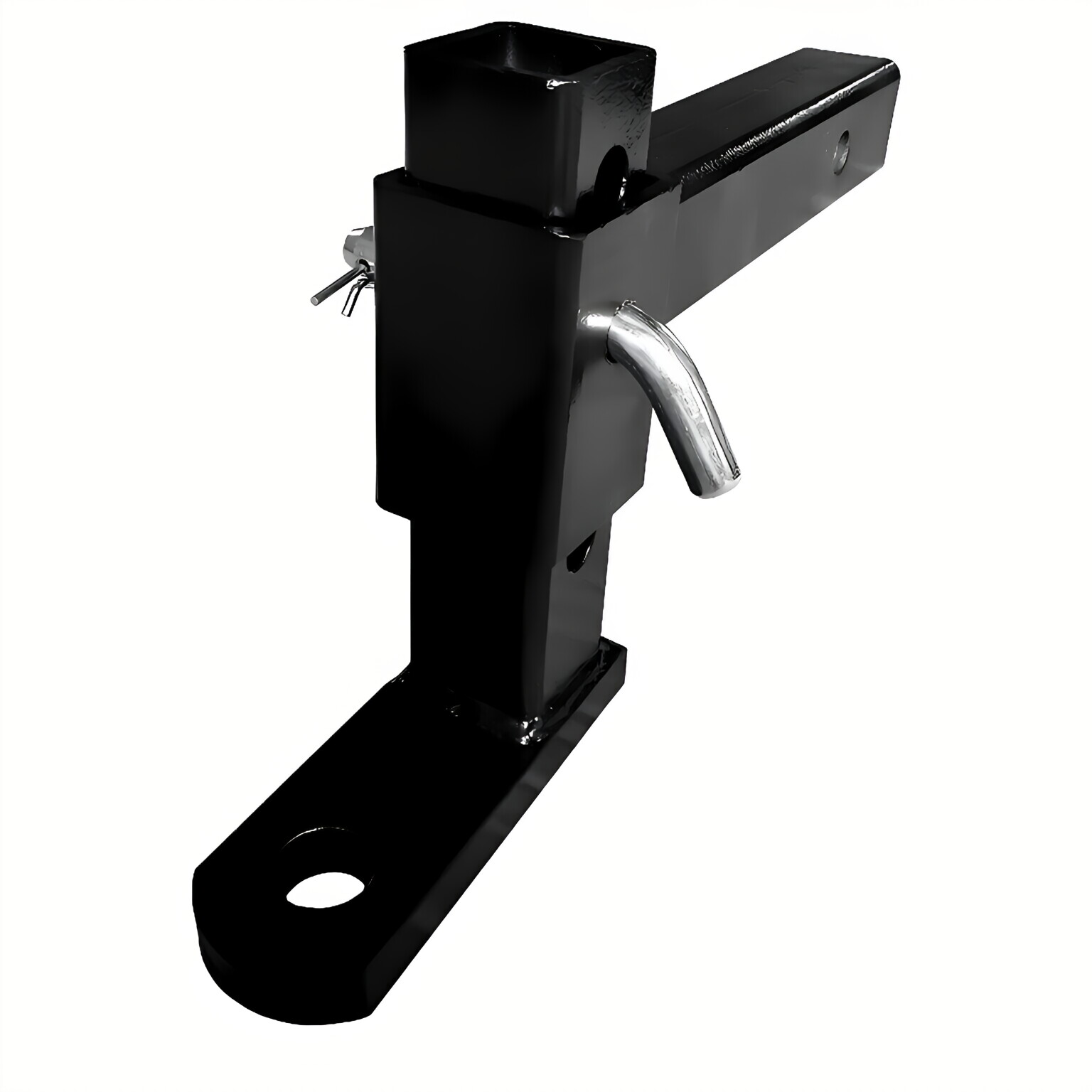

1BJY-HM-08 Towking 5000lbs Class Iii 4-way Adjustable Ball Mount

1BJY-HM-08 Towking 5000lbs Class Iii 4-way Adjustable Ball Mount

Product Description

Specifications

• Application: 2" x 2" trailer hitch receivers
• Gross towing weight: 5,000 lbs
• Tongue weight: 500 lbs

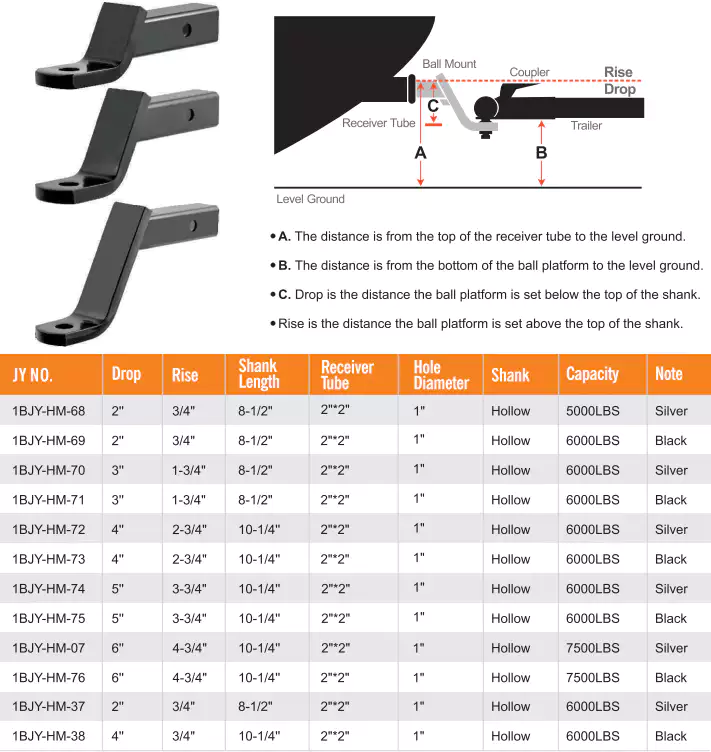

• Drop
• Minimum: 3"
• Maximum: 7-1/2"
• Rise
• Minimum: 1-3/4"
• Maximum: 6-1/4"
• Distance between vertical adjustment holes: 1-1/2"
• Distance from center of hitch pin hole to center of ball hole: 13"
• Distance from center of hitch pin hole to upright bar is 8-1/8"
• Overall length: 17"
• Ball hole diameter: 1"
• Shank length: 10-3/4"

As a highly capable and experienced electronic commerce SEO copywriter, I would like to introduce the Towking 5000lbs Class Iii 4-way Adjustable Ball Mount. This product is built to last with high-strength carbon steel and a black nickel finish that provides enhanced corrosion protection. It??s engineered and tested to meet quality performance standards. The versatile capacity allows you to choose from a range of towing capacities depending on your needs. Simply pull out the drawbar and rotate. The sporty utility of this towing accessory makes it ideal to tow and haul boats, utility trailers, campers, livestock trailers, recreational vehicle trailers, dirt bikes, ATVs, motorcycles, and more.

Item No.??

1BJY-HM-08

Capacity:

5000 lbs

Finished:

Black Powder Coat

Material

Steel

Placement on Vehicle

2" x 2" trailer hitch receivers

Length

17"

Drop

7-1/2"

Rise

6-1/4"

Product Features and Advantages

• Material: Made from high-strength carbon steel, providing enhanced durability and corrosion resistance.
• Structure Design: The adjustable design allows for versatility in towing capacity and makes it easy to use.
• Surface Treatment: The black nickel finish provides enhanced corrosion protection.
• Bearing Capacity: Can tow up to 5,000 lbs with a tongue weight of 500 lbs.
• Durability and Reliability: Engineered and tested to meet quality performance standards, ensuring reliable and long-lasting use.
• Safety Features: The adjustable design allows for safe and secure towing.
• Easy Installation: The adjustable design makes it easy to install onto 2" x 2" trailer hitch receivers.
• Convenient Operation: Simply pull out the drawbar and rotate to adjust towing capacity.
• Simple Maintenance: The black nickel finish provides enhanced corrosion protection and is easy to clean and maintain.

Main Applications and Purposes

The Towking 5000lbs Class Iii 4-way Adjustable Ball Mount is ideal for towing and hauling boats, utility trailers, campers, livestock trailers, recreational vehicle trailers, dirt bikes, ATVs, motorcycles, and more.

• Boats: Ideal for towing boats of various sizes and weights.
• Utility Trailers: Perfect for towing utility trailers for various purposes.
• Campers: Ideal for towing campers of various sizes and weights.
• Livestock Trailers: Perfect for towing livestock trailers for various purposes.
• Recreational Vehicle Trailers: Ideal for towing recreational vehicle trailers of various sizes and weights.
• Dirt Bikes, ATVs, and Motorcycles: Perfect for towing dirt bikes, ATVs, motorcycles, and more.

Compatibility

The Towking 5000lbs Class Iii 4-way Adjustable Ball Mount is compatible with 2" x 2" trailer hitch receivers.

Other Products in Our Trailer Parts Series

We provide a wide range of trailer parts and accessories, including Hitch Ball, Trailer Coupler, Ball Mount, Hand Winch, Jack, and more.

Installation Guide

Follow these steps to correctly install your Towking 5000lbs Class Iii 4-way Adjustable Ball Mount:

1. Remove the old ball mount from your trailer hitch receiver.
2. Slide the Towking 5000lbs Class Iii 4-way Adjustable Ball Mount into the trailer hitch receiver.
3. Secure the ball mount by inserting the hitch pin through the hole on the ball mount and the trailer hitch receiver.
4. Adjust the height of the ball mount to match the height of your trailer.
5. Attach the trailer to the ball mount and secure it in place.

Signs You Need to Replace Your Trailer Ball Mount

You should replace your Trailer ball mount in the following situations:

• Wear and Tear: If your ball mount shows signs of wear and tear, such as rust, cracks, or dents, it may need to be replaced.
• Bent or Damaged: If your ball mount is bent or damaged, it can affect your towing capacity and may need to be replaced.
• Change in Towing Needs: If your towing needs change, you may need to replace your ball mount to accommodate your new needs.

Maintenance and Inspection

Regular maintenance and inspection can help ensure the longevity and optimal performance of your Towking 5000lbs Class Iii 4-way Adjustable Ball Mount. Here are some tips:

• Clean Regularly: Clean your ball mount regularly to prevent dirt and debris buildup that can cause damage and corrosion.
• Check for Damage: Regularly check your ball mount for signs of wear and tear, bent, or damage. Replace as needed.
• Grease Fittings: Regularly grease the fittings to prevent rust and corrosion buildup and ensure smooth operation.
• Store Properly: Store your ball mount in a dry, clean, and covered area to prevent damage from environmental factors.
