1TB Gripbelt Pulley with Split Taper Bushings

1TB Gripbelt Pulley with Split Taper Bushings

Upgrade your machinery with Raydafon Guoup's 1TB Gripbelt Pulley with Split Taper Bushings, designed for robust power transmission in industrial and automotive applications. Featuring durable construction, secure gripbelt technology, and easy-install split taper bushings, this pulley delivers superior performance, reducing maintenance and downtime. Ideal for mechanics, engineers, and manufacturers seeking reliability and efficiency in demanding environments, it ensures smoother operations and long-term savings. Stand out with its precise fit and enhanced durability compared to standard models. Elevate your projects today with Raydafon Guoup—quality you can trust for lasting results.
1TB series pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 3.75" to 38.35" in diameter. Depending on the pulley size, they are made to use with P1 taper bushings or Q1 taper bushings, which we also stock. Most of our 1TB pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

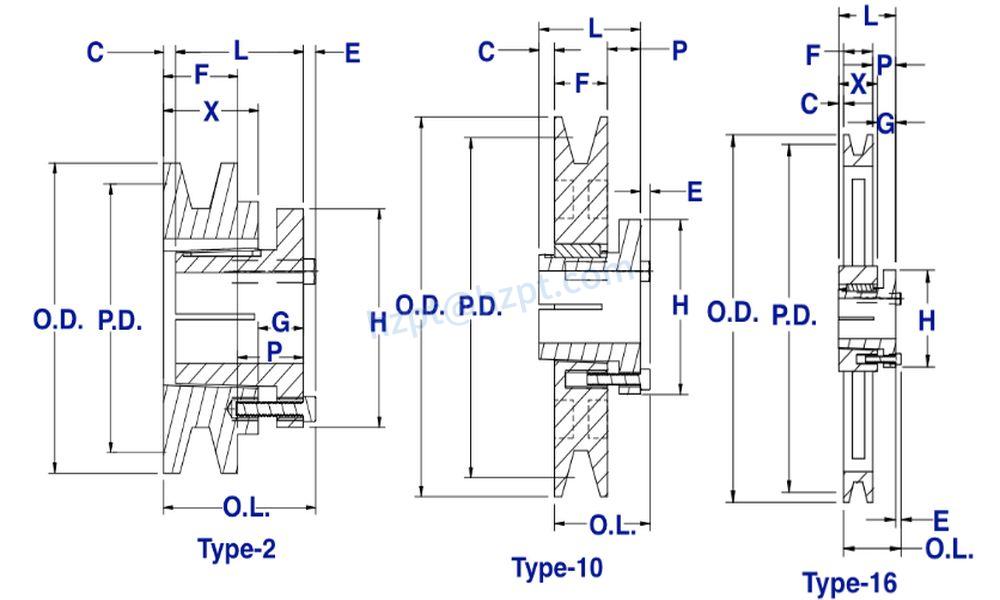

1TB Style Pulley Size Chart

1TB Gripbelt Pulley with Split Taper Bushings
SizeBushing TypePitch Diameter (4L/A)Pitch Diameter (5L/B)Outside DiameterType(O.L.)(L)(P)(C)(H)(F)(G)(X)(E)Pulley Weight (LBS)
1TB34P13.0"3.4"3.75"22-5/16"1-15/16"1-1/16"1/8"3"1"5/8"1-7/16"1/4"2.0
1TB36P13.2"3.6"3.95"22-5/16"1-15/16"1-1/16"1/8"3"1"5/8"1-7/16"1/4"2.3
1TB38P13.4"3.8"4.15"22-5/16"1-15/16"1-1/16"1/8"3"1"5/8"1-7/16"1/4"2.6
1TB40P13.6"4.0"4.35"102-3/16"1-15/16"5/8"5/16"3"1"----1/4"2.1
1TB42P13.8"4.2"4.55"102-3/16"1-15/16"5/8"5/16"3"1"----1/4"2.4
1TB44P14.0"4.4"4.75"102-3/16"1-15/16"5/8"5/16"3"1"----1/4"2.8
1TB46P14.2"4.6"4.95"102-3/16"1-15/16"5/8"5/16"3"1"----1/4"3.1
1TB48P14.4"4.8"5.15"102-3/16"1-15/16"5/8"5/16"3"1"----1/4"3.5
1TB50P14.6"5.0"5.35"102-3/16"1-15/16"5/8"5/16"3"1"----1/4"3.9
1TB52P14.8"5.2"5.55"102-3/16"1-15/16"5/8"5/16"3"1"----1/4"4.1
1TB54P15.0"5.4"5.75"102-3/16"1-15/16"5/8"5/16"3"1"----1/4"4.6
1TB56P15.2"5.6"5.95"102-3/16"1-15/16"5/8"5/16"3"1"----1/4"5.1
1TB58P15.4"5.8"6.15"102-3/16"1-15/16"5/8"5/16"3"1"----1/4"5.6
1TB60P15.6"6.0"6.35"102-3/16"1-15/16"5/8"5/16"3"1"----1/4"6.0
1TB62P15.8"6.2"6.55"102-3/16"1-15/16"5/8"5/16"3"1"----1/4"5.5
1TB64P16.0"6.4"6.75"102-3/16"1-15/16"5/8"5/16"3"1"----1/4"5.8
1TB66P16.2"6.6"6.95"102-3/16"1-15/16"5/8"5/16"3"1"----1/4"5.9
1TB68P16.4"6.8"7.15"102-3/16"1-15/16"5/8"5/16"3"1"----1/4"6.1
1TB70P16.6"7.0"7.35"162-3/16"1-15/16"25/32"5/32"3"1"5/8"1-5/16"1/4"6.4
1TB74P17.0"7.4"7.75"162-3/16"1-15/16"25/32"5/32"3"1"5/8"1-5/16"1/4"7.3
1TB80P17.6"8.0"8.35"162-3/16"1-15/16"25/32"5/32"3"1"5/8"1-5/16"1/4"7.8
1TB86P18.2"8.6"8.95"162-3/16"1-15/16"25/32"5/32"3"1"5/8"1-5/16"1/4"8.6
1TB90P18.6"9.0"9.35"162-3/16"1-15/16"25/32"5/32"3"1"5/8"1-5/16"1/4"8.9
1TB94P19.0"9.4"9.75"162-3/16"1-15/16"25/32"5/32"3"1"5/8"1-5/16"1/4"9.1
1TB110P110.6"11.0"11.35"162-3/16"1-15/16"25/32"5/32"3"1"5/8"1-5/16"1/4"11.1
1TB124Q112.0"12.4"12.75"162-25/32"2-1/2"1-1/8"3/8"4-1/8"1"3/4"1-3/4"9/32"17.8
1TB136Q113.2"13.6"13.95"162-25/32"2-1/2"1-1/8"3/8"4-1/8"1"3/4"1-3/4"9/32"18.2
1TB154Q115.0"15.4"15.75"162-25/32"2-1/2"1-1/8"3/8"4-1/8"1"3/4"1-3/4"9/32"20.3
1TB160Q115.6"16.0"16.35"162-25/32"2-1/2"1-1/8"3/8"4-1/8"1"3/4"1-3/4"9/32"22.0
1TB184Q118.0"18.4"18.75"162-25/32"2-1/2"1-1/8"3/8"4-1/8"1"3/4"1-3/4"9/32"27.5
1TB200Q119.5"20.0"20.35"162-25/32"2-1/2"1-1/8"3/8"4-1/8"1"3/4"1-3/4"9/32"27.2
1TB250Q124.5"25.0"25.35"162-25/32"2-1/2"1-1/8"3/8"4-1/8"1"3/4"1-3/4"9/32"42.4
1TB300Q129.5"30.0"30.35"162-25/32"2-1/2"1-1/8"3/8"4-1/8"1"3/4"1-3/4"9/32"56.0
1TB380Q137.5"38.0"38.35"162-25/32"2-1/2"1-1/8"3/8"4-1/8"1"3/4"1-3/4"9/32"78.0

Applications of 1TB Style Pulley

Products are widely used in the power output of small diesel engines, agricultural vehicles, tractors, automobiles, mining machinery, machining equipment, textile machinery, packaging machinery, lathes, forging machines, some small horsepower motorcycle power transmission, agricultural machinery power transmission, Air compressor, reducer, reducer, generator, etc.
1TB Gripbelt Pulley with Split Taper Bushings1TB Gripbelt Pulley with Split Taper Bushings1TB Gripbelt Pulley with Split Taper Bushings1TB Gripbelt Pulley with Split Taper Bushings
Agriculture
Machine Tool
Electric Machinery
Marine
1TB Gripbelt Pulley with Split Taper Bushings1TB Gripbelt Pulley with Split Taper Bushings1TB Gripbelt Pulley with Split Taper Bushings1TB Gripbelt Pulley with Split Taper Bushings
Mining
Oil and Gas
Automobile

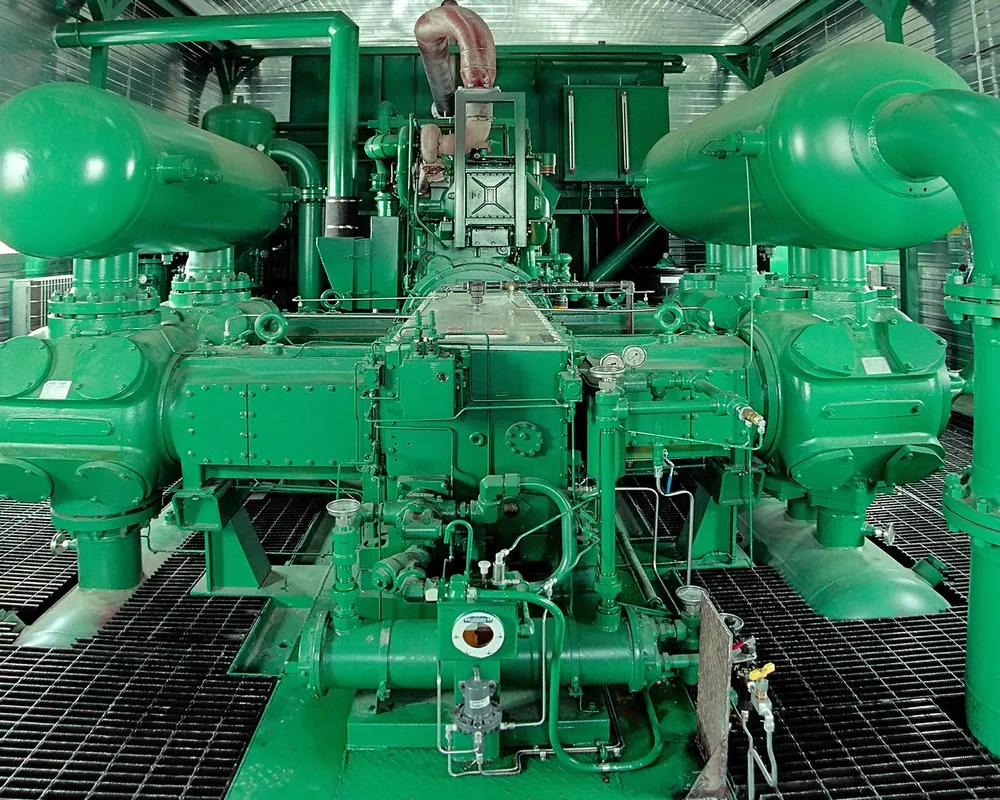

Compressors

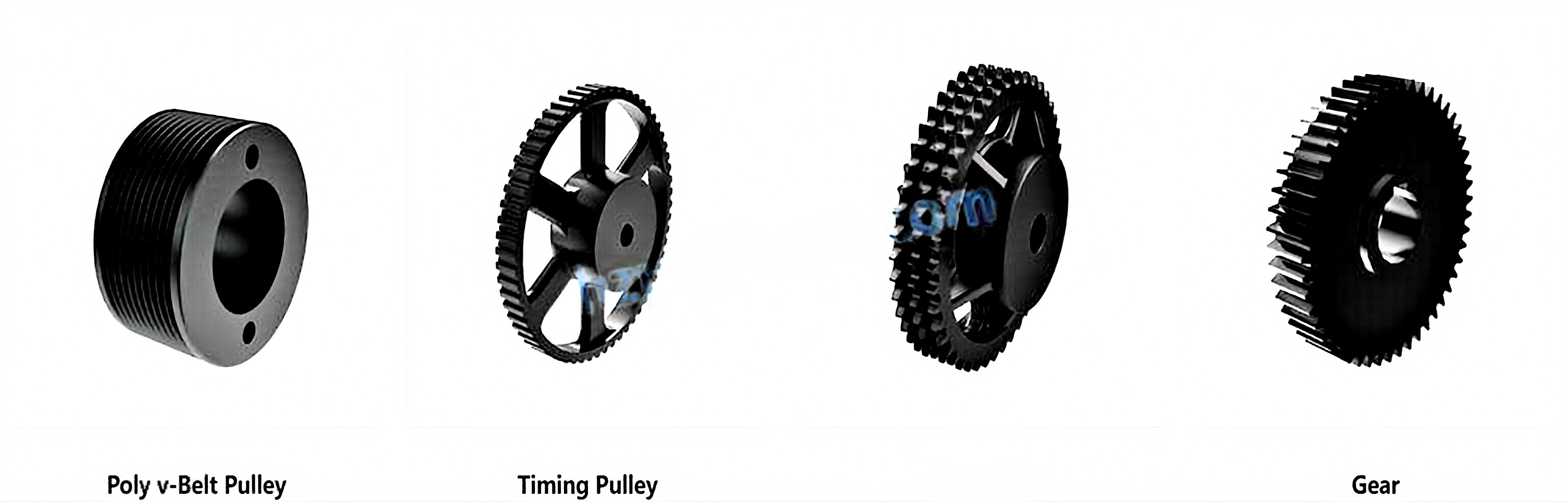

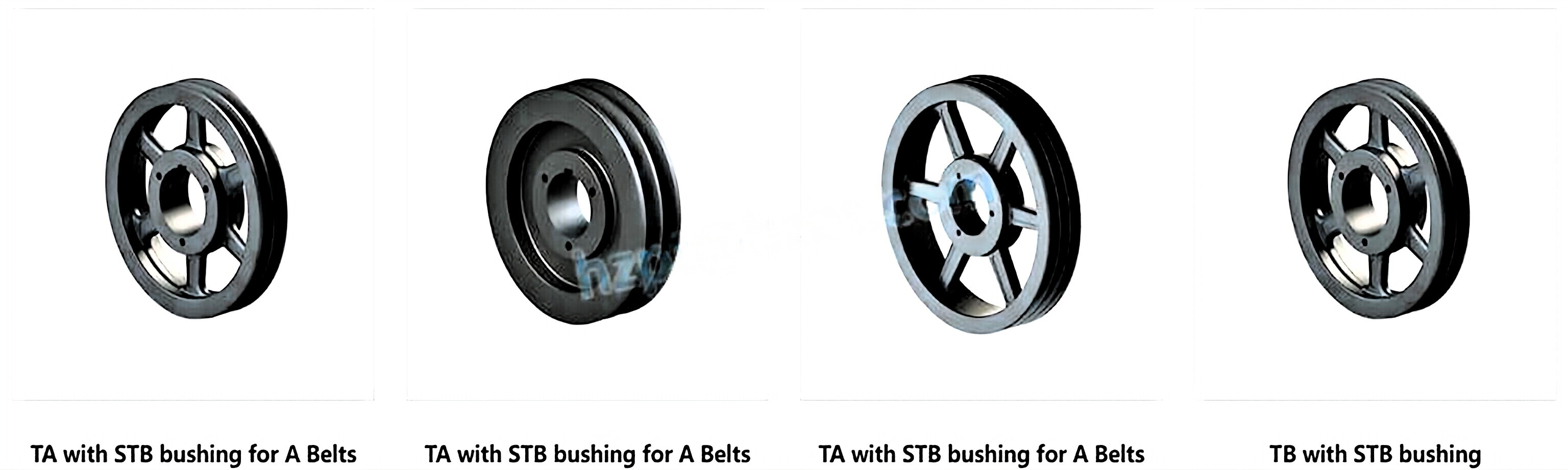

Related Products
