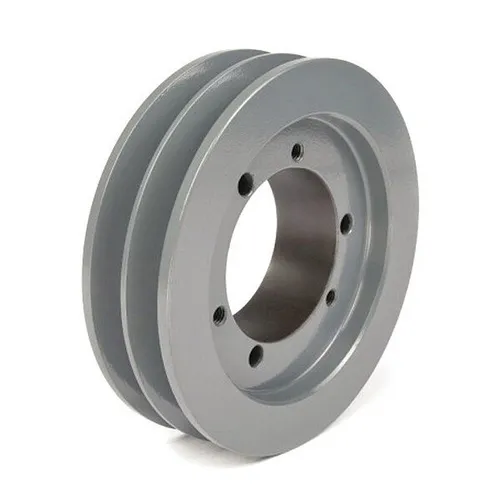

2B QD Bushed Sheaves Pulleys for “A” and “B” Belts

2B series pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 3.75" to 38.35" in diameter. Depending on the pulley size, they are made to use with SH, SDS, SK, or SF QD bushings, which we also stock. Most of our two-groove 2B QD bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation. The main benefit of using a QD (quick detachable) pulley is that if the bushing (hub) breaks, you don't have to replace the whole assembly, or if just the pulley gets worn out, the same principle applies. The other significant benefit is that there is a broader range of bore options with QD pulleys than with the "fixed-bore" style.

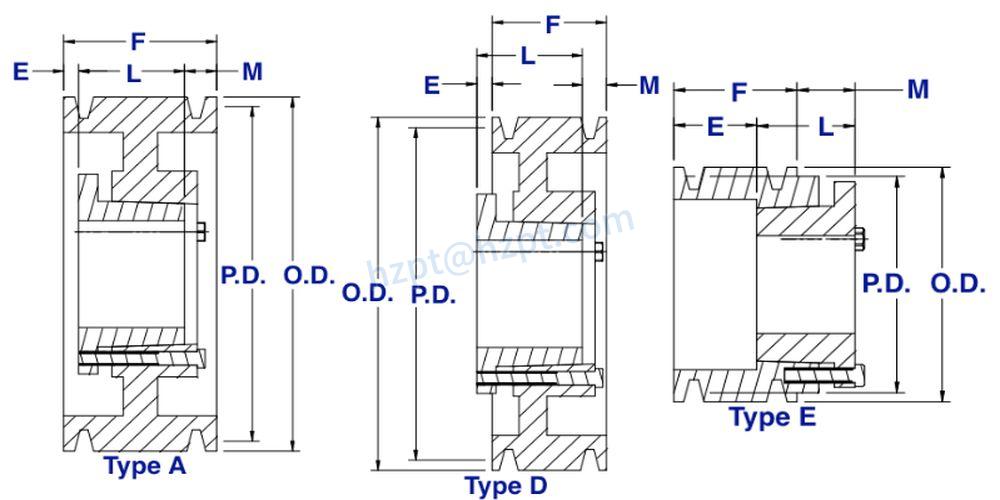

2B Style QD Bushed Pulley Size Chart

Size	Bushing Type	Pulley Type	Pitch Diameter (5L/B)	Pitch Diameter (4L/ A)	Outside Diameter	(E)	(F)	(L)	(M)	Pulley Weight (LBS)
2B34SH	SH	E	3.4"	3.0"	3.75"	1-3/32"	1-3/4"	1-5/16"	21/32"	3.2
2B36SH	SH	D	3.6"	3.2"	3.95"	15/32"	1-3/4"	1-5/16"	29/32"	3.4
2B38SH	SH	D	3.8"	3.4"	4.15"	15/32"	1-3/4"	1-5/16"	29/32"	3.9
2B40SH	SH	A	4.0"	3.6"	4.35"	1/32"	1-3/4"	1-5/16"	13/32"	4.1
2B42SH	SH	A	4.2"	3.8"	4.55"	1/32"	1-3/4"	1-5/16"	13/32"	4.4
2B44SH	SH	A	4.4"	4.0"	4.75"	1/32"	1-3/4"	1-5/16"	13/32"	4.6
2B46SDS	SDS	A	4.6"	4.2"	4.95"	1/32"	1-3/4"	1-5/16"	13/32"	5.0
2B48SDS	SDS	A	4.8"	4.4"	5.15"	1/32"	1-3/4"	1-5/16"	13/32"	5.4
2B50SDS	SDS	A	5.0"	4.6"	5.35"	1/32"	1-3/4"	1-5/16"	13/32"	6.0
2B52SDS	SDS	A	5.2"	4.8"	5.55"	1/32"	1-3/4"	1-5/16"	13/32"	6.3
5B54SDS	SDS	A	5.4"	5.0"	5.75"	1/32"	1-3/4"	1-5/16"	13/32"	6.6
2B56SDS	SDS	A	5.6"	5.2"	5.95"	1/32"	1-3/4"	1-5/16"	13/32"	6.9
2B58SDS	SDS	A	5.8"	5.4"	6.15"	1/32"	1-3/4"	1-5/16"	13/32"	7.2
2B60SDS	SDS	A	6.0"	5.6"	6.35"	1/32"	1-3/4"	1-5/16"	13/32"	7.5
2B62SDS	SDS	A	6.2"	5.8"	6.55"	1/32"	1-3/4"	1-5/16"	13/32"	7.8
2B64SDS	SDS	A	6.4"	6.0"	6.75"	1/32"	1-3/4"	1-5/16"	13/32"	8.2
2B66SDS	SDS	A	6.6"	6.2"	6.95"	1/32"	1-3/4"	1-15/16"	13/32"	8.6
2B68SDS	SDS	A	6.8"	6.4"	7.15"	1/32"	1-3/4"	1-15/16"	13/32"	9.0
2B70SK	SK	D	7.0"	6.6"	7.35"	11/32"	1-3/4"	1-15/16"	5/32"	9.3
2B74SK	SK	D	7.4"	7.0"	7.75"	11/32"	1-3/4"	1-15/16"	5/32"	10.6
2B80SK	SK	D	8.0"	7.6"	8.35"	11/32"	1-3/4"	1-15/16"	5/32"	11.0
2B86SK	SK	D	8.6"	8.2"	8.95"	11/32"	1-3/4"	1-15/16"	5/32"	11.6
2B94SK	SK	D	9.4"	9.0"	9.75"	11/32"	1-3/4"	1-15/16"	5/32"	13.0
2B110SK	SK	D	11.0"	10.6"	11.35"	11/32"	1-3/4"	1-15/16"	5/32"	14.0
2B124SK	SK	D	12.4"	12.0"	12.75"	11/32"	1-3/4"	1-15/16"	5/32"	18.0
2B136SK	SK	D	13.6"	13.2"	13.95"	11/32"	1-3/4"	1-15/16"	5/32"	20.0
2B154SK	SK	D	15.4"	15.0"	15.75"	11/32"	1-3/4"	1-15/16"	5/32"	23.0
2B160SK	SK	D	16.0"	15.6"	16.35"	11/32"	1-3/4"	1-15/16"	5/32"	24.0
2B184SK	SK	D	18.4"	18.0"	18.75"	11/32"	1-3/4"	1-15/16"	5/32"	29.0
2B200SF	SF	D	20.0"	19.6"	20.35"	15/32"	1-3/4"	2-1/16"	5/32"	33.0
2B250SF	SF	D	25.0"	24.6"	25.35"	15/32"	1-3/4"	2-1/16"	5/32"	41.0
2B300SF	SF	D	30.0"	29.6"	30.35"	15/32"	1-3/4"	2-1/16"	5/32"	51.0
2B380SF	SF	D	38.0"	37.6"	38.35"	15/32"	1-3/4"	2-1/16"	5/32"	64.0

Features of QD Sheaves

QD conventional sheaves are offered in AB combination grooves with 1 thru 6 grooves and 8 and 10 grooves, and C grooves with 1 thru 6 grooves and 8 and 10 grooves. Styles depending on size include solid, web, and spoke design. Outside diameters range from 3.75" to 50.4" with the most popular sizes. These sheaves are designed to be used with QD bushings. "H" bushings are available. All industry standard QD bushings are available in standard, and  Splined and hex bores are also available by quotation. Do not use with rim speeds over 6500 feet per minute.

Common Applications

• Machine tools
• Crushers, shredders, breakers, classifiers, shaker screens
• Material conveyor systems
• Fans, blowers, and exhausters
• Pumps and compressors
• Woodworking saws, mills, planers, lathes
