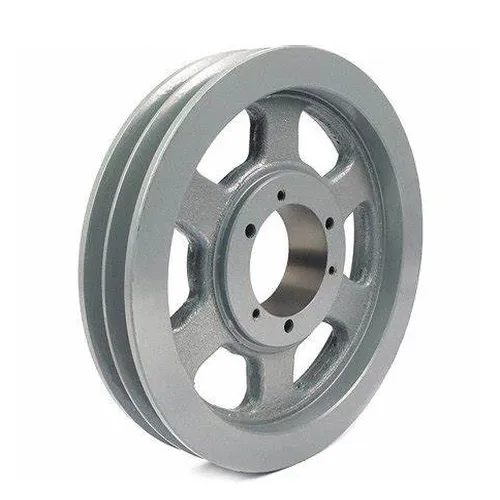

2C Series Cast Iron QD Sheaves for "C" Belts

2C series double-groove QD bushed sheaves are manufactured for C, CX, banded belts, and CC v-belts; they range from 9.40" to 30.40" in diameter. Depending on the sheave size, they are made to use an F or SF QD (quick detachable) bushings, which we also stock. Most 2C QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

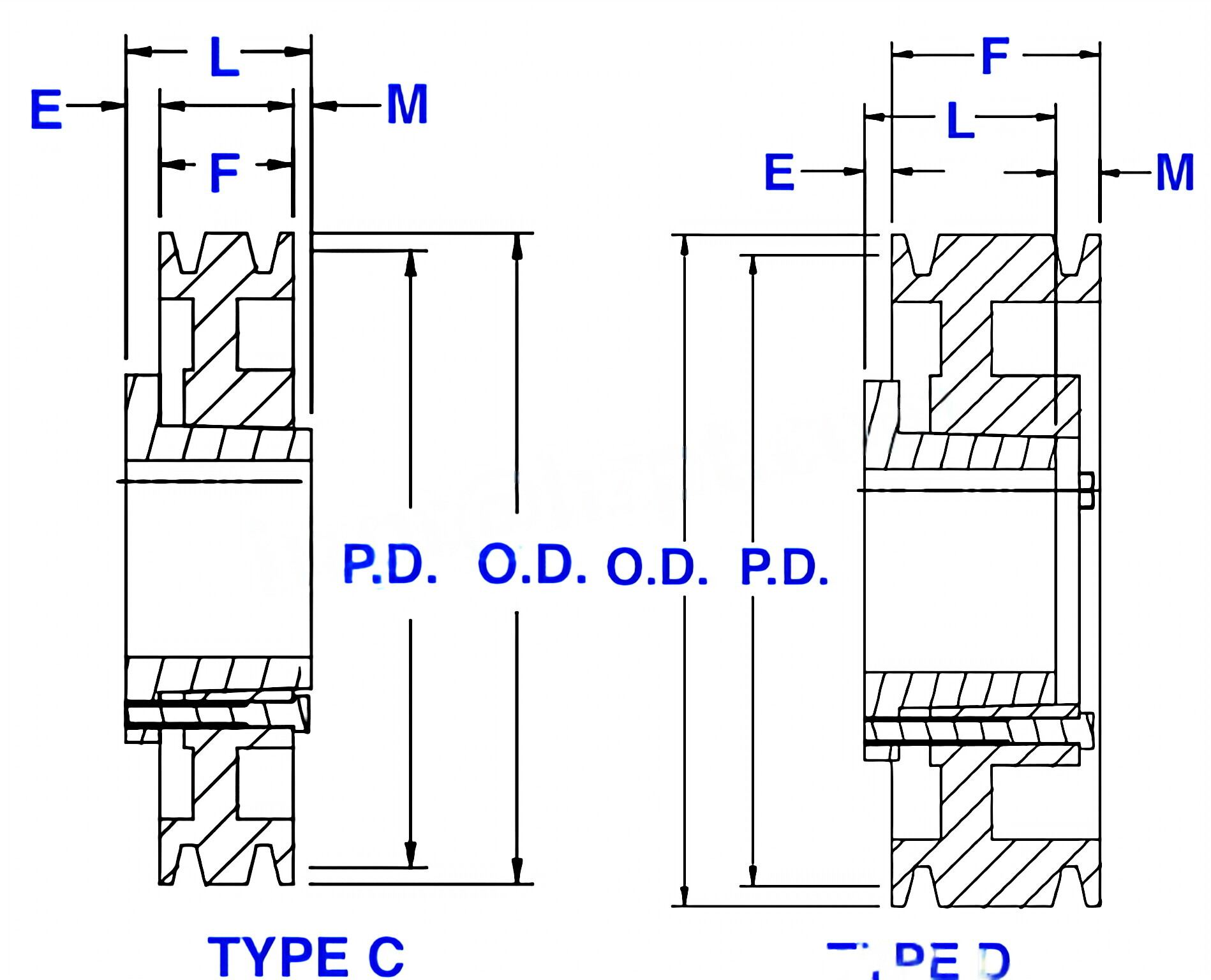

2C QD Sheave Size Chart

Size	Bushing Type	Type	Pitch Diameter	Outside Diameter	(E)	(F)	(L)	(M)	Sheave Weight (LBS)
2C90SF	SF	D	9.0"	9.40"	3/32"	2-1/4"	2-1/16"	9/32"	20
2C95SF	SF	D	9.5"	9.90"	3/32"	2-1/4"	2-1/16"	9/32"	21
2C100SF	SF	D	10.0"	10.40"	3/32"	2-1/4"	2-1/16"	9/32"	22
2C105SF	SF	D	10.5"	10.90"	3/32"	2-1/4"	2-1/16"	9/32"	23
2C110SF	SF	D	11.0"	11.40"	3/32"	2-1/4"	2-1/16"	9/32"	24
2C120SF	SF	D	12.0"	12.40"	11/32"	2-1/4"	2-1/16"	17/32"	25
2C130SF	SF	D	13.0"	13.40"	11/32"	2-1/4"	2-1/16"	17/32"	28
2C140SF	SF	D	14.0"	14.40"	11/32"	2-1/4"	2-1/16"	17/32"	31
2C160SF	SF	D	16.0"	16.40"	11/32"	2-1/4"	2-1/16"	17/32"	36
2C180SF	SF	D	18.0"	18.40"	11/32"	2-1/4"	2-1/16"	17/32"	39
2C200SF	SF	D	20.0"	20.40"	11/32"	2-1/4"	2-1/16"	17/32"	48
2C240SF	SF	D	24.0"	24.40"	11/32"	2-1/4"	2-1/16"	17/32"	60
2C300F	F	C	30.0"	30.40"	1-7/32"	2-1/4"	3-3/4"	9/32"	85

The QD SheaveThe QD sheave is a type of bushing that helps maintain v-belts. Its quick-detachable bushing allows easy installation and removal, minimizing downtime and maximizing the drive system's protection. It is available in one to twelve groove configurations and is compatible with dynamic and static balancing. The QD Sheave is a simple to install and maintain sheave, with easy-to-replace bushings.QD sheaves come in several styles and types and are interchangeable with most other bushings brands. They have high precision and durability and are available with multiple reverse pitch options. They are also available in gray cast iron and are suitable for various classical V-belts. They are also designed with three grooves, making them a convenient choice for multiple belts or banded belts.QD Bushed Sheaves are made for V-belt drives and are available in different types and sizes. They are available in 3/4, 1/2, and 1-1/2 bore sizes. They are available in standard and reverse mounting configurations. You can also ask for a quote if you need a different bore size.The QD Bushed Sheaves feature an easy-to-install design. The quick detachable bushings enable the sheave to be installed and removed quickly, minimizing downtime and maintaining the integrity of your drive system. There is a wide selection of QD Bushed Sheaves available from Raydafon. The product details page allows you to filter products by several grooves, outside diameter, and belt type.

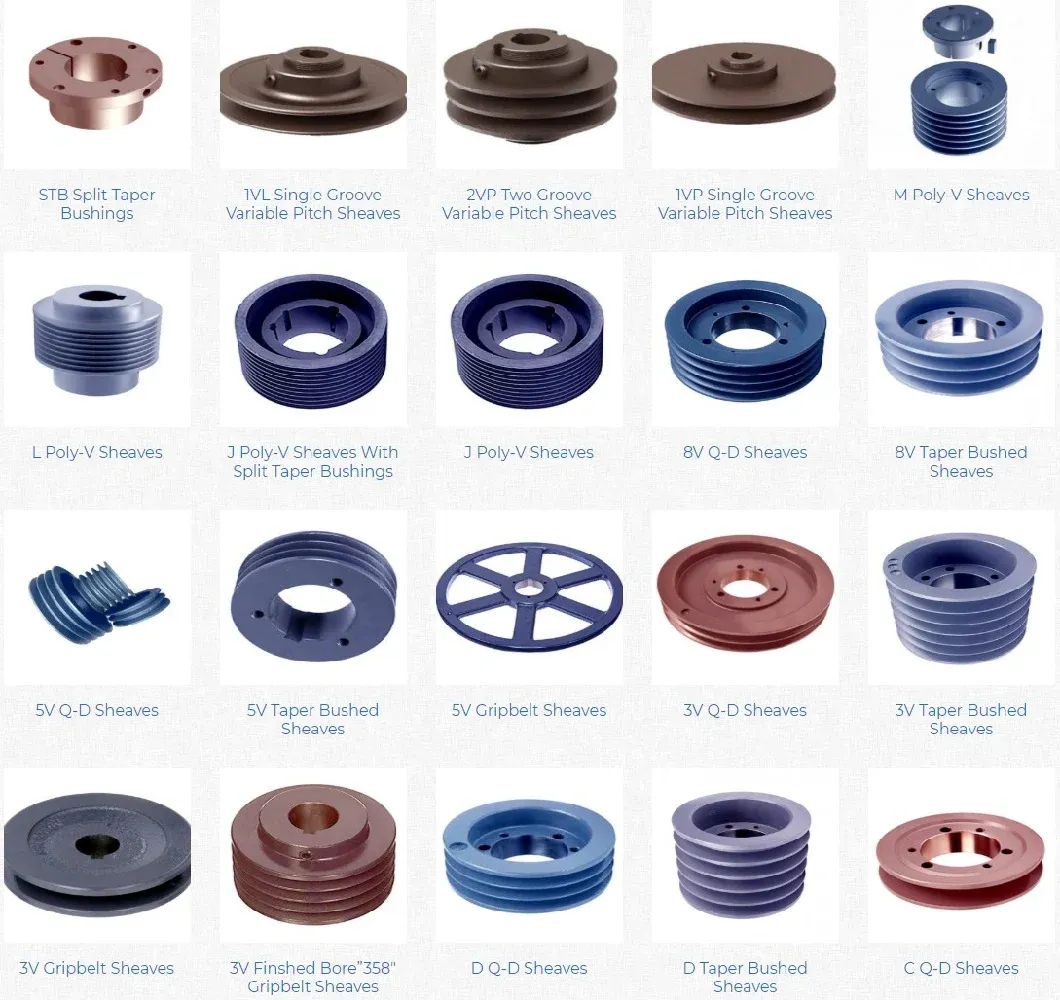

Other Related Products
