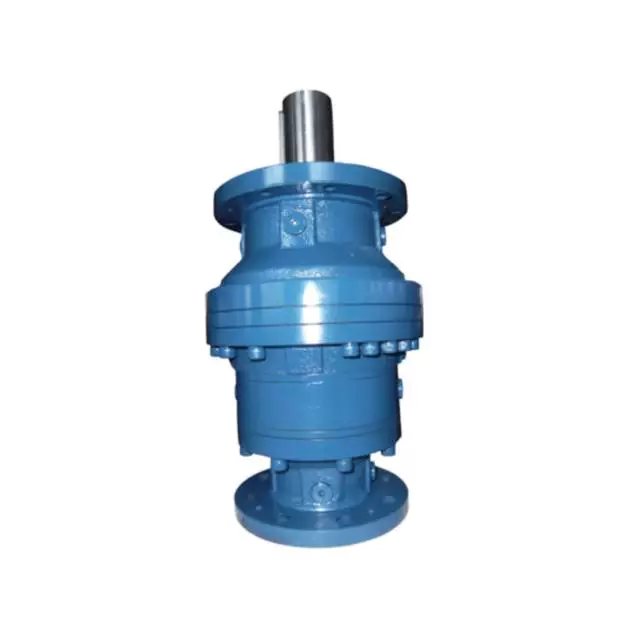

313 Series Planetary Gearbox Interchange Replacement of Bonfiglioli 313L1 313L2 313L3 313L4 313R2 313R3 313R4

Replaceable Planetary Gearbox Models

Hzpt 313 series planetary gearbox can replace Replacement of Bonfiglioli of the following models. Our gearbox design and installation dimensions are consistent with Replacement of Bonfiglioli, which can perfectly replace the faulty or scrapped Replacement of Bonfiglioli gearbox.

Trasmital bonfiglioli Model	313L1	313L2	313L3	313L4	313R2	313R3	313R4
our interchange Model	EP313L1	EP313L2	EP313L3	EP313L4	EP313R2	EP313R3	EP313R4

Our 313 series planetary gearbox can be wholly interchanged with / replaced bonfiglioli planetary gearbox (EM, ED, et, El Series), Brevini hydraulic winch (BW Series), Brevini rotary gearbox, bonfiglioli wheel drive, and track drive. All installation dimensions can be completely interchangeable with the above products. At the same time, we also provide customized products and design and manufacture these products according to customer requirements.Torque range 1000--1.100.000 NMTransmission of mechanical power up to 450 kWTransmission ratio I =3, 4-5.000Gear unit version Right angle (with spiral bevel gear set)Output configuration Base and flange installationOutput shaft Keyed solid, spline, spline hollow, Hollow, with shrink diskInput configuration Flange axial piston hydraulic motorHydraulic track motor IEC and NEMA motor adaptersSolid input shaftHydraulic brakeHydraulically release the parking brake upon requestDC and AC braking

Specifications of Planetary Gearbox

Type	Rated torque (Nm)	Rated power (kW)	Input speed (Max rpm)	Ratio range for Inline gear	Ratio range for Right angle gear	Ratio range for Combined with worm gear	Design
300	1000	20	3000	3.3-2700	7-800	400-9000	A
301	1750	30	3000	3.3-2700	7-800	400-9000	A
303	2500	40	3000	3.6-2900	9-900	400-9000	A
305	5000	60	3000	3.6-2900	9-900	400-9000	A
306	8500	75	2500	3.7-2900	9-900	400-9000	A
307	12500	100	2500	3.4-2500	13-800	400-9000	A
309	18500	130	2500	3.4-2500	13-800	400-9000	B
310	25000	150	2000	3.8-2500	40-900	400-9000	B
311	35000	180	2000	4-2200	18-800	400-9000	B
313	50000	200	2000	4-2200	18-800	400-9000	B
315	80000	250	1500	4-2000	70-900	400-9000	B
316	105000	270	1500	4-2000	50-600	400-9000	B
317	150000	300	1000	4-1900	70-900	400-3000	B
318	200000	340	1000	4-1100	200-700	400-9000	B
319	300000	380	500	4-1400	300-800	1000-9000	B
321	450000	450	500	4-1100	300-800	1000-9000	B

Why Choose Our Planetary Gearbox？

Housing processing accuracy guaranteeLarge horizontal box machining center, high-end automatic multi-axis CNC boring and milling machine, complete CNC high-precision machining to ensure the accuracy of hole locationPrecision gear grinding with four levels of accuracyThe tooth surface is carburized and quenched, which is long-lasting and durableFine rolling and delicate grinding process, efficient and stable operation, low noiseAutomatic numerical control workshopStandardized CNC production workshopPassed s09001 quality system certificationEfficient operation to ensure production scheduleDiversified configurations and matching on demandIt can be equipped with Xitong three-phase / single-phase, braking, frequency conversion, explosion-proof, servo and other motorsIt can be configured with different motor voltage / frequency, protection grade and energy efficiency gradeThe input end cover can be customized to match the non-standard power input device
