3160592R1 Double Knife Guard for Case-IH Combine Harvesters
  • 3160592R1 Double Knife Guard for Case-IH Combine Harvesters3160592R1 Double Knife Guard for Case-IH Combine Harvesters

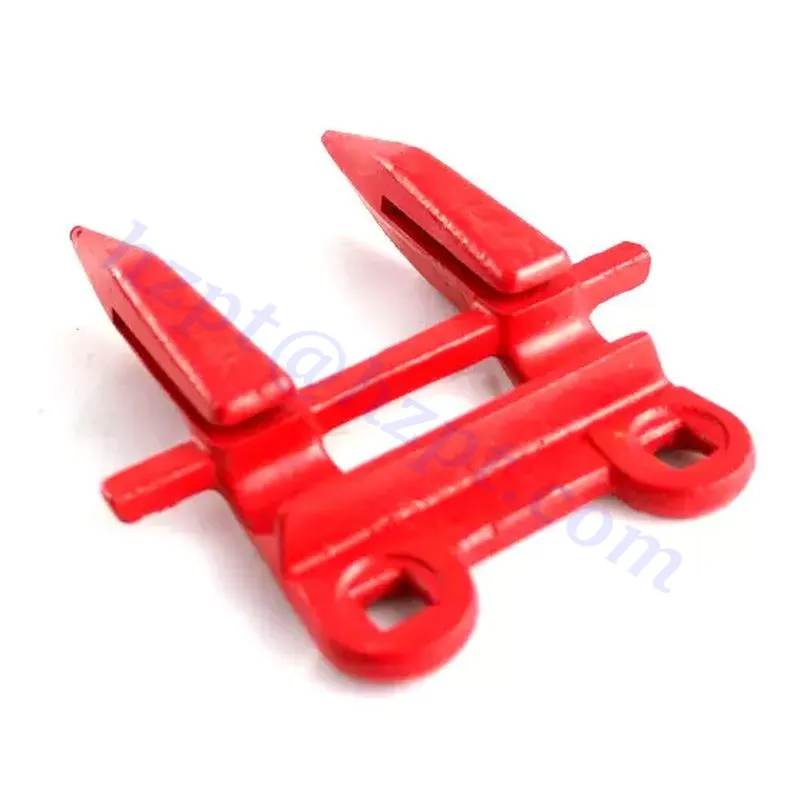

3160592R1 Double Knife Guard for Case-IH Combine Harvesters

Raydafon Guoup presents the 3160592R1 Double Knife Guard for Case-IH Combine Harvesters: a durable, high-performance guard designed to enhance cutting efficiency and protect your combine's critical components. Crafted from premium materials for long-lasting use, it ensures smooth operation in demanding conditions. Ideal for farmers and agricultural professionals seeking reliability, this double knife guard reduces downtime and maintenance costs. Experience peace of mind with improved durability and precision—outperform competitors with our trusted design. Choose Raydafon Guoup for quality that harvests success.

Product Specifications

Application CASE-IH Combine Harvester: 321, 431, 531, 541, 810
SKU 3160592R1
Reference Code 3159696R91, 3160592R1
Manufacturer Raydafon Group
Brand EP
Weight 1.05KG
Finishing Painting Green Color or Red or Galvanize or OEM
Packing Carton or Wooden box or Iron Box
Note: Our products are replacement parts and not original equipment. We provide perfect replacement products for original equipment. If you need to purchase the original equipment, please contact the original supplier.

Overview of 3160592R1 Double Knife Guard for Case-IH Combine Harvesters

The 3160592R1 Double Knife Guard is a specialized agricultural component designed for use with Case-IH combine harvesters, including 321, 431, 531, 541, and 810 models. This part serves as a protective and functional element within the combine’s cutting system, specifically in the header assembly where crops are harvested. Its primary purpose is to shield the cutting blades while ensuring optimal crop flow and precise cutting performance. The double knife guard accommodates two sickle sections and provides structural support, helping to prevent damage to the knives from rocks, debris, or other obstructions in the field. Made from durable, high-strength materials such as forged steel or hardened alloys, the guard is engineered to endure the rigorous demands of harvesting operations, even under challenging conditions. Its design promotes consistent cutting action by maintaining proper alignment of the knife sections, reducing wear and tear, and minimizing the risk of clogging or binding. Farmers often rely on this component to maximize efficiency, minimize downtime, and extend the lifespan of their combine harvester's cutting system. 3160592R1 Double Knife Guard for Case-IH Combine Harvesters

Function and Use of 3160592R1 Double Knife Guard for Case-IH Combine Harvesters

The 3160592R1 Double Knife Guard is a critical component used in the header assembly of Case-IH combine harvesters. Its primary function is to protect and support the cutting knives (sickle sections) during harvesting operations, ensuring efficient and precise cutting of crops. This guard is specifically designed to work with double knife systems, meaning it accommodates two sickle sections, which makes it ideal for high-performance cutting systems used in modern harvesting equipment. One of the key roles of the double knife guard is to maintain the proper alignment of the sickle sections. It ensures that the knives are held in place securely and are able to move back and forth without interference. This alignment is crucial for achieving a clean and uniform cut, as it prevents the knives from flexing or moving out of position, which could lead to uneven cuts or damage to the crop. Additionally, the guard helps to reduce friction and wear on the knife sections, promoting smoother operation and extending the lifespan of the cutting components. The 3160592R1 Double Knife Guard also acts as a protective barrier, shielding the sickle sections from external damage caused by rocks, debris, or other obstructions commonly encountered in the field. Its robust construction, typically made from high-strength forged steel or hardened alloys, ensures that it can withstand the harsh conditions of agricultural environments. This durability helps minimize the risk of downtime due to equipment failure, which is especially important during critical harvesting periods. Another important function of the knife guard is to facilitate efficient crop flow through the header. Its streamlined design prevents clogging or binding by guiding the crop material smoothly across the cutting system, allowing the combine to maintain a consistent and efficient harvesting pace. This not only improves the quality of the harvest but also reduces the strain on the combine’s engine and other mechanical components. 3160592R1 Double Knife Guard for Case-IH Combine Harvesters

Advantages of 3160592R1 Double Knife Guard for Case-IH Combine Harvesters

The 3160592R1 Double Knife Guard for Case-IH Combine Harvesters offers a range of advantages that contribute to the efficient and safe operation of the machine:
  1. Enhanced Knife Protection: The 3160592R1 Double Knife Guard provides robust protection to the sickle sections by shielding them from rocks, debris, and other field hazards. Its durable design minimizes the risk of knife damage, reducing the need for frequent replacements and ensuring the cutting system remains operational even in challenging field conditions.
  2. Improved Cutting Efficiency: By securely holding the knives in the correct alignment, this guard ensures precise and uniform cutting of crops. Misalignments are prevented, which optimizes the cutting performance of the combine. This leads to a cleaner harvest, reduces crop loss, and maximizes overall efficiency during harvesting operations.
  3. Durability in Tough Conditions: Constructed from high-strength forged steel or hardened alloys, the knife guard is designed to endure heavy use and resist wear, even in rough agricultural environments. Its resilience ensures a longer lifespan, reducing maintenance costs and downtime, especially during critical harvesting periods.
  4. Reduced Friction and Wear: The guard minimizes contact between the sickle sections and external forces, reducing friction during operation. This helps to decrease wear on the knives, extending their operational life. Additionally, smoother movement of the knives improves overall system performance and reduces the risk of mechanical failure.
  5. Clog-Resistant Design: The streamlined structure of the double knife guard promotes efficient crop flow through the header. It prevents the build-up of crop material, debris, or residue that can lead to clogs or binding. This ensures uninterrupted operation, allowing the combine to maintain a consistent harvesting pace.
  6. Optimized Crop Flow: The guard’s design ensures smooth and consistent movement of crops through the header, preventing disruptions and improving harvest quality. By maintaining steady crop flow, it reduces strain on the combine’s engine and components, contributing to fuel efficiency and overall machine longevity.
3160592R1 Double Knife Guard for Case-IH Combine Harvesters

How to Replace a Damaged 3160592R1 Double Knife Guard for Case-IH Combine Harvesters

Replacing a damaged 3160592R1 Double Knife Guard for a Case-IH Combine Harvester is a task that can be accomplished by following these general steps:
  1. Inspect and Identify the Damaged Guard: Carefully examine the header assembly to locate the damaged knife guard. Look for visible cracks, bending, or wear that compromises its functionality. Identifying the exact position of the faulty guard ensures the replacement process is efficient and minimizes unnecessary disassembly of other components.
  2. Remove the Damaged Guard: Using the appropriate tools, such as a wrench or socket set, loosen and remove the bolts or fasteners securing the damaged knife guard to the cutter bar. Be cautious not to damage the surrounding components, such as the sickle sections or other guards, during the removal process.
  3. Inspect the Surrounding Components: Once the damaged guard is removed, inspect the sickle sections, bolts, and nearby guards for signs of wear or damage. Replace any additional parts that show significant wear to ensure optimal performance. This proactive step helps prevent future breakdowns and extends the lifespan of the cutting system.
  4. Install the New 3160592R1 Double Knife Guard: Align the new knife guard with the mounting holes on the cutter bar. Ensure it is positioned correctly to hold the sickle sections securely. Tighten the bolts or fasteners evenly to secure the guard in place, making sure not to overtighten, as this could damage the threads or surrounding components.
  5. Check the Alignment and Clearance: After installation, check the alignment of the sickle sections within the new guard. Ensure there is sufficient clearance for smooth knife movement without obstruction. Proper alignment is essential to maintain cutting efficiency and prevent premature wear on the knives or guard.
  6. Test the Cutting System: Reconnect power to the combine and test the cutting system at low speed to ensure the newly installed guard functions correctly. Observe the sickle sections for smooth operation and listen for any unusual noises, which could indicate misalignment or improper installation.
3160592R1 Double Knife Guard for Case-IH Combine Harvesters

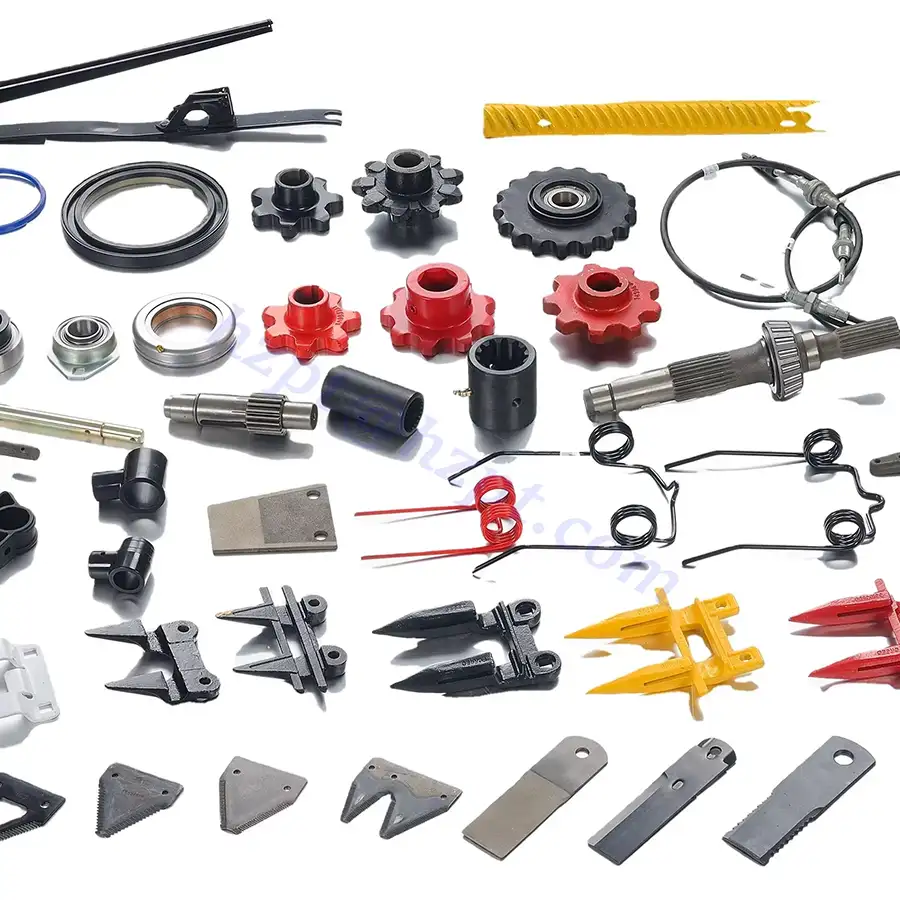

Other Replacement Combine Harvester Parts for Case-IH

When it comes to keeping your Case-IH combine harvester operating at peak performance, regular maintenance and timely replacement of worn or damaged components are essential. In addition to the double knife guard 3160592R1, there are several other critical parts that make up the machinery's belt drive system, drivetrain, and cutting mechanisms. Here are some common replacement parts:

1. Idler Pulley

The idler pulley plays a crucial role in the belt drive system of combine harvesters. It helps maintain proper tension and alignment of the belts, ensuring smooth power transmission to various parts of the machine. A worn or damaged idler pulley can lead to belt slippage, reduced efficiency, or machine downtime, making timely replacement essential for optimal performance.

2. Drive Pulley

The drive pulley is responsible for transmitting power from the engine to other mechanical systems within the combine harvester. It works in tandem with the belts, ensuring that the machine's components operate efficiently. Over time, drive pulleys can wear down, causing reduced power transfer or belt misalignment, necessitating replacement to maintain smooth operation.

3. Gears

Gears are essential for transferring power within the drivetrain and cutting systems of combine harvesters. They are precision-engineered to handle high loads and ensure synchronized operation of various moving parts. Damaged or worn gears can lead to inefficient power transmission, increased wear on other components, and reduced machine reliability, requiring prompt replacement.

4. Drive Shaft

The drive shaft transmits rotational power from the engine to various parts of the combine harvester, such as the cutting platform or threshing mechanism. It is designed to handle heavy loads and continuous use. A failing drive shaft can cause vibrations, loss of power, or complete system failure, making it a key component that requires proper maintenance and replacement when needed.

5. Drive Hub

The drive hub connects the drive shaft to other rotating components, such as the cutting blades or threshing drum. It ensures smooth and reliable power transfer while maintaining alignment. A damaged drive hub can lead to misalignment, excessive wear on connected parts, or uneven operation, necessitating its timely replacement.

6. Knife Blade

Knife blades are crucial for cutting crops during harvesting. These sharp, durable components are mounted on the cutting platform and work in conjunction with knife guards. Over time, knife blades can dull or break due to contact with rocks or tough vegetation, requiring replacement to ensure clean, efficient cutting and prevent crop loss.

7. Drive Sprocket

The drive sprocket is a key component in the chain-driven systems of combines. It transmits power to chains that drive various mechanisms, such as the feeder or threshing system. Worn sprocket teeth can result in chain slippage or breakage, reducing operational efficiency and requiring replacement to maintain functionality.

8. Idler Sprocket

The idler sprocket maintains proper chain tension and alignment in chain-driven systems. It ensures that the drive chain operates smoothly without excessive slack or wear. A damaged or misaligned idler sprocket can lead to chain failure and downtime, making regular inspection and replacement critical for reliable operation of the combine harvester. 3160592R1 Double Knife Guard for Case-IH Combine Harvesters

Why Choose Raydafon's Forged Knife Guard?

As one of the leading manufacturers and wholesale distributors of aftermarket replacement parts for combine harvesters, balers, tractors, and corn heads in domestic and global markets, Raydafon has a comprehensive range of agricultural spare parts. Our product range consists of best quality aftermarket spare parts for combine harvesters such as John Deere, New Holland, Case, Claas, Welger, KMC, Amadas, Gallignani, Kubota, Laverda, MTZ, Ford, Maschio, Goldoni, Howard, BCS; which are all the world’s leading brands in the agricultural machinery industry. You can view our entire product range in detail on our product page. Our company supplies products to its local customers in whole world. Over time, it has come a long way in this field, too. Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. We continue to work with all our strengths to provide the best service to our business partners with our professional human resources, strong infrastructure and customer-oriented service approach. At Raydafon, we take pride in offering the following advantages:
  1. Quality Products: Our products are crafted with precision and high-quality materials to ensure durability and performance. We adhere to stringent quality standards, ensuring each part meets the demands of rigorous agricultural operations.
  2. Wide Range of Products: We offer an extensive selection of aftermarket spare parts for leading agricultural machinery brands. Our diverse product range meets the varied needs of farmers and businesses worldwide.
  3. Competitive Prices: We provide top-quality products at competitive prices, offering exceptional value without compromising on quality. Our efficient manufacturing and strategic partnerships help keep costs low.
  4. Excellent Customer Service: Customer satisfaction is our priority. Our dedicated team is ready to assist with inquiries, orders, and technical support. We focus on building long-term relationships through personalized service and expert advice.
  5. Fast Delivery: We understand the importance of timely delivery in agriculture. Our efficient logistics network ensures that orders are delivered promptly, minimizing downtime during critical operations.
  6. Customization Products: We offer tailored solutions by welcoming customer specifications and designs. Provide drawings or samples, and our expert team will create customized parts to meet your unique needs, ensuring optimal performance.
3160592R1 Double Knife Guard for Case-IH Combine Harvesters
