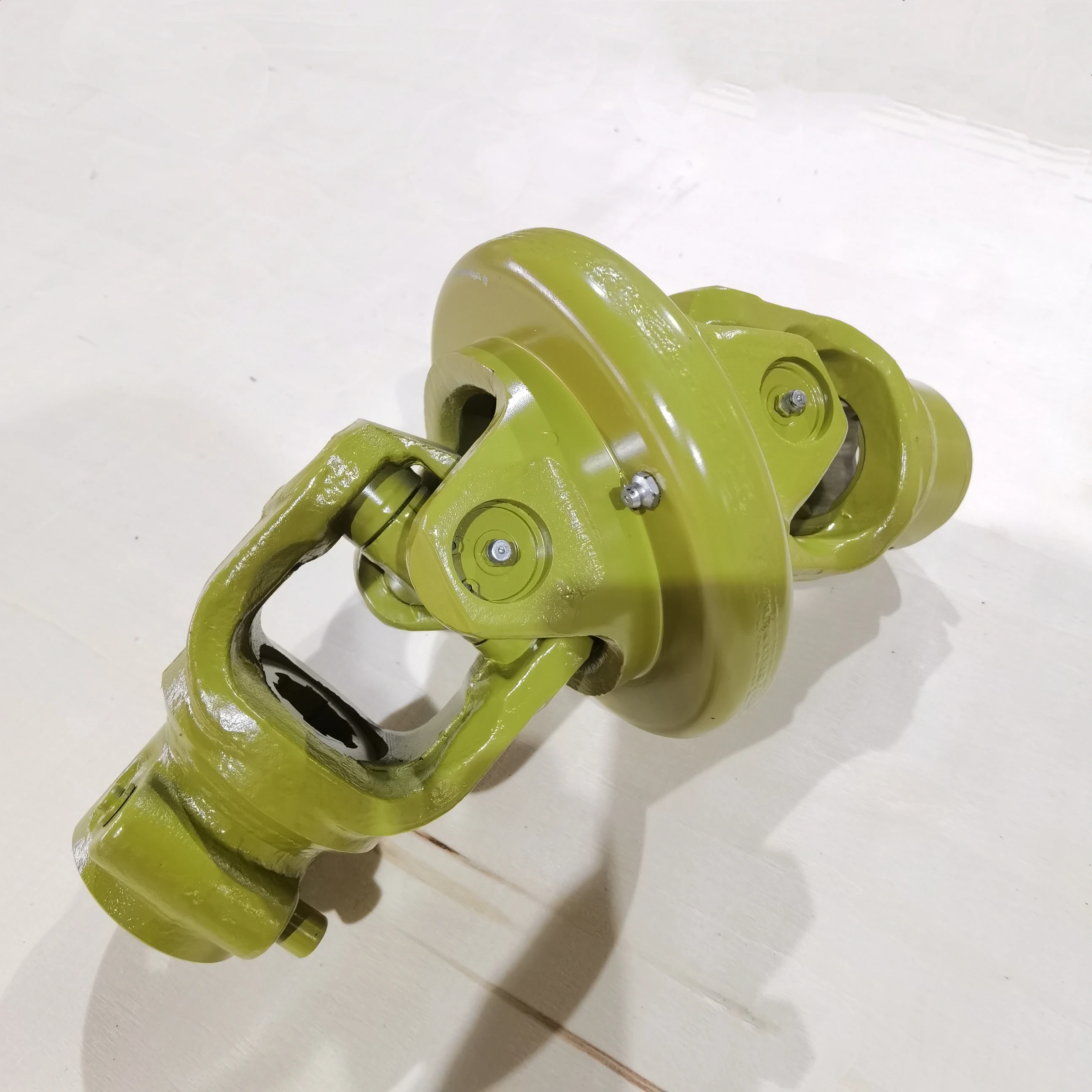

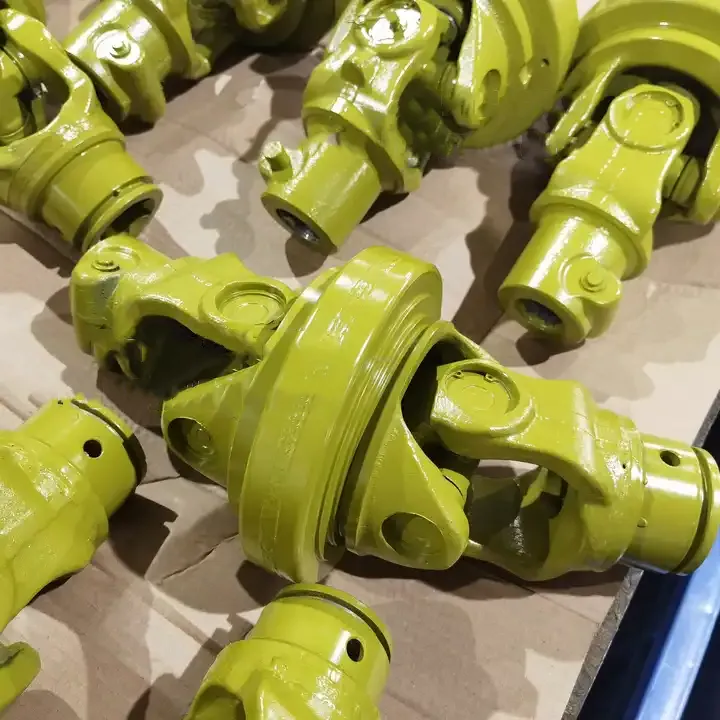

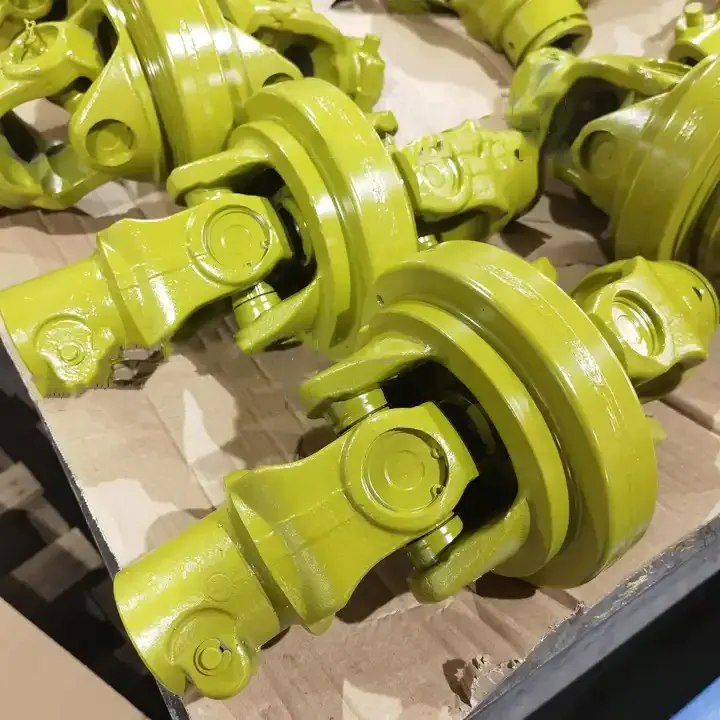

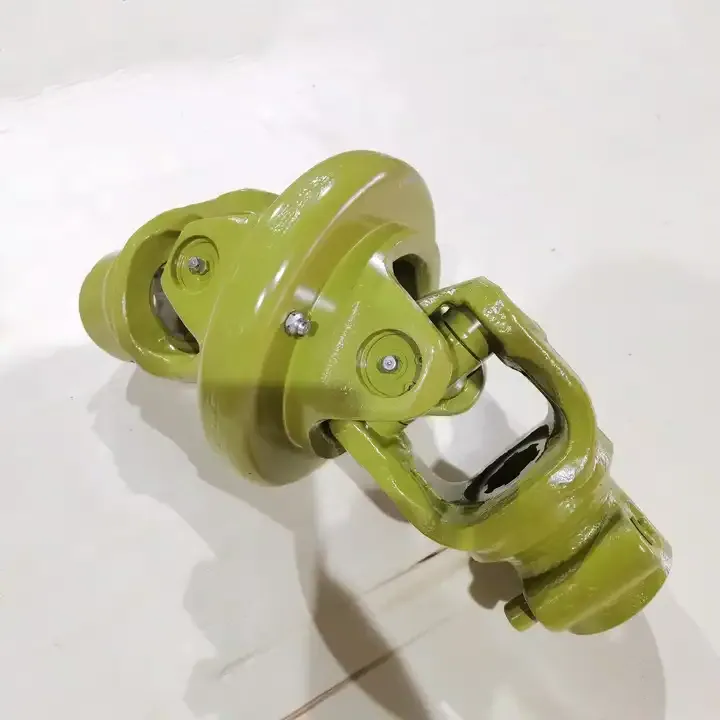

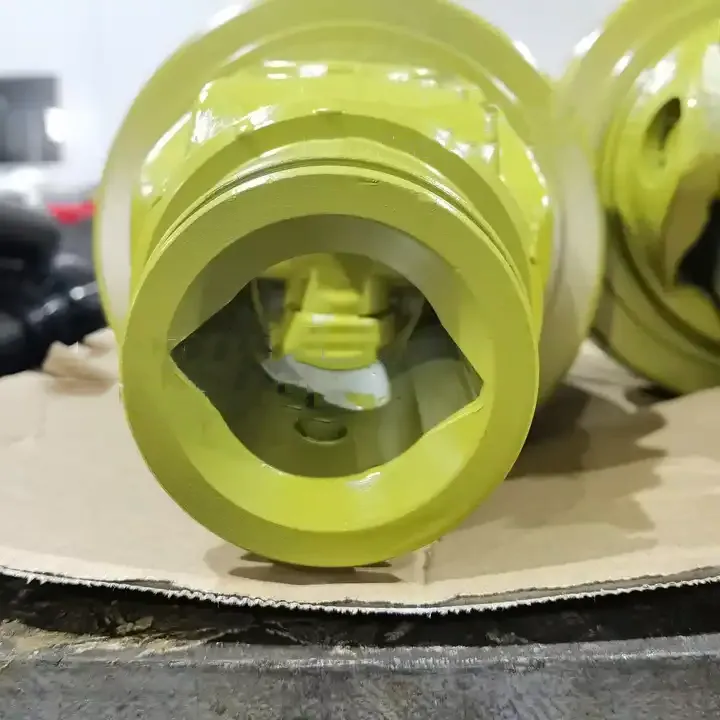

32*76 Cross Kit 32 Wide Angle Joint for Drive Shaft

[embed]https://youtu.be/yDbCp68662g[/embed]Introducing the 32*76 Cross Kit 32 Wide Angle Joint for drive shaft, a product designed with rigorous precision and high-quality materials. This product, brand new and backed by a six-month warranty, is applicable for use in a wide range of industries, including hotels, garment shops, building material shops, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, retail, food shops, construction works, energy and mining, food and beverage shops, among others.

32 Wide Angle Joint Specifications

Model Number	32 Wide Angle Joint Yellow Spraying
Function	Drive Shaft Parts & Power Transmission
Use	Kinds of Tractors & Farm Implements
Brand Name	EP
Yoke Type	Double push pin,Bolt pins,Split pins,Push pin,Quick release,Ball attachment,Collar.....
Processing Of Yoke	Forging
Plastic Cover	YW;BW;YS;BS;Etc
Color	Green;Orange;Yellow;Black Ect.
Series	T1-T10; L1-L6;S6-S10;10HP-150HP with SA,RA,SB,SFF,WA,CV Etc
Tube Type	Lemon,Trianglar,Star,Square,Hexangular,Spline,Special Ect
Processing Of Tube	Cold drawn
Spline Type	1 1/8" Z6;1 3/8" Z6; 1 3/8" Z21 ;1 3/4" Z20; 1 3/4" Z6; 8-38*32*6 8-42*36*7; 8-48*42*8;
Place of Origin	Haining, China (Mainland)

Advantages of the 32*76 Cross Kit 32 Wide Angle Joint

The WA Wide Angle Joint offers several advantages for tractor PTO shafts. Here are some of the key benefits:1. Increased Flexibility: The WA Wide Angle Joint is specifically designed to accommodate larger angles between the input and output shafts.2. Improved Power Transmission: The WA Wide Angle Joint is highly efficient in transmitting power between the tractor's engine and the attached implement.3. Enhanced Durability: The WA Wide Angle Joint is built to withstand the demanding conditions of agricultural work. It is typically made of high-quality materials, such as steel, that offer excellent strength and durability.4. Reduced Wear and Tear: The design of the WA Wide Angle Joint minimizes wear and tear on the components. The cross-shaped spider distributes the load evenly across the joint, reducing stress concentration and extending the lifespan of the joint.5. Versatile Application: The WA Wide Angle Joint can be used in a variety of agricultural applications where the input and output shafts are not aligned in a straight line. Whether it's mowing, tilling, baling, or operating other implements, the wide angle joint allows for efficient power transfer even in situations where the shafts are at significant angles to each other.

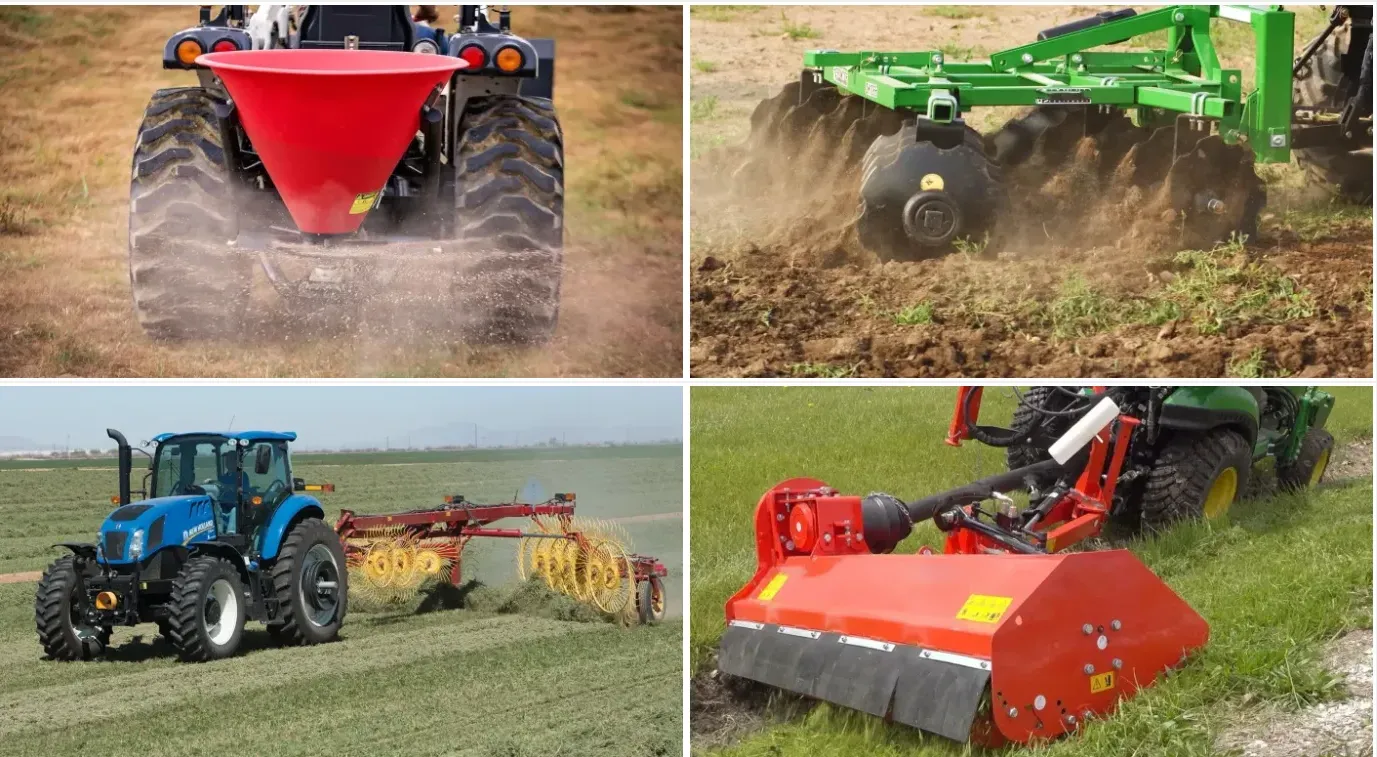

Applications of the 32*76 Cross Kit 32 Wide Angle Joint

The WA Wide Angle Joint finds applications in various scenarios where tractor PTO shafts need to accommodate larger angles between the input and output shafts. Here are some specific applications where the WA Wide Angle Joint is commonly utilized:1. Mowers and Rotary Cutters: In agricultural operations, mowers and rotary cutters are frequently attached to tractors via PTO shafts. These implements require a wide range of movement to effectively cut grass or vegetation. The WA Wide Angle Joint allows the PTO shaft to flex and rotate at larger angles, enabling the mower or rotary cutter to follow contours and contours of the land without hindrance.2. Balers and Hay Equipment: Balers and other hay equipment often require the tractor PTO shaft to operate at varying angles due to the irregular shape and size of bales. The WA Wide Angle Joint allows for smooth power transmission, even when the PTO shaft is not aligned in a straight line with the implement. This ensures efficient baling and handling of hay without compromising performance.3. Tillage Equipment: Tractor-mounted tillage equipment, such as plows, cultivators, and harrows, often operate in challenging terrain where the tractor and implements must navigate uneven surfaces and tight corners. The WA Wide Angle Joint enables the PTO shaft to handle the required angles and maintain consistent power transmission, allowing for effective soil preparation and cultivation.4. Sprayers and Spreaders: Agricultural sprayers and spreaders are used for precise application of fertilizers, herbicides, and other chemicals. These implements often require the PTO shaft to operate at various angles to ensure accurate and uniform distribution. The WA Wide Angle Joint facilitates smooth power transfer, allowing the sprayer or spreader to maintain proper operation and coverage.

Agricultural PTO Shaft Torque Limiter Types

In agricultural machinery, PTO shaft torque limiters are crucial for protecting equipment from damage due to torque overload. There are various types of PTO shaft torque limiters, each designed to cater to different operational needs and specifications. Here's an overview of the common types:1. Shear Bolt Torque Limiter: This type utilizes a shear bolt that breaks under excessive torque, disconnecting the drive between the tractor and implement. Common in a variety of implements; ideal for situations where overload conditions are clear and easily detectable.2. Friction Clutch Torque Limiter: Friction clutch limiters slip when the torque exceeds a preset level, allowing it to absorb the excess force without breaking.Used in applications where gradual overload conditions might occur and frequent replacement of shear bolts is not desirable.3. Ratchet Torque Limiter: Features a ratcheting mechanism that allows rotation in one direction and locks or slips in the opposite direction when overloaded. Suitable for implements like augers where unidirectional operation is required.4. Overrunning Clutch Torque Limiter: Allows free rotation in one direction and engages the clutch in the other. It can also incorporate a torque-limiting feature to disconnect under overload. Commonly used in mowers and rotary cutters, allowing the implement to overrun when the tractor slows down.

How Does the Wide Angle Joint for Tractor PTO Shaft Work?

A wide-angle joint for a tractor PTO (Power Take-Off) shaft is a specialized mechanical component designed to transmit power from the tractor to an attached implement. The wide-angle joint allows for a greater range of motion than a standard PTO shaft joint, which is crucial when the tractor and implement are not perfectly aligned or when working on uneven terrain. Here's how it works:1. The primary function of a wide-angle joint is to transmit power from one shaft to another, particularly when these two shafts are not aligned in a straight line. This is common in agricultural machinery, where the tractor and the attached implement often move independently.2. A wide-angle joint is specially designed to accommodate angles much larger than those possible with standard universal joints. While a typical universal joint may operate effectively up to 30 degrees, a wide-angle joint can function at angles up to 50 degrees or more.3. The key to a wide-angle joint's functionality lies in its ability to maintain a constant velocity. Unlike standard joints, which can cause fluctuations in rotational speed when angled, CV joints ensure that the input and output speeds remain consistent. This is crucial for machinery that requires steady, uninterrupted power delivery.4. The wide-angle joint's ability to maintain a constant rotational speed despite being bent at steep angles is particularly beneficial in agricultural settings where the terrain is uneven. This flexibility prevents the shaft from binding or breaking, which could occur with a less flexible joint.

How to Install Wide Angle Joints to PTO Shaft?

Here are the steps to install Wide Angle Joints to PTO Shaft:1. Prepare the PTO Shaft: Ensure the PTO shaft is clean and free from any debris or rust. Inspect the shaft for any damage or wear that may affect the installation or operation of the Wide Angle Joint. If necessary, clean and lubricate the shaft.2. Align the Wide Angle Joint: Align the Wide Angle Joint with the input and output shafts. Make sure the input and output shafts are properly aligned with each other before attaching the joint. The shafts should be parallel and in the correct position for the joint to fit properly.3. Attach the Yokes: Attach the yokes of the Wide Angle Joint to the input and output shafts. Slide the yokes onto the shafts, ensuring they are properly aligned with the keyway or splines on the shafts. Use the appropriate fasteners, such as bolts or clamps, to secure the yokes tightly to the shafts.4. Check Alignment and Movement: Once the Wide Angle Joint is installed, check the alignment of the input and output shafts. Ensure that the joint allows for the desired range of angular movement without any binding or interference. Rotate the joint and verify that it moves smoothly and freely.5. Lubrication: Apply appropriate lubrication to the bearings or needle rollers within the Wide Angle Joint.6. Test Operation: Start the tractor and engage the PTO to test the operation of the Wide Angle Joint. Monitor for any unusual noise, vibration, or movement.

Maintenance of Wide Angle Joints

Regular maintenance is essential to ensure the longevity and optimal performance of wide angle joints installed on a tractor PTO shaft. Here are some key maintenance practices for wide angle joints:1. Inspection: Regularly inspect the wide-angle joints for any signs of wear, damage, or misalignment. Look for cracks, excessive play, or loose fasteners.2. Lubrication: Proper lubrication is crucial for the smooth operation of the wide angle joints.3. Cleaning: Keep the Wide Angle Joints clean from dirt, debris, and contaminants. Regularly clean the joints using a soft brush or cloth. Remove any buildup of grease, dirt, or agricultural residues that may hinder the joint's movement or compromise lubrication.4. Tightening Fasteners: Periodically check the tightness of the fasteners, such as bolts or clamps, that hold the yokes and spider in place.5. Ensure Proper Alignment: Monitor and maintain proper alignment between the input and output shafts. Misalignment can lead to increased wear and premature failure of the wide angle joint.6. Load Distribution: Ensure that the load is distributed evenly across the wide angle joint components. Avoid subjecting the joint to excessive torque or forces that could cause stress concentrations. Properly operating the tractor and its attached implements within recommended limits can help minimize excessive loads.

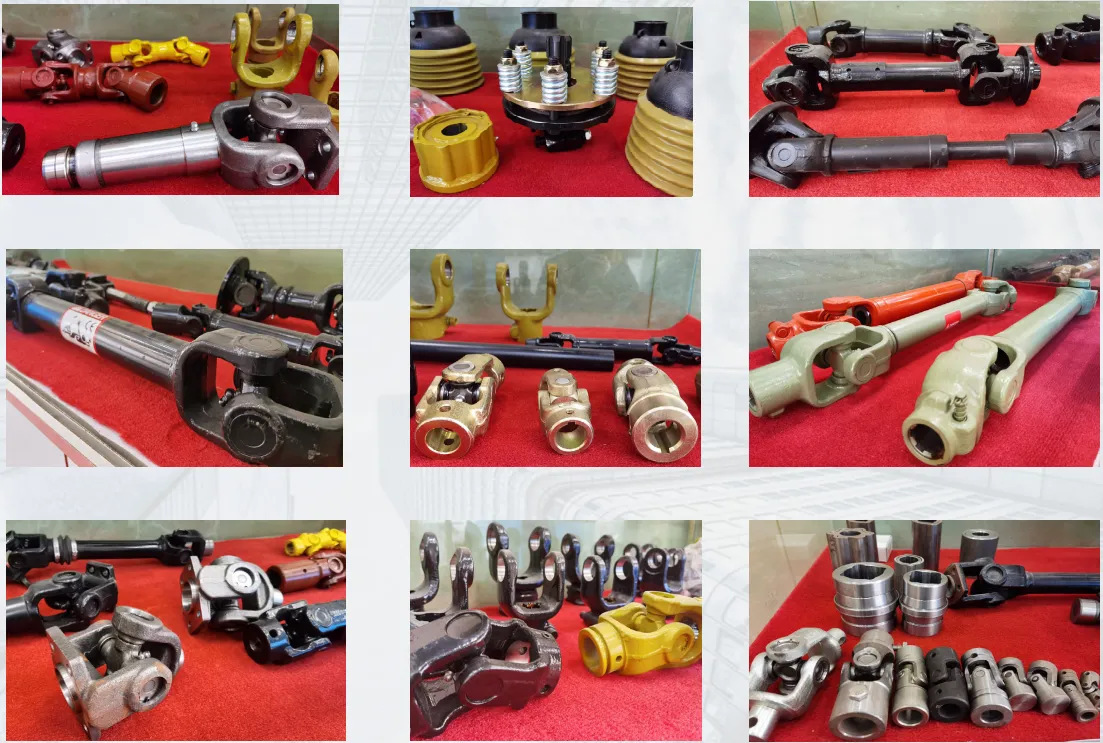

Why Choose Raydafon's Wide Angle Joints for PTO Shaft?

Raydafon Drive Shaft Co., Ltd., located in Ningbo Zhejiang City, two hours to the Pudong Airport and one hour to the Xiaoshan Airport & the East of Ningbo Station, Covered more than 12,000 m2 with over 100 people on staff. We specialize in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, PTO shaft accessories, PTO shaft u-joints, torque limiters, PTO shaft tubes, PTO shaft yokes, PTO shaft adaptors, industrial cardan shafts, car driveshafts, u-joint coupling shafts, etc. The annual turnover is 60 million RMB, 9 Million Dollars, and It??s increasing year by year. Our products gained a great reputation from European, American, Asia, Australian, and North American customers.We are the top professional OEM supplier for many agricultural implement factories in the domestic market. Raydafon Driveshaft insisted on our principles: Quality first, Deliver quickly, and Price Competitive. We already have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing types of equipment and a QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation. Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. Having the best-in-class brands in its product range, Raydafon continues its activities with the aim of becoming a global company in the fields it works.With a combination of professionalism, international certifications, customized services, advanced production facilities, and comprehensive after-sales services, Raydafon offers a complete solution for all your PTO shaft needs.Author: Yjx
