32 MDC Series Compact Mold Cylinder

32 MDC Series Compact Mold Cylinder

The 32 MDC series compact mold cylinder is a highly efficient and versatile hydraulic cylinder designed specifically for mold applications. With its compact design, superior performance, and durable construction, this cylinder offers reliable and precise operation in a range of industrial settings. Whether used in injection molding machines, die-casting equipment, or other mold-related applications, the 32 MDC compact mold cylinder delivers exceptional functionality and productivity.· MDC is a compact hydraulic cylinder (cx) with an electrical box and ram rod to control the neutron position of the mold accurately.· Hydraulic cylinder suitable for plastic mold use.

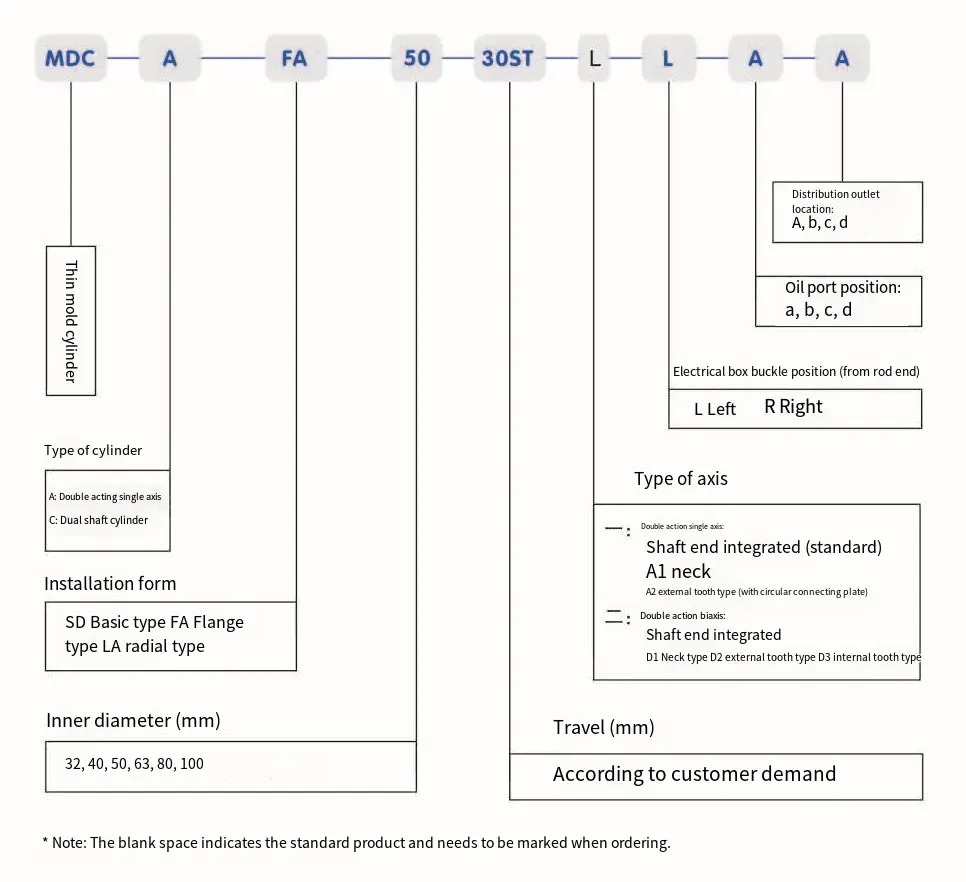

Compact Mold Cylinder Model Description:

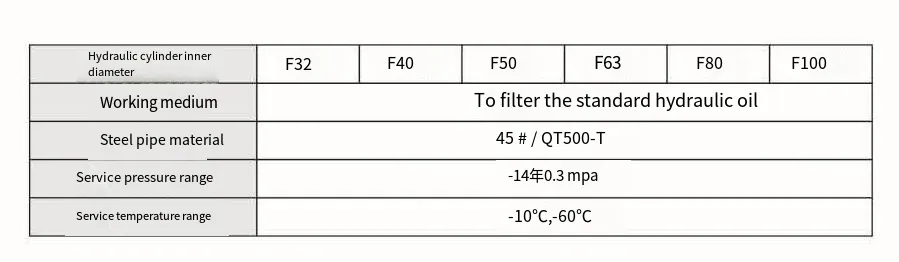

Compact Mold Cylinder Characteristic Data:

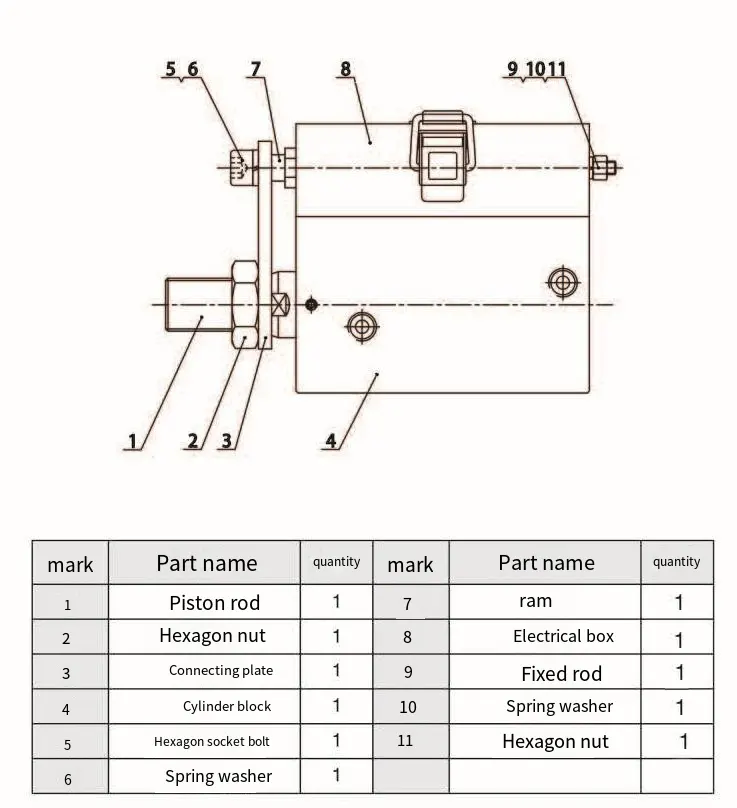

Compact Mold Cylinder Structure Chart:

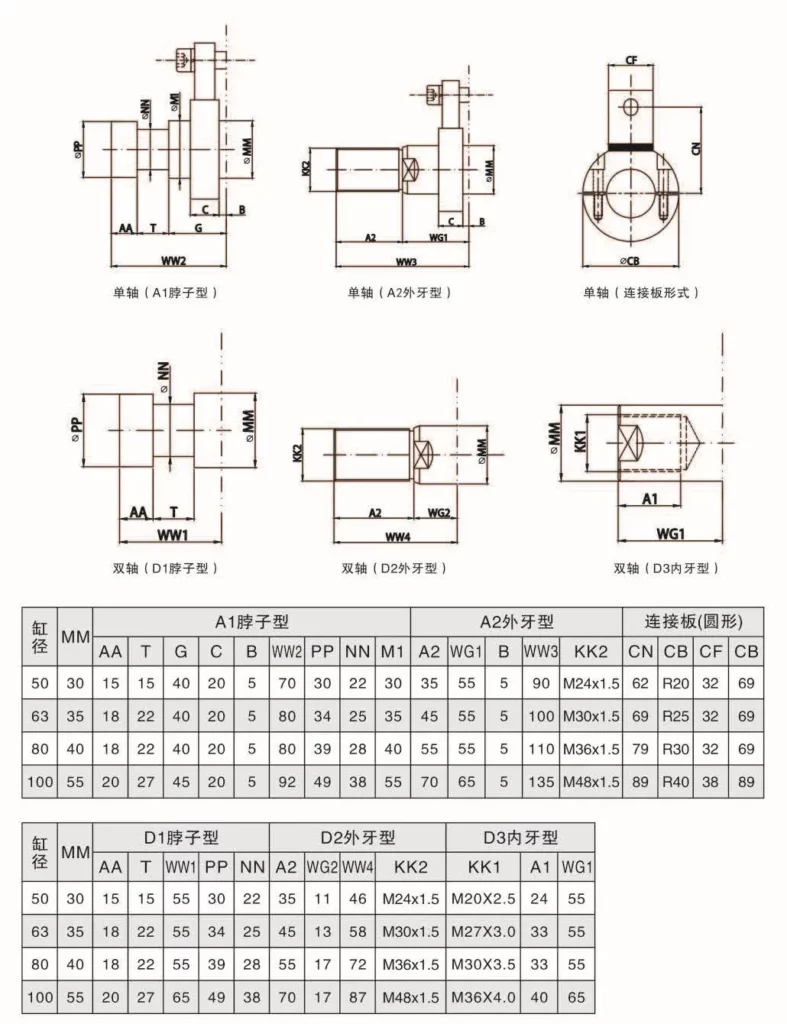

Piston Rod Connection Size Diagram:

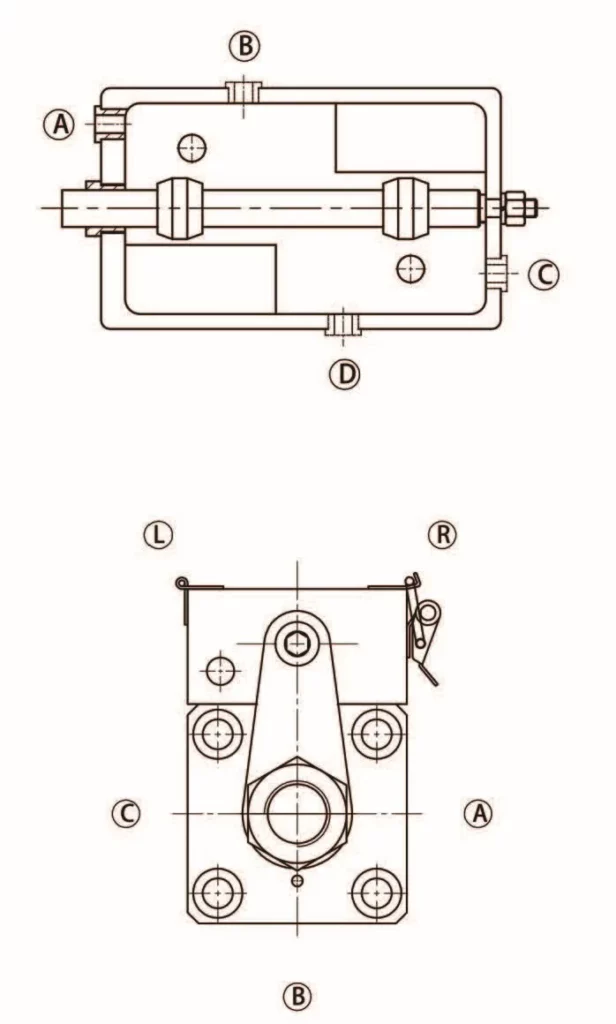

Electrical Box Buckle Position, Oil Port Position, And Distribution Outlet Position:

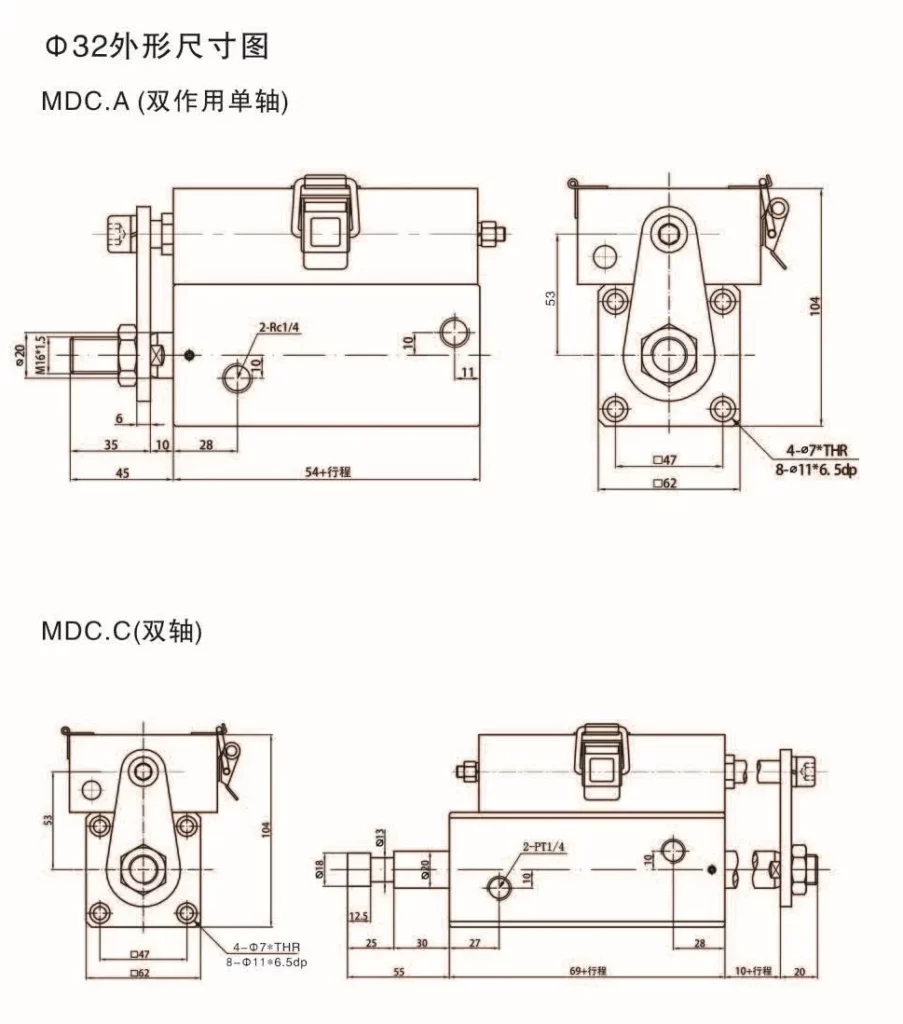

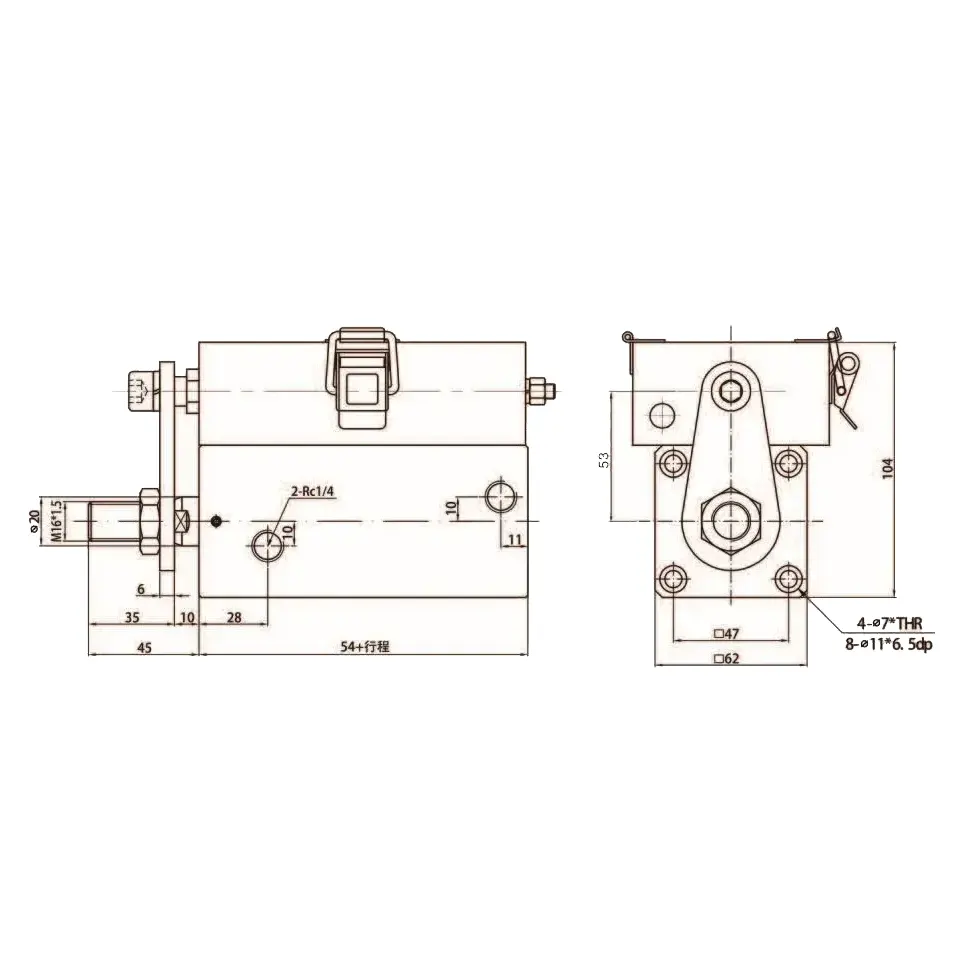

32 MDC Series Compact Mold Cylinder Parameter:

Key Features and Benefits Of 32 MDC Series Compact Mold Cylinder:

1. Compact Design:
   • The 32 MDC Series Compact Mold Cylinder features a compact design that allows for easy integration into tight spaces and mold applications with limited clearance.
   • Its space-saving design ensures optimal utilization of available workspace while maintaining high performance.
2. High Precision and Accuracy:
   • This cylinder is engineered to provide precise and accurate movement, ensuring consistent and repeatable results in mold operations.
   • It offers excellent control over the mold's opening, closing, and clamping actions, enabling high-quality production.
3. Robust Construction:
   • The 32 MDC Series Compact Mold Cylinder is built with high-quality materials and components to withstand demanding operating conditions.
   • It exhibits exceptional durability, resistance to wear, and extended service life, minimizing downtime and maintenance costs.
4. Fast Response Time:
   • With its efficient hydraulic system and optimized design, this cylinder offers fast response times, reducing cycle times in mold operations.
   • The quick response enables improved productivity and increased production output.

How Does A One Way Hydraulic Cylinder Work?

A one-way, single-acting hydraulic cylinder operates using a hydraulic system to generate linear motion in one direction. It consists of a cylinder barrel, piston, piston rod, and hydraulic fluid. Here's how it works:

1. Hydraulic Fluid Supply:
   • The hydraulic system supplies pressurized fluid, typically oil, to the cylinder through a hydraulic pump or power source.
2. Cylinder Extension:
   • When hydraulic fluid is supplied to the cylinder, it enters the cylinder barrel through an inlet port.
   • The pressurized fluid pushes against the piston, causing it to move in the desired direction (typically extending the piston rod).
   • As the fluid pressure increases, it overcomes the resistance or load on the piston, resulting in the extension of the piston rod.
3. Sealing Mechanism:
   • The cylinder barrel is sealed to prevent fluid leakage. It typically incorporates seals around the piston and piston rod, such as O-rings or lip seals.
   • These seals ensure that the pressurized fluid acts only on one side of the piston, creating a pressure imbalance that drives the piston in the desired direction.
4. Return Stroke:
   • After the extension stroke, the hydraulic fluid is released or vented from the cylinder.
   • The hydraulic system may use gravity, a spring, or an external force to retract the piston and piston rod to their initial positions.
   • During the return stroke, the hydraulic fluid flows out of the cylinder through an outlet port.
5. Load Support:
   • The piston rod of the hydraulic cylinder is often connected to a load or mechanism that requires linear motion or force.
   • As the piston extends or retracts, it provides the necessary force to move or support the load.
6. Control and Valves:
   • To control the extension and retraction of the one-way hydraulic cylinder, the hydraulic system incorporates valves, such as check valves or directional control valves.
   • These valves regulate the flow of hydraulic fluid, allowing it to enter and exit the cylinder in the desired direction.
7. Application Specifics:
   • One-way hydraulic cylinders are commonly used in applications where force or motion is required in only one direction, such as lifting, pushing, or clamping.
   • They are often found in hydraulic jacks, hydraulic presses, dump trucks, and various other industrial and mobile equipment.
