3TB Gripbelt Sheaves with Split Taper Bushings

3TB series pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 3.75" to 38.35" in diameter. Depending on the pulley size, they are made to use with P1 taper bushings or Q1 taper bushings, which we also stock. Most of our 3TB pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

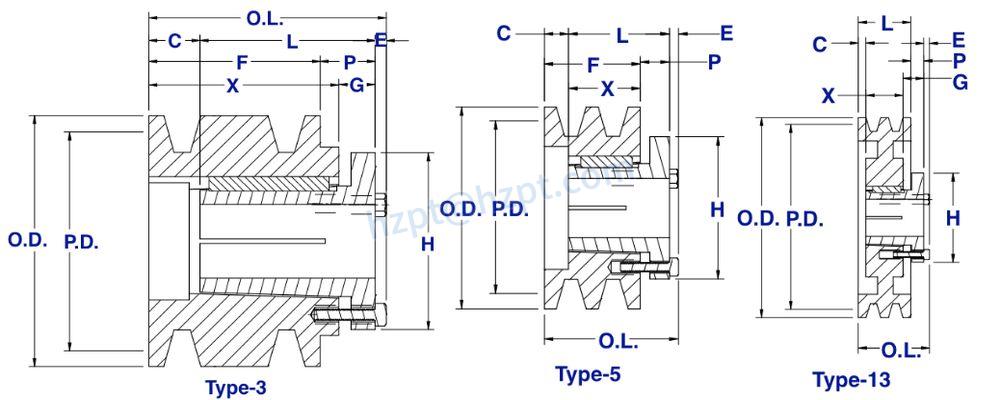

3TB Style Pulley Size Chart

Size	Bushing Type	Pitch Diameter (4L/A)	Pitch Diameter (5L/B)	Outside Diameter	Type	(O.L.)	(L)	(P)	(C)	(H)	(F)	(G)	(X)	(E)	Pulley Weight (LBS)
3TB34	P2	3.0"	3.75"	3.75"	3	3-13/16"	2-15/16"	1-1/16"	7/8"	3"	2-1/2"	5/8"	2-5/16"	1/4"	3.8
3TB36	P2	3.2"	3.95"	3.95"	3	3-13/16"	2-15/16"	1-1/16"	7/8"	3"	2-1/2"	5/8"	2-5/16"	1/4"	4.4
3TB38	P1	3.4"	4.15"	4.15"	5	3-5/8"	1-15/16"	5/8"	7/16"	3"	2-1/2"	--	1-5/16"	1/4"	3.8
3TB40	P1	3.6"	4.35"	4.35"	5	3-5/8"	1-15/16"	5/8"	7/16"	3"	2-1/2"	--	1-5/16"	1/4"	4.5
3TB42	P1	3.8"	4.55"	4.55"	5	3-5/8"	1-15/16"	5/8"	7/16"	3"	2-1/2"	--	1-5/16"	1/4"	4.9
3TB44	P1	4.0"	4.75"	4.75"	13	2-3/4"	1-15/16"	3/16"	0	3"	2-1/2"	5/8"	1-5/16"	1/4"	5.1
3TB46	P1	4.2"	4.95"	4.95"	13	2-3/4"	1-15/16"	3/16"	0	3"	2-1/2"	5/8"	1-5/16"	1/4"	6.0
3TB48	P1	4.4"	5.15"	5.15"	13	2-3/4"	1-15/16"	3/16"	0	3"	2-1/2"	5/8"	1-5/16"	1/4"	6.3
3TB50	P1	4.6"	5.35"	5.35"	13	2-3/4"	1-15/16"	3/16"	0	3"	2-1/2"	5/8"	1-5/16"	1/4"	6.9
3TB52	P1	4.8"	5.55"	5.55"	13	2-3/4"	1-15/16"	3/16"	0	3"	2-1/2"	5/8"	1-5/16"	1/4"	7.5
3TB54	P1	5.0"	5.75"	5.75"	13	2-3/4"	1-15/16"	3/16"	0	3"	2-1/2"	5/8"	1-5/16"	1/4"	8.3
3TB56	P1	5.2"	5.95"	5.95"	13	2-3/4"	1-15/16"	3/16"	0	3"	2-1/2"	5/8"	1-5/16"	1/4"	9.0
3TB58	P1	5.4"	6.15"	6.15"	13	2-3/4"	1-15/16"	3/16"	0	3"	2-1/2"	5/8"	1-5/16"	1/4"	9.6
3TB60	P1	5.6"	6.35"	6.35"	13	2-3/4"	1-15/16"	3/16"	0	3"	2-1/2"	5/8"	1-5/16"	1/4"	10.5
3TB62	P1	5.8"	6.55"	6.55"	13	2-3/4"	1-15/16"	3/16"	0	3"	2-1/2"	5/8"	1-5/16"	1/4"	9.4
3TB64	P1	6.0"	6.75"	6.75"	13	2-3/4"	1-15/16"	3/16"	0	3"	2-1/2"	5/8"	1-5/16"	1/4"	9.5
3TB66	P1	6.2"	6.95"	6.95"	13	2-3/4"	1-15/16"	3/16"	0	3"	2-1/2"	5/8"	1-5/16"	1/4"	10.0
3TB68	P1	6.4"	7.15"	7.15"	13	2-3/4"	1-15/16"	3/16"	0	3"	2-1/2"	5/8"	1-5/16"	1/4"	10.4
3TB70	Q1	6.6"	7.35"	7.35"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	13.0
3TB74	Q1	7.0"	7.75"	7.75"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	13.3
3TB80	Q1	7.6"	8.35"	8.35"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	15.3
3TB86	Q1	8.2"	8.95"	8.95"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	18.9
3TB90	Q1	8.6"	9.35"	9.35"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	18.1
3TB94	Q1	9.0"	9.75"	9.75"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	18.0
3TB110	Q1	10.6"	11.35"	11.35"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	21.3
3TB124	Q1	12.0"	12.75"	12.75"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	25.4
3TB136	Q1	13.2"	13.95"	13.95"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	27.4
3TB154	Q1	15.0"	15.75"	15.75"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	29.8
3TB160	Q1	15.6"	16.35"	16.35"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	32.0
3TB184	Q1	18.0"	18.75"	18.75"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	37.8
3TB200	Q1	19.5"	20.35"	20.35"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	49.9
3TB250	Q1	24.5"	25.35"	25.35"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	61.0
3TB300	Q1	29.5"	30.35"	30.35"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	78.5
3TB380	Q1	37.5"	38.35"	38.35"	13	3-5/32"	2-1/2"	3/4"	3/8"	4-1/8"	2-1/2"	3/4"	1-3/4"	9/32"	110.0

Features and Benefits

I. The belt is an elastomer that can mitigate load impact and run smoothly without noiseII. Overload will cause the belt to slip on the wheel, thus playing the role of protecting the whole machineⅢ. The grooves of most American standard pulleys are suitable for several different belt types, and the belt design and application are relatively flexible.Ⅳ. There are many types of American standard pulley grooves and taper bushings. Some pulleys and bushings are allowed to be installed on the front and back, which has become a solution for harsh conditions on different occasions.V. American standard pulleys and taper bushings can achieve precise balance control and perform well in transmission.

Applications of 3TB Series Pulley

3TB series pulleys are widely used in the power output of small diesel engines, agricultural vehicles, tractors, automobiles, mining machinery, machining equipment, textile machinery, packaging machinery, lathes, forging machines, some small horsepower motorcycle power transmission, agricultural machinery power transmission, Air compressor, reducer, reducer, generator, etc.
