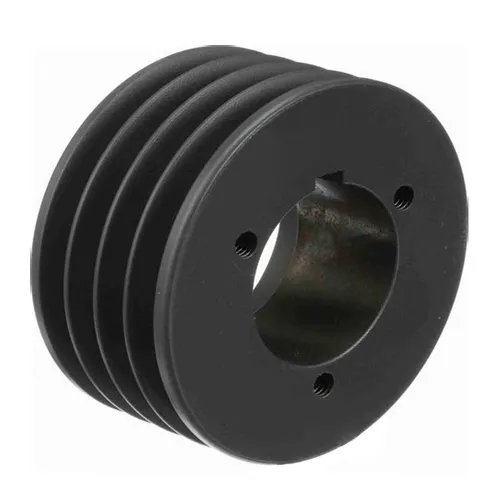

3V Series Cast Iron Four-Groove Sheaves with Split Taper Bushings

3V Series Cast Iron Four-Groove Sheaves with Split Taper Bushings

3V series four-groove taper bushed sheaves are manufactured for 3V, 3VX, banded 3V, and banded 3VX belts. They range from 2.65" to 33.50" in diameter. Depending on the sheave size, they are made to use G, H, P1, Q1, or R1 split-taper bushings, which we also stock. Most of our four-groove 3V split taper sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

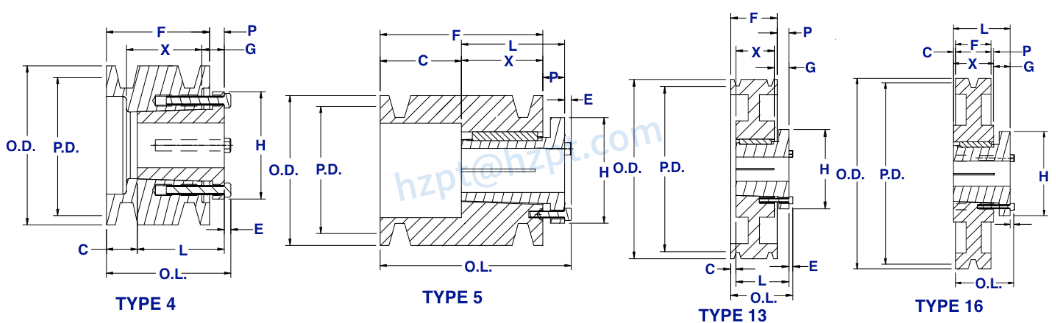

Four-Groove 3V Split Taper Sheave Size Chart

Size	Bushing Type	Pitch Diameter	Outside Diameter	Type	(O.L.)	(L)	(P)	(C)	(H)	(F)	(G)	(X)	(E)	Sheave Weight (LBS)
4G3V26	G	2.60"	2.65	4	2 13/32	1	5/16	1 7/32	2	1 29/32	7/16	1 1/2	3/16	1.4
4G3V28	G	2.75"	2.80"	4	2 13/32	1	5/16	1 7/32	2	1 29/32	7/16	1 1/2	3/16	1.8
4H3V30	G	2.95"	3.00"	4	2 13/32	1	5/16	1 7/32	2	1 29/32	7/16	1 1/2	3/16	2.1
4H3V31	H	3.10"	3.15"	4	2 13/32	1 1/4	5/16	31/32	2 1/2	1 29/32	7/16	31/32	3/16	1.8
4H3V33	H	3.30"	3.35"	4	2 13/32	1 1/4	5/16	31/32	2 1/2	1 29/32	7/16	31/32	3/16	2.3
4P3V36	P1	3.60"	3.65"	5	2 25/32	1 15/16	5/8	19/32	3	1 29/32	-	1 5/16	1/4	2.8
4P3V41	P1	4.07"	4.12"	5	2 25/32	1 15/16	5/8	19/32	3	1 29/32	-	1 5/16	1/4	3.7
4P3V45	P1	4.45"	4.50"	13	2 3/16	1 15/16	1/32	0	3	1 29/32	5/8	1 5/16	1/4	4.4
4P3V47	P1	4.70"	4.75"	13	2 3/16	1 15/16	1/32	0	3	1 29/32	5/8	1 5/16	1/4	5.1
4P3V50	P1	4.95"	5.00"	13	2 3/16	1 15/16	1/32	0	3	1 29/32	5/8	1 5/16	1/4	5.8
4P3V53	P1	5.25"	5.30"	13	2 3/16	1 15/16	1/32	0	3	1 29/32	5/8	1 5/16	1/4	6.5
4P3V56	P1	5.55"	5.60"	13	2 3/16	1 15/16	1/32	0	3	1 29/32	5/8	1 5/16	1/4	8.1
4Q3V60	Q1	5.95"	6.00"	13	2 25/32	2 1/2	19/32	0	4 1/8	1 29/32	3/4	1 3/4	9/32	9.0
4Q3V65	Q1	6.45"	6.50"	13	2 55/64	2 1/2	43/64	5/64	4 1/8	1 29/32	3/4	1 3/4	9/32	11.1
4Q3V69	Q1	6.85"	6.90"	13	2 55/64	2 1/2	43/64	5/64	4 1/8	1 29/32	3/4	1 3/4	9/32	12.9
4Q3V80	Q1	7.95"	8.00"	13	2 55/64	2 1/2	43/64	5/64	4 1/8	1 29/32	3/4	1 3/4	9/32	13.1
4Q3V106	Q1	10.55"	10.60"	13	2 55/64	2 1/2	43/64	5/64	4 1/8	1 29/32	3/4	1 3/4	9/32	15.9
4Q3V140	Q1	13.95"	14.00"	13	2 55/64	2 1/2	43/64	5/64	4 1/8	1 29/32	3/4	1 3/4	9/32	25.4
4R3V190	R1	18.95"	19.00"	16	3 5/32	2 7/8	63/64	3/64	5 3/8	1 29/32	7/8	2	9/32	37.3
4R3V250	R1	24.95"	25.00"	16	3 5/32	2 7/8	63/64	3/64	5 3/8	1 29/32	7/8	2	9/32	60.0
4R3V335	R1	33.45"	33.50"	16	3 5/32	2 7/8	63/64	3/64	5 3/8	1 29/32	7/8	2	9/32	88.0

V-belt Pulley American Stanard -- 3v Series

The American standard pulley is manufactured according to the American ANSI standard. Its primary material is gray iron, which is suitable for 2L, 3L, 4L, 5L, A， B, C, D, 3V, 5V, 8V belts, J, L, and M multi-ribbed belts. American standard pulley product types: AK, BK, TA, TB, TC, B, C, D, 3V, 5V, 8V, J, L, M, VP, VL, VM. Taper bushing pulleys are used with STB, QD, or TB taper bushings.

Matching Use 3V, 3VX Series V-Belt

(1) 3V-Series V-BeltsClassic 3V-Series V-Belts have a 0.38" top-width, 0.31" thickness, and a 38° angle, which also classifies them as a deep-wedge v-belt. 3V series belts are designed to be more compact with more drive capability than the standard 40° angle v-belts. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium 3V-series v-belts we supply are manufactured under ISO 9001 specifications and ARPM Standards; they are oil and heat-resistant and directly interchange with other brands. 3V belts are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability. 3V series belts are used in most general heavy-duty industrial applications along with Heating, ventilation, air conditioning (HVAC), lawn and garden equipment, and agricultural equipment. We also stock a complete line of high-power v-belts and accompanying v-belt pulleys/ sheaves.(2) 3V-Series Banded V-Belts3V-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured following ARPM standards and offer superior strength, durability, and performance. 3V-series v-belts have a 0.38" top-width per belt (band/ rib).(3) 3VX Cogged V-Belts3VX cogged v-belts are designated by having a 0.38" top-width and 0.31" thickness. Our cogged 3VX v-belts are manufactured with raw-edge sidewalls to eliminate slippage and increase efficacy, saving operation costs. They are also manufactured by ARPM standards and are oil and heat-resistant. 3VX belts are constructed from a high-quality chloroprene compound with high-strength polyester chords and have a top fabric built from a cotton polyester blend. Besides the performance, durability, and energy savings benefits, our cogged v-belts will work with existing stand pulleys/ sheaves. Please contact us to get a quote on 3VX cogged v-belts or pulleys, and we will be happy to assist you.(4) 3VX Banded Cogged V-BeltsAll of our v-belts are manufactured by ARPM specifications and offer superior performance and durability. Due to their design, banded 3VX cogged v-belts run smoother, more relaxed, and typically outlast a standard banded C v-belt. They also offer a higher efficiency than ordinary banded v-belts, which means fewer energy costs.

Related Split Taper Bushings

Split taper bushings are amongst the most common bushings utilized due to their high integral strength, simplicity of installation and uninstall, and high holding power for successfully coupling a shaft onto a drive or idler component. Split taper bushings are utilized in a broad range of sheaves, conveyor pulleys, and sprockets. Our high-quality split taper bushings are manufactured from high-grade steel or cast and interchange with any other brand, designed as a flanged bushing with a tapered barrel attached that contains one slit on each side. We stock split taper bushings ranging from the G-series to W2-series and in inch and metric bore sizes that range from 0.375" up to 7.438". For additional information or to get a quote on our high-strength split taper bushings, please get in touch with our customer support team, and we will be happy to assist you.

Can a Taper Sleeve Be Purchased Separately for a Taper-sleeve Pulley?

The tapered sleeve is a connecting assembly between the installation shaft and the pulley. Compared with the traditional pulley, the taper sleeve pulley has many advantages and is gradually being widely used. Can a tapered sleeve be purchased separately for the taper sleeve pulley?The tapered sleeve pulley is a new mechanical transmission connecting component commonly used in European and American countries. A key connects the inner hole of the tapered sleeve with the shaft. When the pulley and the shaft are connected, a connection body with an interference fit is formed. The two torque and force are transmitted through keys.Due to its unique detachable physical structure, the tapered sleeve pulley improves the overall use efficiency and reduces the difficulty of installation and disassembly. In the past, if the traditional pulley was damaged, it could only be scrapped altogether, and it would cost a lot to replace it with a new one. The tapered sleeve pulley In the case of wear and tear of the taper sleeve, it is only necessary to replace the new taper sleeve with the exact specifications and parameters. The cost of purchasing the taper sleeve alone is much lower than replacing the pulley, which can save the use and maintenance costs for the enterprise.Raydafon can provide high-quality taper bushings of various types and specifications. Enterprises and agents are welcome to purchase taper bushing products individually or in bulk. Raydafon taper bushing products are made of selected HT250 material, with high overall hardness and good toughness, which can carry large loads. Load, the taper sleeve is pressed and connected with the inner taper surface of the pulley through the 8-degree outer tapered surface, which significantly improves the centering accuracy of the transmission parts.

Usage Scenario of V-Belt Pulleys and V-Belts

• Machine tools
• Crushers, shredders, breakers, classifiers, shaker screens
• Material conveyor systems
• Fans, blowers, and exhausters
• Pumps and compressors
• Woodworking saws, mills, planers, lathes
