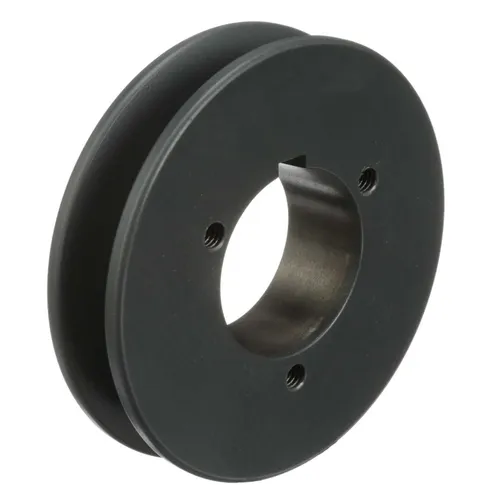

3V series single-groove taper bushed sheaves are manufactured for 3V, 3VX, banded 3V, and banded 3VX belts. They range from 2.65" to 25.0" in diameter. Depending on the sheave size, they are made to use G, H, P1, or Q1 split-taper bushings, which we also stock. Most of our single-groove 3V split taper sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Single-Groove 3V Split Taper Sheave Size Chart

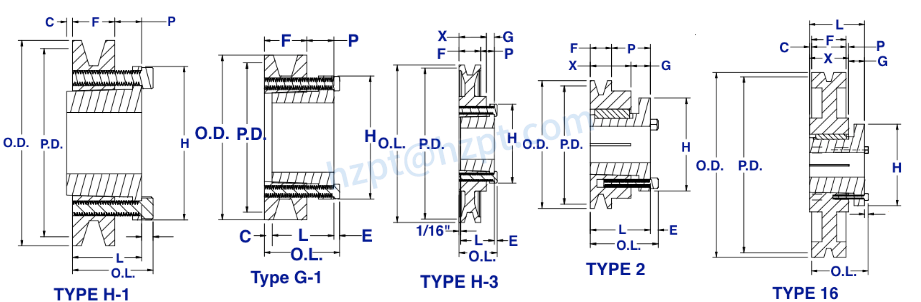

Size	Bushing Type	Pitch Diameter	Outside Diameter	Type	(O.L.)	(L)	(P)	(C)	(H)	(F)	(G)	(X)	(E)	Sheave Weight (LBS)
1G3V26	G	2.60"	2.65	G-1	1 5/16	1	7/16	1/8	2	11/16	-	-	3/16	0.6
1G3V28	G	2.75"	2.80"	G-1	1 5/16	1	7/16	1/8	2	11/16	-	-	3/16	0.7
1G3V30	G	2.95"	3.00"	G-1	1 5/16	1	7/16	1/8	2	11/16	-	-	3/16	0.9
1H3V31	H	3.10"	3.15"	H-1	1 7/16	1 1/4	7/16	1/8	2 1/2	11/16	-	-	3/16	0.8
1H3V33	H	3.30"	3.35"	H-1	1 7/16	1 1/4	7/16	1/8	2 1/2	11/16	-	-	3/16	0.9
1H3V36	H	3.60"	3.65"	H-3	1 1/2	1 1/4	5/8	-	2 1/2	11/16	7/16	7/8	3/16	1.4
1P3V36	P1	3.60"	3.65"	2	2 3/16	1 15/16	1 1/4	-	3	11/16	5/8	1 5/16	1/4	2.0
1H3V41	H	4.07"	4.12"	H-3	1 1/2	1 1/4	5/8	-	2 1/2	11/16	7/16	7/8	3/16	1.9
1P3V41	P1	4.07"	4.12"	2	2 3/16	1 15/16	1 1/4	-	3	11/16	5/8	1 5/16	1/4	2.6
1H3V45	H	4.45"	4.50"	H-3	1 1/2	1 1/4	5/8	-	2 1/2	11/16	7/16	7/8	3/16	2.2
1P3V45	P1	4.45"	4.50"	2	2 3/16	1 15/16	1 1/4	-	3	11/16	5/8	1 5/16	1/4	3.0
1H3V47	H	4.70"	4.75"	H-3	1 1/2	1 1/4	5/8	-	2 1/2	11/16	7/16	7/8	3/16	2.4
1P3V47	P1	4.70"	4.75"	2	2 3/16	1 15/16	1 1/4	-	3	11/16	5/8	1 5/16	1/4	3.5
1H3V50	H	4.95"	5.00"	H-3	1 1/2	1 1/4	5/8	-	2 1/2	11/16	7/16	7/8	3/16	2.6
1P3V50	P1	4.95"	5.00"	2	2 3/16	1 15/16	1 1/4	-	3	11/16	5/8	1 5/16	1/4	3.8
1H3V53	H	5.25"	5.30"	H-3	1 1/2	1 1/4	5/8	-	2 1/2	11/16	7/16	7/8	3/16	2.5
1P3V53	P1	5.25"	5.30"	2	2 3/16	1 15/16	1 1/4	-	3	11/16	5/8	1 5/16	1/4	4.2
1H3V56	H	5.55"	5.60"	H-3	1 1/2	1 1/4	5/8	-	2 1/2	11/16	7/16	7/8	3/16	2.6
1P3V56	P1	5.55"	5.60"	2	2 3/16	1 15/16	1 1/4	-	3	11/16	5/8	1 5/16	1/4	4.6
1H3V60	H	5.95"	6.00"	H-3	1 1/2	1 1/4	5/8	-	2 1/2	11/16	7/16	7/8	3/16	2.9
1P3V60	P1	5.95"	6.00"	2	2 3/16	1 15/16	1 1/4	-	3	11/16	5/8	1 5/16	1/45	5.3
1P3V65	P1	6.45"	6.50"	16	2 3/16	1 15/16	15/16	5/16	3	11/16	5/8	1 5/16	1/4	5.5
1P3V69	P1	6.85"	6.90"	16	2 3/16	1 15/16	15/16	5/16	3	11/16	5/8	1 5/16	1/4	4.9
1P3V80	P1	7.95"	8.00"	16	2 3/16	1 15/16	15/16	5/16	3	11/16	5/8	1 5/16	1/4	6.5
1P3V106	P1	10.55"	10.60"	16	2 3/16	1 15/16	15/16	5/16	3	11/16	5/8	1 5/16	1/4	7.8
1Q3V140	Q1	13.95"	14.00"	16	2 25/32	2 1/2	1 9/32	1 7/32	4 1/8	11/16	3/4	1 3/4	9/32	18.1
1Q3V190	Q1	18.95"	19.00"	16	2 25/32	2 1/2	1 9/32	1 7/32	4 1/8	11/16	3/4	1 3/4	9/32	26.3
1Q3V250	Q1	24.95"	25.00"	16	2 25/32	2 1/2	1 9/32	1 7/32	4 1/8	11/16	3/4	1 3/4	9/32	38.3

Related Matching Use 3V, 3VX Series V-Belt

(1) 3V-Series V-BeltsClassic 3V-Series V-Belts have a 0.38" top-width, 0.31" thickness, and a 38° angle, which also classifies them as a deep-wedge v-belt. 3V series belts are designed to be more compact with more drive capability than the standard 40° angle v-belts. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium 3V-series v-belts we supply are manufactured under ISO 9001 specifications and ARPM Standards; they are oil and heat-resistant and directly interchange with other brands. 3V belts are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability. 3V series belts are used in most general heavy-duty industrial applications along with Heating, ventilation, air conditioning (HVAC), lawn and garden equipment, and agricultural equipment. We also stock a complete line of high-power v-belts and accompanying v belt pulleys/ sheaves.(2) 3V-Series Banded V-Belts3V-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured following ARPM standards and offer superior strength, durability, and performance. 3V-series v-belts have a 0.38" top-width per belt (band/ rib).(3) 3VX Cogged V-Belts3VX cogged v-belts are designated by having a 0.38" top-width and 0.31" thickness. Our cogged 3VX v-belts are manufactured with raw-edge sidewalls to eliminate slippage and increase efficacy, saving operation costs. They are also manufactured by ARPM standards and are oil and heat-resistant. 3VX belts are constructed from a high-quality chloroprene compound with high-strength polyester chords and have a top fabric built from a cotton polyester blend. Besides the performance, durability, and energy savings benefits, our cogged v-belts will work with existing stand pulleys/ sheaves. Please contact us to get a quote on 3VX cogged v-belts or pulleys, and we will be happy to assist you.(4) 3VX Banded Cogged V-BeltsAll of our v-belts are manufactured by ARPM specifications and offer superior performance and durability. Due to their design, banded 3VX cogged v-belts run smoother, more relaxed, and typically outlast a standard banded C v-belt. They also offer a higher efficiency than ordinary banded v-belts, which means fewer energy costs.

Related Accessories Split Taper Bushings

Bushing Type	(D)	(L)	(A)	(B)	(G)	(B.C)	(W)	Type-1 Bore Range	Type-2 Bore Range	Cap Screw No.	Cap Screw Size	Avg. Weight (LBS)	Wrench Torque (In/ LBS)
G	2"	1.00"	0.25"	1.172"	0.19"	1.56"	--	0.375" - 0.938"	1"	2	0.25" X 0.625"	0.5	95
H	2.5"	1.25"	0.25"	1.625"	0.19"	2"	--	0.375" - 1.375"	1.438" - 1.5"	2	0.25" X 0.75"	0.8	95
P1	3"	1.94"	0.41"	1.938"	0.22"	2.44"	0.375"	0.5" - 1.438"	1.5" - 1.75"	3	0.313" X 1"	1.3	192
Q1	4.12"	2.50"	0.53"	2.875"	0.22"	3.38"	0.500"	0.75" - 2.063"	2.125" - 2.688"	3	0.375" X 1.25"	3.5	348

Split taper bushings are amongst the most common bushings utilized due to their high integral strength, simplicity of installation and uninstall, and high holding power for successfully coupling a shaft onto a drive or idler component. Split taper bushings are utilized in a broad range of sheaves, conveyor pulleys, and sprockets. Our high-quality split taper bushings are manufactured from high-grade steel or cast and interchange with any other brand, designed as a flanged bushing with a tapered barrel attached that contains one slit on each side. We stock split taper bushings ranging from the G-series to W2-series and in inch and metric bore sizes that range from 0.375" up to 7.438". For additional information or to get a quote on our high-strength split taper bushings, please get in touch with our customer support team, and we will be happy to assist you.
