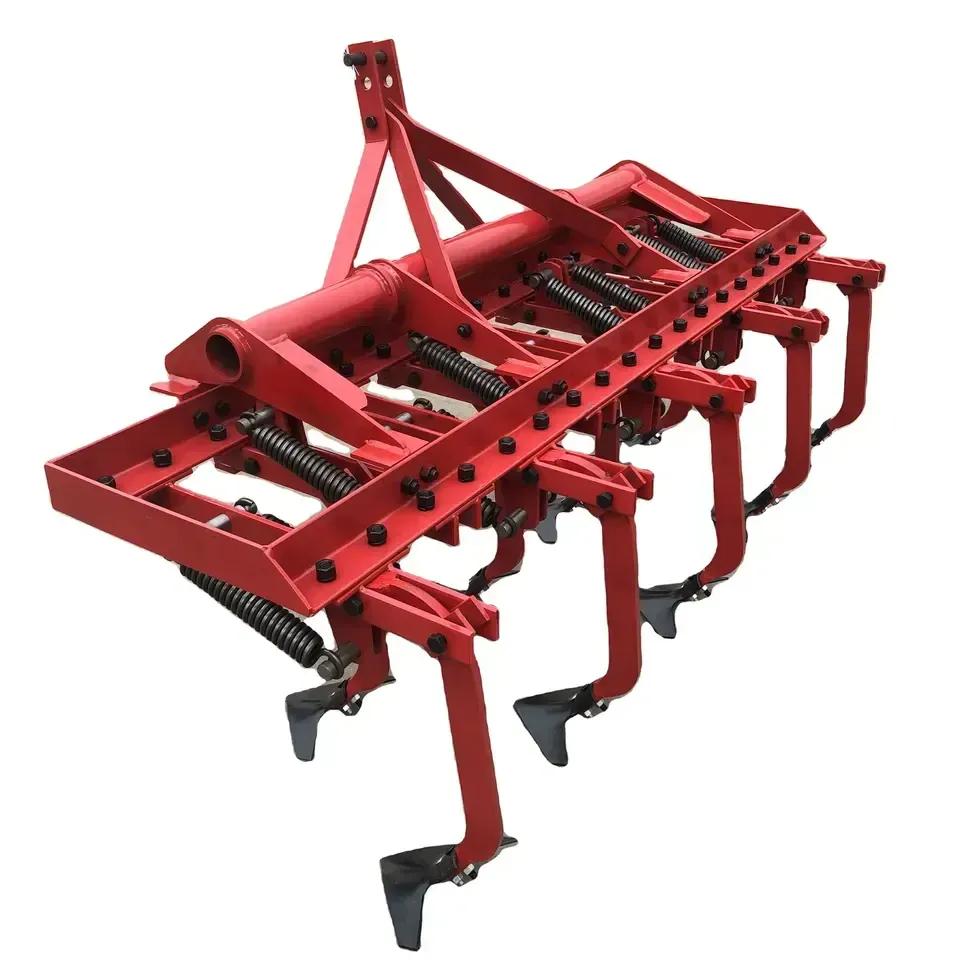

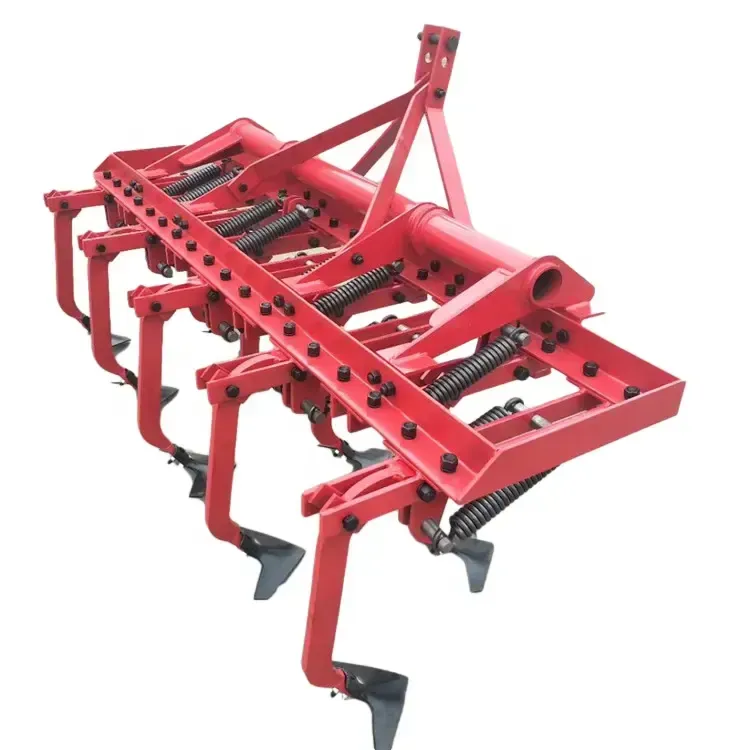

3ZT-1.4 Spring Cultivator Mounted Spring Tine Cultivator Shovel Plow

[embed]https://youtu.be/8scLEGXvsMY[/embed] A farm tractor-mounted spring tine cultivator is an agricultural implement designed for soil cultivation. It attaches to a tractor and is used primarily for secondary tillage. The cultivator features multiple spring-loaded tines, which are metal prongs that penetrate and aerate the soil. These tines are spaced evenly across a frame that can be adjusted for different soil conditions and desired cultivation depth. The spring mechanism allows the tines to flex and absorb shocks when encountering obstacles like rocks or hard soil, reducing damage to the equipment and ensuring consistent soil penetration. This flexibility also helps in maintaining a uniform working depth, crucial for preparing seedbeds and controlling weeds. Spring tine cultivators are particularly effective for breaking up clods, mixing soil layers, and incorporating crop residues or fertilizers into the soil. They are versatile and can be used in various soil types and conditions. By enhancing soil aeration and moisture retention, these cultivators promote healthier crop growth and improve overall farm productivity. Their efficiency and adaptability make them a vital tool in modern agriculture.

Specifications of Spring Tine Cultivator 3ZT-1.4

Models	Unit	3ZT-1.0	3ZT-1.4	3ZT-1.8	3ZT-2.2	3ZT-2.6	3ZT-3.0
Working Width	mm	1000	1400	1800	2200	2600	3000
No. of plowbody	pcs	5	7	9	11	13	15
Working depth	mm	100-200	100-200	100-200	100-200	100-200	100-200
Total weight	KG	260	300	350	420	490	580
Matched power	hp	25	30-40	40-50	50-70	70-90	80-100
Linkage	Three-pointed mounted

Advantages of Using the Tractor Mounted Spring Tine Cultivator

The tractor-mounted spring tine cultivator offers several advantages for farmers and agricultural operations:

• Enhanced Soil Aeration: The spring tine cultivator effectively loosens and aerates the soil, allowing air, water, and nutrients to penetrate deeper. This improved aeration promotes healthier root systems and enhances microbial activity in the soil, leading to better plant growth and increased crop yields over time.
• Efficient Weed Control: The cultivator is adept at uprooting weeds by disturbing the soil surface. The tines cut through the soil, removing weeds without the need for chemical herbicides. This mechanical method of weed control is environmentally friendly and helps in maintaining the ecological balance of the farm.
• Versatility Across Soil Types: Thanks to its adjustable tines and resilient spring mechanism, the cultivator can be used in various soil conditions, from light sandy soils to heavier clay types. Its ability to adapt ensures consistent performance and efficiency regardless of the soil type or moisture level.
• Reduced Soil Compaction: By only disturbing the top layer of soil, the spring tine cultivator minimizes soil compaction. This is crucial for maintaining soil structure and health, as compacted soil can restrict root growth and reduce water infiltration, ultimately affecting plant vitality and productivity.
• Improved Seedbed Preparation: The cultivator creates a fine tilth, ideal for seedbed preparation. Its ability to break down large clods into smaller, more manageable particles ensures a smooth, even surface. This optimizes seed-to-soil contact, enhancing germination rates and ensuring uniform crop emergence.
• Incorporation of Crop Residues: With its robust tines, the cultivator effectively incorporates crop residues into the soil. This process not only adds organic matter, improving soil fertility and structure, but also aids in the decomposition of residues, which can reduce the spread of pests and diseases.

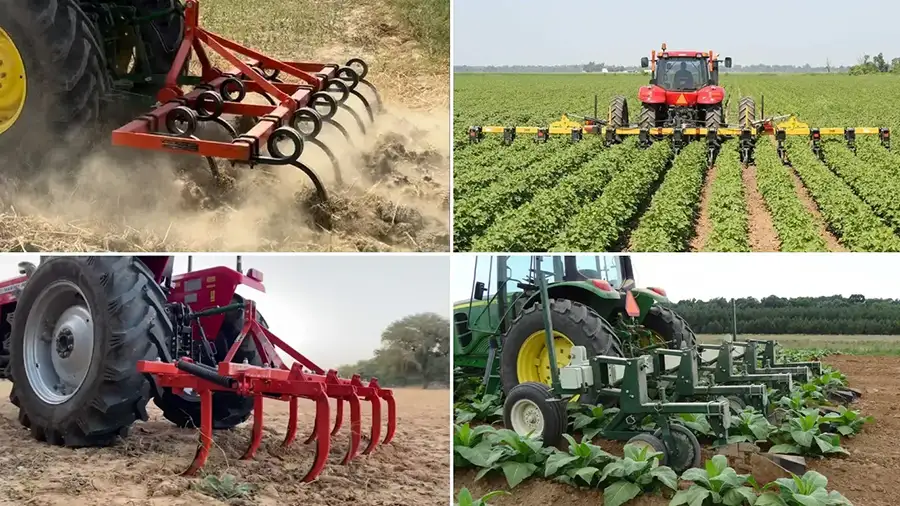

Common Applications of Spring Tine Cultivators

Spring tine cultivators are versatile tools used in agriculture and gardening for various purposes. Some common applications of spring tine cultivators include:

1. Loosening Soil: Spring tine cultivators are ideal for loosening compacted soil layers. The tines penetrate the soil, breaking up hardpan layers and improving aeration. This process enhances root penetration and allows for better water and nutrient absorption, contributing to healthier plant growth and increased agricultural productivity.
2. Cultivating Soil: These cultivators are perfect for general soil cultivation. They mix the topsoil layer, promoting the integration of organic matter and improving soil structure. By cultivating the soil, they help maintain its fertility and prepare it for planting, ensuring that nutrients are evenly distributed throughout the field.
3. Seedbed Preparation: Spring tine cultivators create an optimal seedbed by breaking down large soil clumps into a fine tilth. This smooth and even surface ensures excellent seed-to-soil contact, which is crucial for uniform germination and crop emergence. The result is a well-prepared field ready for planting.
4. Weed Control: The cultivator is effective in controlling weeds by uprooting them mechanically. As the tines disturb the soil surface, they disrupt weed roots and prevent them from competing with crops for resources. This method reduces the need for chemical herbicides, promoting a more sustainable farming practice.
5. Residue Management: By incorporating crop residues into the soil, the cultivator aids in residue management. This process helps decompose organic matter, returning nutrients to the soil and improving its structure. Managing residues also reduces the spread of pests and diseases, contributing to a healthier crop environment.
6. Primary Tillage: Although primarily used for secondary tillage, spring tine cultivators can perform light primary tillage. They prepare the soil for planting by breaking up the surface and mixing organic materials. This initial tillage is essential for setting up the field for subsequent farming operations and ensuring optimal soil conditions.

Key Components of a Spring Tine Cultivator

A spring tine cultivator typically consists of several key components that work together to effectively till and aerate soil. Some of the main components include:

• Frame: The frame is the main structural component that supports all other parts of the cultivator. It is typically made from durable steel to withstand the rigors of fieldwork. The frame's design allows for attachment to the tractor and ensures stability and balance during operation, even on uneven terrain.
• Spring Tines: These are the crucial working parts of the cultivator. Made from high-strength steel, the tines are flexible due to their spring-loaded design. This flexibility helps the tines absorb shocks from rocks or hard soil, preventing damage and ensuring consistent soil penetration and aeration.
• Adjustable Depth Control: This component allows the operator to set the working depth of the tines. By adjusting the depth control, farmers can tailor the cultivation process to suit different soil types and crop requirements, ensuring effective soil preparation without over-disturbing the soil structure.
• Shanks: Shanks are the support structures that hold the tines in place. They are mounted on the frame and provide the necessary leverage for the tines to penetrate the soil. The shanks are designed to withstand the forces exerted during cultivation, ensuring durability and reliability.
• Hitch System: The hitch system connects the cultivator to the tractor. It typically features a three-point linkage, which allows for easy attachment and detachment. This system provides stability and control, enabling the operator to maneuver the cultivator efficiently across the field.
• Gauge Wheels: These wheels help maintain a consistent working depth by supporting the weight of the cultivator. They ensure that the tines penetrate the soil evenly, regardless of the terrain. Gauge wheels are adjustable, allowing for customization based on field conditions and desired tillage depth.

How Does a Tractor-Mounted Spring Tine Cultivator for Loosening Soil Work?

A tractor-mounted spring tine cultivator is a versatile implement used for loosening soil, aerating the ground, and controlling weeds in agricultural fields. Here's how it typically works:

• Attachment to Tractor: The cultivator is securely attached to the tractor using a three-point hitch system. This setup ensures stability and ease of control. The tractor provides the necessary power and mobility, allowing the cultivator to cover large areas efficiently while maintaining consistent soil engagement.
• Tine Penetration: As the tractor moves forward, the spring-loaded tines penetrate the soil surface. The tines are designed to flex and absorb shocks, which allows them to move over rocks and other obstacles without getting damaged. This penetration breaks up compacted soil, enhancing aeration and water infiltration.
• Soil Loosening: The movement of the tines through the soil helps to break up clods and compacted layers. This loosening action increases soil porosity, which is crucial for root development and nutrient uptake. It also helps improve soil structure, making it more conducive to plant growth.
• Spring Action: The spring mechanism in the tines allows them to adapt to varying soil conditions. This flexibility ensures that the tines maintain consistent contact with the soil, providing uniform loosening across the field. The spring action helps prevent damage to the tines and ensures efficient operation.
• Depth Control: The operator adjusts the depth control to set how deep the tines penetrate the soil. This customization is essential for different soil types and desired outcomes. By controlling the depth, the cultivator can achieve optimal soil loosening without over-disrupting the soil profile, preserving its natural structure.
• Residue Mixing: As the tines move through the soil, they also mix in crop residues and organic matter. This mixing enhances soil fertility by incorporating nutrients back into the soil. It also aids in the decomposition process, which can help suppress weeds and reduce pest populations, contributing to healthier crop conditions.

Operation Tips for Tractor 3 Point Mounted Spring Cultivators

Operating a tractor-mounted spring cultivator efficiently is crucial for achieving optimal results in soil preparation and weed control. Here are some operation tips for using a tractor 3-point mounted spring cultivator effectively:

1. Proper Attachment: Ensure the cultivator is securely attached to the tractor via the three-point hitch. Check all connections and pins for stability. Proper attachment is crucial for safe operation and prevents the implement from detaching during use, which could cause damage or injury.
2. Adjust Depth Settings: Set the depth control according to your soil type and cultivation needs. Adjust the gauge wheels to maintain consistent depth across the field. Proper depth ensures effective soil loosening without overworking the soil, preserving its structure and preventing erosion.
3. Check Tine Condition: Inspect the tines for wear and damage before each use. Replace any bent or broken tines to maintain efficiency. Worn tines can reduce the effectiveness of soil penetration and lead to uneven cultivation, impacting crop growth and yield.
4. Monitor Speed: Operate the tractor at a moderate speed to allow tines to work effectively. Too fast can cause the tines to skip over the soil, while too slow can lead to unnecessary fuel consumption. A steady pace ensures optimal soil disturbance and efficient fuel usage.
5. Maintain Consistent Rows: Use markers or GPS guidance to keep rows straight and consistent. This precision helps in covering the field uniformly, ensuring that every part of the soil receives equal attention, which is vital for uniform crop growth and efficient field management.
6. Adjust for Soil Conditions: Modify tine spacing and configuration based on soil conditions and crop requirements. Different soil types may require different settings for optimal results. Adjustments ensure that the cultivator performs efficiently, maximizing its effectiveness in various environments.
7. Regular Maintenance: Perform routine maintenance checks, including lubrication of moving parts and inspection of the frame and hitch. Regular maintenance prevents breakdowns and extends the lifespan of the equipment, ensuring reliable performance throughout the cultivation season.

Why Choose Raydafon’s Agricultural Cultivators?

Raydafon is a leading manufacturer and distributor specializing in the production and sale of agricultural cultivators. With a robust infrastructure and advanced technological capabilities, our company has established itself as a major player in the agricultural equipment industry. Our state-of-the-art manufacturing facilities and a team of skilled professionals enable us to deliver high-quality products that meet international standards. We are committed to innovation and excellence, ensuring our solutions cater to the evolving needs of modern agriculture. Our agricultural cultivators serve as perfect replacements for renowned brands such as John Deere, Case IH, New Holland, Massey Ferguson, Kubota, AGCO, Kuhn, Lemken, Amazone, Horsch, Sunflower, Kverneland, and more. Designed with precision, our cultivators enhance productivity and efficiency in various farming operations. They are built to withstand challenging environments, ensuring durability and reliability. Our products are engineered to facilitate optimal soil preparation, promoting healthier crops and better yields, making them indispensable tools for farmers worldwide. Raydafon prides itself on its expertise and influence in the agricultural cultivator sector. Our commitment to quality is reflected in our international certifications and custom service offerings. We provide comprehensive after-sales support, ensuring customer satisfaction and product longevity. Beyond cultivators, we offer a wide range of agricultural machinery, including PTO shafts, agricultural gearboxes, large round balers, mini round balers, hay square balers, PTO wood chippers, diesel wood chippers, drum mowers, disc mowers, lawn mowers, sickle bar mowers, flail mowers, rotary mower, rotary tillers, land levelers, rotary hay rakes, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvesters, corn seeders, wheat seeders, vegetable seeders, post hole diggers, boom sprayers, trailers, snow blowers, chain trenchers, and more. Our extensive product line and dedication to customer service position us as a trusted partner for agricultural professionals seeking reliable and innovative equipment solutions.

FAQs:

Q: What is a spring tine cultivator used for? A: Spring tine cultivators are primarily used for soil aeration, seedbed preparation, and weed control. They help break up compacted soil, mix in organic matter, and uproot weeds, promoting healthier soil conditions for crop growth. Q: How does the spring mechanism benefit cultivation? A: The spring mechanism allows tines to flex and absorb shocks from rocks or hard soil, preventing damage. This flexibility maintains consistent soil penetration and reduces the risk of breakage, ensuring a longer lifespan for the cultivator. Q: Can spring tine cultivators handle heavy soils? A: While they are effective in lighter soils, spring tine cultivators may struggle with very compacted or heavy clay soils. In such cases, additional passes or alternative equipment may be necessary for optimal soil preparation. Q: What tractor specifications are needed? A: Ensure your tractor meets the power and weight requirements for the specific cultivator model, with a compatible three-point linkage system. Adequate horsepower is necessary to pull the implement effectively, especially in challenging soil conditions. Q: How do I maintain a spring tine cultivator? A: Regular maintenance includes checking and tightening bolts, lubricating moving parts, and inspecting tines for wear or damage. Replacing worn tines and ensuring proper alignment will maintain efficiency and extend the tool's life. Q: Is depth adjustment available on all models? A: Most spring tine cultivators offer adjustable depth settings, allowing customization for different soil conditions and tasks. Check model specifications to ensure it has the desired range of depth control for your needs. Q: Are spring tine cultivators suitable for all crops? A: They are versatile and can be used for various crops, but the suitability may vary based on specific crop requirements and soil conditions. Adjustments in tine spacing and depth can optimize performance for different agricultural purposes. Q: What safety precautions should I take? A: Always follow the manufacturer’s guidelines for operation and maintenance. Ensure all safety shields are in place, and never attempt to adjust or repair the cultivator while it is in operation. Use appropriate personal protective equipment when handling machinery. Author: Yjx
