420 Standard Motorcycle Chain

420 Standard Motorcycle Chain

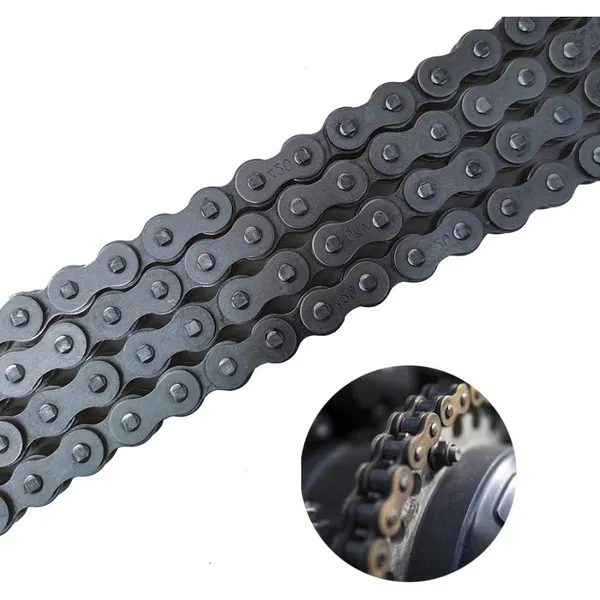

A 420 motorcycle chain is a type of roller chain that is commonly used on smaller motorcycles, dirt bikes, ATVs, and other off-road vehicles. It is a relatively lightweight and inexpensive chain, but it is also relatively durable and can handle a moderate amount of power. 420 motorcycle chains are typically made of alloy steel and have a pitch of 1/2 inch. They are available in a variety of lengths to fit different applications.

One of the main benefits of a 420 motorcycle chain is that it is relatively easy to maintain. It does not require as much lubrication as other types of chains, and it is also relatively easy to replace. However, 420 motorcycle chains are not as durable as some other types of chains, and they may not be suitable for high-performance motorcycles or for applications where the chain will be subjected to excessive wear and tear.

420 Standard Motorcycle Chain Sizes Chart:

Chain No.	Pitch	Bush Type	Width	Pin Dia	Pin Length	Roller Dia	Plate Thickness Inner	Plate Thickness Outer	Tensile Strength	Weight
	mm		mm	mm	mm	mm	mm	mm	KN	kg/m
420	12.700	Curled	6.35	3.96	14.70	7.77	1.50	1.50	15.6	0.57

Advantages 420 Standard Motorcycle Chain:

420 motorcycle chains are a non-standard series roller chain that is commonly used on lighter motorcycles, such as dirt bikes and scooters. They are also sometimes used on ATVs and other off-road vehicles.

Here are some of the advantages of 420 motorcycle chains:

• Lighter weight:?420 motorcycle chains are lighter than other types of motorcycle chains, such as 520 and 530 chains. This can improve the performance and handling of your motorcycle, especially on lighter bikes.
• Lower cost:?420 motorcycle chains are also typically less expensive than other types of motorcycle chains. This makes them a good option for budget-minded riders.
• Good durability:?420 motorcycle chains are still quite durable, even though they are lighter weight. They can handle the demands of off-road riding and other challenging conditions.
• Wide availability:?420 motorcycle chains are widely available from a variety of manufacturers. This makes it easy to find a replacement chain when you need one.

However, there are also some disadvantages to 420 motorcycle chains:

• Not as strong as other chains:?420 motorcycle chains are not as strong as other types of motorcycle chains, such as 520 and 530 chains. This means that they may not be the best choice for high-performance motorcycles or riders who put a lot of stress on their chain.
• Shorter lifespan:?420 motorcycle chains may have a shorter lifespan than other types of motorcycle chains. This is because they are lighter in weight and have less material.

Overall, 420 motorcycle chains are a good option for lighter motorcycles and budget-minded riders. They are lightweight, durable, and widely available. However, they are not as strong as other types of chains and may have a shorter lifespan.

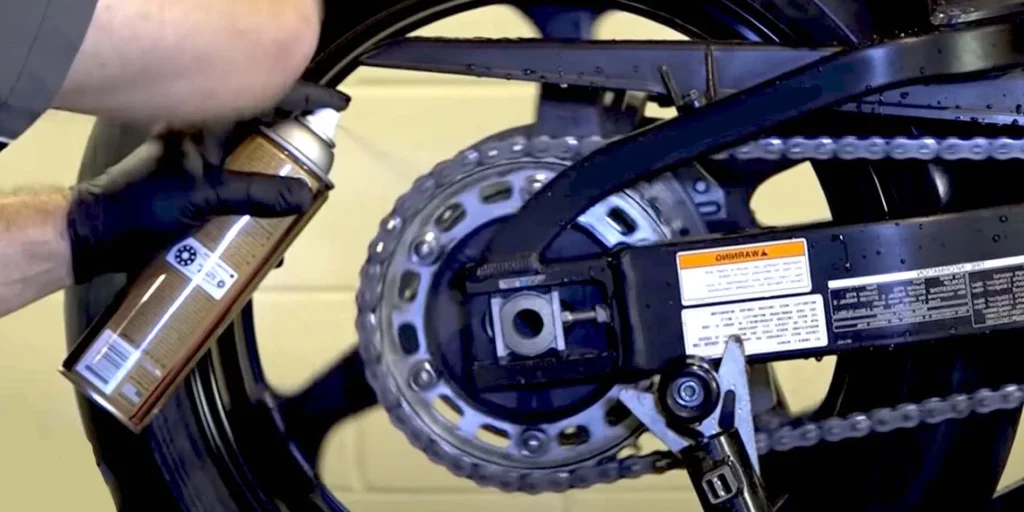

How Often do you Lubricate the 420 Motorcycle Chain?

A 420 motorcycle chain should be lubricated every 400-600 miles, or more often if you ride in wet or dusty conditions. You should also clean the chain before lubricating it.

Here are some tips for lubricating your motorcycle chain:

1. Clean the chain with a degreaser such as WD-40 or a motorcycle chain cleaner.
2. Rinse the chain with water to remove any remaining degreaser.
3. Dry the chain with a clean cloth.
4. Apply a thin coat of chain lubricant to the inside of the chain links.
5. Allow the lubricant to dry before riding your motorcycle.

Here are some additional factors to consider when lubricating your motorcycle chain:

• Climate:?If you ride in wet or dusty conditions, you will need to lubricate your chain more often.
• Riding style:?If you ride aggressively or do a lot of off-road riding, you will also need to lubricate your chain more often.
• Type of lubricant:?Different types of lubricants have different properties. Some lubricants are better for wet conditions, while others are better for dry conditions. It is important to choose the right lubricant for your needs.

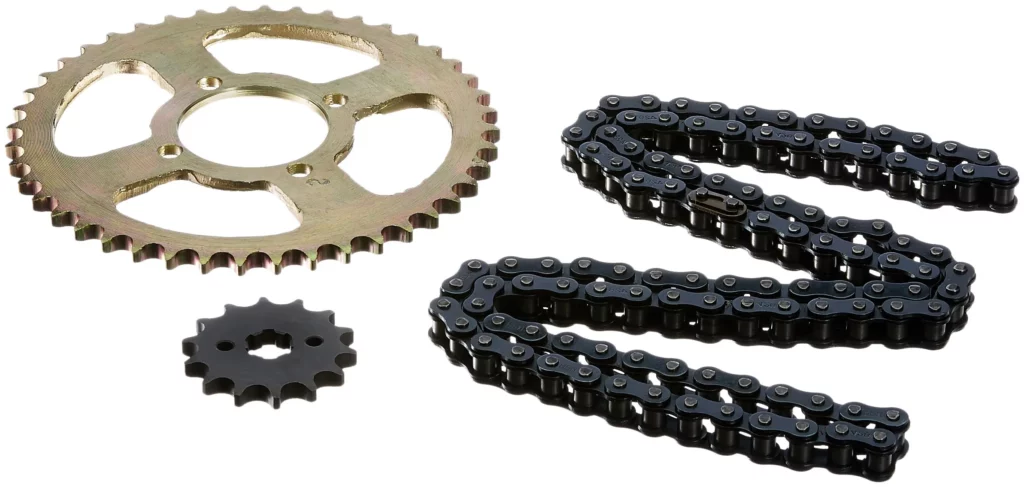

Motorcycle Chain Sprockets for 420 Motorcycle Chain:

Motorcycle chain sprockets are the toothed wheels that engage with the motorcycle chain to transmit power from the engine to the rear wheel. The chain is looped around the sprockets, and the teeth mesh together to create a positive drive.

420 motorcycle chain is a type of roller chain that is commonly used on dirt bikes, scooters, and other small motorcycles. It is a relatively lightweight and narrow chain, making it ideal for applications where performance and weight are important.

When choosing motorcycle chain sprockets, it is important to match the size and type of sprocket to the size and type of chain. You also need to consider the desired gear ratio. The gear ratio is the ratio of the number of teeth on the front sprocket to the number of teeth on the rear sprocket. A higher gear ratio will give the motorcycle more top speed, while a lower gear ratio will give the motorcycle more acceleration and torque.

Here are some tips for choosing and maintaining motorcycle chain sprockets and 420 motorcycle chains:

• Choose sprockets that are made of high-quality materials and that are specifically designed for your motorcycle model.
• Make sure that the sprockets are compatible with the size and type of chain that you are using.
• Consider the desired gear ratio when choosing sprockets.
• Inspect the sprockets and chain regularly for wear and tear.
• Replace the sprockets and chain when they are worn out.
