Mill Duty C Type C55a C55b C55d Rooftop Transfer Combination Chain

Discover the Raydafon Guoup Mill Duty C Type C55a C55b C55d Rooftop Transfer Combination Chain—a high-performance solution for demanding industrial applications on rooftops. Engineered with durable materials and precision design, it ensures smooth, reliable transfers, reducing downtime in mills. Ideal for heavy-duty operations, it solves complex loading challenges, enhancing efficiency and safety. Unlike competitors, its combination chain offers superior versatility and long-lasting performance, delivering peace of mind for professionals. Experience seamless integration and elevate your operations today!

Send Inquiry

Product Description

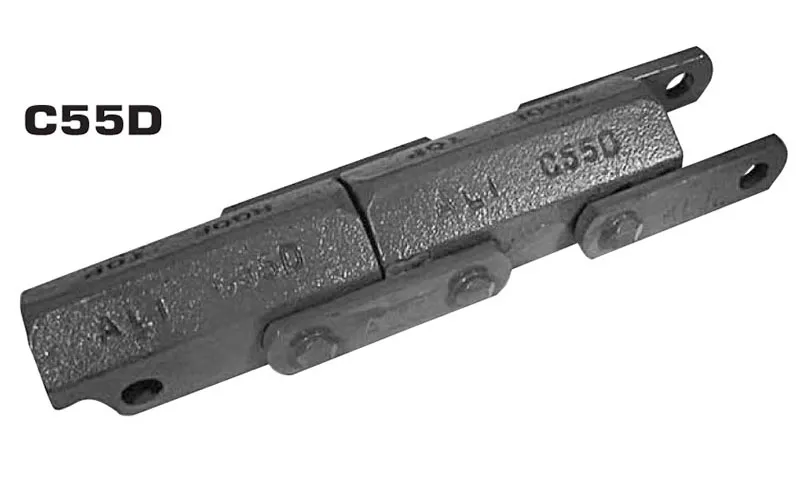

Mill Duty C Type C55a C55b C55d Rooftop Transfer Combination Chain

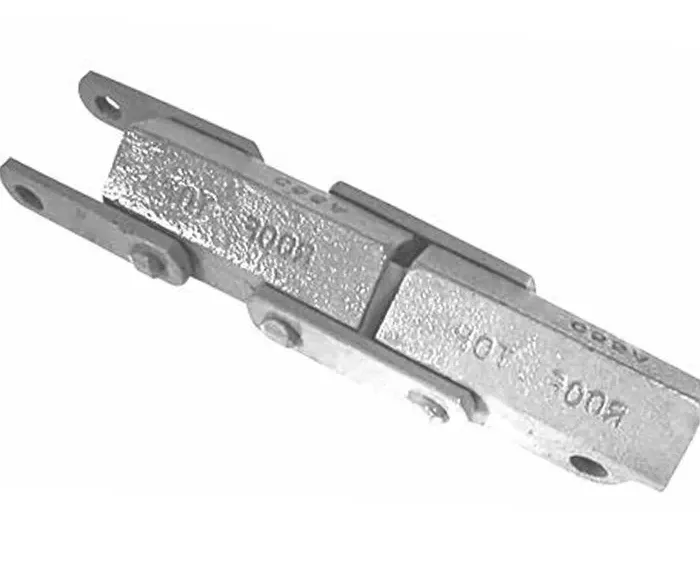

C55b chain is a rooftop-style chain with a slightly flattened surface on top of the "roof" of the chain for carrying and conveying products. The C55b rooftop chain is one of the most popular rooftop chains available, and it is also often called the C55b camelback chain. Our C55b chain is manufactured to American Standards meaning that it dimensionally interchanges with other brands and runs on the same sprockets. What sets our chain above the "standard" is the high-quality cast block links/ rooftop links as well as the special heat-treated pins and sidebars. Utilizing heat-treated steel parts and high-quality cast, this rooftop chain is sure to impress! Typically the chain is supplied in 10ft lengths with means to connect it supplied, but alternate lengths of the C55b chain are also available upon request. We also supply a complete line of C55b sprockets, guide track, as well as other PT components.

C55a C55b C55d Rooftop Chain Specification

C55A Rooftop Chains?	C55B Rooftop Chains	C55D Rooftop Chains
Pitch: 1.631"	Pitch: 1.631"	Pitch: 1.631"
Pin Diameter (D): 0.375"	Pin Diameter (D): 0.375"	Pin Diameter (D): 0.375"
Sidebar Thickness (T): 0.190"	Sidebar Thickness (T): 0.190"	Sidebar Thickness (T): 0.190"
Barrel Diameter (Q): 0.720"	Barrel Diameter (Q): 0.720"	Barrel Diameter (Q): 0.720"
Max. Sprocket Face (S): 0.690"	Max. Sprocket Face (S): 0.690"	Max. Sprocket Face (S): 0.690"
Overall Height (P): 1.250"	Overall Height (P): 1.250"	Overall Height (P): 1.250"
Overall Width Riveted (A): 2.000"	Overall Width Riveted (A): 2.000"	Overall Width Riveted (A): 2.000"
Head of Pin To Center Line (C): 1.000"	Head of Pin To Center Line (C): 1.000"	Head of Pin To Center Line (C): 1.000"
Overall Length of Barrel (X): 1.250"	Overall Length of Barrel (X): 1.250"	Overall Length of Barrel (X): 1.250"
Sidebar Height (H): 0.750"	Sidebar Height (H): 0.750"	Sidebar Height (H): 0.880"
Height of Shoulder (F): 0.750"	Height of Shoulder (F): 0.750"	Height of Shoulder (F): 0.880"
Center Of Pin To Top (J): 0.880"	Center Of Pin To Top (J): 0.880"	Center Of Pin To Top (J): 0.880"
Links Per 10ft: 74	Links Per 10ft: 74	Links Per 10ft: 74
Weight: 3.2 LBS/ FT	Weight: 3.2 LBS/ FT	Weight: 3.2 LBS/ FT
Ultimate Strength: 117,000 LBS	Ultimate Strength: 117,000 LBS	Ultimate Strength: 117,000 LBS
Working Load: 1,400 LBS	Working Load: 1,400 LBS	Working Load: 1,400 LBS

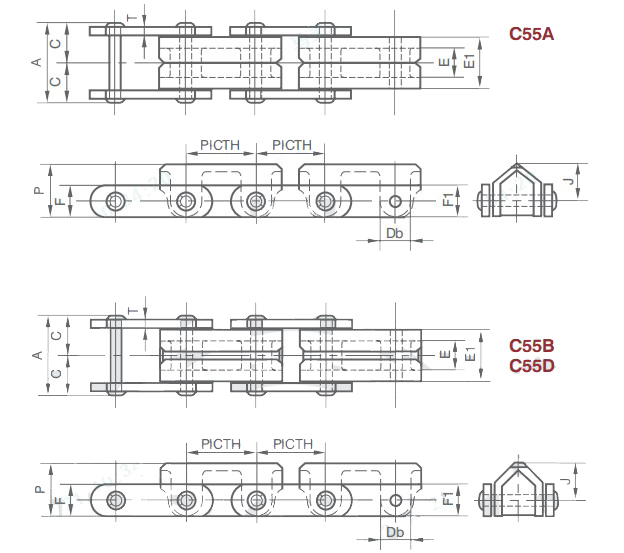

C55a C55b C55d Rooftop Chain Parameter Mill Duty C Type C55a C55b C55d Rooftop Transfer Combination Chain

chain No.	Pitch in inches	Dimensions in Decimal Inches
A	C	Db	Dp	E	E1	F	F1
C55A	1.631	2.000	1.000	0.72	0.375	0.69	1.19	0.75	0.75
C55B	1.631	2.000	1.000	0.72	0.375	0.69	1.19	0.75	0.75
C55D	1.631	2.000	1.000	0.72	0.375	0.69	1.19	0.75	0.88

Moline Chain No.	Pitch in Inches	Links Per10 Feet	Weight Per Foot Lbs.	Average Ultimate Strength Load Lbs.	Recommended Maximum Working Load Lbs.
C55A	1.631	74	3.2	11700	1400
C55B	1.631	41	3.2	11700	1400
C55D	1.631	71	3.2	11700	1400

Rooftop Chain Types

We stock and deliver rooftop chains in different styles:?H78 rooftop chain,?H130 rooftop chain,?H138 rooftop chain,?C55 rooftop chain,?and our most popular?81X rooftop chain. Depending on what you intend to accomplish, you may decide to use a specific style of rooftop chain. Below, we’ll discuss the standard styles we offer.

H78A Rooftop Chain

The H78A rooftop chain is a heavy-duty and durable rooftop transfer chain with a tensile strength of 19,500 lbs. The H78 rooftop chain finds application in lumber mills, where it is used to transfer lumber. Something notable about this chain is its fully heat-treated construction. Due to this, the chain has much higher strength and working life.

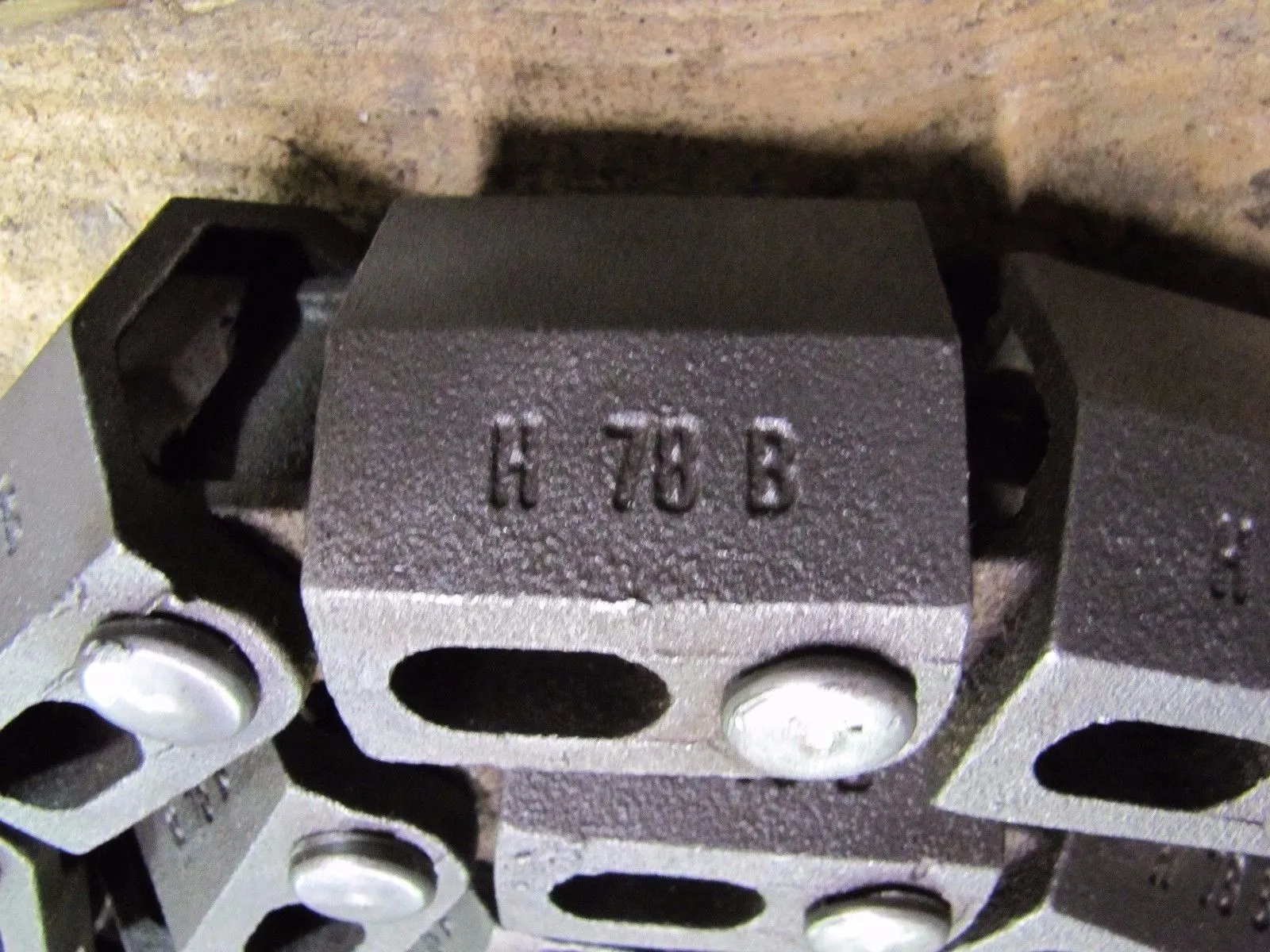

H78B Rooftop Chain

The H78B rooftop chain is a heavy-duty and durable chain like the H78A rooftop chain, but with a tensile strength of 20,800 lbs. This chain, like others in the H-Series, is manufactured to perform and hold up in transfer conveyor applications, as well as abrasive atmospheres. Mill Duty C Type C55a C55b C55d Rooftop Transfer Combination Chain

H130 Rooftop Chain

The H130 rooftop chain is a strong and durable rooftop transfer chain. It has a tensile strength of 18,200 lbs, making it a solid mid-range chain that has been used for decades and is trusted by many.

C55 Rooftop Chain

The C55 rooftop chain is a cast combination chain that has a variety of uses. It is a high-quality, durable and long-lasting conveyor chain that is manufactured using high-quality components. The C55 rooftop chain is used in a wide range of applications, such as bucket elevators, flight conveyors, forest products, grain handling, and sugar processing. C55A rooftop chain links are symmetrical and can travel in either direction. This chain is supplied as a riveted construction equipped with pinheads on the same side. The tensile strength is 117,000 lbs.

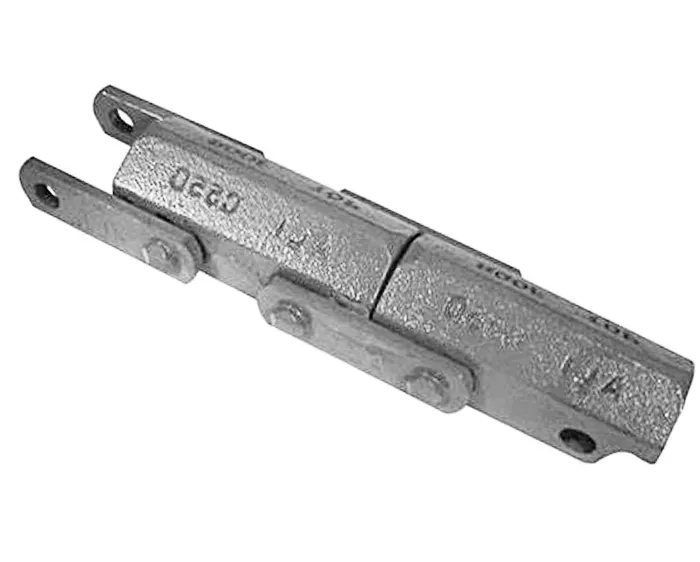

C55A Rooftop Chain	C55B Rooftop Chain

81X Rooftop Chain

The 81X rooftop chain is a roof-top style conveying chain designed to convey heavy loads from one point to another. It’s one of the most commonly used conveyor-type chains used in the lumber and aggregate industries because of its extremely rugged design. This design boasts high-quality, heat-treated, shot-peened steel components for optimal strength, durability, and fatigue resistance. Our 81X chains meet the standards required of an ideal steel bushed roller (SBR) chain, made with solid bushings and sturdy rollers because of the highly prolonged wear life and performance that comes from this design. The tensile strength of the 81X is 30,000 lbs.

Uses of Rooftop Chains

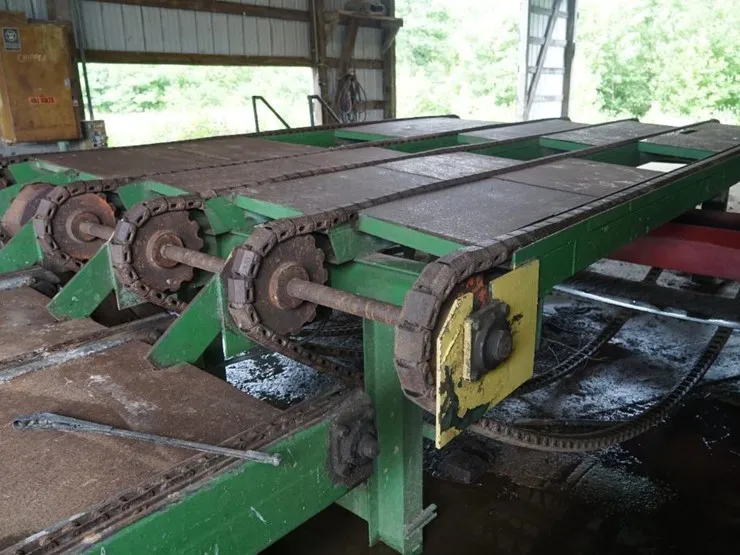

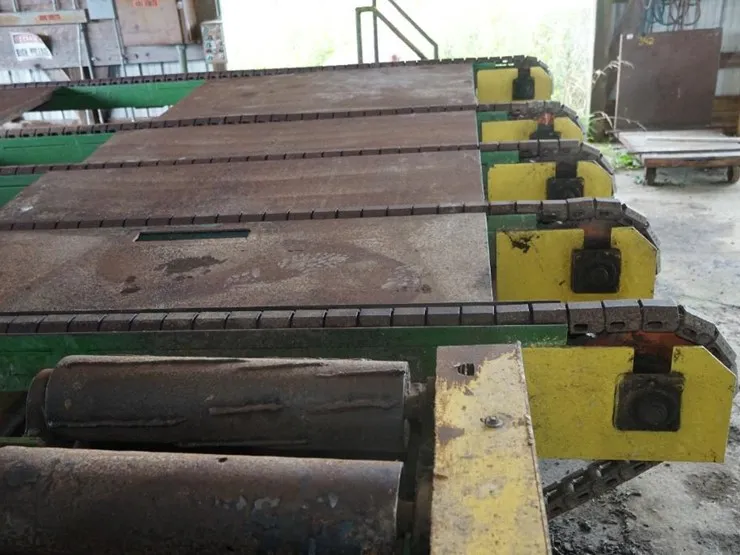

The rooftop transfer chain is often intended for operation in troughs, in two or more parallel stands on transfer conveyors, with only the bevel tops of the links projecting about the guides. This permits loading and unloading to be done transversely. The name “camelback chain” is used for this chain class because of its ability to carry heavy concentrated loads, handle bulk material, and transport products. In industry, a rooftop transfer chain is the choice material to carry and transport lumber, boxes, barrels, crates, packages, barrels, bars, etc.Rooftop transfer chains are made to operate in one direction and therefore are not recommended for installations that require a reverse operation. The speed of operation is determined by the load carried and the frequency of operation. Generally, the recommended speed is 100 feet per minute.

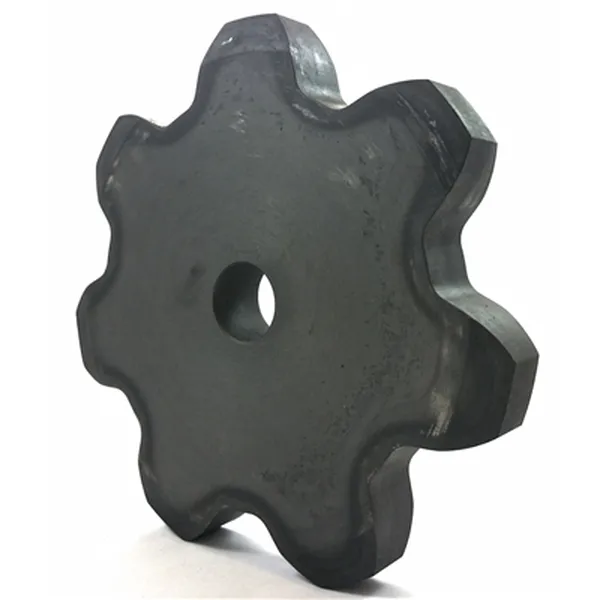

C55 Chain Sprockets for Rooftop Chain

We offer many types of rooftop chains in various sizes designed to handle different load capacities depending on the kind of forestry, packing, manufacturing, and building materials. What differentiates rooftop chains from other types of chains is that with a rooftop chain, the top piece or “roof” protects your products and equipment while reducing the sliding of material in conveyor lines.Along with our chains, we also offer a wide variety of?sprockets?for keeping your project moving and your operations productive.

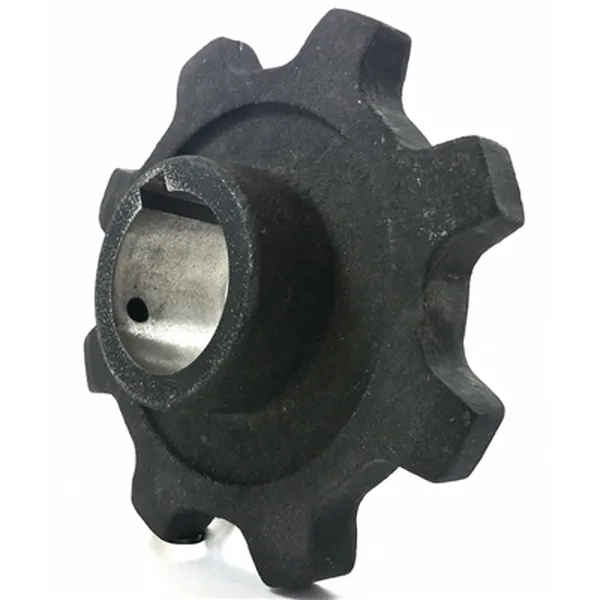

C55 Chain Sprockets	C55 Chain Sprockets

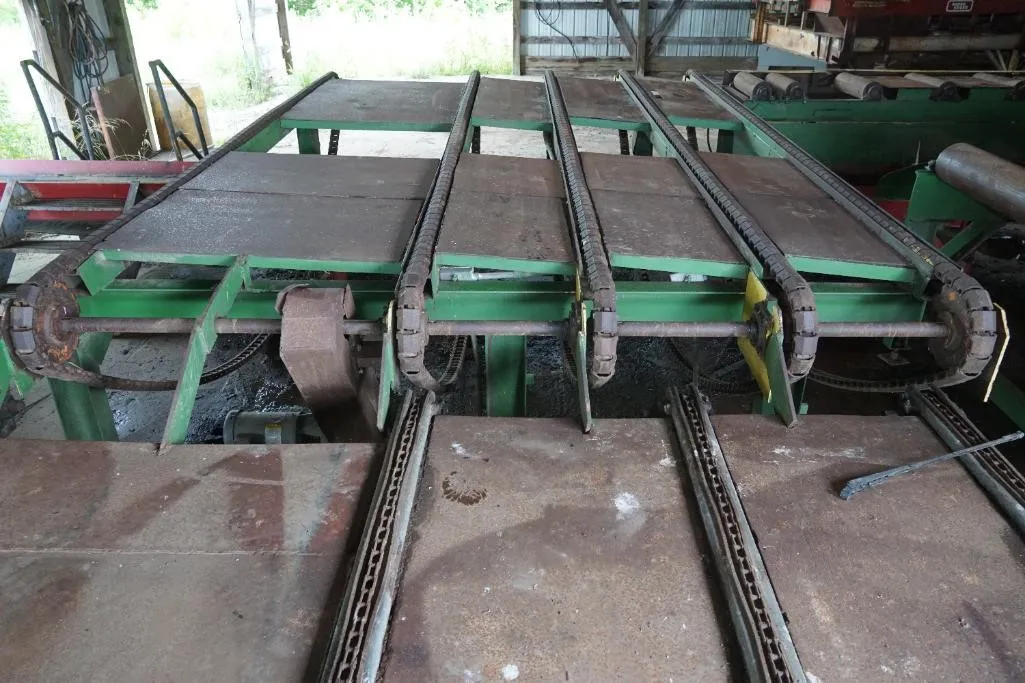

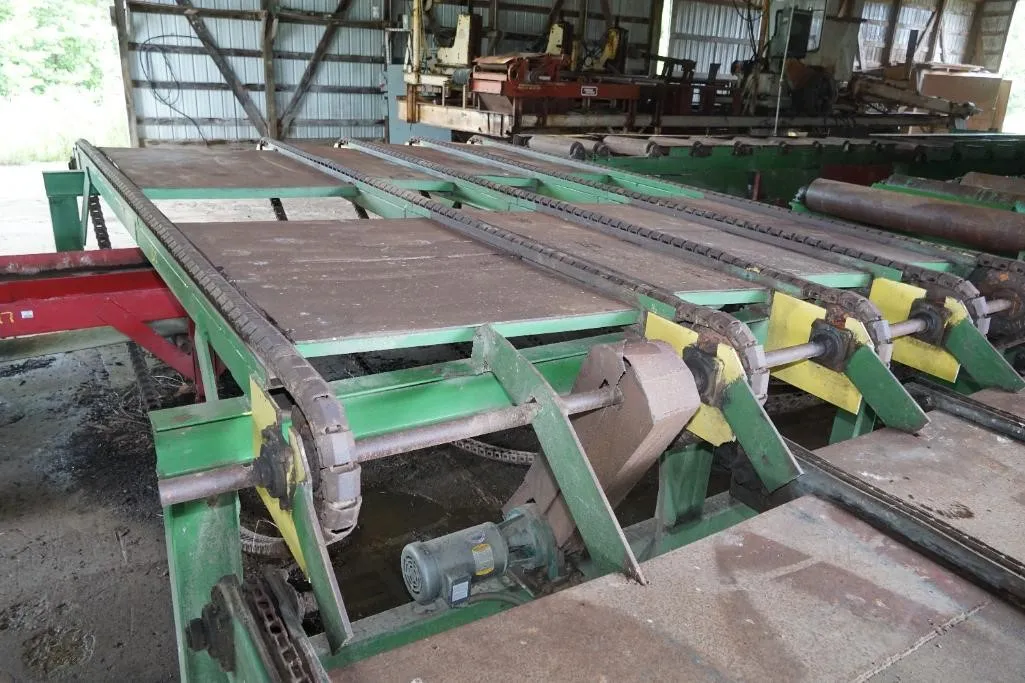

Rooftop Chain Manufacturers

At Raydafon, our rooftop chains are dependable and efficient, making them a product you can trust in any situation. The heat treatment guarantees excellent durability and increased overall quality. The chains we offer excel in quality, wear life, and strength — at a great price.We offer a range of rooftop transfer chain options to help in any situation. Our fully-interchangeable engineering class chains are best for heavy-duty carriers with a conveyor belt. Our rooftop chains are reliable and productive, making them a trusted product. Our rooftop chains are heat-treated, resulting in excellent durability and sustainability. We offer both the C55A rooftop chain and the C55B rooftop chain. The C55A rooftop chain has a peaked roof, whereas the C55B rooftop chain has a flattened roof. Our rooftop chains can support various applications depending on the weight and size you select, including the sprockets used.
