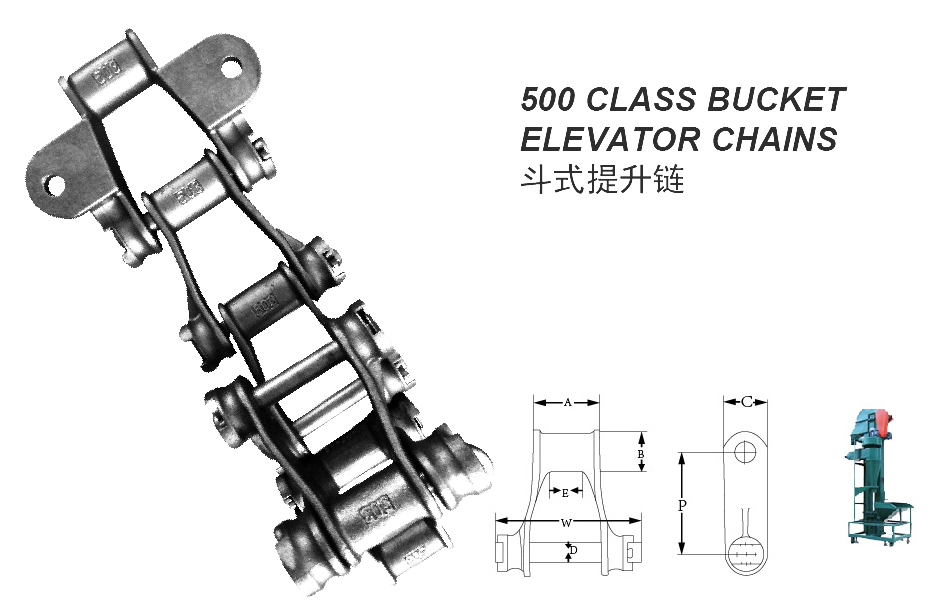

500 Class Bucket Elevator Chains

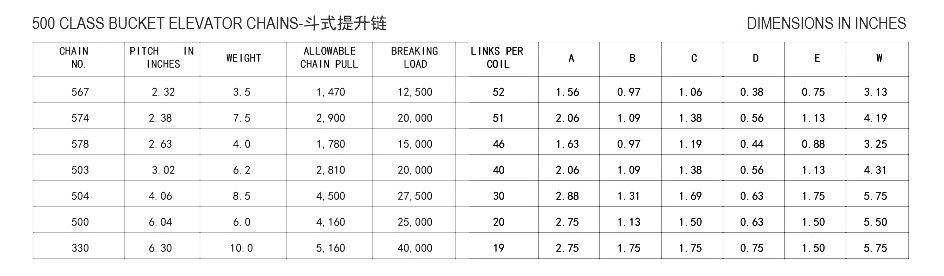

500 CLASS BUCKET ELEVATOR CHAINS is a heavyweight, moderately priced chain capable of handling average loads at slow or intermediate speeds. It is proportionately cast for balance, strength and long, efficient service, and is available in cottered construction. The head of each pin is notched to fit the sidebar locking lug which keeps the pin from rotating when the chain is in use. Closed bearing construction makes 500 CLASS BUCKET ELEVA TOR CHAINS useful in conveying gritty and abrasive materials. Manufactured in Raydafon CHAINS, with a tensile strength range from 12,500 to 40,000 pounds, 500 CLASS BUCKET ELEVATOR CHAINS is carefully cored for pitch accuracy with smooth bearing surfaces that reduce "break-in" wear causing pitch elongation. 500 CLASS BUCKET ELEVATOR CHAINS is available in a pitch range of 2.32 to 6.30 inches with a complete assortment of Brutaloy or cast steel sprockets. A large assortment of attachments are available to handle a wide variety of applications. Styles K1,K2 ,F2 and G attachments are offered in right and left hand links. As a drive chain, 500 Class Pintle is designed to travel in the direction of the barrel end of the links;as an elevating or conveying chain, its direction of travel should be toward the open ends of the links. All 500 CLASS BUCKET ELEVATOR CHAINS is manufactured according to manufacturer's standards and is completely interchangeable.

we are specialised in producing Agricultural Roller Chain, Flat Top Chain,Caterpillar Track Chain,Hollow Pin Chain,Conveyor Chain for Beer Filling and Packing Line,Paver Chain,Attachment Sidebar Elevator Chain,Bucket Elevator Chain (Cement Mill Chain),Forging Scraper Chain,Loading Chain for Automobile Industry,Loading Chain for Metallurgical Industry,Conveyor Chain for Mine Machinery,Trencher Chain,Sugar Mill Chain,Double Flex Chain,etc. Welcome calls and emails to inquiry!
