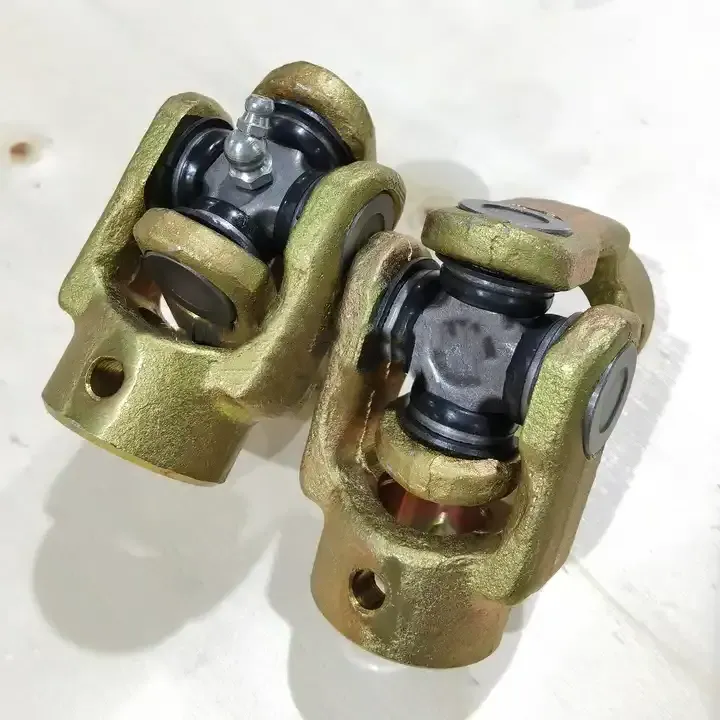

5-170X Universal Kardan Joint Tractor PTO Shaft Parts Zinc Plated
  • 5-170X Universal Kardan Joint Tractor PTO Shaft Parts Zinc Plated5-170X Universal Kardan Joint Tractor PTO Shaft Parts Zinc Plated

5-170X Universal Kardan Joint Tractor PTO Shaft Parts Zinc Plated

Raydafon Guoup's 5-170X Universal Kardan Joint Tractor PTO Shaft Parts are zinc-plated for superior durability and rust resistance. Designed for farmers and tractor owners, this universal joint ensures smooth power transmission, reducing downtime. Its robust construction and universal fit make it a reliable upgrade. Experience enhanced performance and longevity—trust Raydafon Guoup for quality parts that keep your equipment running strong.
Introducing the 5-170X universal kardan joint tractor PTO shaft parts, an essential component for various agriculture-related applications. This product is new and comes with a 1-year warranty, ensuring you of its quality and reliability. Its primary use is for tractors and tractor implements, making it a versatile part of your farming needs. The product comes in a zinc color, made from 1045C material with a forging process, ensuring its durability and efficiency. It also has a CE ISO TS certificate, adding another layer of trust and credibility to its name.

Advantages of the 5-170X Universal Kardan Joint Tractor PTO Shaft Parts

The 5-170X Universal Kardan Joint Tractor PTO Shaft Parts offers several advantages:
  1. Increased torque transmission: Efficiently handles high torque levels, effectively transmitting power from the tractor??s engine to the PTO-driven implement without significant power loss or damage to the joint.
  2. Angular misalignment compensation: Accommodates angular misalignment between the tractor and the implement.
  3. Reduced vibration and noise: Dampens vibrations and reduces noise levels during operation.
  4. Longevity and durability: Built to withstand heavy loads and harsh operating conditions. Typically constructed using high-quality materials such as hardened steel or alloy, offering excellent strength and durability.
  5. Easy maintenance and replacement: Allows for straightforward maintenance and replacement. In case of wear or damage, the joint can be easily disassembled and serviced.
  6. Compatibility with other equipment: A widely used design that is compatible with various PTO-driven implements.
5-170X Universal Kardan Joint Tractor PTO Shaft Parts Zinc Plated

Applications of the 5-170X Universal Kardan Joint Tractor PTO Shaft Parts

The 5-170X Universal Kardan Joint Tractor PTO Shaft Parts are commonly used in various agricultural applications due to their ability to transmit power smoothly and efficiently at high operating angles. Here are some specific agricultural applications where they are commonly used:
  1. Harvesting Machinery: Utilized in harvesting machinery such as combines, forage harvesters, and cotton pickers. These joints enable the transfer of power from the engine to the various cutting, threshing, and conveying mechanisms of the machines, allowing for efficient harvesting operations.
  2. Rotary Cutters and Mowers: Essential equipment for maintaining pastures and fields. They are used in these machines to transmit power from the tractor's power take-off (PTO) to the cutting blades, ensuring smooth and consistent operation even at varying angles of operation.
  3. Tillage Equipment: Including plows, disc harrows, and cultivators, require efficient power transmission to effectively prepare the soil for planting. They are employed in these machines to transfer power from the tractor's PTO to the rotating components, facilitating the tillage process.
  4. Balers: Used to compress and bundle agricultural products such as hay, straw, or silage into compact bales. They are used in balers to transmit power from the tractor's PTO to the baling mechanism, ensuring the consistent and efficient formation of bales.
  5. Seeders and Planters: Used to sow seeds or plant crops in the field. They are utilized in these machines to transfer power from the tractor's PTO to the seed metering mechanisms, ensuring accurate and uniform seed distribution.
  6. Manure Spreaders: Used to evenly distribute manure or other organic fertilizers onto agricultural fields. They are employed in these machines to transfer power from the tractor's PTO to the spreading mechanism, allowing for efficient and uniform distribution.

Agricultural PTO Shaft Torque Limiter Types

In agricultural machinery, PTO shaft torque limiters are crucial for protecting equipment from damage due to torque overload. There are various types of PTO shaft torque limiters, each designed to cater to different operational needs and specifications. Here's an overview of the common types:
  1. Shear Bolt Torque Limiter: This type utilizes a shear bolt that breaks under excessive torque, disconnecting the drive between the tractor and implement. Common in a variety of implements; ideal for situations where overload conditions are clear and easily detectable.
  2. Friction Clutch Torque Limiter: Friction clutch limiters slip when the torque exceeds a preset level, allowing it to absorb the excess force without breaking. Used in applications where gradual overload conditions might occur and frequent replacement of shear bolts is not desirable.
  3. Ratchet Torque Limiter: Features a ratcheting mechanism that allows rotation in one direction and locks or slips in the opposite direction when overloaded. Suitable for implements like augers where unidirectional operation is required.
  4. Overrunning Clutch Torque Limiter: Allows free rotation in one direction and engages the clutch in the other. It can also incorporate a torque-limiting feature to disconnect under overload. Commonly used in mowers and rotary cutters, allowing the implement to overrun when the tractor slows down.
5-170X Universal Kardan Joint Tractor PTO Shaft Parts Zinc Plated

How Does the 5-170X Universal Kardan Joint Tractor PTO Shaft Parts Work?

The 5-170X Universal Kardan Joint for a tractor PTO shaft is a mechanical device that allows for the transmission of power from the tractor's engine to attached implements. Here's how it works:
  1. Universal Joints: The 5-170X Universal Kardan Joint incorporates two universal joints, also known as Cardan joints. Each universal joint consists of a cross-shaped yoke with four arms. At the end of each arm, there is a bearing cap with needle bearings. The needle bearings allow for smooth rotation and transfer of torque between the two connected shafts.
  2. Centering Yoke: The centering yoke connects the two universal joints. It is typically a square or rectangular-shaped yoke with a center hole that fits over the tractor's PTO shaft. The centering yoke provides stability and alignment between the two universal joints, ensuring proper power transmission.
  3. Attached Implements: One end of the 5-170X Universal Kardan Joint is connected to the tractor's PTO shaft, which is driven by the engine power. The other end of the universal joint is connected to the implement or machinery that requires power. The implement may have its own input shaft, onto which the universal joint is fitted, allowing power to be transmitted to the implement.
  4. Power Transmission: As the tractor's engine generates rotational power, it is transferred to the PTO shaft. The PTO shaft, in turn, transmits this power to the universal joint at one end of the 5-170X Universal Kardan Joint. The universal joint allows the PTO shaft's rotational motion to be transferred smoothly to the second universal joint through the centering yoke.
5-170X Universal Kardan Joint Tractor PTO Shaft Parts Zinc Plated

Choosing the Right 5-170X Universal Kardan Joint Tractor PTO Shaft Parts

When selecting the right 5-170X Universal Kardan Joints for a tractor PTO shaft, there are several factors to consider to ensure proper fit and optimal performance. Here are some key points to keep in mind:
    1. Compatibility: Ensure that the 5-170X Universal Kardan Joints you choose are compatible with your tractor's PTO shaft. Consider the specifications such as the shaft size, spline count, and overall dimensions to ensure a proper fit.
    2. Power Rating: Consider the power rating of the 5-170X Universal Kardan Joints. It should be capable of handling the power output of your tractor's engine and the specific implements or attachments you plan to use.
5-170X Universal Kardan Joint Tractor PTO Shaft Parts Zinc Plated
  1. Operating Angles: Determine the range of operating angles required for your application. 5-170X Universal Kardan Joints are designed to accommodate varying angles, but it's important to choose a joint that can handle the specific angles your PTO shaft may encounter during operation. Consider the maximum angle capability and operating angle range of the joint.
  2. Durability and Quality: Look for 5-170X Universal Kardan Joints that are made from high-quality materials and have a reputation for durability. Consider factors such as the type of bearings used, the strength of the yokes, and the overall construction of the joint. Choosing a reliable and robust joint will help ensure long-term performance and minimize the risk of failures.
  3. Maintenance Requirements: Consider the maintenance requirements of the 5-170X Universal Kardan Joints. Look for joints that are designed for ease of maintenance, such as those that allow for lubrication or have accessible grease fittings. Regular maintenance is important to ensure the longevity and smooth operation of the joints.
5-170X Universal Kardan Joint Tractor PTO Shaft Parts Zinc Plated

Maintenance of the 5-170X Universal Kardan Joint Tractor PTO Shaft Parts

Proper maintenance of 5-170X Universal Kardan Joints for a tractor PTO shaft is essential to ensure their longevity and reliable performance. Here are some key maintenance practices to follow:
    1. Regular Inspection: Perform regular visual inspections of the 5-170X Universal Kardan Joints to check for any signs of wear, damage, or looseness. Look for cracks, excessive play in the joints, or any irregularities that may affect their performance.
    2. Lubrication: Proper lubrication is crucial for the smooth operation of the joints. Follow the manufacturer's recommendations for lubrication intervals and use the appropriate grease or lubricant specified for the joints. Apply the lubricant to the fittings or designated areas as instructed.
    3. Torque Check: Periodically check the torque on the fasteners that secure the joints to the PTO shaft and the implement. Ensure that they are tightened to the manufacturer's specified torque values but avoid over-tightening, as this can cause stress and damage to the joints.
    4. Operating Angle: Be mindful of the operating angles of the PTO shaft during use. Avoid operating at extreme angles beyond the joint's recommended range, as this can lead to accelerated wear and potential failure. Adjust the implement or tractor position if necessary to minimize excessive angles.
    5. Replacement: If any signs of significant wear, damage, or play are detected during inspections, consider replacing the 5-170X Universal Kardan Joints. Continuing to use worn or damaged joints can compromise their performance and lead to further damage or failure.
5-170X Universal Kardan Joint Tractor PTO Shaft Parts Zinc Plated

Why Choose Raydafon's 5-170X Universal Kardan Joint Tractor PTO Shaft Parts?

With Raydafon Drive Shaft Co., Ltd., you get more than a product. You get a commitment to exceptional quality backed by our CE, TS/16949, and ISO9001 certificates. Our systematic manufacturing equipment and a dedicated QC team guarantee the quality and timely delivery of our products. We specialize in developing, manufacturing, and marketing a wide range of PTO shafts, agricultural gearboxes, PTO shaft accessories, and much more. Our products have earned us an excellent reputation from our customers across Europe, America, Asia, Australia, and North America. As a professional OEM supplier for several agricultural implement factories in the domestic market, we adhere to our principles: Quality first, Deliver quickly, and Price Competitive.5-170X Universal Kardan Joint Tractor PTO Shaft Parts Zinc PlatedWe provide customized services, catering to the specific needs of our clients. Our production facilities are equipped with advanced technology, enabling us to deliver high-quality products consistently. We also offer exceptional after-sales services, ensuring you get the most out of your purchase. With Raydafon, you are choosing a partner committed to providing you with quality, reliable, and efficient PTO shaft parts.[embed]https://youtu.be/woVUayd_2aA[/embed]Author: Yjx
Hot Tags: 5-170X Universal Kardan Joint Tractor PTO Shaft Parts Zinc Plated, Universal Kardan Joint Tractor PTO Shaft Parts, Tractor PTO Shaft Parts Zinc Plated
