5-Tooth Sprocket

Our Sprockets is one of the nations leading suppliers of industrial chain sprockets. Our 5-tooth sprockets conform to international ISO, DIN, or American ANSI standards. We stock 5-tooth chain sprockets for a wide range of applications including; forestry, conveying, drive-sprockets, idle-sprockets, agricultural, engineer-class, and more. Not only do we supply sprockets but we also provide chain, v-belt pulleys, V-belts, electric motors, shafting, gear reducers, bearings, and a wide range of other PT components. For hard to find, custom, or OEM solutions, we make custom 5-tooth sprockets from our in-house machine shop.

5-Tooth Chain Sprocket Types

Roller Chain Sprocket

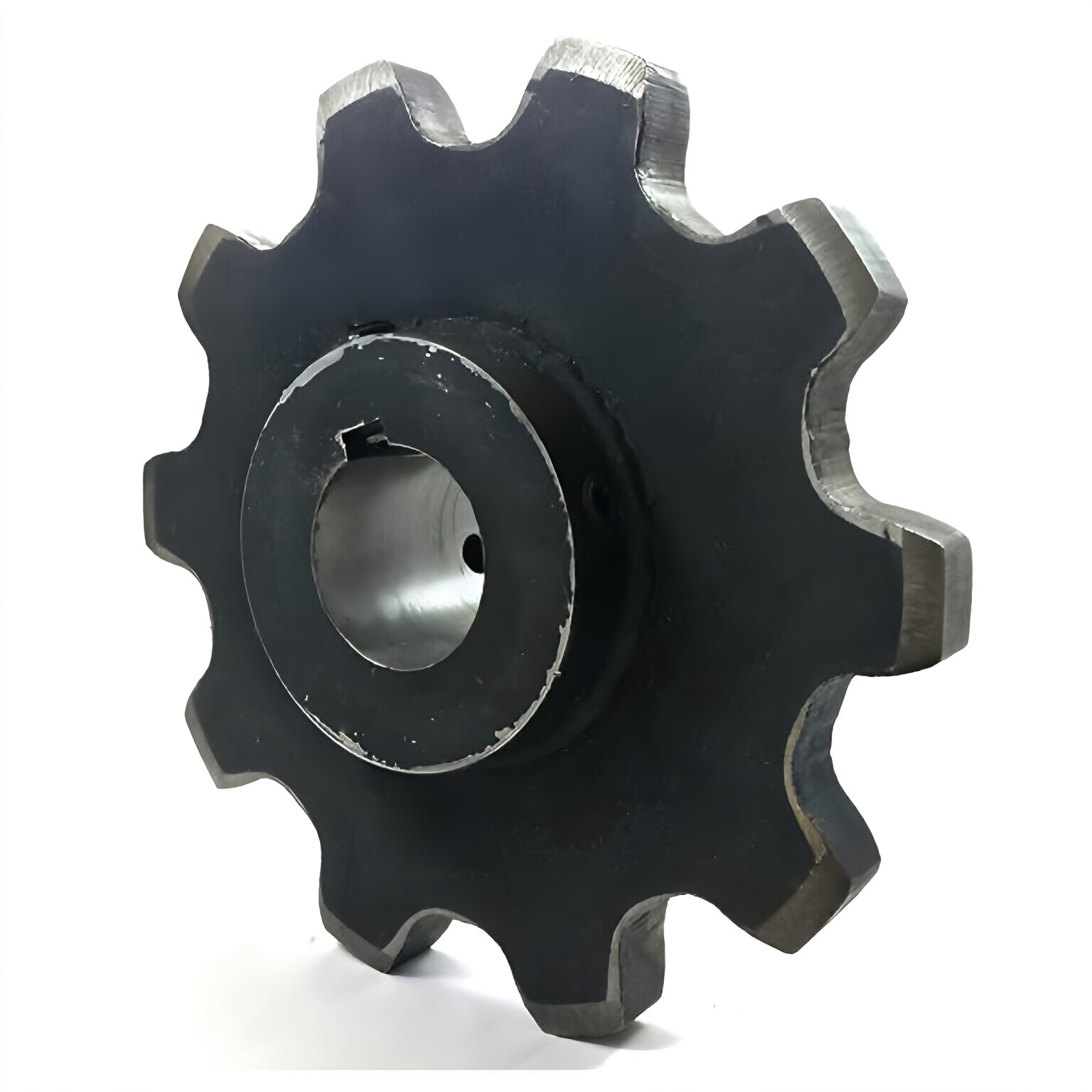

Engineer-Class Sprockets

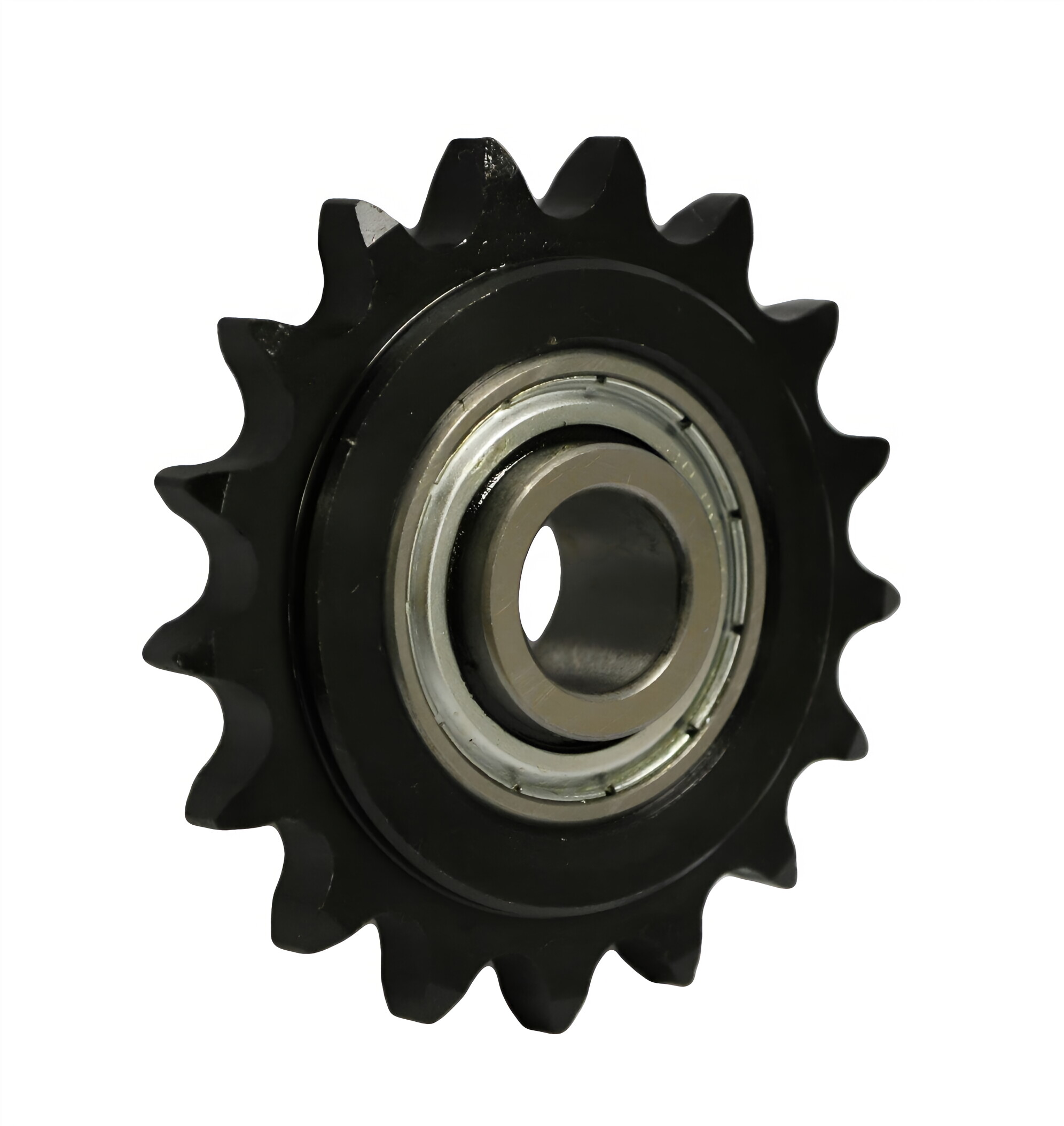

Idler Sprockets

Additionally, we have plastic sprockets, stainless steel sprockets, and aluminum sprockets!

A5 Sprocket



• High Quality Sprocket
• Two Styles To Choose From
• Extremely Durable
• Optimum Performance



Sprocket Number	Style	Number of Teeth	Pitch Diameter	Pitch	Plate Thickness	Stock Bore	Weight
698A5	A-Plate	5	7.95"	6.031"	1.250"	1.500"	106.00 LBS
998A5	A-Plate	5	10.54"	9.031"	1.250"	1.500"	211 LBS

A5 Sprocket

• High Quality Sprocket
• Two Styles To Choose From
• Extremely Durable
• Optimum Performance



Sprocket Number	Style	Number of Teeth	Pitch Diameter	Pitch	Length Through Bore	Stock Bore	Weight
698C5	C-Hub	5	19.517"	6.031"	6.250"	1.500"	173.00 LBS
998C5	C-Hub	5	29.225"	9.031"	6.500"	1.500"	302 LBS

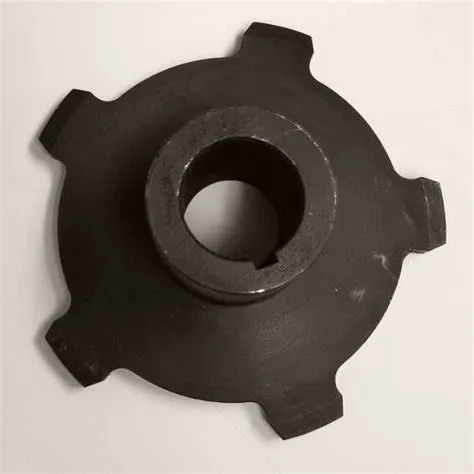

cast c5 sprocket



• Premium Quality Sprocket
• Extremely Durable
• Available In Cast or Steel Material
• Custom Bore Sizes Available

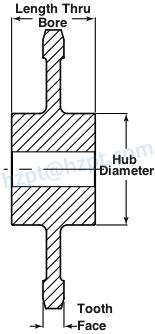

Sprocket Number	Style	Number of Teeth	Pitch Diameter	Maximum Bore	Hub Diameter	Length Thru Bore	Tooth Face at Pitch Line	Roller Diameter	Weight
55C5	C	5	2.77"	0.94"	2.00"	2.00"	0.750"	0.875"	2.0 LBS
67C5	C	5	3.93"	1.19"	2.25"	1.75"	0.687"	0.812"	4.0 LBS
78C5	C	5	4.44"	1.19"	2.50"	2.50"	0.937"	0.875"	5.0 LBS
94C5	C	5	6.81"	2.50"	4.50"	3.00"	0.750"	1.5"	12.0 LBS
95C5	C	5	6.81"	2.50"	4.50"	3.00"	0.687"	1.5"	12.0 LBS
104C5	C	5	10.21"	4.00"	6.00"	4.75"	4.00"	1.50"	80.0 LBS
106C5	C	5	10.15"	4.00"	10.15"	4.75"	1.5"	1.25"	30.0 LBS
130C5	c	5	6.77"	2.00"	3.00"	2.75"	1.000"	1.000"	18.0 LBS
132C5	C	5	10.20"	4.00"	6.00"	6.00"	2.750"	1.750"	59.0 LBS
188C5	C	5	6.78"	2.50"	4.00"	3.00"	0.9375"	1.750"	14.0 LBS
196C5	C	5	10.21"	4.00"	6.00"	4.00"	1.000"	2.000"	28.0 LBS
348C5	C	5	9.71"	2.00"	4.00"	4.00"	0.687"	1.0625"	19.0 LBS
458C5	C	5	13.05"	5.06"	6.00"	5.00"	0.875"	1.380"	40.0 LBS
468C5	C	5	13.05"	4.00"	6.00"	4.00"	1.375"	1.880"	52.0 LBS
678C5	c	5	19.52"	3.50"	7.00"	4.50"	1.187"	2.000"	93.0 LBS
698C5	C	5	19.52"	3.00"	8.00"	5.00"	1.375"	2.690"	122.0 LBS
998C5	C	5	29.14"	6.44"	9.00"	6.00"	1.375"	2.690"	258.0 LBS



X-A5 Sprocket

• High Quality Sprocket
• Two Styles To Choose From
• Extremely Durable
• Optimum Performance



Sprocket Number	Style	Number of Teeth	Plate Thickness	Pitch	Stock Bore	Weight
X-348A5	A-Plate	5	0.625"	3.015"	1.250"	13.00 LBS
X-458A5	A-Plate	5	0.875"	4.031"	1.50"	33.00 LBS
X-678A5	A-Plate	5	1.000"	6.031"	1.500"	85.00 LBS

X-C5 Sprocket

• High Quality Sprocket
• C-Hub Style (Hub On Both Sides)
• Two Styles To Choose From
• Extremely Durable
• Optimum Performance



Sprocket Number	Style	Number of Teeth	Plate Thickness	Pitch Diameter	Hub Diameter	Pitch	Maximum Bore	Stock Bore	Length Through Bore	Weight
X-348C5	C-Hub	5	0.625"	0.625"	4.000"	3.015"	2.440"	1.250"	2.750"	20.00 LBS
X-458C5	C-Hub	5	0.875"	13.045"	5.500"	4.031"	3.440"	1.500"	4.250"	54.00 LBS
X-678C5	C-Hub	5	1.000"	19.517"	7.000"	6.031"	4.440"	1.500"	6.000"	137.00 LBS

 We aslo offer a full range of both precision roller chain and engineered.Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.
