The double acting single axis flange type mdc series compact mold cylinder is a cutting-edge hydraulic cylinder designed specifically for mold applications. With its exceptional features, reliable performance, and compact design, this cylinder offers outstanding functionality and efficiency in various industrial settings. Whether used in injection molding machines, die-casting equipment, or other mold-related applications, the double acting single axis flange type mdc series compact mold cylinder provides precise control and optimal productivity.· MDC is a compact hydraulic cylinder (cx) with an electrical box and ram rod to control the neutron position of the mold accurately.· Hydraulic cylinder suitable for plastic mold use.

Compact Mold Cylinder Model Description:

Compact Mold Cylinder Characteristic Data:

Compact Mold Cylinder Structure Chart:

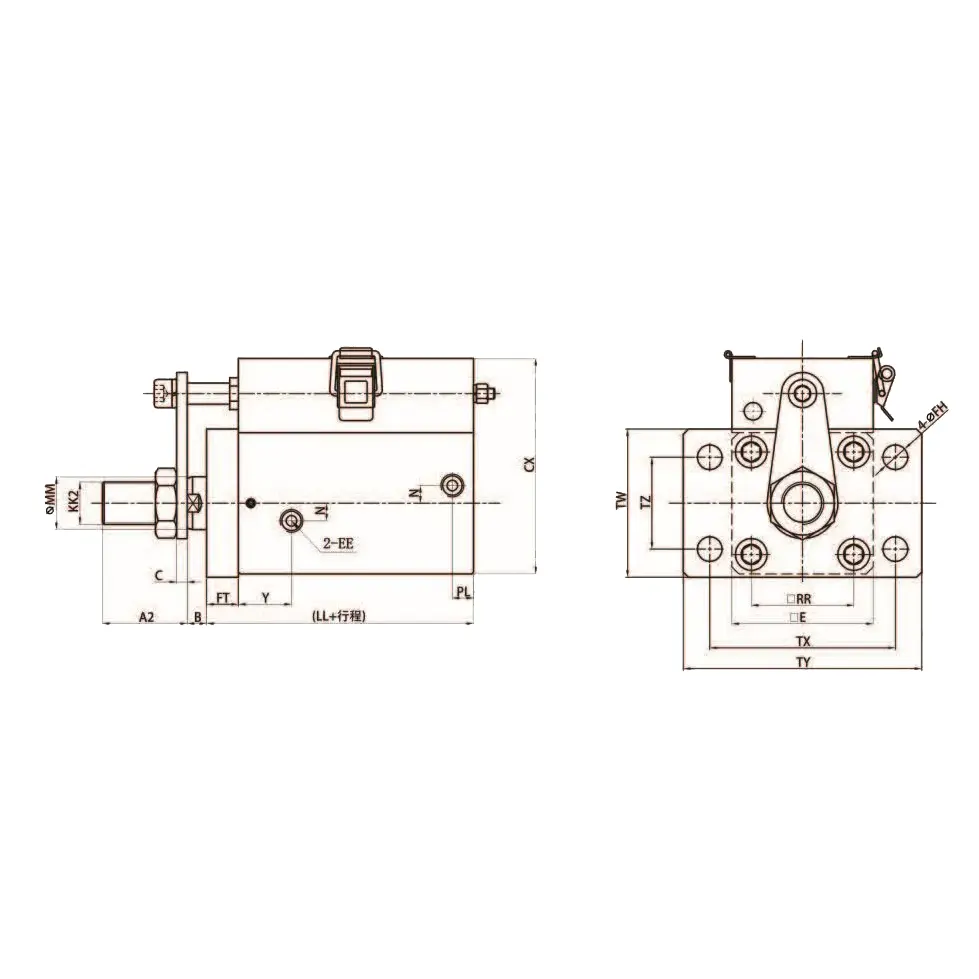

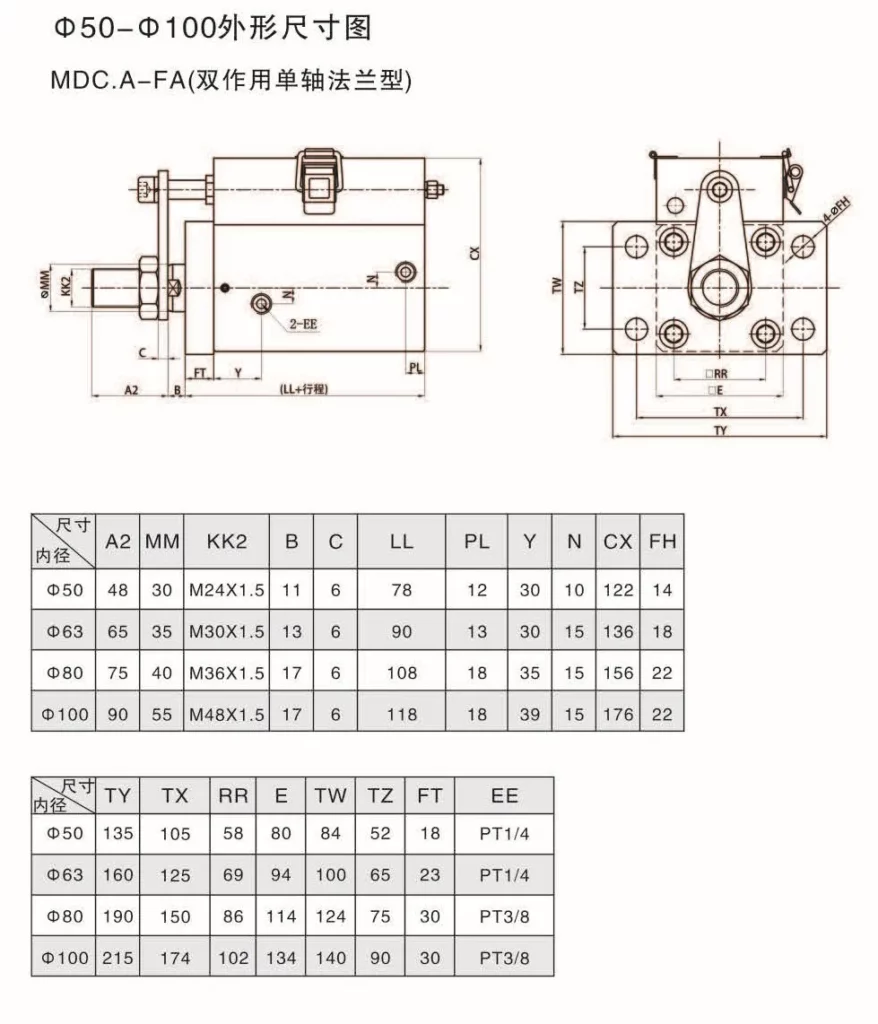

Piston Rod Connection Size Diagram:

Electrical Box Buckle Position, Oil Port Position, And Distribution Outlet Position:

50-100 50-100 Double Acting Single Axis Flange Type MDC Series Compact Mold Cylinder:

Key Characteristics and Benefits Of 50-100 Double Acting Single Axis Flange Type MDC Series Compact Mold Cylinder:

1. Double Acting Design:

• The Double Acting Single Axis Flange Type MDC Series Compact Mold Cylinder operates in both directions, allowing for bi-directional movement.
• This design enables efficient and precise control over the mold's opening and closing actions, enhancing operational flexibility.

2. Single Axis Configuration:

• This cylinder is designed for single-axis movement, providing linear motion along one direction.
• The single-axis configuration is ideal for applications requiring a straightforward mold action, ensuring simplicity and ease of use.

3. Flange Type Construction:

• The flange type design of the MDC Series Compact Mold Cylinder allows for easy installation and integration into mold systems.
• The flange provides a secure and rigid mounting connection, ensuring stability during operation.

4. Compact and Space-Saving:

• The MDC Series Compact Mold Cylinder features a compact design that optimizes space utilization in mold systems with limited clearance.
• Its space-saving construction allows for easy integration into tight spaces, ensuring efficient use of available workspace.

How To Remove Hydraulic Cylinder From Front End Loader?

Removing a hydraulic cylinder from a front-end loader requires careful preparation and execution. Here's a step-by-step guide to help you through the process:

1. Safety First:
   • Before starting work, ensure the front-end loader is parked on a level surface and the engine is turned off.
   • Engage the parking brake and place wheel chocks behind the rear wheels to prevent accidental movement.
   • Wear appropriate personal protective equipment (PPE), including gloves and safety glasses.
2. Identify the Cylinder:
   • Locate the hydraulic cylinder you intend to remove. It will be connected to the loader's hydraulic system and attached to specific mounting points.
3. Relieve Hydraulic Pressure:
   • To avoid sudden movements or potential injury, relieve the hydraulic pressure in the system before disconnecting the cylinder.
   • Start the engine and operate the loader's hydraulic controls to move the bucket or attachment to a fully extended or raised position.
   • Shut off the engine and release any remaining pressure by operating the hydraulic controls a few times.
4. Disconnect Hydraulic Connections:
   • Locate the hydraulic hoses or lines connected to the cylinder. These are typically secured with fittings, bolts, or quick-release couplings.
   • Carefully loosen and disconnect the hydraulic connections, using appropriate tools as needed.
   • Be prepared for some hydraulic fluid to leak, so have a catch basin or absorbent material ready to minimize spills.
5. Remove Mounting Hardware:
   • Identify the mounting points where the cylinder is attached to the loader's structure. These may include pins, bolts, or brackets.
   • Remove any retaining pins or bolts securing the cylinder to the loader using the appropriate tools.
   • Keep track of the hardware as you remove it, ensuring it isn't misplaced or lost.
6. Detach the Cylinder:
   • With the hydraulic connections and mounting hardware removed, the cylinder should now be free to be detached.
   • Carefully slide or maneuver the cylinder out of its mounting position, not damaging any surrounding components or hydraulic lines.
   • Use lifting equipment or assistance to handle and remove the cylinder from the loader safely.
7. Proper Storage and Maintenance:
   • Once the cylinder is removed, inspect it for any signs of damage or wear. Replace any worn-out seals or components, if required.
   • Store the hydraulic cylinder in a clean and dry area, protected from dust, moisture, and extreme temperatures.
   • If the cylinder requires further servicing, consult the manufacturer's guidelines or seek professional assistance.
