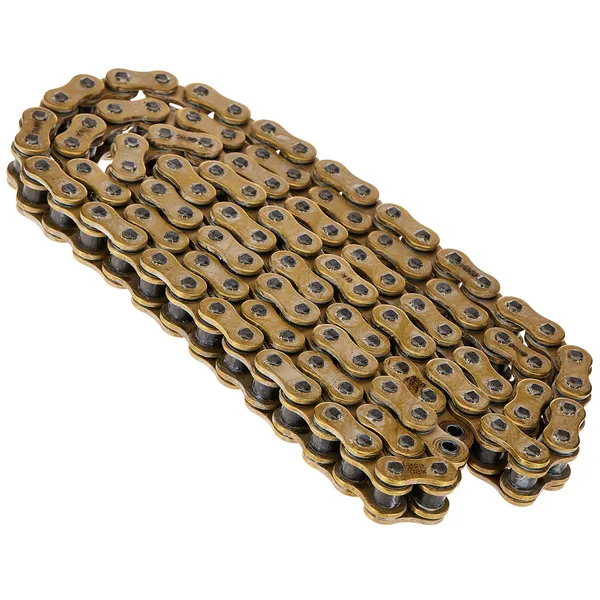

525 Standard Motorcycle Chain

525 Standard Motorcycle Chain

525 Standard Motorcycle Chain Sizes Chart:

Chain No.	Pitch	Bush Type	Width	Pin Dia	Pin Length	Roller Dia	Plate Thickness Inner	Plate Thickness Outer	Tensile Strength	Weight
	mm		mm	mm	mm	mm	mm	mm	KN	kg/m
525	15.875	Curled	7.94	5.08	19.40	10.14	2.03	1.96	26.5	0.98

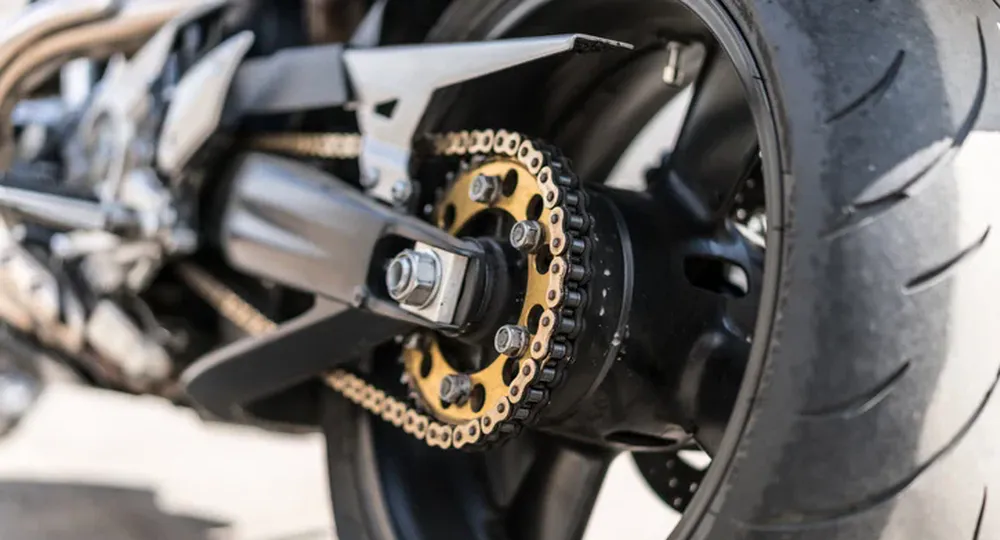

Advantages of 525 Standard Motorcycle Chain:

The 525 standard motorcycle chain offers several advantages over other chain sizes. Here are some of the key benefits:1. Strength and Durability: The 525 motorcycle chain is designed to handle high levels of power and torque, making it suitable for a wide range of motorcycles, including sport bikes and larger displacement bikes. It is built with robust materials and construction techniques to ensure excellent strength and durability, allowing it to withstand heavy loads and demanding riding conditions.2. Weight Reduction: Compared to larger chain sizes like the 530 or 532, the 525 motorcycle chain is slightly lighter. This weight reduction can contribute to improved overall performance and handling of the motorcycle. It can enhance acceleration, responsiveness, and maneuverability, particularly in high-performance applications.3. Compatibility: The 525 motorcycle chain size is widely used and readily available, making it easy to find replacements or upgrades for various motorcycle models. Many manufacturers produce sprockets and other chain-related components specifically designed for the 525 chain, ensuring compatibility and proper fitment.4. Maintenance: The 525 motorcycle chain requires regular maintenance, like any other motorcycle chain, but its relatively smaller size makes cleaning and lubrication more manageable. It is easier to access and maintain, reducing the time and effort required to keep it in good condition. Proper maintenance can enhance the lifespan of the chain and ensure optimal performance.5. Cost-Effective: While the 525 motorcycle chain offers high performance and durability, it is generally more affordable than larger chain sizes. Choosing a 525 motorcycle chain can be a cost-effective option for riders who want a reliable and strong chain without breaking the bank.

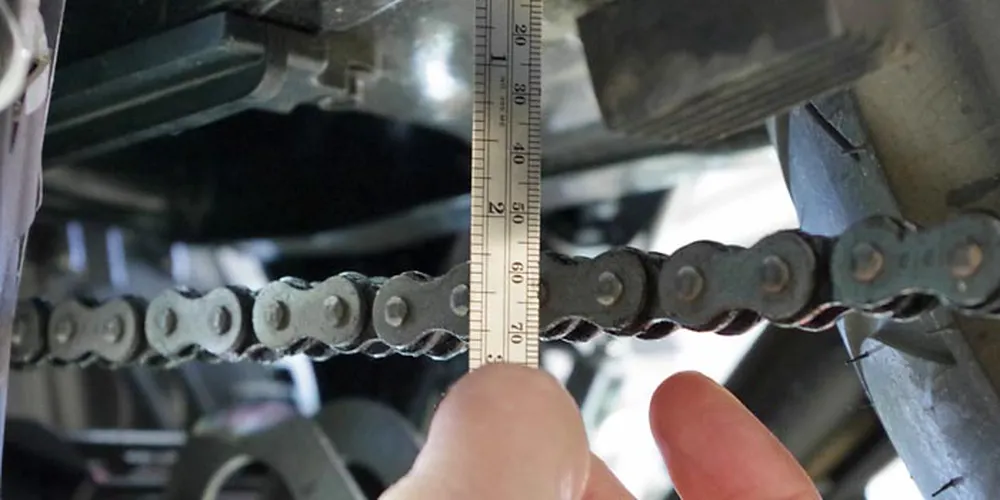

How to Measure 525 Motorcycle Chain?

To accurately measure a 525 motorcycle chain, you can follow these steps:Clean the Chain: Before measuring the chain, it's important to clean it thoroughly to remove any dirt, debris, or excess lubrication. This ensures accurate measurements and prevents any interference during the measurement process.Locate the Reference Point: Identify a reference point on the chain where you will start the measurement. This can be any point on the chain, such as the center of a pin or the center of an outer plate.Count the Pins: Using a ruler or a measuring tape, count the number of pins in a specific length of the chain. A common method is to measure 10 full links, which means counting the pins in 20 half-links. This provides an average measurement and minimizes errors.Measure the Length: Once you have identified the reference point and counted the pins, measure the distance between the reference point and the same point on the chain after the specified number of links. Ensure that the chain is fully extended and straight during the measurement.Calculate the Pitch: Divide the measured length by the number of pins counted. This will give you the pitch of the chain, which represents the distance between the centers of two adjacent pins. For a 525 chain, the pitch should be approximately 5/8 inch (15.875 mm).Verify the Measurement: It's a good practice to measure the pitch at multiple locations along the chain to ensure consistency. If there is a significant variation in the measurements, it may indicate chain wear or elongation, and the chain may need to be replaced.

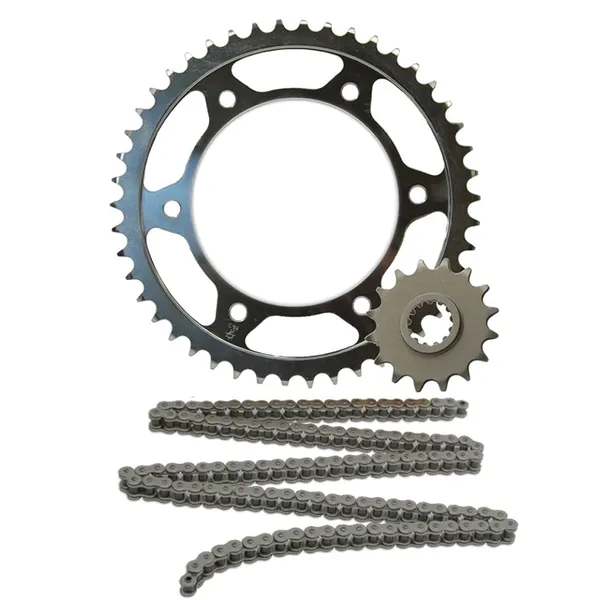

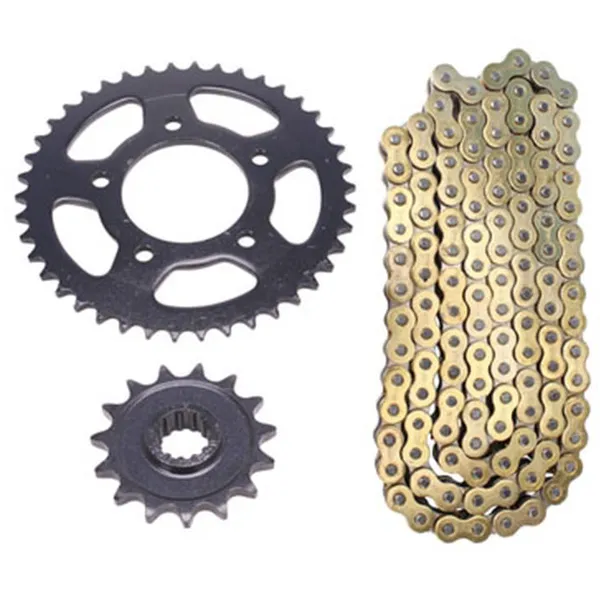

Motorcycle Chain Sprockets for 525 Motorcycle Chain:

Motorcycle chain sprockets and the 525 motorcycle chain work together as a crucial part of the motorcycle's drivetrain system. Here's how they are interconnected:Function: The motorcycle chain sprockets and chain work together to transfer power from the motorcycle's engine to the rear wheel. The engine's power is transmitted to the front sprocket (also known as the countershaft sprocket), which is connected to the engine's output shaft. The chain then wraps around the front sprocket and transfers power to the rear sprocket (also known as the rear wheel sprocket). The rear sprocket is mounted directly on the rear wheel hub.Teeth and Pitch: Chain sprockets have teeth that mesh with the links of the chain. The number of teeth on the sprockets determines the gear ratio and affects the motorcycle's overall performance. The 525 motorcycle chain refers to the chain's pitch size, which represents the distance between the centers of two adjacent pins on the chain. The 525 chain has a pitch size of 5/8 inch (15.875 mm).Size and Ratios: The size of the sprockets, specifically the number of teeth, affects the final drive ratio of the motorcycle. Different sprocket combinations can alter the motorcycle's acceleration, top speed, and overall performance. Riders can choose different sprocket sizes to customize their bike's performance based on their preferences and riding style. The 525 motorcycle chain is compatible with various sprocket sizes designed specifically for the 525 chain.Compatibility: It's important to ensure that the motorcycle chain and sprockets are compatible in terms of size, pitch, and design. Using the correct sprockets designed for the 525 motorcycle chain ensures proper alignment, engagement, and longevity of the chain. Mixing incompatible sprockets or using the wrong size chain can result in poor performance, accelerated wear, and potential damage to the drivetrain system.Maintenance: The motorcycle chain and sprockets require regular maintenance to ensure optimal performance and longevity. Proper lubrication, cleaning, and tensioning of the chain are essential to minimize wear, reduce friction, and prevent premature failure. Additionally, periodically inspecting the sprockets for wear or damage is important, as worn sprockets can accelerate chain wear and negatively impact performance.When replacing either the motorcycle chain or sprockets, it is generally recommended to replace both components together to ensure compatibility and maximize the lifespan of the drivetrain system.

China Motorcycle Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains,?81X conveyor chains,?agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains,?stainless steel chains, nickel/ zinc plated chain,?slient chain, engineering chain, steel pintle chain,?welded steel mill chain, drop forged chain, malleable iron chain, "H" Class mill chain, CC Class crate conveyor chain,??"H" Class refuse drag chain,?500 Class bucket elevator chain, 600 Class ley bushed chain, combination transfer chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
