578 Bucket Elevator Chain

578 Bucket Elevator Chain

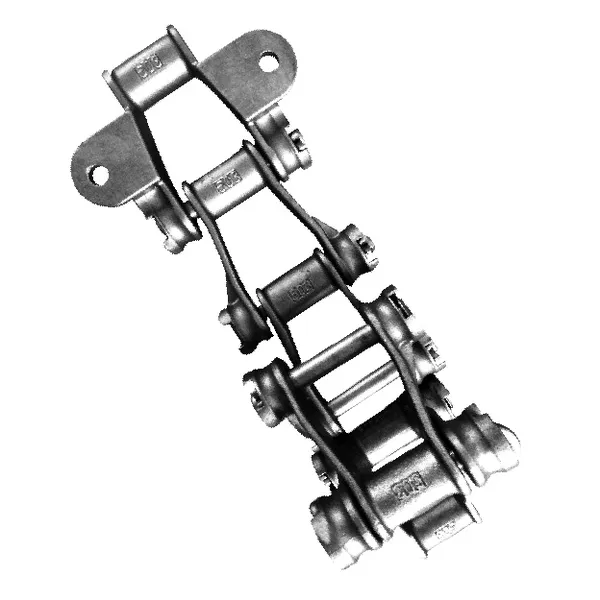

The 578 bucket elevator chain is a type of chain specifically designed for use in bucket elevators, which are commonly used in various industries for vertical material handling. This chain is known for its durability, strength, and reliability in conveying bulk materials such as grains, fertilizers, minerals, and other granular or powdered materials.The 578 bucket elevator chain features a series of evenly spaced, robust buckets that are attached to the chain at regular intervals. These buckets are responsible for carrying the material as the chain moves along the elevator's vertical or inclined path. The chain's design ensures efficient and smooth operation, allowing for the vertical transfer of materials with minimal spillage or damage.One of the key characteristics of the 578 bucket elevator chain is its high tensile strength. This enables it to withstand heavy loads and resist wear and tear, even when operating under demanding conditions. The chain is typically made from high-quality alloy steel or other durable materials that are carefully selected to meet the specific requirements of bucket elevator applications.To ensure smooth operation and reduce friction, the 578 bucket elevator chain is often equipped with various types of lubrication systems. These systems help to minimize wear between the chain and the sprockets, thereby extending the chain's lifespan and reducing maintenance needs.

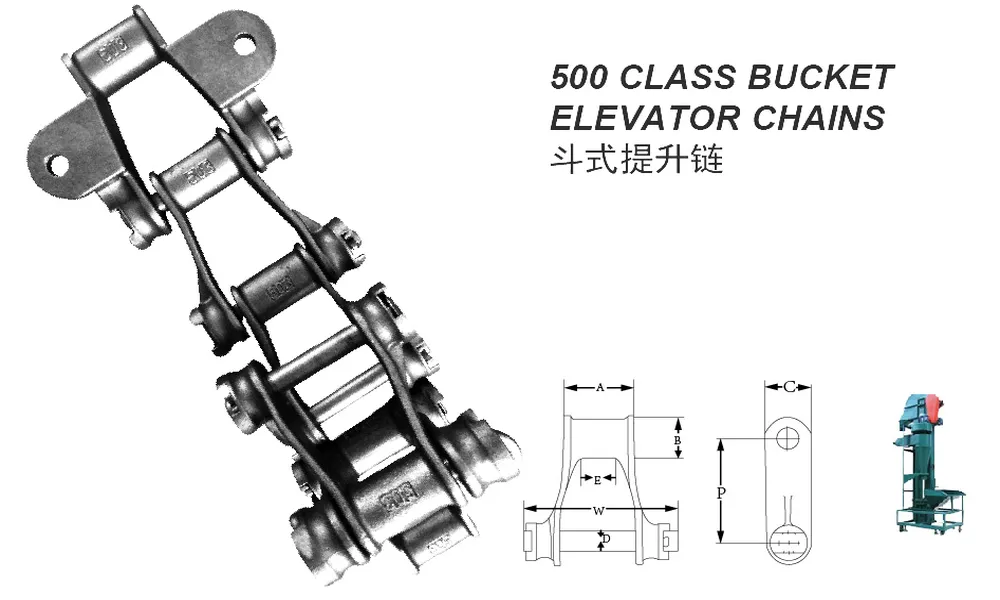

578 Bucket Elevator Chain Dimensions:

Chain No.	578 Bucket Elevator Chain
Pitch In Inches	2.63
Weight	4.0
Allowable Chain Pull	1780
Breaking Load	15000
Links Per Coil	46
A	1.63
B	0.97
C	1.19
D	0.44
E	0.88
W	3.25

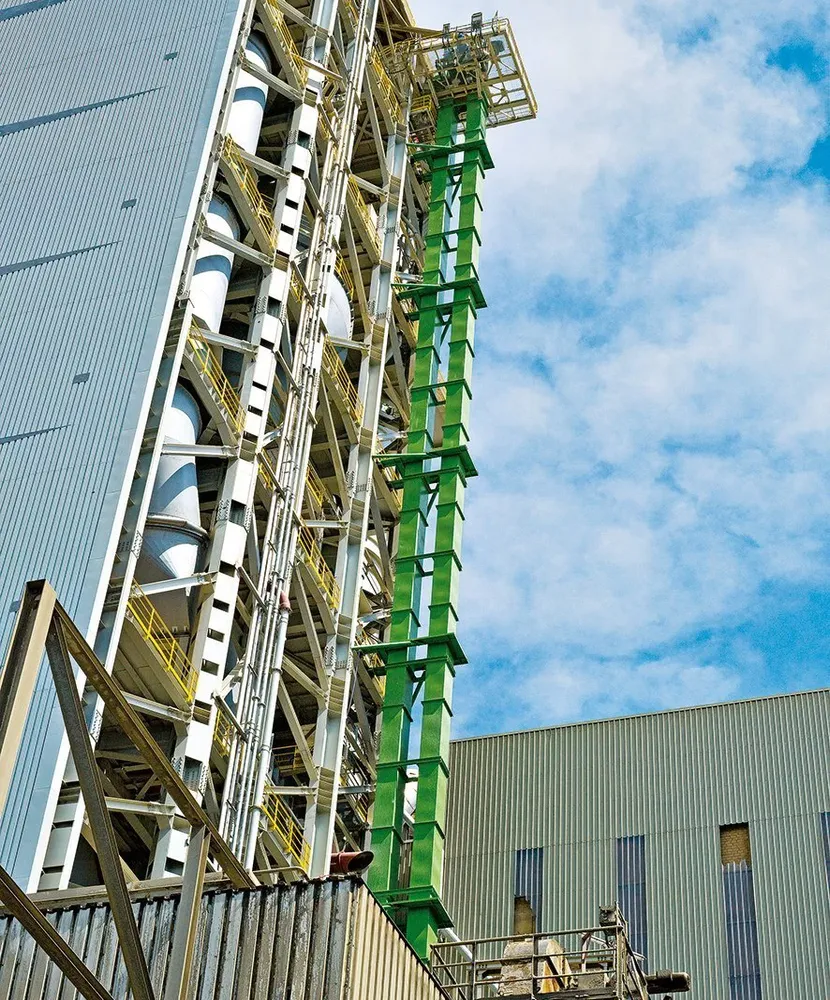

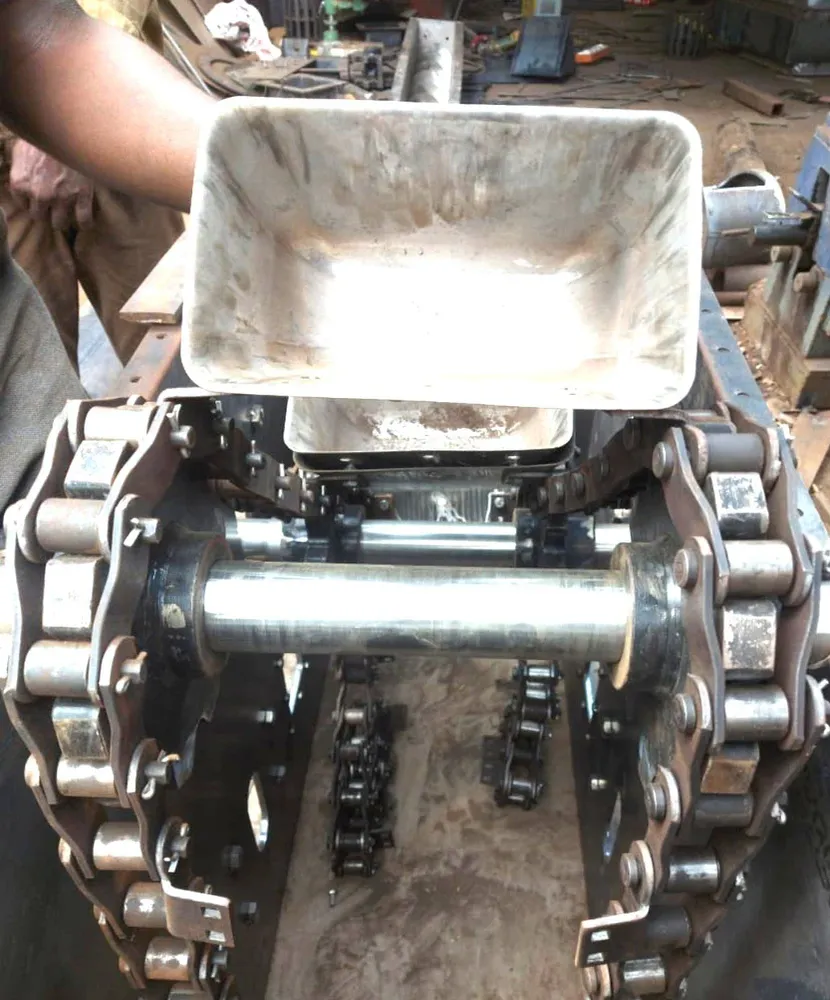

578 Bucket Elevator Chain Applications:

The 578 bucket elevator chain finds applications in various industries that require vertical material handling. Some common applications of the 578 bucket elevator chain include:1. Agriculture: The 578 bucket elevator chain is widely used in the agricultural sector for handling grains, seeds, and other agricultural products. It can efficiently transport crops such as wheat, corn, soybeans, rice, and more within grain storage facilities, feed mills, and grain processing plants.2. Mining and Minerals: In the mining industry, the 578 bucket elevator chain is used to transport minerals, ores, and other bulk materials vertically. It is commonly employed in mines, quarries, and mineral processing plants to move materials like coal, limestone, iron ore, copper ore, and various types of aggregates.3. Fertilizer Industry: The 578 bucket elevator chain is well-suited for handling fertilizers, including granular and powdered fertilizers. It facilitates the vertical conveying of materials like urea, ammonium nitrate, phosphate, potash, and other fertilizers used in production plants or storage facilities.4. Cement and Construction: The 578 bucket elevator chain plays a vital role in the cement and construction industries. It is used for transporting cement, gravel, sand, limestone, and other bulk materials in cement plants, concrete production facilities, and construction sites.5. Food Processing: The 578 bucket elevator chain is utilized in food processing plants for vertical handling of food products such as grains, pulses, rice, sugar, spices, and more. It ensures efficient and hygienic transportation during various stages of food processing and packaging.6. Power Plants: The 578 bucket elevator chain is employed in power generation facilities, particularly in biomass power plants and coal-fired power plants. It aids in the vertical movement of materials like biomass, coal, ash, and other fuel components within the power plant's systems.7. Chemical Industry: The 578 bucket elevator chain finds applications in the chemical industry for conveying various bulk materials such as fertilizers, plastics, resins, and other chemical compounds. It is commonly used in chemical manufacturing plants, refineries, and storage facilities.

Bucket Elevator Chain Sprockets for 578 Bucket Elevator Chain

When using a 578 bucket elevator chain, it is important to select appropriate sprockets to ensure proper engagement and smooth operation of the chain. Sprockets are toothed wheels that mesh with the links of the chain, providing the driving force and direction for the bucket elevator system. Here are some considerations for selecting bucket elevator chain sprockets:(1) Pitch: The pitch is the distance between the center of one sprocket tooth and the center of the next tooth. It is important to choose sprockets with a pitch that matches the pitch of the 578 bucket elevator chain. This ensures proper engagement between the chain and the sprockets.(2) Number of Teeth: The number of teeth on the sprocket determines the speed ratio and the amount of engagement between the chain and the sprocket. It is advisable to follow the manufacturer's recommendations or consult engineering specifications to determine the appropriate number of teeth for the specific application.(3) Tooth Profile: Sprockets can have different tooth profiles, such as standard or special profile designs. The tooth profile should be compatible with the corresponding chain design to ensure smooth engagement and minimize wear.(4) Material: Sprockets are typically made from durable materials such as steel or cast iron. The material should have sufficient strength and wear resistance to withstand the loads and operating conditions of the bucket elevator system.(5) Hub Design: The hub of the sprocket connects it to the shaft or drive mechanism. The hub design should be compatible with the shaft diameter and attachment method, such as keyways or set screws.(6) Alignment and Tensioning: Proper alignment and tensioning of the sprockets are essential for the smooth operation of the chain. Adequate tensioning devices, such as tensioners or take-up systems, should be used to maintain proper chain tension and prevent slippage or excessive wear.
