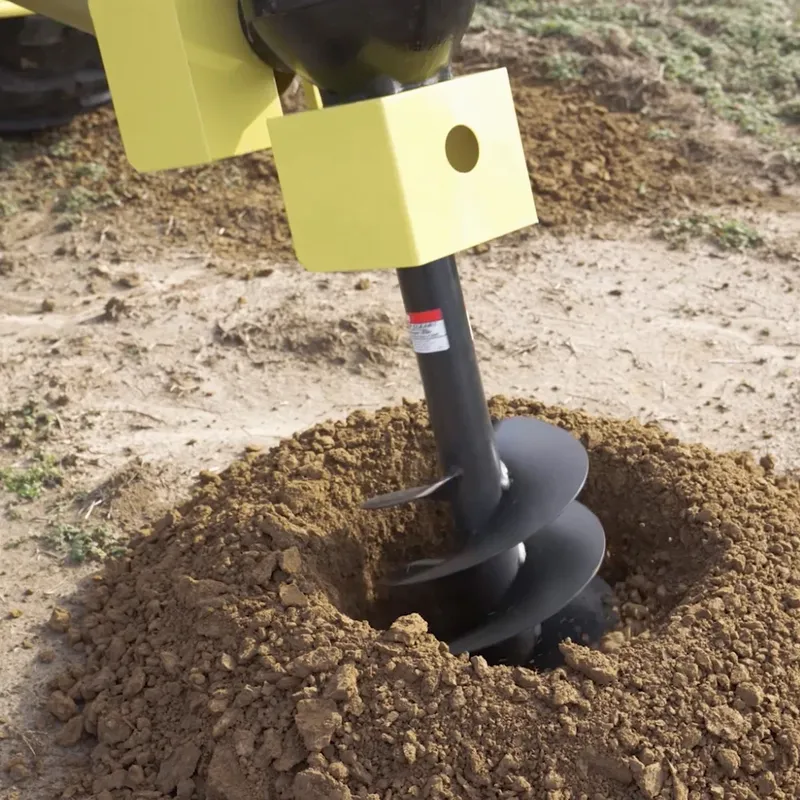

6 Inch Compact Post Hole Auger for Tractor 3 Point Post Hole Diggers with 2" Round Shaft

6 Inch Compact Post Hole Auger for Tractor 3 Point Post Hole Diggers with 2" Round Shaft

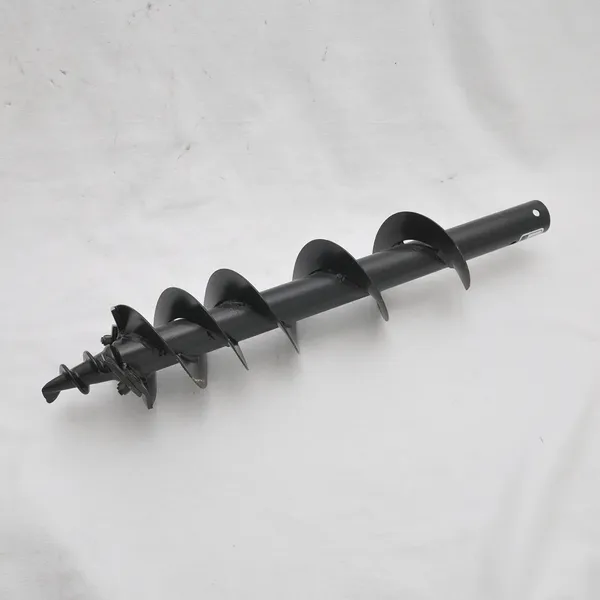

A 6 inch compact post hole auger is a tool used to drill holes in the ground for placing fence posts, sign posts or trees. It is designed for smaller jobs and can fit into tight spaces. The diameter of the post hole auger bit is 6 inches, meaning the hole it drills will be 6 inches in diameter. The compact design of this tool makes the job of digging holes easier and faster than using manual digging methods.

▍6 Inch Compact Post Hole Auger Specifications

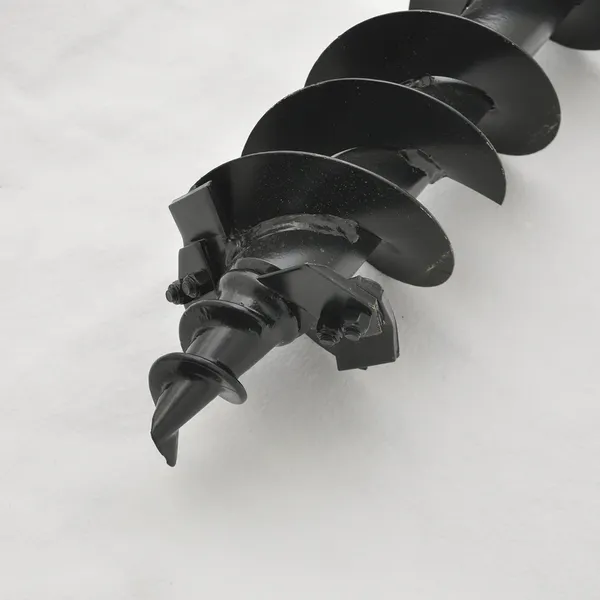

- 36" in Length - Replaceable Edges - 6" Diameter - Designed with a shorter length for use on sub-compact tractors (Category 0) - Connects to 2" round gearbox shaft with dual 1/2" bolts (not included) - Works great with our Model 400 compact post hole digger, or with other brands. - Light duty, compact auger. - Great addition when paired with either a hand held or 3-point tractor driven post hole digger.

▍A Few Best Post Hole Auger for Sale

Auger Diameter	Duty & Length	Weight	SKU
6"	Compact - 36"	21	23-033
9"	Compact - 36"	32	23-035
12"	Compact - 36"	43	23-037
6"	Standard - 48"	23	23-032
9"	Standard - 48"	34	23-034
12"	Standard - 48"	49	23-036
6"	Heavy - 48"	31	23-040
9"	Heavy - 48"	42	23-041
12"	Heavy - 48"	60	23-042
18"	Heavy - 48"	99	23-043
24"	Heavy - 48"	125	23-044

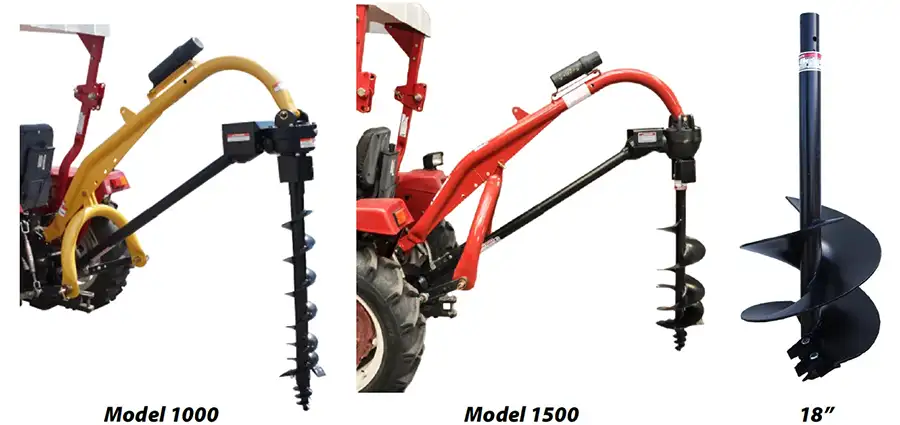

▍Post Hole Auger for Tractor 3 Point Post Hole Diggers

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3'  lengths)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150  bs	160  bs	200  bs	235  bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

▍Advantages of 6 Inch Compact Tractor Post Hole Auger

There are several advantages of using a 6 inch compact tractor post hole auger, including: Efficient digging: With a powerful tractor to provide the necessary torque, the 6 inch compact post hole auger is capable of quickly and efficiently digging holes of the designated size. Ease of use: The 6 inch post hole auger can be operated from the comfort of the tractor's seat, eliminating the need for manual digging and reducing the physical exertion needed to complete the job. Precision: The post hole auger can drill holes to a uniform size, ensuring that the posts or trees will be properly secured in place. Versatility: A 6 inch compact post hole auger can be used for a variety of tasks, including putting up fences, planting trees or installing signs. Cost-effective: This type of post hole auger is less expensive than larger models, making it an affordable option for those who need to dig holes on a smaller scale. Compact design: The compact design of this 6 inch compact post hole auger makes it easy to transport and store when not in use, without taking up too much space. Overall, utilizing a 6 inch compact tractor post hole auger provides numerous benefits, including time and labor savings, precision, versatility, and affordability.

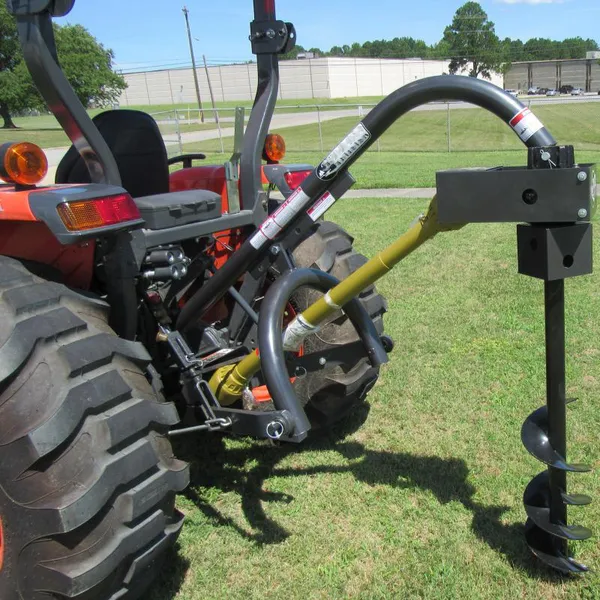

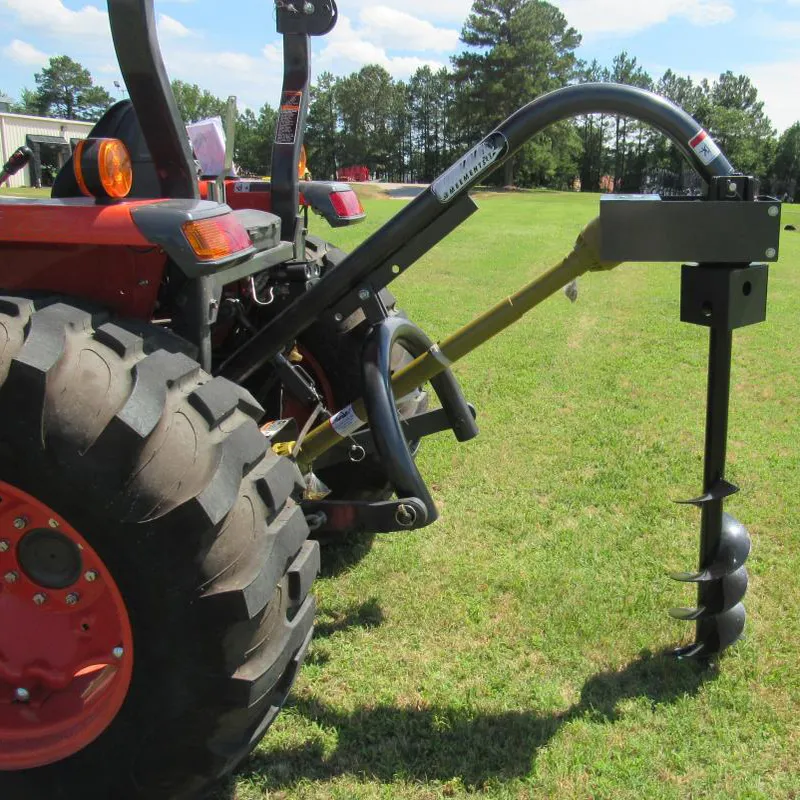

▍How to Dig a Post Hole with a Tractor 3 Point Post Hole Digger?

Digging a post hole with a tractor 3 point post hole digger is quite simple, just follow these steps: (1) Choose a suitable location for the post hole- Ensure that it is in the proper position for your fence or structure and is free from any underground utilities. (2) Set up the post hole digger- Attach the 3 point post hole digger to the back of the tractor and adjust the height of the digger to be slightly higher than the ground. (3) Position the tractor- Position the tractor so that the post hole digger is aligned with the spot where you want to dig the hole and the digger's auger is centered over the spot. (4) Start the digger- Start the tractor engine and engage the PTO shaft. Lower the digger slowly until the auger touches the ground. (5) Begin digging- Using the tractor and post hole digger, start digging into the ground. Be sure to maintain a low RPM to prevent the digger from bouncing, which can result in poor hole quality. (6) Continue digging- Gradually lower the digger as you dig deeper into the hole. Keep digging until you reach the desired depth. You can remove dirt from inside the hole by lifting the auger out of the hole and tilting it back using the tractor hydraulics. (7) Finish up- Once you have dug the hole to your desired depth, turn off the tractor engine and raise the post hole digger. You can now proceed to fill in the hole with concrete or soil and install the fence post or other structure.

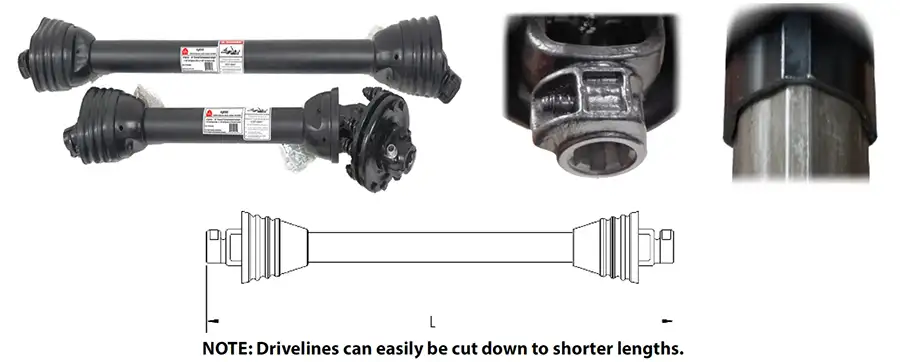

▍PTO Shaft for Tractor 3 Point Post Hole Auger

The PTO shafts are built strong to last • Feature a quick disconnect 1-3/8" 6-spline that mounts to standard tractors • Adjustable telescoping tube can handle high load demands given by the series designation • Used on a variety of equipment from post hole diggers, spreaders, tillers, mowers, etc. • Interchangeable with other manufacture

Series	Shortest Length	Extended Length	Tractor End	Implement End	Common Uses	SKU
1	27	34	1-3/8" x 6 QD	1-3/8" x 6 QD	Fertilizer Spreader	27-010
3	40	54	1-3/8" x 6 QD	1-3/8" x 6 QD	Finishing Mower, Tiller	27-011
4	30	40	1-3/8" x 6 QD	1-3/8" Round	Finishing Mower, Tiller	27-012
4	32	42	1-3/8" x 6 QD	1-3/8" Round	Rotary Cutter	27-013
4	36	43	1-3/8" x 6 QD	1-3/8"x6 Clutch	Rotary Cutter, Tiller	27-014
4	37	50	1-3/8" x 6 QD	1-3/8" Round	Rotary Cutters, Pond	27-015
4	42	58	1-3/8" x 6 QD	1-3/8" Round	Post Hole Digger	27-016
4	48	65	1-3/8" x 6 QD	1-3/8" x 6 QD	Post Hole Digger	27-017
4	53	74	1-3/8" x 6 QD	1-1/4" Round	Post Hole Digger	27-018
5	42	57	1-3/8" x 6 QD	1-3/8" Round	Rotary Cutters	27-019
12	48	64	1-3/8" x 6 QD	1-1/4" Round	Heavy Duty Digger	27-020
14	37	49	1-3/8" x 6 QD	1-3/8" Round	Post Hole Digger	27-021
14	56	77	1-3/8" x 6 QD	1-3/8" Round	5' & 6' Pull Cutters	27-022

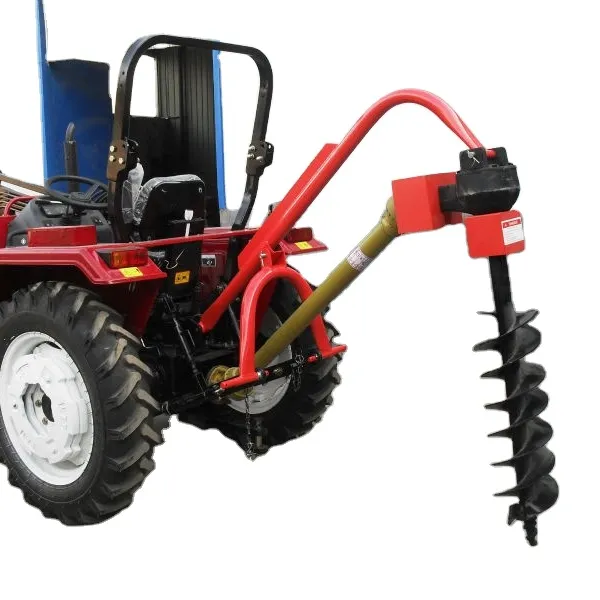

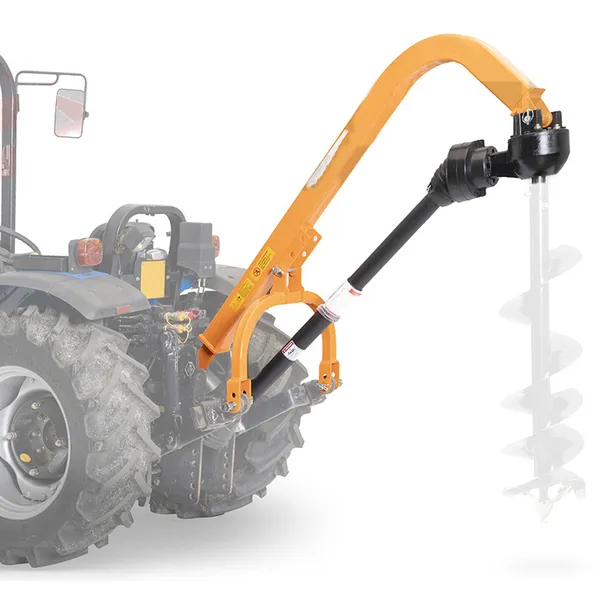

▍How Do I Attach the PTO Shaft to the Tractor Post Hole Auger?

Attaching the PTO shaft to a tractor post hole auger is important to ensure that the auger can be powered by the tractor engine. Before starting, you will need to make sure that the tractor and the auger are both turned off and that the auger is in a neutral position. Here is a step-by-step guide to attaching the PTO shaft to a tractor post hole auger: 1. Locate the PTO shaft on the tractor, which is typically located under the tractor seat. 2. Line up the splines on the tractor PTO shaft with the splines on the auger PTO coupler. 3. Push the splines together until they engage. You may need to rotate the tractor post hole auger shaft slightly to line up the splines. 4. Once the splines are engaged, slide the lock collar over the coupler and lock it in place. 5. Tighten the set screws on the lock collar to secure it in place. 6. Check that the PTO shaft and the tractor post hole auger are properly aligned and that there is no binding or interference. 7. Start up the tractor and engage the PTO shaft. The tractor post hole auger should now be powered and ready to use. Remember to always handle the PTO shaft with care and to follow all safety instructions provided by the manufacturer.
