12 Inch Heavy Duty Post Hole Auger for 3 Point Tractor Post Hole Digger

12 Inch Post Hole Auger for 3 Point Tractor Post Hole Digger

A 12 inch post hole auger is a tool designed to quickly and efficiently dig holes that are 12 inches in diameter. It is typically used for projects such as fence and deck posts, planting trees or shrubs, installing signposts, or any other project that requires deep holes in the ground. It can be attached to a power drill or a motorized auger machine, and the user can control the depth of the hole by adjusting the length of the auger bit. A 12 inch post hole auger is a powerful tool that can save significant time and effort compared to manually digging holes.

▍12 Inch Post Hole Auger Specifications

• Used Primarily on 3 point post hole diggers like ours and skid steer diggers
• This post hole auger features extra thick flighting and extra welding between flighting and shaft, a reinforced collar where it meets the digger output shaft, and is altogether about 10 lbs heavier than the standard counterpart.
• Diameter: 12"
• Height: 48"
• Flighting Thickness: 5/32
• Fits: All diggers with a 2" output shaft on the gearbox. This is standard for most manufacturers such as Work Saver, Speeco, King Kutter, etc, as well as our diggers
• Standard 2" spacing on bolts (90 degrees offset from each other) that mount the post hole auger onto the gearbox.

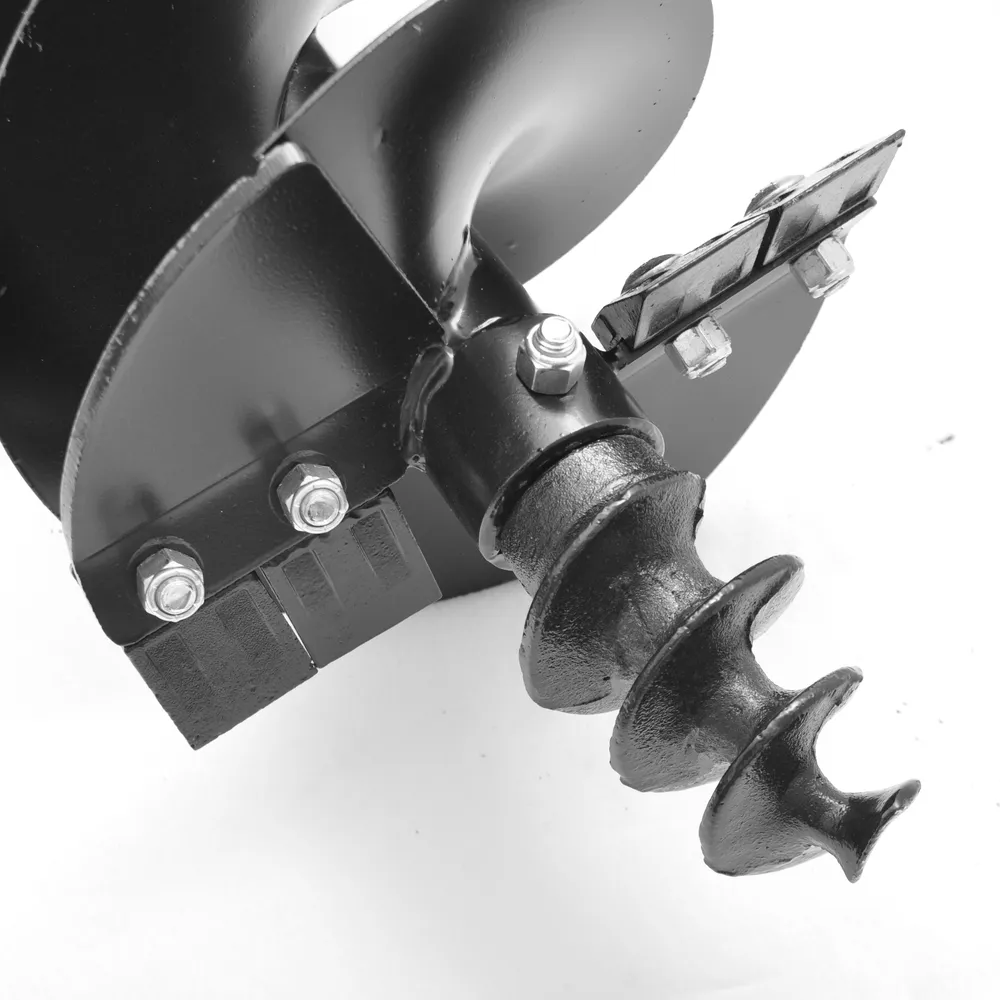

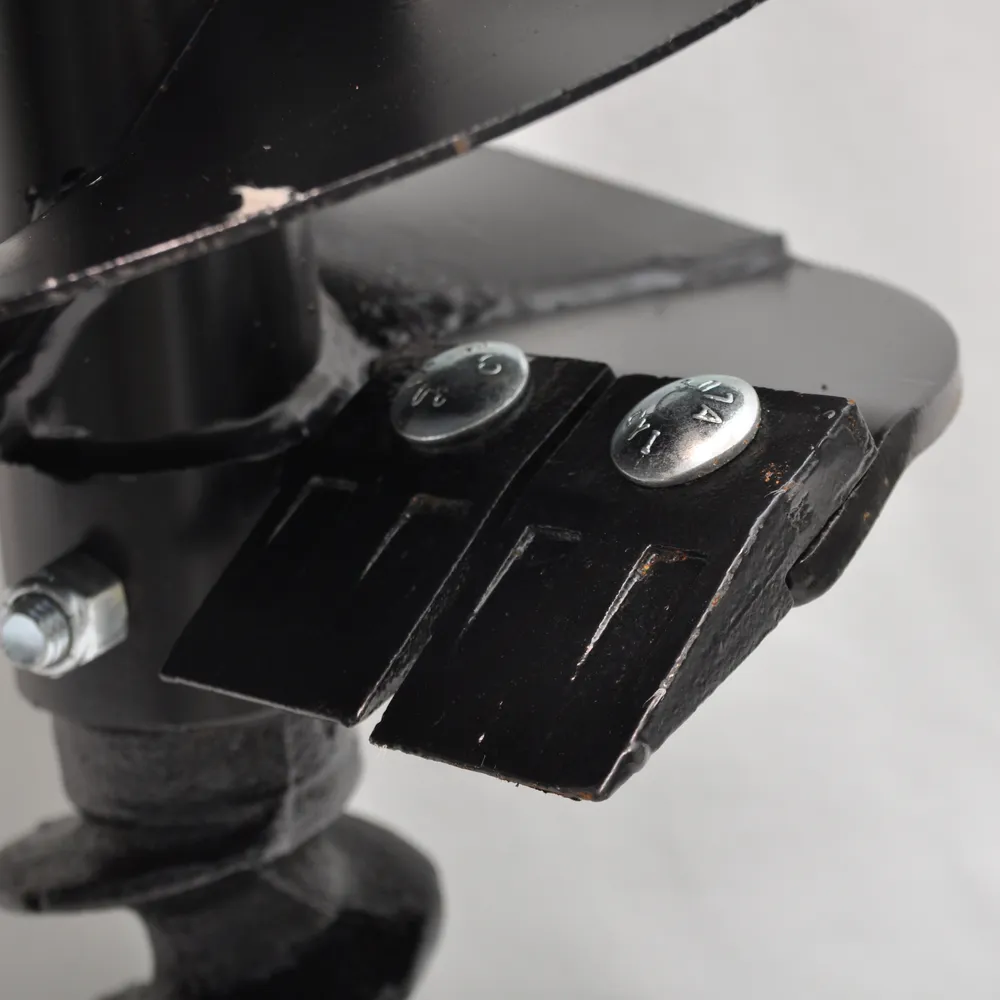

• Replaceable Standard cutting edges.

Auger Diameter	Duty & Length	Weight	SKU
6"	Compact - 36"	21	23-033
9"	Compact - 36"	32	23-035
12"	Compact - 36"	43	23-037
6"	Standard - 48"	23	23-032
9"	Standard - 48"	34	23-034
12"	Standard - 48"	49	23-036
6"	Heavy - 48"	31	23-040
9"	Heavy - 48"	42	23-041
12"	Heavy - 48"	60	23-042
18"	Heavy - 48"	99	23-043
24"	Heavy - 48"	125	23-044

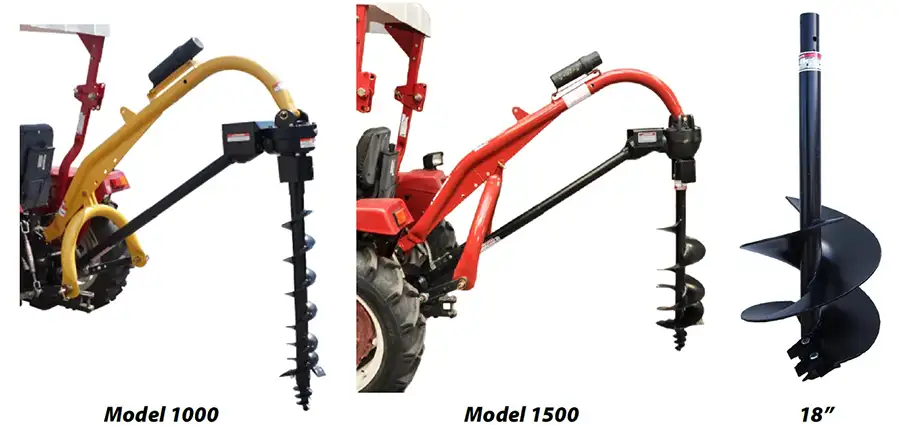

▍Best Post Hole Auger for 3 Point Post Hole Diggers

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3'  lengths)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150  bs	160  bs	200  bs	235  bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

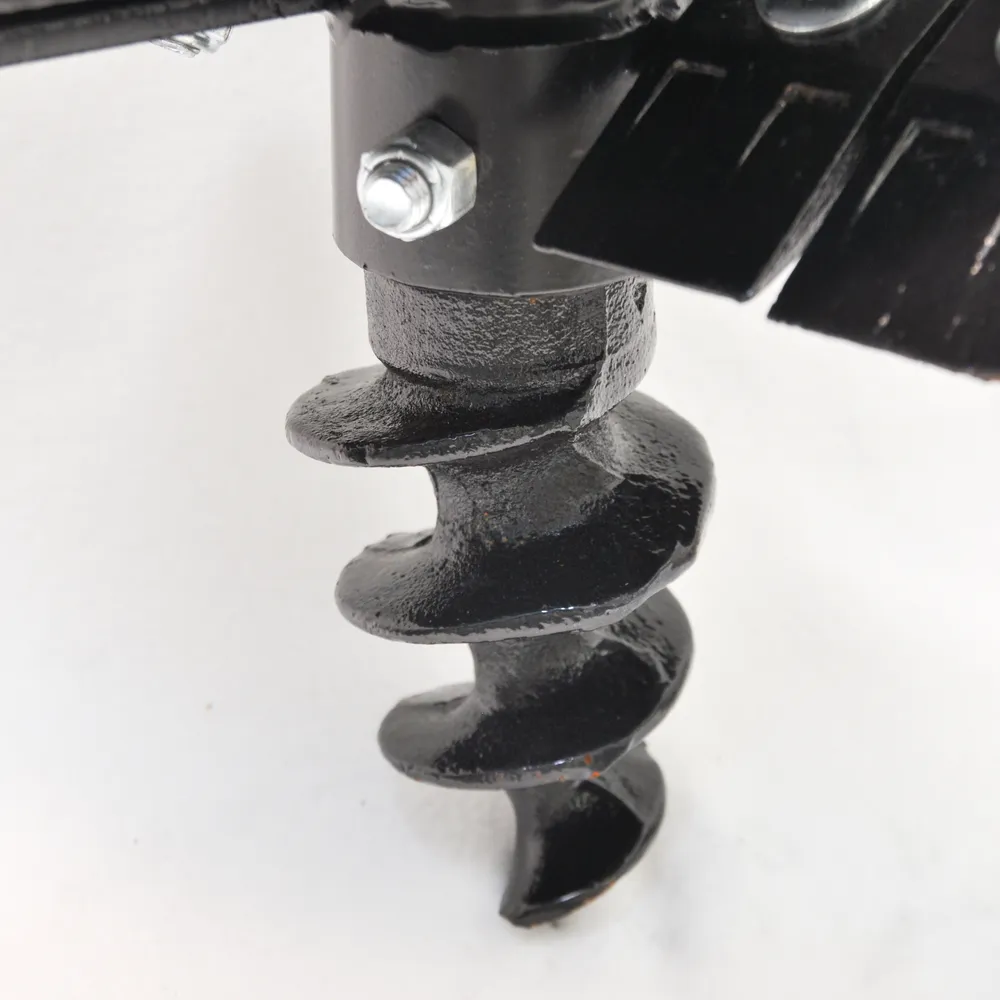

▍12 Inch Heavy Duty Post Hole Auger Characteristics

A 12 inch heavy duty post hole auger is a tool primarily used for digging holes in tough soil conditions. Some of its main characteristics include: Diameter: The post hole auger blade has a diameter of 12 inches, making it suitable for digging larger holes that can accommodate sturdy posts for fences, signboards, or other construction purposes. Material: Heavy duty post hole augers are typically made of high-quality steel, which is strong enough to withstand the pressure of drilling through hard soil or rocks. Design: The post hole auger bits consist of a long, cylindrical shaft with a sharp cutting blade at the bottom. It also has a set of sturdy handles for easy maneuvering and balance during operation. Durability: With their sturdy construction, 12 inch post hole augers offer long-lasting performance and are designed to withstand heavy use in demanding conditions. Compatibility: These 12 inch post hole augers are compatible with a range of power sources such as manual, electric, or gas-powered drills, ensuring versatile use in various work settings. Efficiency: These 12 inch post hole augers are designed for optimal performance and speed, drilling holes quickly and easily with minimum effort from the user. Safety: 12 inch heavy duty post hole augers are equipped with safety features such as protective guards that prevent debris from flying out during operation, and secure locking mechanisms that prevent accidental contact with the blade.

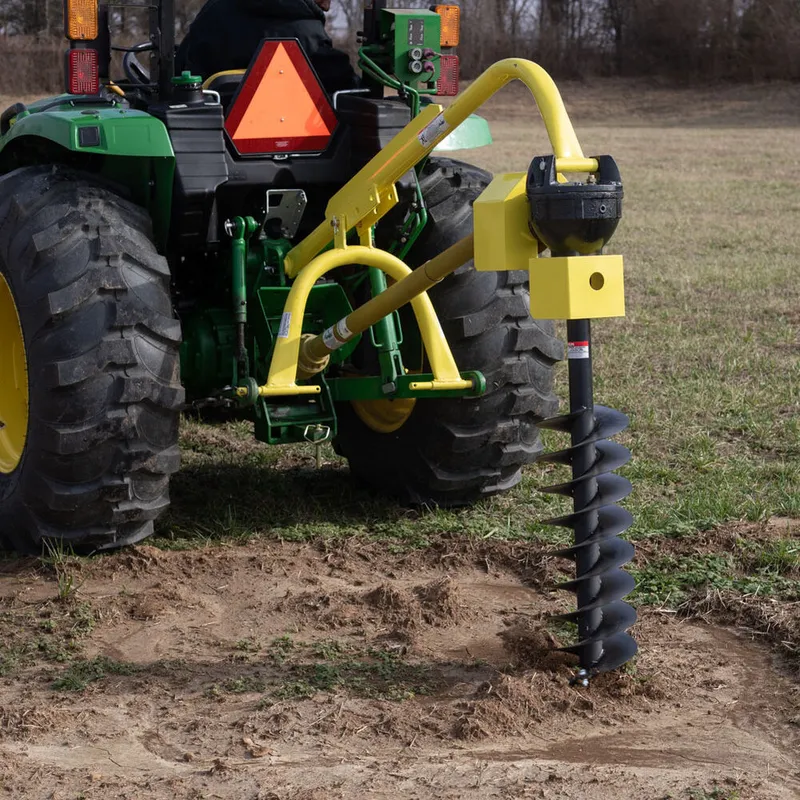

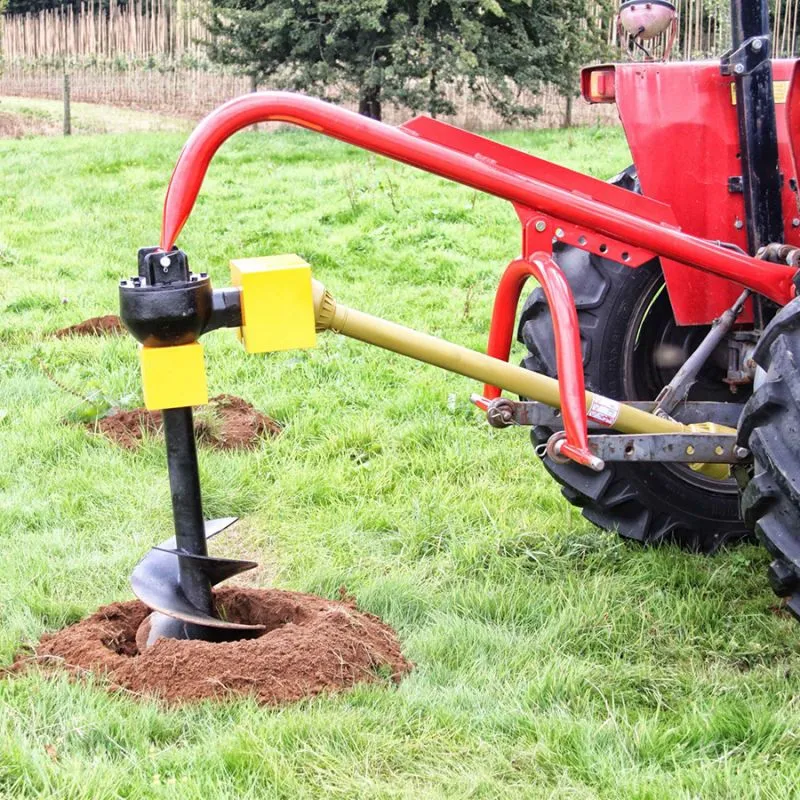

▍How to Dig a Post Hole with a 12 Inch Post Hole Auger?

Digging post holes is an essential part of building fences, decks, and other structures. Using a 12 inch post hole auger can make this job much easier and faster. Here are the steps to follow: 1. Choose the correct size auger: As you already have a 12 inch post hole auger, make sure it fits your needs. 2. Mark the location: Once you choose the location for the hole, use a measuring tape to mark the spot. Using a straight edge or a chalk line can help you guide the post hole auger's location. 3. Prepare the area: Before digging, remove all the debris, rocks, and plants from the area to avoid clogging or stopping the post hole auger while digging. 4. Position the auger: Position the auger over the hole, and center it. Make sure that the post hole auger teeth are levelled, and the auger head is perpendicular to the ground. 5. Start the auger: Start the engine and move the throttle to the operating speed. Then, slowly push down the post hole auger into the ground. 6. Dig the hole: Allow the post hole auger to work through the soil. It would help if you continued digging until you reach the desired depth. 12-Inch augers can dig up to 4ft deep. 7. Remove debris: Unplug the post hole auger and remove it from the hole. Use a shovel to remove the debris or soil from inside the hole. 8. Insert the post: Once clean, insert the post inside the hole, trying to avoid damages to the post hole auger's bottom end. 9. Secure the post: Add concrete, a mixture of soil and gravel, around the post to secure it firmly in place. 10. Fill the hole: Build a small mound or peak around the post, and backfill the hole, making sure the soil is evenly packed. Following these ten steps, you can dig a post hole with a 12 inch post hole auger safely and properly to ensure your structures remain sturdy and long-lasting.

▍Specifications of PTO Shaft for Post Hole Auger

• The PTO shafts are built strong to last • Feature a quick disconnect 1-3/8" 6-spline that mounts to standard tractors • Adjustable telescoping tube can handle high load demands given by the series designation • Used on a variety of equipment from post hole diggers, spreaders, tillers, mowers, etc. • Interchangeable with other manufacture

Series	Shortest Length	Extended Length	Tractor End	Implement End	Common Uses	SKU
1	27	34	1-3/8" x 6 QD	1-3/8" x 6 QD	Fertilizer Spreader	27-010
3	40	54	1-3/8" x 6 QD	1-3/8" x 6 QD	Finishing Mower, Tiller	27-011
4	30	40	1-3/8" x 6 QD	1-3/8" Round	Finishing Mower, Tiller	27-012
4	32	42	1-3/8" x 6 QD	1-3/8" Round	Rotary Cutter	27-013
4	36	43	1-3/8" x 6 QD	1-3/8"x6 Clutch	Rotary Cutter, Tiller	27-014
4	37	50	1-3/8" x 6 QD	1-3/8" Round	Rotary Cutters, Pond	27-015
4	42	58	1-3/8" x 6 QD	1-3/8" Round	Post Hole Digger	27-016
4	48	65	1-3/8" x 6 QD	1-3/8" x 6 QD	Post Hole Digger	27-017
4	53	74	1-3/8" x 6 QD	1-1/4" Round	Post Hole Digger	27-018
5	42	57	1-3/8" x 6 QD	1-3/8" Round	Rotary Cutters	27-019
12	48	64	1-3/8" x 6 QD	1-1/4" Round	Heavy Duty Digger	27-020
14	37	49	1-3/8" x 6 QD	1-3/8" Round	Post Hole Digger	27-021
14	56	77	1-3/8" x 6 QD	1-3/8" Round	5' & 6' Pull Cutters	27-022

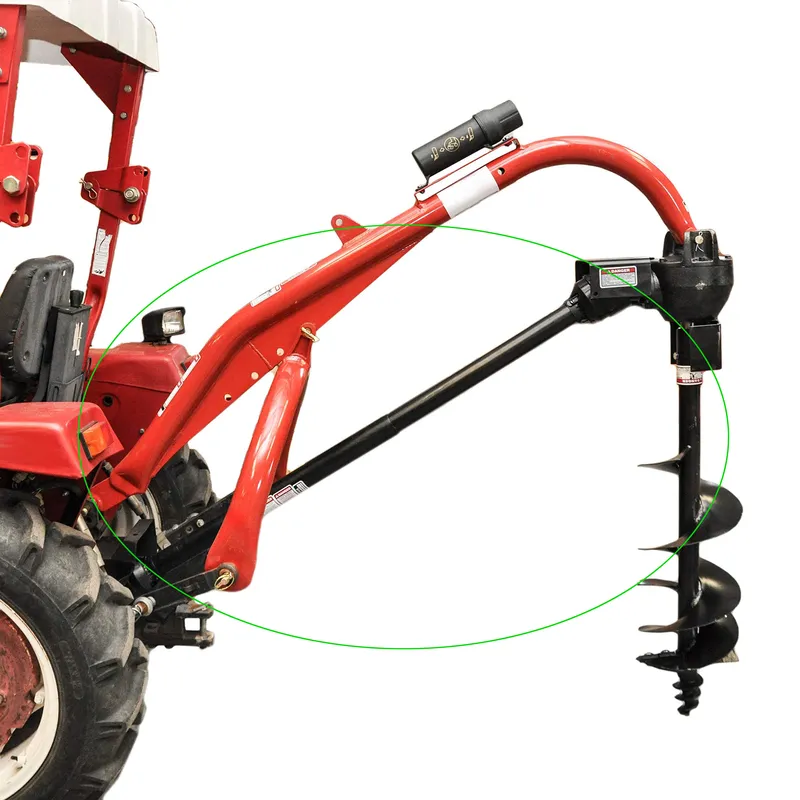

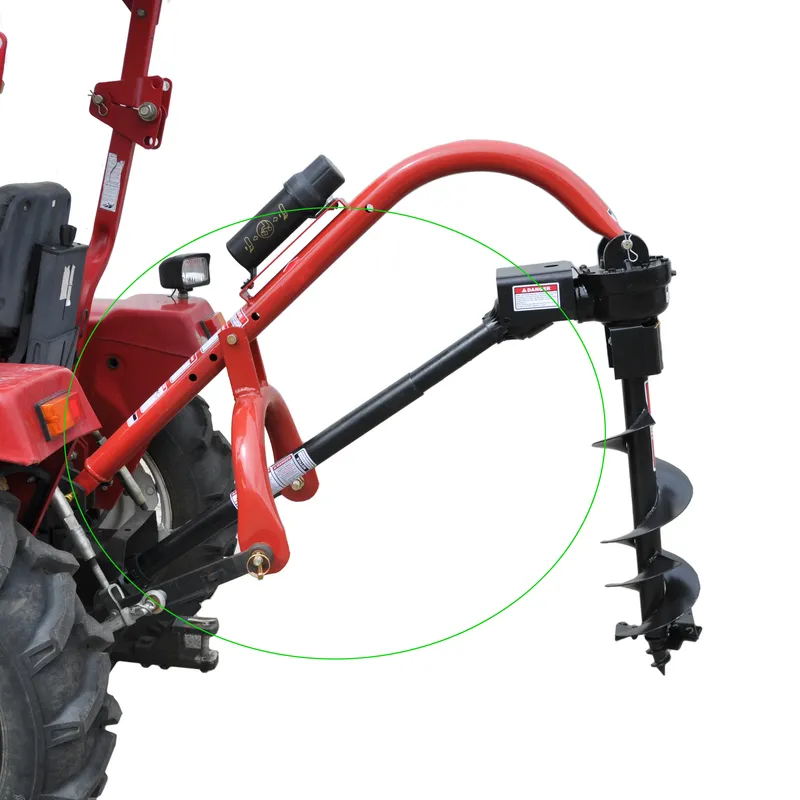

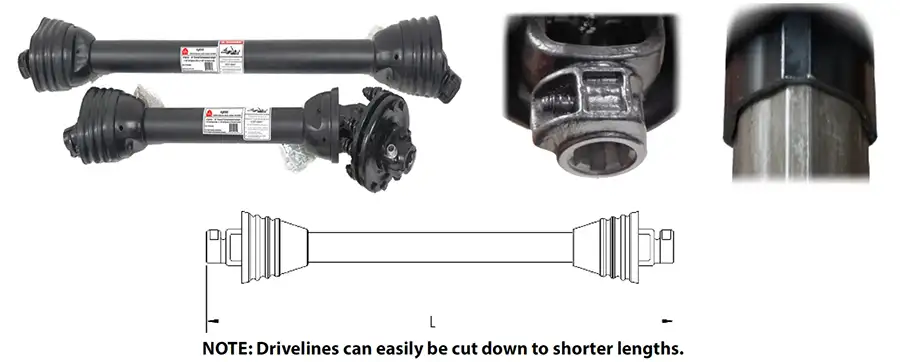

▍Choose the Right PTO Shaft for Post Hole Digger Auger

When choosing a PTO (power take-off) shaft for a post hole digger auger, it is essential to consider several factors, including the horsepower of the tractor, the size of the auger, and the length of the PTO shaft. Here are some steps to help you choose the right PTO shaft for your post hole digger auger: Determine the horsepower of your tractor: The PTO shaft you choose should match the horsepower of your tractor to ensure it can handle the load of the auger. Measure the length of the PTO shaft: The PTO shaft should be long enough to reach from the tractor to the post hole digger, allowing for the movement of the digger up and down. Check the connection type: The connection type should match both the tractor and the post hole digger auger to ensure seamless integration. Consider the width and length of the auger: The PTO shaft's diameter and length should be able to handle the width and length of the auger. Verify compatibility: Double-check that the PTO shaft you are considering is compatible with your tractor and post hole digger auger before making the purchase. Overall, selecting the right PTO shaft is crucial to achieving optimal performance and longevity of your post hole digger auger while keeping your tractor safe from damage.
