9 Inch Heavy Duty Post Hole Auger for Post Hole Digger

9 Inch Post Hole Auger for Post Hole Digger

A 9 inch post hole auger is a tool used for digging holes in the ground for fence posts, signposts, or other similar applications. It consists of a spiral bit on the end of a shaft that rotates when attached to a power drill or other similar equipment. The post hole auger bit is designed to cut through soil and other materials to produce a clean, round hole. 9 inches is the diameter of the hole that can be drilled using this particular post hole auger.

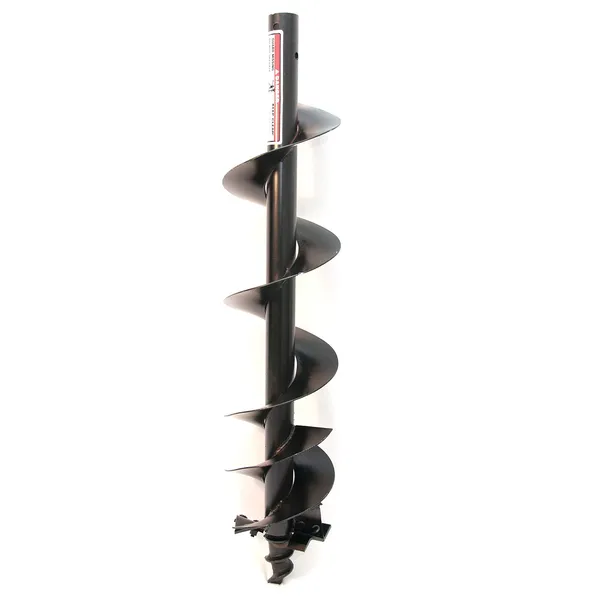

▍9 Inch Post Hole Auger Specifications

9" Diameter Post Hole Auger used primarily on 3 point post hole diggers and skid steer diggers.

• This auger features extra thick flighting and extra welding between flighting and shaft, a reinforced collar where it meets the digger output shaft, and is altogether about 10 lbs heavier than the standard counterpart.
• Diameter: 9"
• Height: 48"
• Flighting Thickness: 0.19"
• Fits: All diggers with a 2" output shaft on the gearbox. This is standard for most manufacturers such as Work Saver, Speeco, King Kutter, etc
• Standard 2" spacing on bolts that mount auger onto the gearbox.
• Replaceable Standard cutting edges.

Auger Diameter	Duty & Length	Weight	SKU
6"	Compact - 36"	21	23-033
9"	Compact - 36"	32	23-035
12"	Compact - 36"	43	23-037
6"	Standard - 48"	23	23-032
9"	Standard - 48"	34	23-034
12"	Standard - 48"	49	23-036
6"	Heavy - 48"	31	23-040
9"	Heavy - 48"	42	23-041
12"	Heavy - 48"	60	23-042
18"	Heavy - 48"	99	23-043
24"	Heavy - 48"	125	23-044

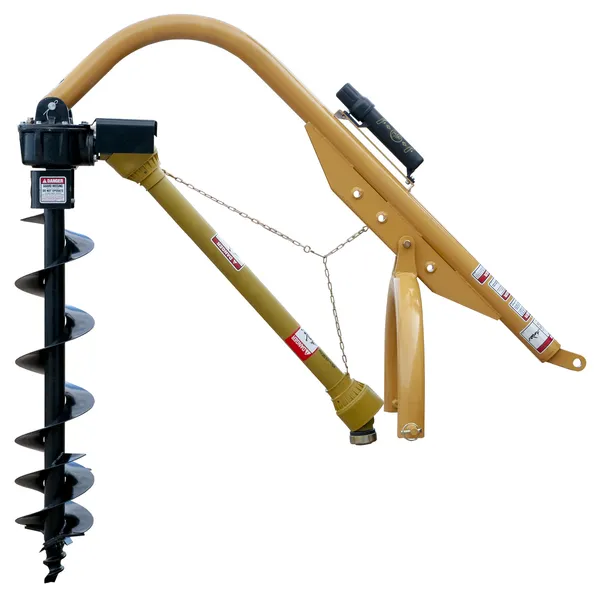

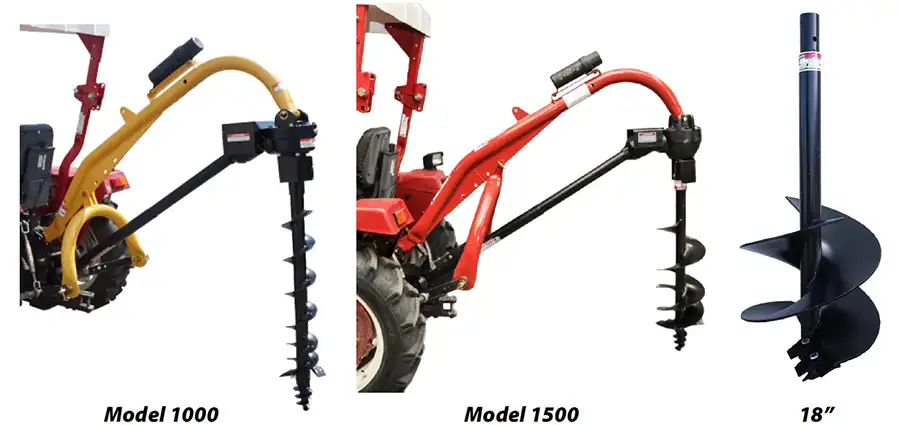

▍Post Hole Auger for 3 Point Post Hole Diggers

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3'  lengths)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150  bs	160  bs	200  bs	235  bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

▍Features of 9 Inch Heavy Duty Post Hole Auger

A 9 inch heavy duty post hole auger is a handy tool for digging holes for posts or foundations. Some of its notable features are: Size: As the name suggests, this post hole auger has a diameter of 9 inches, which means it can dig holes that are 9 inches wide and up to the length of the auger bit. Material: The post hole auger bits are made of high-quality steel, which makes them sturdy and durable. The handle is also typically made of steel or wood, ensuring it can withstand heavy use. Design: The post hole auger bit typically has a spiral design, allowing it to cut through soil efficiently. This design also makes it easier to remove the auger from the hole, reducing the effort required. Compatibility: A 9 inch heavy duty post hole auger is typically compatible with most standard-sized auger drives or powerheads. Application: Apart from digging holes for posts or foundations, this post hole digger auger can also be used for landscaping and gardening tasks such as planting trees or shrubs. Safety: It is important to use appropriate safety gear while operating the post hole auger, such as gloves, eye protection, and ear protection. Following the manufacturer's instructions and safety guidelines is also crucial. Maintenance: Regular cleaning and oiling of the post hole auger bit and handles can extend the life of the tool. It is also advisable to sharpen the auger bit periodically to maintain its efficiency.

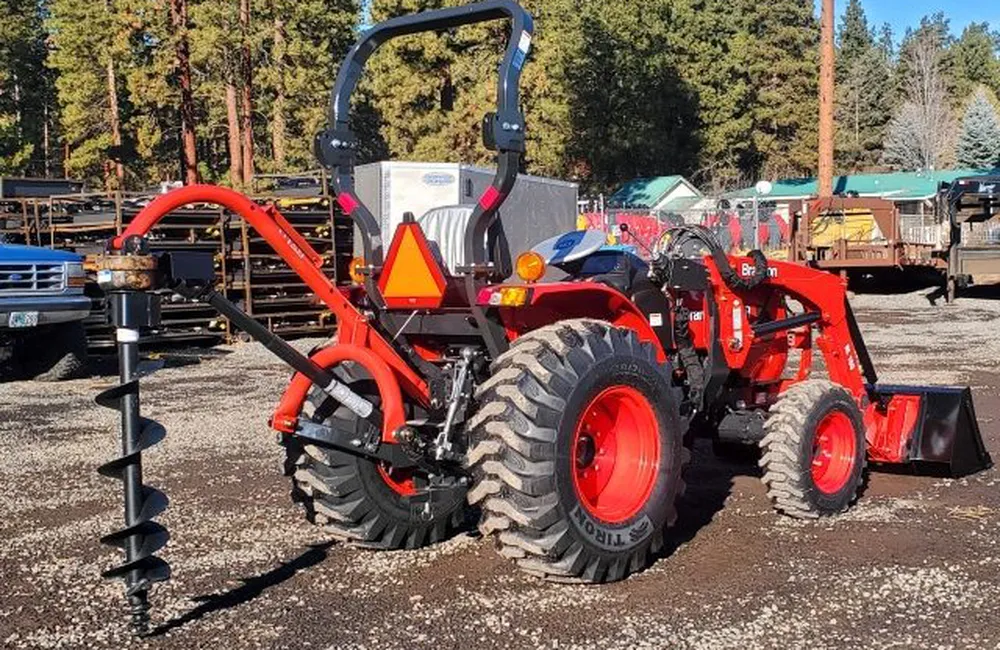

▍9 Inch Heavy Duty Post Hole Auger Parts

A post hole auger is a tool used for drilling holes in the ground for various purposes, such as fence posts, tree planting, and landscaping. Here are some of the parts that are commonly found in a post hole auger: Auger bit: also called the drill bit or digging blade, this is the part that actually cuts through the soil and creates the hole. It typically has a spiral shape and comes in different sizes and styles depending on the type of soil and the depth of the hole needed. Auger extension: this is an optional part that allows you to extend the length of the auger bit to reach deeper depths. It usually comes in sections that can be attached to the main auger bit. Auger gearbox: this is the part that powers the auger bit and transfers the torque from the engine or motor to the bit. It's usually made of metal and consists of gears, bearings, and seals. Auger blades: these are the secondary cutting edges that remove excess dirt from the hole and prevent the auger from getting clogged. They're typically located near the top of the auger bit and come in different shapes, such as cupped, flat, or spiraled, depending on the type of soil and the application. Drive shaft: this part connects the auger gearbox to the engine or motor and transmits the rotational power needed to turn the auger bit. It's usually made of heavy-duty steel or aluminum and has a sealed bearing assembly to reduce friction and wear. Clutch assembly: this is an optional part that allows you to control the speed and torque of the auger bit and disengage it from the power source when not in use. It's usually located between the drive shaft and the gearbox and consists of a lever or a button that engages or disengages the clutch.

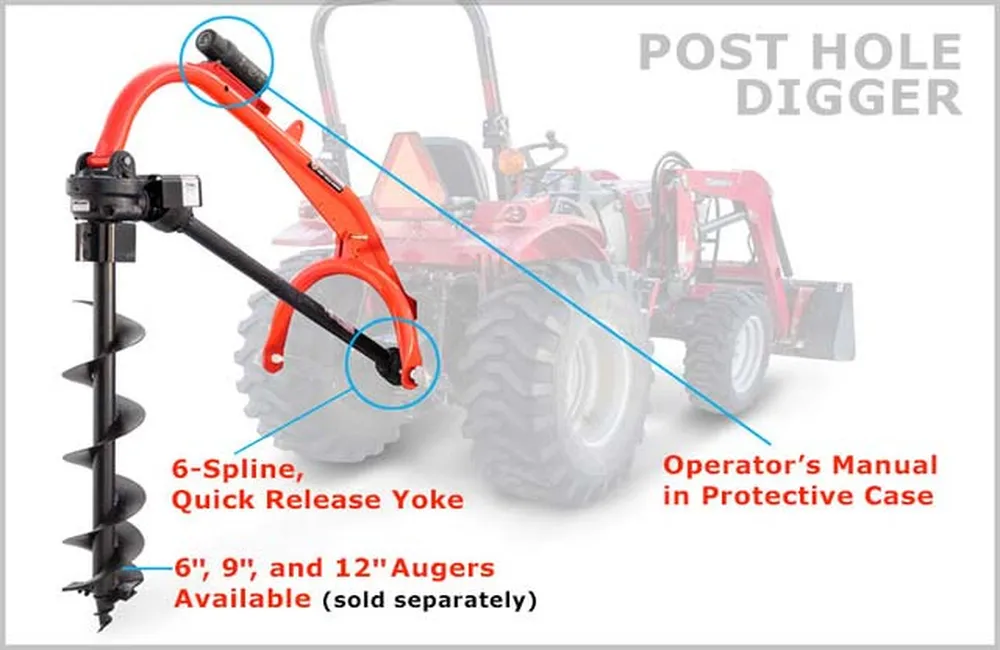

▍PTO Shaft and Post Hole Digger Auger

A PTO (Power Take-Off) shaft is a mechanical device used to transfer power from a tractor's engine to an attached implement, such as a post hole digger auger. The shaft transfers power through a rotating driveshaft which is connected to the implement, allowing it to operate. A post hole digger auger is a tool used in farming, construction, and gardening to dig holes for planting fence posts, trees, and other structures. The auger is attached to the PTO shaft of a tractor and uses rotating blades or drills to dig through soil and other materials, creating a hole that is suitable for planting or other purposes. Together, the PTO shaft and post hole digger auger form a powerful and versatile system that can be used to efficiently dig holes for a variety of purposes, making it an essential tool for many farmers and other agricultural workers.

▍How to Connect Pto Shaft with Post Hole Digger Auger?

To connect a PTO shaft with a post hole digger auger, you need to follow these steps: Position the post hole digger auger so that it is level and the output shaft is aligned with the PTO shaft. Slide the PTO shaft onto the output shaft of the post hole digger auger. Ensure that the splines on the two shafts interconnect and the locking pinholes of the PTO shaft align with the grooves on the output shaft. Insert the locking pin through the locking pinhole of the PTO shaft and the groove on the output shaft. Make sure the pin is fully inserted to secure the connection. Rotate the PTO shaft to ensure it engages properly with the output shaft, and check that the locking pin is securely in place. Attach the PTO shaft to the tractor's PTO drive shaft. Make sure that you securely lock the PTO shaft into place on the tractor's PTO drive shaft and that it is correctly aligned. Switch on the tractor's engine to test that the PTO shaft is correctly connected and rotating properly. These steps should help you connect a PTO shaft with a post hole digger auger effectively and safely.
