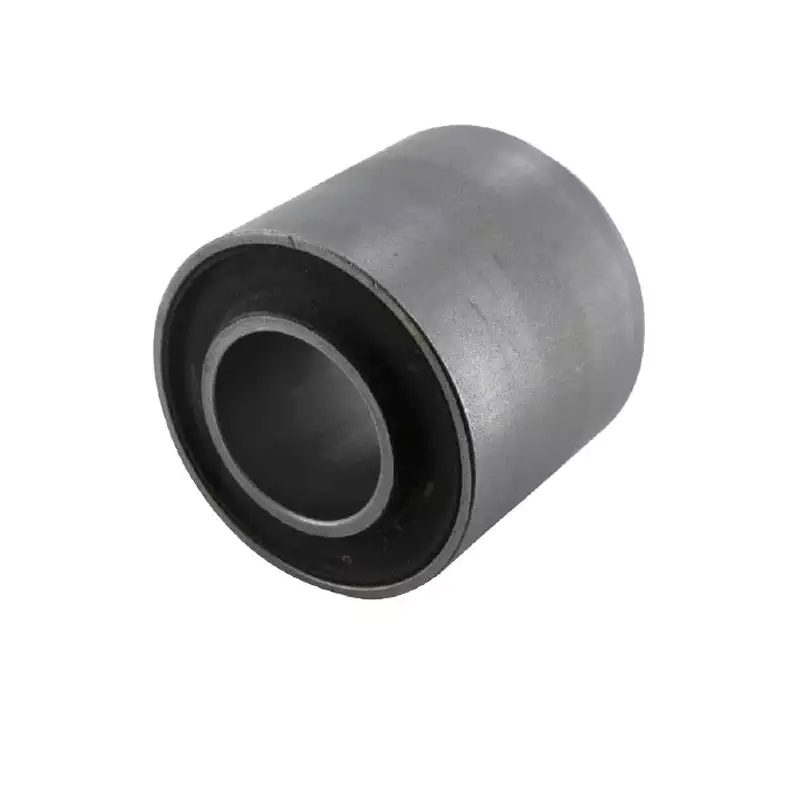

Silent Block Rubber Bushing is a type of rubber mount used in agricultural machinery to reduce shock and vibration. It is commonly used in the suspension system, power transmission system, steering mechanism, and working device connection point of various farm machinery.
Here is a table of some of the applications of Silent Block Rubber Bushing:
Silent Block Rubber Bushing is used in the suspension mechanism of agricultural tractors and other farm machinery such as harvesters and planters to connect the chassis and suspension arm or the suspension arm and the implement, providing buffering and shock absorption.
Silent Block Rubber Bushing is used to connect the engine and transmission, the transmission and drive shaft, and the drive shaft and hub, reducing the transmission of vibration during power transmission.
Silent Block Rubber Bushing is used in the steering link, braking system, and hydraulic control mechanism to reduce the impact and vibration of moving parts.
Silent Block Rubber Bushing is used to connect various working components such as plows, cultivator blades, and cutters to the main frame of agricultural machinery, adapting to the uneven working conditions and reducing the impact on the main structure.
Here is a table of some of the compatible brands and models of Silent Block Rubber Bushing:
We also offer other agricultural machinery parts, including agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, concave, etc.
When the rubber mount fails, the shock that was originally absorbed by it will be transmitted to the entire machinery structure, causing parts to collide and producing noise such as "clicking" and "clanging".
If the operating precision of the agricultural machinery decreases, such as unstable steering or difficulty keeping a straight line during field work, it may be due to the wear and tear of the rubber mount at the suspension system or working device connection point, causing parts to shift.
If cracks, breakage, severe wear and tear, deformation, or even complete rupture are found on the surface of the rubber mount during regular inspections of various parts of the agricultural machinery, the mount has lost its function and must be replaced.
If the agricultural machinery feels more bumpy when driving, or the fit of the working device to the soil deteriorates during operation, it may be due to the failure of the rubber mount affecting the normal operation of the suspension system or working device.
Measure the exact inner and outer diameter and length of the original mount to ensure that the new one can be securely matched to the installation position.
Pay attention to the design of the mount, including whether it has threads, flanges, or other special installation structures.
High-quality Silent Block Rubber Bushing is usually made of fatigue-resistant and wear-resistant synthetic rubber, such as nitrile rubber (NBR), hydrogenated nitrile rubber (HNBR), fluoro rubber (FKM), etc., which should be selected based on specific working conditions.
According to the vibration characteristics of the agricultural machinery, choose a rubber material with suitable damping characteristics to effectively absorb vibration energy.
If the agricultural machinery works outdoors for a long time, the mount must have good UV resistance, ozone resistance, oil and chemical resistance.
