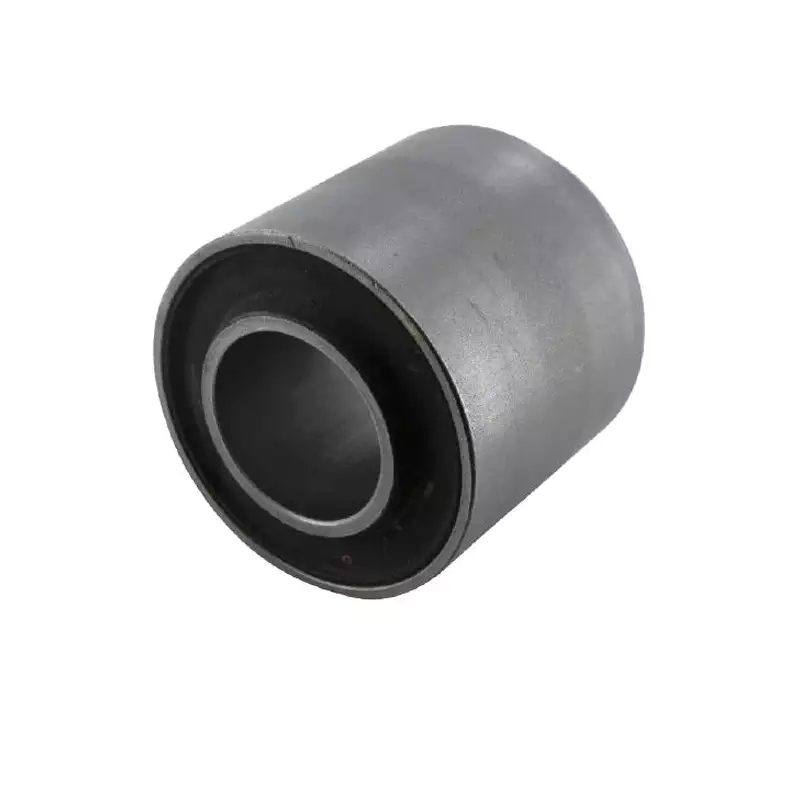

647465.0 Silent Block Rubber Bushing

647465.0 Silent Block Rubber Bushing

Silent Block Rubber Bushing is a type of rubber bushing that is commonly used in agricultural machinery. Its primary function is to act as a buffer and shock absorber between two connected parts, reducing the transfer of vibration and noise. Here is a breakdown of where Silent Block Rubber Bushing is commonly used in agricultural machinery:

1. Suspension System

Silent Block Rubber Bushing is used in the suspension systems of agricultural tractors and other farming machinery such as harvesters and seeders. It is used to connect the chassis with the suspension arm or to connect the suspension arm with other parts of the machinery.

2. Power Transmission System

Silent Block Rubber Bushing is used to connect the engine and the transmission system, as well as the transmission system and the driving axle, and the driving axle and the wheel hub. It is used to reduce vibration transfer during the power transmission process.

3. Control Mechanism

Silent Block Rubber Bushing is also used in the steering linkage, braking system, and hydraulic control mechanism, among other areas. It helps to reduce the impact and vibration of moving parts.

4. Working Device Connection Point

Silent Block Rubber Bushing is used to connect various agricultural machinery work components such as ploughshares, harrow frames, and mower decks to the main frame. It is used to reduce the impact on the main structure and adapt to uneven working conditions.Silent Block Rubber Bushing can be adapted to many brands and models of agricultural machinery. Here is a table of some of the most commonly compatible models:In addition to Silent Block Rubber Bushing, we also provide other agricultural machinery parts such as agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, and concave. We have everything you need to keep your agricultural machinery running smoothly.Here are some signs that indicate it may be time to replace your Silent Block Rubber Bushing:

1. Abnormal Vibration and Noise

When the rubber bushing fails, the vibration that it should have absorbed will transfer to the entire machinery structure, causing parts to collide and produce noise such as "clicking" or "clanging."

2. Decreased Precision

If the operation precision of agricultural machinery decreases, such as instability in steering or difficulty in maintaining a straight line while working in the field, it may be due to the wear and tear of the suspension system or work component connection parts.

3. Obvious Signs of Wear and Tear

When inspecting the agricultural machinery's various parts periodically, if you find cracks, breakage, severe wear, deformation, or complete rupture on the rubber bushing's surface, it indicates that the bushing has lost its function and must be replaced.

4. Decreased Performance While Operating

If the agricultural machinery feels more bumpy while driving, the ride comfort decreases significantly, or the machinery's work on the soil becomes less effective, it may be because the rubber bushing's failure has affected the suspension system or work device's normal function.When choosing the appropriate Silent Block Rubber Bushing, consider the following factors:

1. Inner and Outer Diameter Dimensions

Measure the original bushing's inner and outer diameter and length precisely, ensuring that the new bushing can be tightly installed in the correct position.

2. Installation Method

Pay attention to the bushing's design, including whether it comes with threads, flanges, or other special installation structures.

3. Material

High-quality rubber bushings are usually made of synthetic rubber that is fatigue-resistant and wear-resistant, such as nitrile rubber (NBR), hydrogenated nitrile rubber (HNBR), or fluoroelastomer (FKM), depending on the specific working conditions.

4. Damping Requirements

Choose rubber materials with appropriate damping characteristics according to the machinery's vibration characteristics to effectively absorb vibration energy.

5. Weather Resistance

If the machinery works outdoor for extended periods, the bushing must have excellent resistance to UV, ozone, oil, grease, and chemical erosion.Author: Miya.
