698 Drop Forged Rivetless Chain Sprockets

Raydafon Guoup's 698 Drop Forged Rivetless Chain Sprockets deliver unmatched durability and efficiency in industrial applications. Featuring premium drop-forged steel for superior strength and a rivetless design for reduced wear, these sprockets ensure reliable performance in heavy-duty machinery. Ideal for engineers and manufacturers seeking long-lasting components, they solve common chain-sprocket failure issues, offering smooth operation and minimized maintenance. Stand out from competitors with enhanced load capacity and precision engineering. Upgrade your equipment with Raydafon Guoup's trusted quality today!

Send Inquiry

Product Description

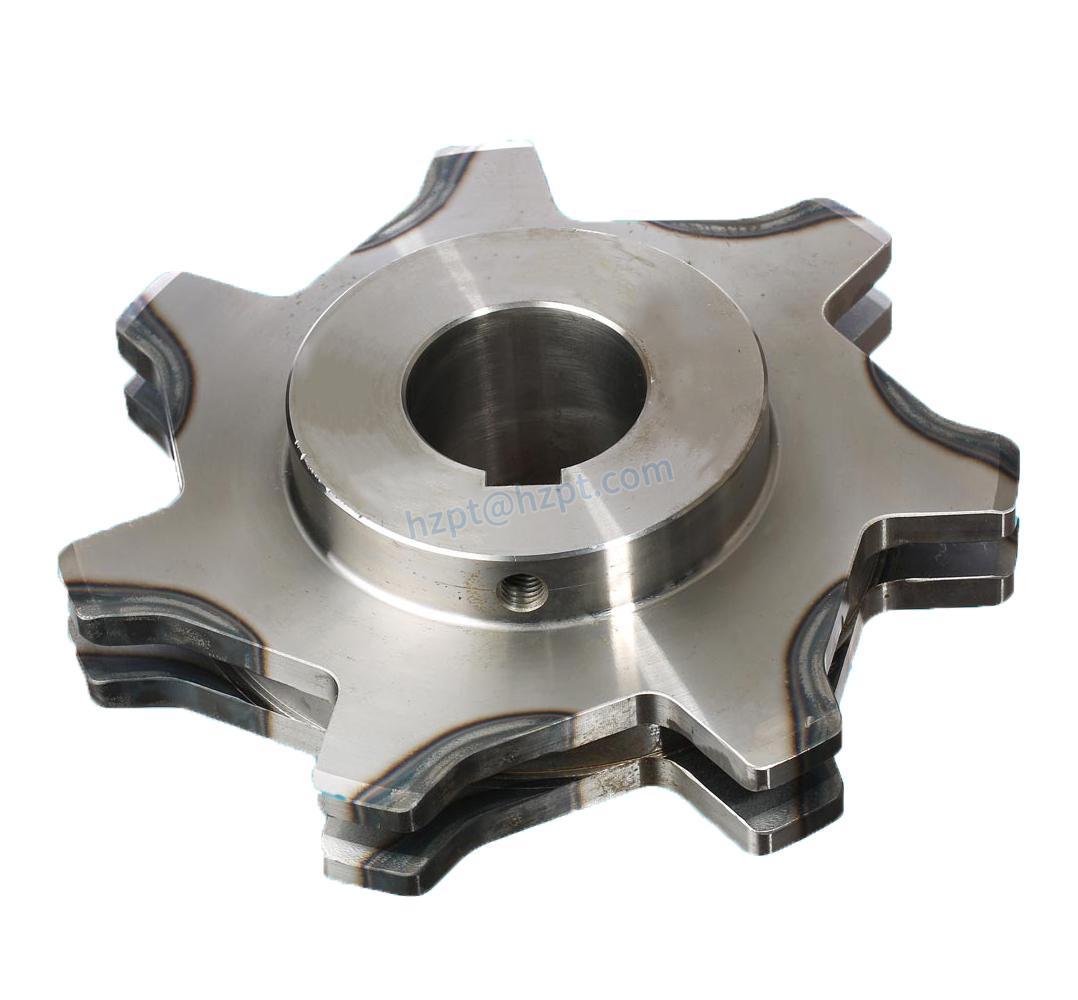

698A Sprocket

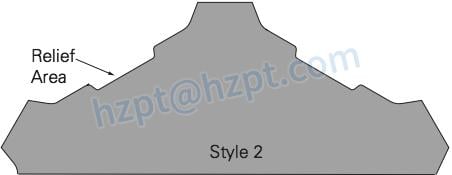

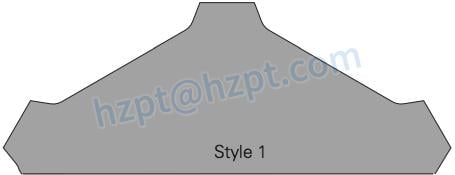

This drop forged rivetless A-plate sprocket is manufactured specifically for 698 chain, and is designed to work with the chain and attachments as smoothly as possible. However, some applications require sprockets that have an extra clearance that is commonly known as the "relief area". We offer both styles as shown below, make sure to let us know what your application is or which style of sprocket you need so we can get you the exact match for your application. We offer some of the best pricing in the industry while supplying you with a high quality and durable sprocket. 698 Drop Forged Rivetless Chain Sprockets

High Quality Sprocket
Manufactured For 698 Chain
Two Styles To Choose From
Extremely Durable
Optimum Performance

Sprocket Number	Tooth Count	Pitch	Style	Stock Bore	Weight (LBS）
698A5	5	6.031"	A-Plate	1.500"	*106.00 LBS*
698A6	6	6.031"	A-Plate	1.500"	*151.00 LBS*
698A7	7	6.031"	A-Plate	1.500"	*187.00 LBS*
698A8	8	6.031"	A-Plate	1.500"	*227.00 LBS*
698A9	9	6.031"	A-Plate	1.500"	*271.00 LBS*
698A10	10	6.031"	A-Plate	1.500"	*326.00 LBS*
698A11	11	6.031"	A-Plate	1.500"	*365.00 LBS*
698A12	12	6.031"	A-Plate	1.500"	*434.00 LBS*

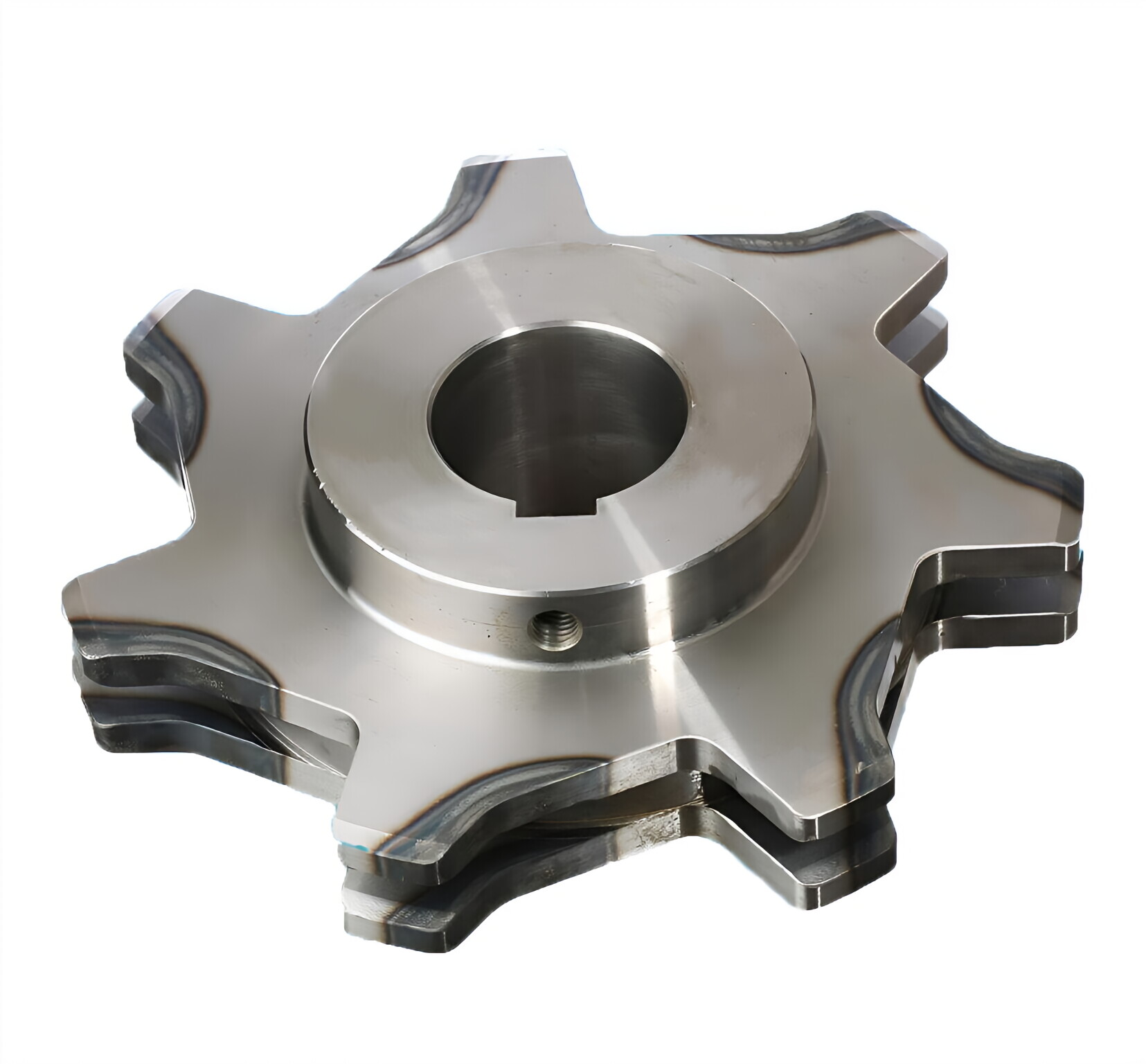

698C Sprocket

This drop forged rivetless C-hub sprocket is manufactured specifically for 698 chain, and is designed to work with the chain and attachments as smoothly as possible. However, some applications require sprockets that have an extra clearance that is commonly known as the "relief area". We offer both styles as shown below, make sure to let us know what your application is or which style of sprocket you need so we can get you the exact match for your application. We offer some of the best pricing in the industry while supplying you with a high quality and durable sprocket.

High Quality Sprocket
Manufactured For 698 Chain
C-Hub Style (Hub On Both Sides)
Two Styles To Choose From
Extremely Durable
Optimum Performance

Sprocket Number	Tooth Count	Pitch Diameter	Style	Hub Diameter	Length Thru Bore	Maximum Bore	Weight (LBS)
698C5	5	19.517"	C-Hub	8.000"	6.250"	5.440"	173.00 LBS
698C6	6	23.302"	C-Hub	8.000"	6.250"	5.440"	218.00 LBS
698C7	7	27.103"	C-Hub	9.000"	6.500"	5.940"	279.00 LBS
698C8	8	30.914"	C-Hub	9.000"	6.500"	5.940"	318.00 LBS
698C9	9	34.731"	C-Hub	9.000"	6.500"	5.940"	363.00 LBS
698C10	10	38.553"	C-Hub	10.000"	6.750"	6.500"	446.00 LBS
698C11	11	42.378"	C-Hub	10.000"	6.750"	6.500"	484.00 LBS
698C12	12	46.205"	C-Hub	10.000"	6.750"	6.500"	553.00 LBS

We aslo offer a full range of both precision roller chain and engineered.Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.
