707S3 Slewing Drive Planetary Gearbox



707S3 Slewing Drive Planetary Gearbox

The 707S3 Slewing Drive Planetary Gearbox is a high-performance product designed to meet the specific needs of various industries. Its model naming convention and positioning ensure easy identification and integration into different applications.

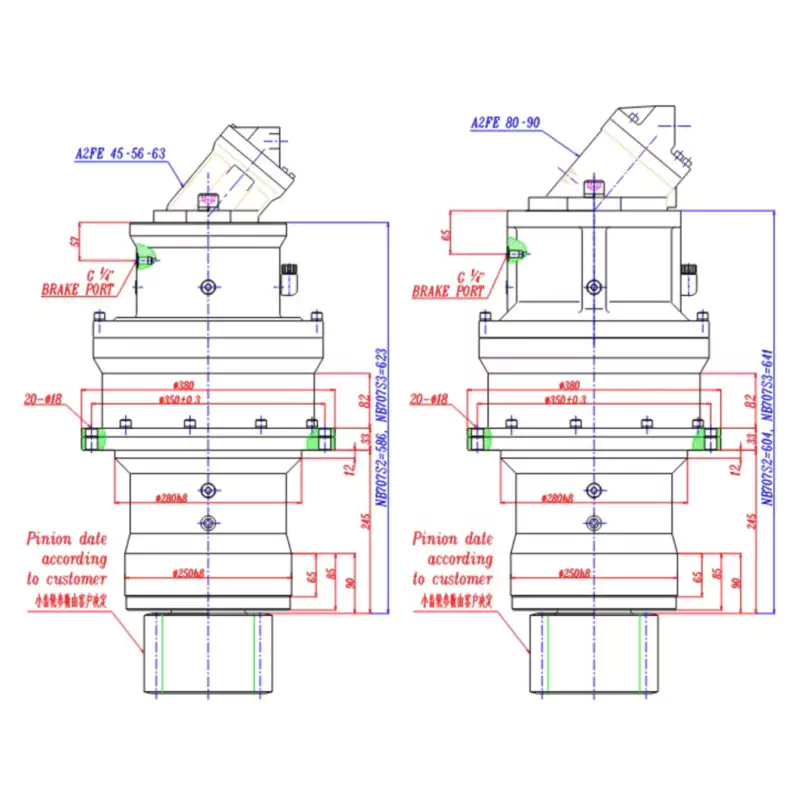

Technical specification

Type	Max.Output Torque		Ratio	RecommendHydraulicMotor	Max. inputspeed	Braketorque	Brake workpressure
	Excavator	Crane	(i)		(rpm)	(N.m)	(bar)
EP707S2	10500	16500	24.5, 28.4, 34.1, 38.2, 43.7, 51.5, 63	A2FE 45·56·63A2FE 80·90	3000	400-600	20-50
EP707S3			85, 98.4, 110.9, 133.5

1. • Input – output rotate same direction.
   • Other ratio and other input type can be specially designed.

Product Design and Structural Features

The 707S3 Slewing Drive Planetary Gearbox incorporates advanced design principles and structural features that enhance its overall performance and durability. These include:

Planetary Gear Design

The use of a planetary gear system ensures efficient torque transmission, smooth operation, and high load-carrying capacity.

Bearing System

The robust bearing system provides excellent stability and reduces friction, resulting in increased operational efficiency and extended product life.

Sealing Technology

With advanced sealing technology, the gearbox is effectively protected against dust, water, and other contaminants, ensuring reliable performance even in harsh environments.

Lubrication System

The optimized lubrication system enables proper distribution of lubricants, reducing wear and enhancing the overall efficiency and reliability of the gearbox.

Performance Advantages

The 707S3 Slewing Drive Planetary Gearbox boasts several performance advantages:

High Torque Density

Its innovative design allows for a higher torque output within a compact form factor, enabling enhanced power transmission in a smaller space.

Low Noise and Vibration

The gearbox is engineered to minimize noise and vibration during operation, ensuring a quieter and smoother working environment.

Environmental Adaptability

With its durable construction and effective sealing technology, the gearbox is capable of withstanding challenging environmental conditions, including extreme temperatures, humidity, and dust.

Intelligent Monitoring

The gearbox incorporates intelligent monitoring systems that enable real-time tracking of performance parameters, facilitating proactive maintenance and minimizing downtime.

Applications

The 707S3 Slewing Drive Planetary Gearbox finds application in various industries, including:

Construction Machinery

It is well-suited for tower cranes, excavators, and port machinery, providing reliable and efficient rotational movements for these equipment.

Solar Tracking Systems

The gearbox ensures precise and continuous solar panel tracking, optimizing energy generation in solar tracking systems.

Offshore Engineering Equipment

Its robust design and environmental adaptability make it suitable for use in marine engineering equipment, ensuring reliable performance in demanding offshore conditions.

Military Equipment

The gearbox meets the stringent requirements of military equipment, offering high performance and durability for various military applications.Our company provides a competitive edge in the industry by offering innovative and reliable solutions. We strive for customer satisfaction by delivering high-quality products, backed by our expertise and commitment to excellence. Partnering with us means accessing cutting-edge technology and a dedicated team that understands your unique requirements.Author: Miya
