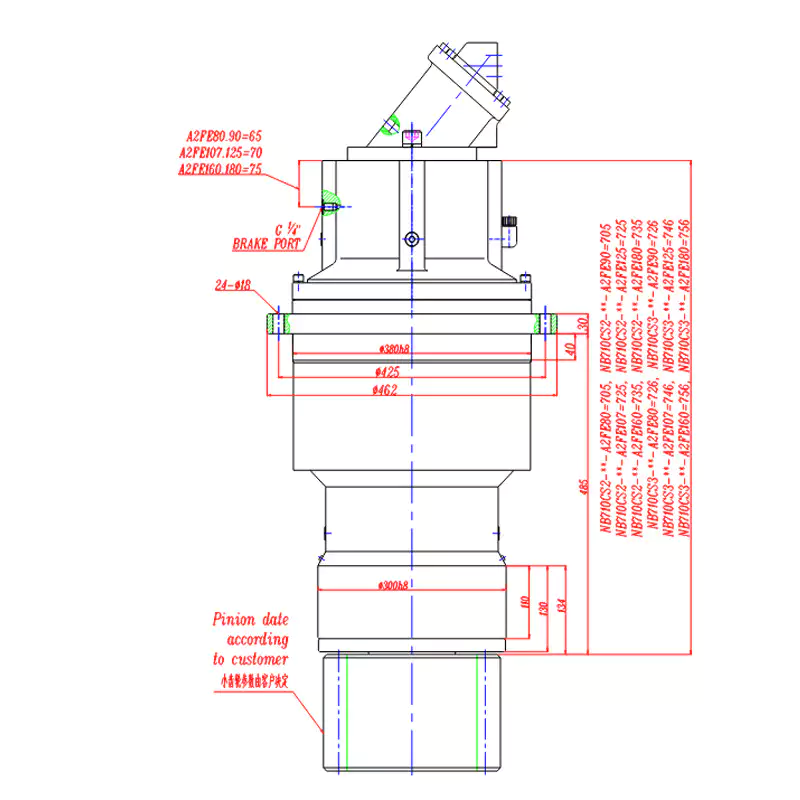

710CS3 Slewing Drive Planetary Gearbox



Product Overview

The 710CS3 Slewing Drive Planetary Gearbox is a highly advanced and versatile product designed for various engineering applications. It offers exceptional performance and reliability, making it an ideal choice for industries such as construction, solar tracking, marine engineering, and military equipment.

Technical specification

Type	Max.Output Torque		Ratio	RecommendHydraulicMotor	Max. inputspeed	Braketorque	Brake workpressure
	Excavator	Crane	(i)		(rpm)	(N.m)	(bar)
EP710CS2	27800	48500	32, 38.8	A2FE 80·90A2FE107·125A2FE160·180	3000	600-1100	20-50

1. • Input – output rotate same direction.
   • Other ratio and other input type can be specially designed.

Product Naming and Positioning

The 710CS2 Slewing Drive Planetary Gearbox follows a systematic naming convention that reflects its unique features. The "710" represents the maximum output torque capacity in kilonewton-meters, while "CS2" signifies its compact and space-saving design. This gearbox is specifically positioned for heavy-duty applications that require high torque density and precise rotation control.

Model Naming and Positioning

The 710CS3 Slewing Drive Planetary Gearbox is named and positioned in accordance with industry standards. The model number signifies the specific features and specifications of the product, ensuring easy identification and compatibility with other equipment.

Design and Structural Features

The design of the 710CS3 Slewing Drive Planetary Gearbox incorporates cutting-edge technology and high-quality materials, guaranteeing superior performance and durability. Key design elements include:

1. Planetary Gear Design

   The planetary gear system ensures efficient power transmission, enabling high torque density and smooth operation.

2. Bearing System

   The bearing system used in the gearbox provides excellent load capacity and stability, allowing for reliable operation even under extreme conditions.

3. Sealing Technology

   Advanced sealing technology is employed to prevent the ingress of dust, moisture, and other contaminants, ensuring long-term performance and reliability.

4. Lubrication System

   The gearbox is equipped with an efficient lubrication system that minimizes friction and wear, extending the service life of the product.

Performance Advantages

The 710CS3 Slewing Drive Planetary Gearbox offers numerous performance advantages, including:

• High Torque Density

  With its innovative design and robust construction, the gearbox delivers exceptional torque output in a compact form factor, allowing for efficient power transmission in demanding applications.

• Low Noise and Vibration

  Advanced engineering techniques and precision manufacturing processes result in reduced noise and vibration levels, ensuring a quieter and smoother operation.

• Environmental Adaptability

  The gearbox is designed to withstand harsh environmental conditions, including extreme temperatures, humidity, and exposure to dust and water. This makes it highly adaptable and reliable in various settings.

• Intelligent Monitoring

  Equipped with intelligent monitoring systems, the gearbox allows for real-time performance analysis and remote diagnostics, enabling proactive maintenance and minimizing downtime.

Applications

The 710CS3 Slewing Drive Planetary Gearbox finds application in several industries, including:

1. Construction Machinery

   It is widely used in tower cranes, excavators, and other construction machinery, providing reliable power transmission and precise control for efficient operation.

2. Solar Tracking Systems

   The gearbox is an essential component in solar tracking systems, ensuring accurate positioning of solar panels to maximize energy capture and efficiency.

3. Marine Engineering Equipment

   It is extensively utilized in various marine engineering applications, such as offshore platforms, ship cranes, and underwater vehicles, providing reliable rotational movement and load-bearing capabilities.

4. Military Equipment

   The gearbox is trusted in military equipment for its durability, precision, and ability to withstand harsh conditions, making it suitable for a range of military applications.

Our Company Advantage:As a leading provider in the industry, our company stands out due to several key advantages:

• Extensive experience and expertise in developing and manufacturing advanced power transmission solutions.
• A commitment to delivering high-quality products that meet the specific needs and requirements of our customers.
• A strong emphasis on innovation, ensuring that our products incorporate the latest technological advancements.
• A dedicated and knowledgeable team of professionals who provide excellent customer support and technical assistance.
