713L3 Slewing Drive Planetary Gearbox

713L3 Slewing Drive Planetary Gearbox

Product Overview

The 713L3 Slewing Drive Planetary Gearbox is a high-performance and reliable product designed for various applications. This gearbox is specifically engineered with precision and efficiency in mind, making it an ideal choice for a wide range of industries.

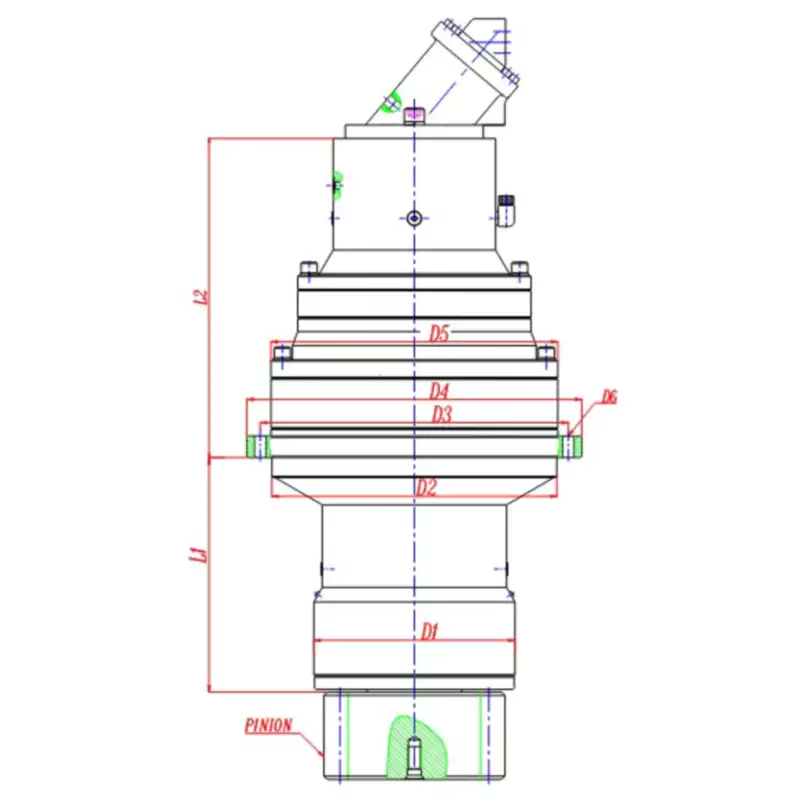

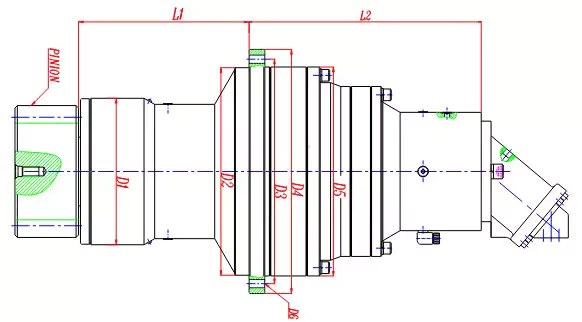

Dimension	Type
	EP711L	EP713L3	EP715L3
D1	300	340	370
D2	425	400	470
D3	460	510	600
D4	500	560	640
D5	428	445	542
D6	12-ф22	24-ф22	24-ф22
L1	345	420	465
L2	Size according to motor type
Pinion data	Pinion data according to customer

Technical specification

Type	Max.Output Torque		Ratio	RecommendHydraulicMotor	Max. inputspeed	Braketorque	Brake workpressure
	Excavator	Crane	(i)		(rpm)	(N.m)	(bar)
EP711L	32000	45000	14.0—223.0	A2FE 80·90·107·125	2500	400-3200	20-50
EP713L3	40000	55000	50.3—276.1	A2FE 160·180	3500	400-1000
EP715L3	70000	80000	53.8—241.9	A2FM 250·355	2500	850-3200

1. • Input – output rotate same direction.
   • Other ratio and other input type can be specially designed.

Model Naming and Positioning

The 713L3 Slewing Drive Planetary Gearbox follows a systematic model naming convention, which helps to identify its unique features and specifications. This ensures that customers can easily select the right gearbox for their specific needs. The positioning of this model is to provide exceptional performance and durability in demanding operating conditions.

Product Design and Structural Features

The design of the 713L3 Slewing Drive Planetary Gearbox incorporates advanced engineering techniques to optimize its functionality. It consists of a robust planetary gear system, a reliable bearing system, an efficient sealing technology, and a well-designed lubrication system. Each of these components contributes to the overall durability, smooth operation, and longevity of the gearbox.

Core Technologies and Materials

Planetary Gear Design

The planetary gear system of the 713L3 Slewing Drive Planetary Gearbox is meticulously designed to provide high torque density and efficient power transmission. This design ensures maximum load capacity and minimizes energy loss during operation.

Bearing System

The bearing system of the 713L3 Slewing Drive Planetary Gearbox is engineered to withstand heavy loads and provide reliable performance over an extended period. It ensures smooth rotation and reduces friction, resulting in low noise and vibration levels.

Sealing Technology

The sealing technology employed in the 713L3 Slewing Drive Planetary Gearbox effectively prevents the ingress of dust, water, and other contaminants. This ensures optimal performance even in harsh environmental conditions, enhancing the gearbox's longevity.

Lubrication System

The lubrication system of the 713L3 Slewing Drive Planetary Gearbox is designed to provide adequate lubrication to all critical components. This helps reduce friction and wear, ensuring smooth operation and extending the lifespan of the gearbox.

Performance Advantages

High Torque Density

The 713L3 Slewing Drive Planetary Gearbox offers a high torque density, allowing it to handle heavy loads and provide exceptional performance in demanding applications.

Low Noise and Vibration

The advanced design and precision engineering of the 713L3 Slewing Drive Planetary Gearbox result in low noise and vibration levels during operation. This enhances user comfort and reduces the impact on surrounding equipment.

Environmental Adaptability

The 713L3 Slewing Drive Planetary Gearbox is designed to operate effectively in various environmental conditions. It can withstand extreme temperatures, humidity, and exposure to dust and water, ensuring reliable performance in diverse applications.

Intelligent Monitoring

The 713L3 Slewing Drive Planetary Gearbox is equipped with intelligent monitoring capabilities, allowing for real-time data collection and analysis. This enables proactive maintenance and enhances overall system efficiency and reliability.

Application Areas

The 713L3 Slewing Drive Planetary Gearbox finds extensive applications in the following industries:

Construction Machinery

The gearbox is well-suited for tower cranes, excavators, and other construction equipment, providing reliable power transmission and precise control.

Solar Tracking Systems

The 713L3 Slewing Drive Planetary Gearbox is ideal for solar tracking systems, ensuring accurate positioning of solar panels to maximize energy efficiency.

Marine Engineering Equipment

In marine engineering applications, the gearbox offers exceptional performance and reliability, withstanding harsh marine environments and ensuring smooth operation.

Military Equipment

The 713L3 Slewing Drive Planetary Gearbox is used in various military applications, providing reliable power transmission and precise control in demanding conditions.

Our Company's Advantages

Our company takes pride in offering superior products and services to our valued customers. By choosing our 713L3 Slewing Drive Planetary Gearbox, you can benefit from:- High-quality engineering and manufacturing processes- Extensive experience in the industry- Prompt and efficient customer support- Competitive pricing and value for money- Commitment to product innovation and continuous improvementPartner with us today and experience the difference of working with a trusted industry leader.Author: Miya
