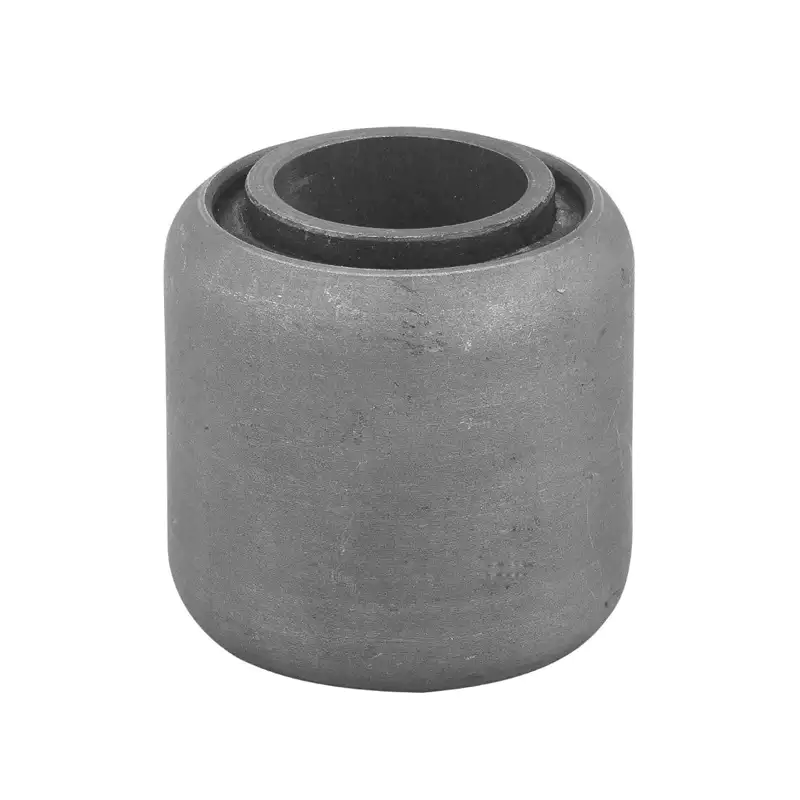

80442446 Silent Block Rubber Bushing

80442446 Silent Block Rubber Bushing

Silent Block Rubber Bushing is a type of rubber bushing that is commonly used in agricultural machinery. It serves as a cushion to reduce shock and vibration and is an important component in ensuring the smooth operation of agricultural machinery.

Applications in Agricultural Machinery

Silent Block Rubber Bushing is commonly used in the following areas of agricultural machinery:

1. Suspension System

Silent Block Rubber Bushing is used to connect the chassis and suspension arm or the suspension arm and agricultural implements in the suspension system of agricultural tractors and other farm equipment like harvesters and seeders. It helps to reduce the shock and vibration during operation.

2. Power Transmission System

Silent Block Rubber Bushing is used in the connection shaft between the engine and the gearbox, the gearbox and the drive axle, and the drive axle and the wheel hub of agricultural machinery to reduce the transmission of vibration during power transmission.

3. Control Mechanism

Silent Block Rubber Bushing is used in steering linkages, brake systems, and hydraulic control mechanisms to reduce the impact and vibration of moving parts.

4. Working Device Connection Point

Silent Block Rubber Bushing is used to connect various working components like plowshares, harrow blade racks, and cutting tables to the main frame of agricultural machinery. It helps to reduce the impact on the main structure and adapt to uneven working conditions.

Compatible Brands and Models

The 80442446 Silent Block Rubber Bushing is compatible with various brands and models of agricultural machinery. Here are some examples:

Other Agricultural Machinery Parts

Apart from Silent Block Rubber Bushing, we offer a wide range of other agricultural machinery parts like agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, concave, and more. You can find all the parts you need for your agricultural machinery with us.

Signs for Replacing Silent Block Rubber Bushing

Here are some signs that indicate the need for replacing Silent Block Rubber Bushing:

1. Abnormal Vibration and Noise

If the rubber lining fails, the vibration that was previously absorbed by it will be transferred to the entire machinery structure. This will create noise and impact sounds like "clicking" or "clanging".

2. Decreased Precision

If the machinery's precision has decreased, for example, if the steering becomes unstable or the machinery cannot maintain a straight line while working in the field, it may be due to the wear and tear of the Silent Block Rubber Bushing in the suspension system or working device connection point.

3. Obvious Signs of Wear and Tear

During regular checks of the machinery, if you find cracks, fractures, severe wear and tear, deformation, or complete rupture on the surface of the rubber lining, it means that the lining has lost its function and needs to be replaced.

4. Decreased Performance

If the machinery feels more bumpy while driving or the agricultural implement's contact with the soil deteriorates, it may be due to the failure of the Silent Block Rubber Bushing, which affects the normal operation of the suspension system or working device.

How to Choose the Right Silent Block Rubber Bushing

When choosing the right Silent Block Rubber Bushing, you should consider the following factors:

1. Inner and Outer Diameter Dimensions

Measure the inner and outer diameters and length of the original lining precisely to ensure that the newly purchased lining can fit tightly into the installation position.

2. Installation Method

Pay attention to the design of the lining, including whether it has threads, flanges, or other special installation structures.

3. Material

High-quality Silent Block Rubber Bushing is typically made of fatigue-resistant and wear-resistant synthetic rubber like NBR, HNBR, and FKM, depending on the specific operating conditions.

4. Damping Requirements

Choose rubber materials with suitable damping characteristics according to the vibration characteristics of the agricultural machinery to effectively absorb vibration energy.

5. Weather Resistance

If the agricultural machinery works outdoors for a long time, the lining needs to have good UV resistance, ozone resistance, oil and chemical resistance.Author: Miya
