80PLE Series High Precision Planetary Gearbox

80PLE Series High Precision Planetary Gearbox

Overview

The 80PLE Series High Precision Planetary Gearbox is a type of gearbox that is commonly used in industrial settings. It is defined as a mechanism that uses planetary gears to transmit power and torque from one component to another. Its main purpose is to provide precise and efficient speed reduction or increase depending on its application. The gearbox is known for its high precision, smooth operation, reliability, and durability. It is used in a wide range of applications that require smooth and efficient power transmission.

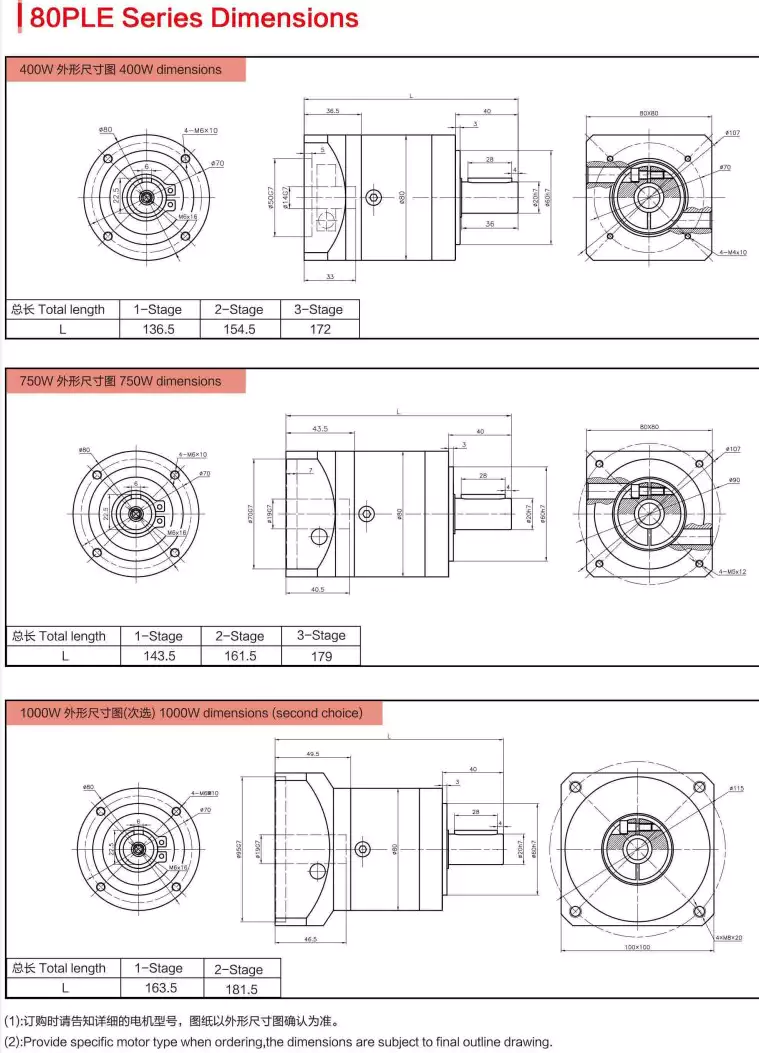

Below is a technical parameter image of the 80PLE Series High Precision Planetary Gearbox:

Features

Our High Precision Planetary Gearbox has several features that make it stand out among other gearboxes:

1. Precise Transmission

The 80PLE Series High Precision Planetary Gearbox is designed to provide precise and accurate speed reduction or increase, making it ideal for applications that require high precision and accuracy.

2. High Torque Density

It has a high torque density, which means that it can transmit a high amount of torque for its size and weight. This makes it suitable for applications where space is limited.

3. Smooth Operation

The gearbox is designed to run smoothly and quietly, providing a consistent and reliable performance.

4. Reliability and Durability

Our High Precision Planetary Gearbox is built to last. It is made from high-quality materials and is designed to withstand heavy-duty applications, ensuring its reliability and durability.

5. Multiple Mounting Options and Configurations

The gearbox can be mounted in different ways and can be configured to meet specific application requirements.

6. Wide Speed Range Adjustment

The gearbox has a wide speed range adjustment, making it suitable for applications that require varying speeds.

7. High Adaptability

It is highly adaptable and can be used in a variety of applications, making it a versatile gearbox.

8. High Efficiency

With its high efficiency, the gearbox can deliver maximum power with minimal energy loss, reducing energy costs and increasing productivity.

9. Protection

The gearbox is equipped with protection measures such as overload protection, thermal protection, and dustproof and waterproof seals, ensuring its long lifespan and safe operation.

Internal Structure

Our High Precision Planetary Gearbox is made up of several components that work together to transmit power and torque. Below are the parts that make up the gearbox:

1. Integral Double Wall Planet Pinion Carrier
2. Bearing for the Output Shaft
3. Steel Output Flange
4. Integral Inner Gear Housing
5. Planetary Wheel
6. Sun Wheel
7. Bearing for the Input Shaft
8. Integral Hoop Clamp Coupling
9. Back Cover

Below is an image of the internal structure of our High Precision Planetary Gearbox:

The materials and functions of each part are as follows:

• Integral Double Wall Planet Pinion Carrier: Made from high-quality materials, it holds the planet gears in place and transmits torque from the input shaft to the output shaft through the planet gears.
• Bearing for the Output Shaft: Ensures smooth and efficient rotation of the output shaft.
• Steel Output Flange: Connects the gearbox to the driven component.
• Integral Inner Gear Housing: Provides support and protection for the internal components.
• Planetary Wheel: Transmits torque from the planet gears to the sun wheel.
• Sun Wheel: Transmits torque to the output shaft.
• Bearing for the Input Shaft: Ensures smooth and efficient rotation of the input shaft.
• Integral Hoop Clamp Coupling: Connects the gearbox to the driving component.
• Back Cover: Protects the internal components from external elements and provides easy access for maintenance and repair.

Applications

Our High Precision Planetary Gearbox is used in a wide range of applications, including:

• Industrial Automation: The gearbox is used in various industrial automation applications such as conveyors, packaging machines, and assembly lines.
• Robotics: It is used in robotics applications for precise and efficient motion control.
• Renewable Energy: The gearbox is used in wind turbines and solar panels for efficient power transmission.
• Mining and Construction: It is used in heavy-duty mining and construction equipment for its high torque density and durability.
• Medical Equipment: The gearbox is used in medical equipment for its reliability and precision.
• Agricultural Equipment: It is used in agricultural equipment for its high efficiency and durability.

About Us

We are a high-tech enterprise dedicated to the production and sales of AC gear motors, small gear motors, servo planetary gearboxes, DC brushed and brushless motors, and other products. Our products are widely used in industrial robots, intelligent logistics, new energy, and other industries, as well as food, packaging, textile, electronics, medical and other specialized mechanical equipment.

With our innovative marketing strategies and a combination of direct sales and distribution, we continue to provide quality products and services to our customers. We are committed to providing the best solutions to meet our customers' needs, and we strive to build long-lasting relationships with our customers based on trust and mutual benefits.

Partner with us to experience the best in high-precision planetary gearboxes!
