8V Series Cast Iron Eight-Groove QD Sheaves for “8V” Belts

8V Series Cast Iron Eight-Groove QD Sheaves for "8V" Belts

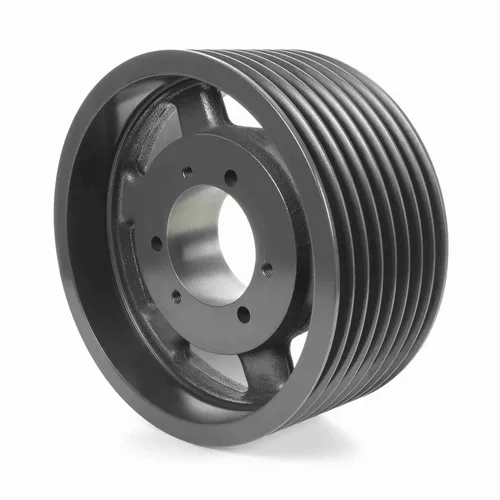

8V series eight-groove QD (quick detachable) bushed sheaves are manufactured for 8V and 8V banded belts. They range from 12.50" to 63.00" in diameter. Depending on the sheave size, they are made to use a J, M, N, or P QD bushing, which we also stock. Most of our eight-groove 8V QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Eight-Groove 8V QD Sheave Size Chart

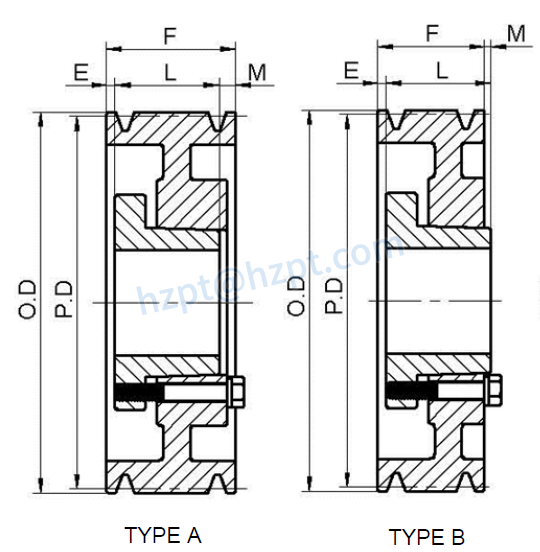

Sheave Size	Bushing	Type	Pitch Diameter (P.D.)	Outside Diameter (O.D.)	(E)	(F)	(L)	(M)	Weight (LBS)
88V1250J	J	A	12.30	12.50	2-1/8"	9-3/8"	4-5/8"	2-5/8"	131
88V1320J	J	A	13.00	13.20	2-1/8"	9-3/8"	4-5/8"	2-5/8"	160
88V1400J	J	A	13.80	14.00	2-1/8"	9-3/8"	4-5/8"	2-5/8"	175
88V1500J	J	A	14.80	15.00	2-1/8"	9-3/8"	4-5/8"	2-5/8"	186
88V1600J	J	A	15.80	16.00	2-1/8"	9-3/8"	4-5/8"	2-5/8"	210
88V1700M	M	A	16.80	17.00	2-11/32"	9-3/8"	6-3/4"	9/32"	221
88V1800M	M	A	17.80	18.00	2-11/32"	9-3/8"	6-3/4"	9/32"	235
88V1900M	M	A	18.80	19.00	2-11/32"	9-3/8"	6-3/4"	9/32"	250
88V2000M	M	A	19.80	20.00	2-11/32"	9-3/8"	6-3/4"	9/32"	265
88V2120M	M	A	21.00	21.20	2-11/32"	9-3/8"	6-3/4"	9/32"	280
88V2240M	M	A	22.20	22.40	2-11/32"	9-3/8"	6-3/4"	9/32"	295
88V2480N	N	A	24.60	24.80	3/16"	9-3/8"	8-1/8"	1-1/16"	320
88V3000N	N	A	29.80	30.00	3/16"	9-3/8"	8-1/2"	1-1/16"	375
88V3550N	N	A	35.30	35.50	3/16"	9-3/8"	8-1/8"	1-1/16"	442
88V4000N	N	A	39.80	40.00	3/16"	9-3/8"	8-1/8"	1-1/16"	530
88V4450P	P	B	44.30	44.50	1/4"	9-3/8"	9-3/8"	1/4"	610
88V5300P	P	B	52.80	53.00	1/4"	9-3/8"	9-3/8"	1/4"	795
88V6300P	P	B	62.80	63.00	1/4"	9-3/8"	9-3/8"	1/4"	995

Related Matching 8V, 8V Banded Series V-Belt

(1) 8V-Series V-Belts

Classic 8V-Series V-Belts have a 0.63" top-width, 0.53" thickness, and a 38° angle. Additionally, 8V V-belts are one of the oldest styles of V-Belts in the industry. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium 8V-series v-belts we supply are manufactured under ISO 9001 specifications, are oil and heat resistant, and directly interchange with other brands. They are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability.

(2) 8V-Series Banded V-Belts

8V-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. 8V-series v-belts have a 1.0" top-width per belt (band/ rib).

Related QD Bushings | Quick Disconnect Bushings

QD bushings are utilized throughout the industrial power transmission and agricultural industry for various sprockets, sheaves, pulleys, and synchronized drives. They are designed for easy installation and easy uninstallation; they are also commonly referred to as quick-disconnect bushings. QD bushings can help conventional mounting with the flange outboard and reverse mounting to where the flange is inboard and utilize a single split that extends through the entire bushing length. Our QD bushings interchange with other brands and are made from high-grade steel precision machined for perfect application fitment. QD bushings' benefits over different styles include; ease of installation/ uninstall, superior holding power, and extreme strengths. We stock all the standard sizes of QD bushings and supply custom QD bushings upon request, including stainless steel ones. QD bushings are found in some of the most rugged applications worldwide; contact our customer service team today for a quote or additional information on our premium QD bushings.

Bushing Type	(A)	(B)	(D)	(E)	(F)	(G)	(L)	Bolt Circle	Cap Screws Required	Min. Stock Bore	Max. Bore W/ KW	Max Bore W/ Shallow KW	Set Screw Size	Avg. Weight (LBS)
J	1.000"	5.148"	7.250"	3.500"	3.188"	0.423"	4.500"	6.250"	3 - 0.625X4.5	1.438"	3.750"	4.500"	0.625 - 11	18.0
M	1.250"	6.500"	9.000"	5.500"	5.188"	0.423"	6.750"	7.875"	4 - 0.75X6.75	1.938"	4.750"	5.500"	0.75 - 10	37.0
N	1.500"	7.000"	10.25"	6.625"	6.250"	0.423"	8.125"	8.500"	4 - 0.875X8.5	2.438"	5.125"	6.000"	0.75 - 10	57.0
P	1.750"	8.250"	11.75"	7.625"	7.250"	0.423"	9.375"	10.00"	4 - 1X9.5	2.938"	5.983"	7.000"	0.875 - 9	120.0

Daily Inspection of the Pulley to See These 3 Aspects Will Do

The pulley is a worn part that often shakes and slips during long-term operation. If the pulley is not checked regularly, it will also cause damage to the machine for a long time and may be directly damaged in severe cases. Therefore, in daily use, we should regularly check the pulley. What aspects of the pulley should be reviewed?Check these three aspects of the v belt pulley daily:1. Pulley surface: All standard pulleys are weighted according to the standard. If there are bump marks on the surface of the pulley, it is necessary to observe whether the pulley shakes during operation. If there is vibration, replacing the pulley in time is essential.2. Pulley belt: The pulley is driven by a belt, so we also need to check the belt regularly. After installation, we should first observe the tightness of the belt. If the building is too tight, it will affect the speed of the pulley. In severe cases, the motor shaft may be worn. If the installation is too loose, it may reduce the machine's working efficiency and cause slippage. If the belt has low aging tension, we need to replace the belt in time.3. Pulley mounting hole: The mounting hole of the pulley is in direct contact with the motor shaft and is also an essential part of determining whether the machine can run. We need to regularly observe whether the installation holes are clean and whether there are impurities in them. Because contaminants are likely to damage the mounting holes, if mounting holes are damaged, the pulley will not be able to use.

What Are the Pulleys Used For?

The pulley belongs to the hub-type parts. Generally, the relative size is relatively large. The manufacturing process is usually based on casting and forging. Use less cast steel (steel has poor casting performance); generally, smaller sizes can be designed for development, and the material is steel). The pulley is not only used on the car; it is mainly used to transmit power over long distances. It has many applications, such as the power output of small diesel engines, such as tractors, cars, etc. It is also used in mechanical transmissions, such as machining equipment, textile machinery, lathes, and forging machines.

Technological Processing

Company Profile

Raydafon is a professional manufacturer of mechanical parts. Our main products are timing pulleys, sprockets, split taper bushings, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.Our factory adheres to the enterprise concept of "quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development." We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.

Warehouse Stock

The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.

Packaging & Shipping

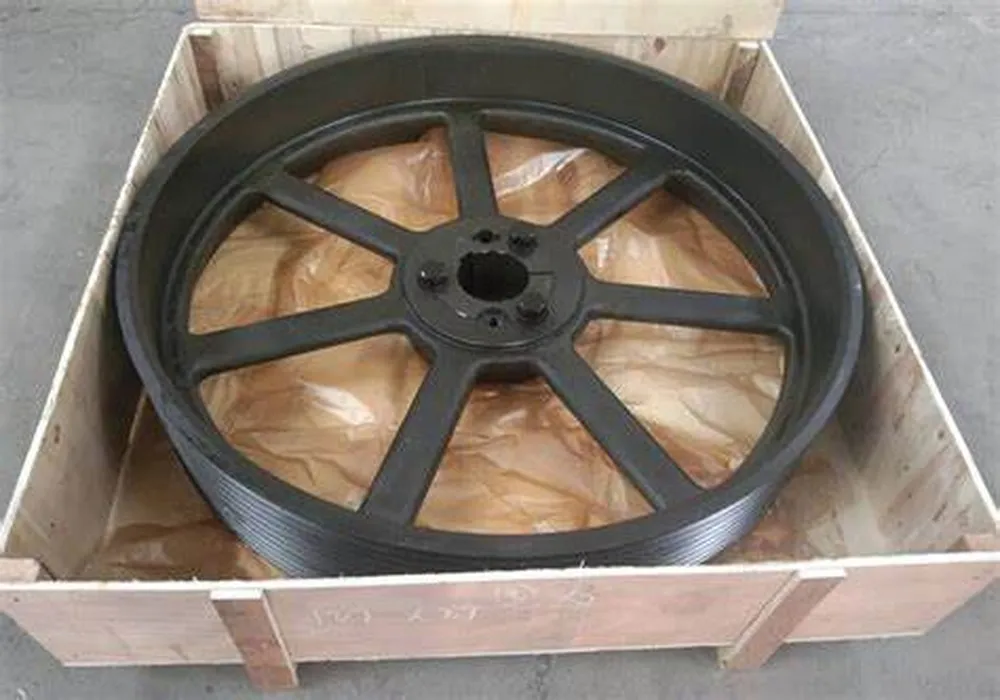

Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.
