8V Series Cast Iron Twelve-Groove Pulley Sheaves with Split Taper Bushings

8V Series Cast Iron Twelve-Groove Pulley Sheaves with Split Taper Bushings

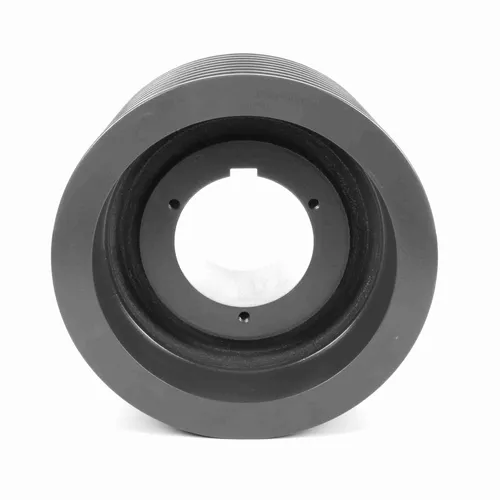

8V series twelve-groove taper bushed sheaves are manufactured for 8V and 8V banded v-belts. They range from 12.5" to 64.0" in diameter. Depending on the sheave size, they are made to use U2 or W2 split-taper bushings, which we also stock. Most of our twelve-groove 8V split taper sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

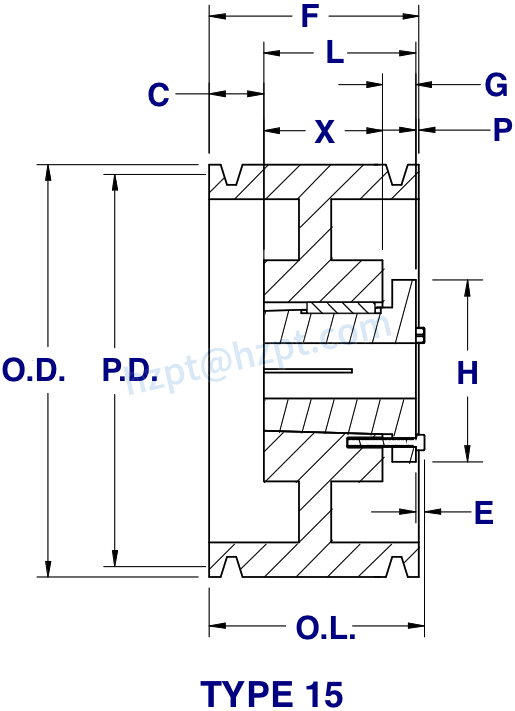

Twelve-Groove 8V Split Taper Sheave Size Chart

Sheave Size	Bushing	Pitch Diameter (P.D.)	Outside Diameter (O.D.)	Type	(O.L.)	(L)	(P)	(C)	(H)	(F)	(G)	(X)	(E)	Weight (LBS)
12U8V125	U2	12.3	12.5	15	13-7/8"	10-1/8"	2-3/4"	1"	8-3/8"	13-7/8"	1-1/2"	8-5/8"	15/32"	200.0
12U8V132	U2	13.0	13.2	15	13-7/8"	10-1/8"	2-3/4"	1"	8-3/8"	13-7/8"	1-1/2"	8-5/8"	15/32"	243.0
12U8V140	U2	13.8	14.0	15	13-7/8"	10-1/8"	2-3/4"	1"	8-3/8"	13-7/8"	1-1/2"	8-5/8"	15/32"	282.0
12U8V150	U2	14.8	15.0	15	13-7/8"	10-1/8"	2-3/4"	1"	8-3/8"	13-7/8"	1-1/2"	8-5/8"	15/32"	331.0
12U8V160	U2	15.8	16.0	15	13-7/8"	10-1/8"	2-3/4"	1"	8-3/8"	13-7/8"	1-1/2"	8-5/8"	15/32"	387.0
12U8V170	U2	16.8	17.0	15	13-7/8"	10-1/8"	2-3/4"	1"	8-3/8"	13-7/8"	1-1/2"	8-5/8"	15/32"	395.0
12U8V180	U2	17.8	18.0	15	13-7/8"	10-1/8"	2-3/4"	1"	8-3/8"	13-7/8"	1-1/2"	8-5/8"	15/32"	408.0
12U8V190	U2	18.8	19.0	15	13-7/8"	10-1/8"	2-3/4"	1"	8-3/8"	13-7/8"	1-1/2"	8-5/8"	15/32"	435.0
12U8V200	U2	19.8	20.0	15	13-7/8"	10-1/8"	2-3/4"	1"	8-3/8"	13-7/8"	1-1/2"	8-5/8"	15/32"	428.0
12U8V212	U2	21.0	21.2	15	13-7/8"	10-1/8"	2-3/4"	1"	8-3/8"	13-7/8"	1-1/2"	8-5/8"	15/32"	450.0
12U8V224	U2	22.2	22.4	15	13-7/8"	10-1/8"	1-1/8"	2-5/8"	8-3/8"	13-7/8"	1-1/2"	8-5/8"	15/32"	421.0
12U8V300	U2	29.8	30.0	15	13-7/8"	10-1/8"	3/8"	2-5/8"	8-3/8"	13-7/8"	1-1/2"	8-5/8"	15/32"	509.0
12W8V400	W2	39.8	40.0	15	14-1/16"	11-1/4"	3/8"	2-1/4"	12-1/2"	13-7/8"	1-7/8"	9-3/8"	9/16"	764.0
12W8V480	W2	47.8	48.0	15	14-1/16"	11-1/4"	3/8"	2-1/4"	12-1/2"	13-7/8"	1-7/8"	9-3/8"	9/16"	1000.0
12W8V530	W2	52.8	53.0	15	14-1/16"	11-1/4"	3/8"	2-1/4"	12-1/2"	13-7/8"	1-7/8"	9-3/8"	9/16"	1160.0
12W8V580	W2	57.8	58.0	15	14-1/16"	11-1/4"	3/8"	2-1/4"	12-1/2"	13-7/8"	1-7/8"	9-3/8"	9/16"	1330.0
12W8V640	W2	63.8	64.0	15	14-1/16"	11-1/4"	3/8"	2-1/4"	12-1/2"	13-7/8"	1-7/8"	9-3/8"	9/16"	1460.0

Related Matching 8V, 8V Banded Series V-Belt

(1) 8V-Series V-Belts

Classic 8V-Series V-Belts have a 0.63" top-width, 0.53" thickness, and a 38° angle. Additionally, 8V V-belts are one of the oldest styles of V-Belts in the industry. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium 8V-series v-belts we supply are manufactured under ISO 9001 specifications, are oil and heat resistant, and directly interchange with other brands. They are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability.

(2) 8V-Series Banded V-Belts

8V-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. 8V-series v-belts have a 1.0" top-width per belt (band/ rib).

Related Split Taper Bushings

Split taper bushings are amongst the most common bushings utilized due to their high integral strength, simplicity of installation and uninstall, and high holding power for successfully coupling a shaft onto a drive or idler component. Split taper bushings are utilized in a broad range of sheaves, conveyor pulleys, and sprockets. Our high-quality split taper bushings are manufactured from high-grade steel or cast and interchange with any other brand, designed as a flanged bushing with a tapered barrel attached that contains one slit on each side. We stock split taper bushings ranging from the G-series to W2-series and in inch and metric bore sizes that range from 0.375" up to 7.438". For additional information or to get a quote on our high-strength split taper bushings, please contact our customer support team, and we will be happy to assist you.

3 Ways to Avoid Pulley Vibration

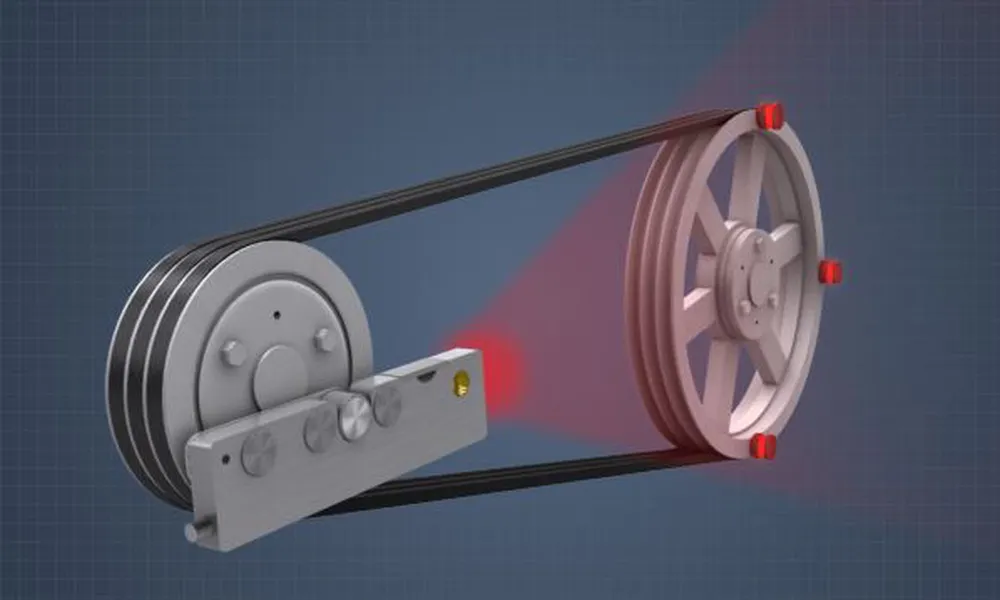

Pulleys are commonly used transmission components in industrial machinery and equipment. During the operation of the pulley, it is often accompanied by vibration and even makes a sound, affecting the machine's life. If this vibration can be reduced, the device will become more durable.Three ways to reduce or avoid pulley vibration:1. Find a method from the source of production: we all know that the higher the concentricity of the pulley processing, the smoother the pulley rotation. Therefore, improving the machining accuracy can reduce the vibration amplitude when the pulley rotates. When the pulley leaves the factory, it must be checked for dynamic balance.2. Find the method from the design of the pulley: To avoid vibration when the pulley rotates, the belt groove and the shaft hole of the pulley are now divided into two parts, and the middle is filled with shock-absorbing rubber, and the shock-absorbing rubber is used to achieve the effect of shock absorption. This method is more practical and straightforward.3. Find the method from the installation process: when installing, check whether the engine and the pulley are firmly fixed, whether they are in a line, and whether the belt is adequately tight. These will have an impact on the operation of the pulley.

Inspection Knowledge of Pulley and Belt

First, check the tension of the pulley belt. At this time, you can use your thumb to press the strap between the two pulleys firmly. The pressing force is about 10kg. If the necessary amount of the belt is about 10mm, the belt tension is considered appropriate. If the reduction is too significant, it is believed that the pressure of the belt is insufficient. If the belt shows almost no reduction, it is considered that the belt tension is too high. When the stress is low, the v belt pulley and the belt are prone to slip.When the tension is too large, it is easy to damage the bearings of various auxiliary machines. To this end, the relevant adjustment nut or bolt should be loosened to adjust the belt's tension to an excellent state. The old belt is severely worn so that the contact area between the belt and the pulley is sharply reduced. At this time, as long as the belt is pressed hard, the pulley will sink deeply into the groove of the pulley. The rubber of the belt also has an aging problem. If the rubber of the belt is seriously aged, the new belt must be replaced in time.

Usage Scenario of V-Belt Pulleys and V-Belts

Technological Processing

Company Profile

Raydafon is a professional manufacturer of mechanical parts. Our main products are timing pulleys, sprockets, split taper bushings, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.Our factory adheres to the enterprise concept of "quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development." We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.

Warehouse Stock

The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.

Packaging & Shipping

Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.

FAQ

Q1. Are you a manufacturer or a trading company?A: We are a manufacturer and trading company.Q2. What is your sample policy?A: We can supply the sample if we have finished parts in stock, but customers need to pay for the sample cost and shipping fee.Q3. Can you produce according to the samples?A: We can produce power transmission parts according to your samples or technical drawings. We can build the molds and fixtures.Q4. Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.Q5. Can you customize pulleys?A: Yes, please send us your drawing for an accurate quotation.Q6. How long is your delivery time and shipment?A: 1. Sample Lead-times: 10-20 days.2. Production Lead-times: 30-45 days after the order is confirmed.Q7. How do you make our business a long-term and good relationship?A: 1. We keep good quality and competitive price to ensure our customers' benefits ;2. We respect every customer as our friend and sincerely do business and make friends with them, no matter where they come from.Q8: What are your advantages?1. The most competitive price and good quality.2. Perfect technical engineers give you the best support.3. OEM is available.
