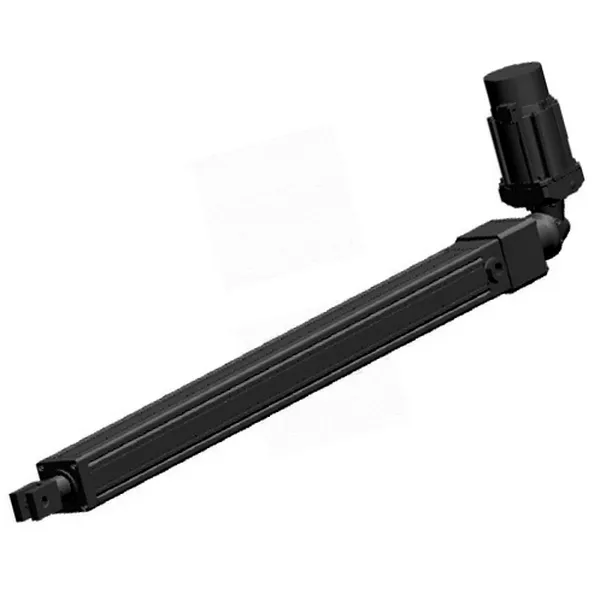

Aerial Work Platform Electric Cylinder

Aerial Work Platform Electric Cylinder

An aerial work platform (AWP) electric cylinder is a critical component used in the operation of aerial work platforms or aerial lifts. Aerial work platforms are mobile platforms with extendable arms or booms that allow workers to access elevated areas safely and efficiently. These platforms are commonly used in construction, maintenance, and various other industries where overhead work is required.The aerial work platform electric cylinder is responsible for powering and controlling the vertical movement of the platform. It consists of an electric motor, a hydraulic cylinder, and a control system. The electric motor drives a hydraulic pump, which pressurizes hydraulic fluid. This pressurized fluid is then directed to the hydraulic cylinder, which extends or retracts to raise or lower the platform.The aerial work platform electric cylinder offers several advantages over traditional hydraulic systems. One significant advantage is its electrically powered operation. By utilizing electricity instead of traditional combustion engines or pneumatic systems, the aerial work platform becomes more environmentally friendly and quieter. Electric cylinders also eliminate the need for hydraulic hoses and fittings, reducing the risk of fluid leaks and enhancing overall safety.Additionally, aerial work platform electric cylinders offer precise control and positioning capabilities, allowing operators to adjust the platform's height with accuracy and ease. This feature is particularly important when performing tasks that require precision, such as delicate installations or maintenance work.Furthermore, the aerial work platform electric cylinder's compact design makes it suitable for integration into various types of aerial work platforms, including scissor lifts, boom lifts, and vertical mast lifts. Its versatility and adaptability make it a preferred choice for many manufacturers and operators in the industry.

Aerial Work Platform Electric Cylinder Specifications:

Product Name	Aerial Work Platform Electric Cylinder
Features:	Realize telescopic function
Thrust force:	1-1000KN
Voltage:	24V,48V,220V,380V...
Electric Cylinder Features:	High efficiency, Fast speed,Heavy loading, High precision
Electric Cylinder Applications:	Scissor aerial work platform, Mast aerial work platform,Fire truck, Automatic production line, etc.

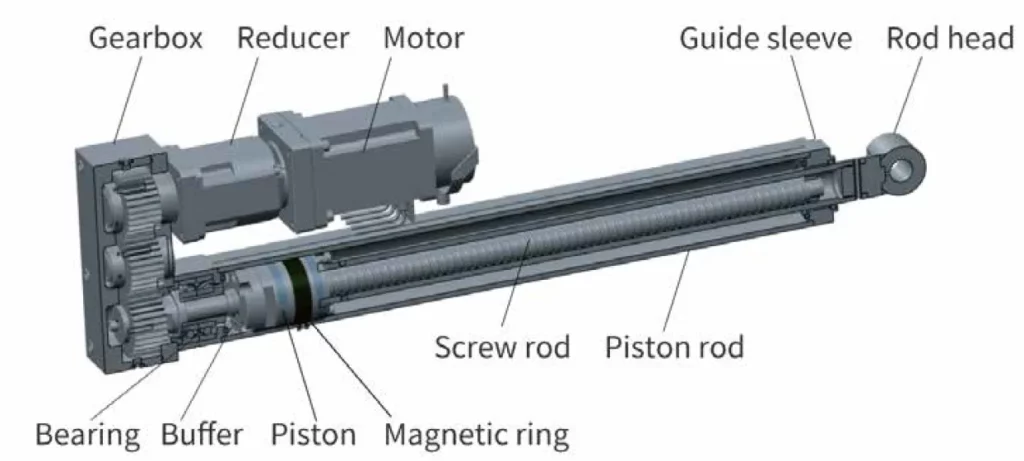

Aerial Work Platform Electric Cylinder Part Structure:

The electric cylinder of an aerial work platform is a hydraulic cylinder that is used to lift the platform. It is a key component of the platform's lifting system and is responsible for providing the lifting force.

The electric cylinder is typically made up of the following parts:

• Piston: The piston is the moving part of the cylinder. It is connected to the platform and moves up and down as the cylinder is extended and retracted.
• Rod: The rod is the part of the cylinder that extends and retracts. It is connected to the piston and is used to transmit the lifting force to the platform.
• Cylinder barrel: The cylinder barrel is the hollow tube that the piston and rod move inside. It is made of a strong material, such as steel, and is designed to withstand the high pressures of the hydraulic fluid.
• Gland seal: The gland seal is a seal that prevents the hydraulic fluid from leaking out of the cylinder. It is located between the piston and the cylinder barrel.
• Hydraulic fluid: The hydraulic fluid is the fluid that is used to transmit the lifting force. It is pumped into the cylinder and pushes the piston up.
• Valves: Valves are used to control the flow of hydraulic fluid in the cylinder. They can be used to raise, lower, and lock the platform in place.

The electric cylinder is a complex and important component of an aerial work platform. It is essential for the safe and efficient operation of the platform.

Aerial Work Platform Electric Cylinder Applications:

With the ever-increasing stringent environmental regulations, people’s awareness of environmental protection is gradually increasing, and the requirements for construction machinery are getting higher and higher. Its advantages, such as low noise, no leakage, high efficiency, and low pollution of the electric cylinder, just make up for this demand. Various types of constructor machinery or manipulators, equipped with electric cylinders as the mechanical carrier, have gradually become more popular in many enterprises.As a kind of electric actuator, the electric cylinder has the characteristics of low cost, compact structure, convenient installation, high control precision, and flexible operation. As a mechanical motion carrier, the electric cylinder drives the ball screw to move through the rotation of the servo motor, with angular displacement transformed into linear displacement, achieving accurate speed control, position control, and thrust control.Because of its high efficiency, large load capacity, fast speed, and precise and controllable movement, the electric cylinder is widely used in many fields, including aerospace testing, multi-degree-of-freedom simulation, multi-degree-of-freedom dynamic entertainment, multi-degree-of-freedom precision machining, robots, auto manufacturing equipment, steel connection casting, petrochemical engineering, materials handling, injection molding machine, mold control, valve control, precision machinery, pharmaceutical machinery, food processing and other fields.

China Aerial Work Platform Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, small excavator bucket cylinders, construction machinery hydraulic cylinders, forklift hydraulic tilt cylinders, crane hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.Raydafon is committed to providing customers with efficient hydraulic technology solutions and products, maintaining strong partnerships with customers, and leading the development of China’s hydraulic industry through more scientific solutions. Raydafon aims to make more contributions to the sustainable development of society, the construction of green cities, and building a better future.
