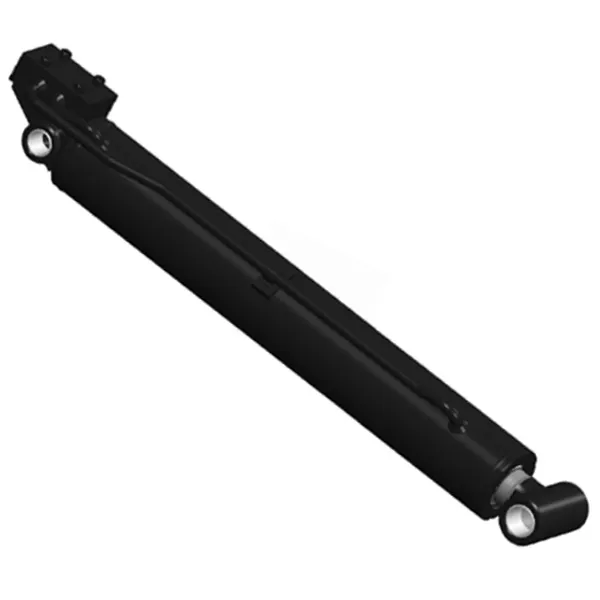

Aerial Work Platform Leveling Cylinder

Aerial Work Platform Leveling Cylinder

An aerial work platform leveling cylinder is a hydraulic cylinder that is used to level the platform of an aerial work platform (AWP). Aerial work platforms are used to lift workers and equipment to high places, and it is important for the platform to be level in order to ensure safety and productivity.

The aerial work platform leveling cylinder is typically located at the base of the aerial work platform's mast or boom. It is connected to the platform and to the ground, and when hydraulic fluid is pumped into the cylinder, the piston rod extends, raising the platform. When the fluid is released, the piston rod retracts, lowering the platform.

The aerial work platform leveling cylinder is typically a double-acting cylinder, which means that it can be used to raise and lower the platform. It is also typically a telescopic cylinder, which means that it can extend and retract to accommodate different heights of the platform.

The aerial work platform leveling cylinder is an important safety feature of an aerial work platform (AWP). By keeping the platform level, it helps to prevent accidents and injuries. It also helps to improve the stability of the platform, which is important for tasks such as working on uneven surfaces.

Here are some of the factors to consider when choosing an aerial work platform leveling cylinder:

• The weight of the platform
• The height of the platform
• The type of aerial work platform (scissor lift, boom lift, etc.)
• The environment in which the aerial work platform will be used
• The budget

It is important to choose a leveling cylinder that is rated for the weight and height of the platform, as well as the environment in which it will be used. It is also important to choose a cylinder that is made from high-quality materials and that is well-built.

Aerial work platform leveling cylinders are an important safety feature that helps to keep workers safe and productive. By choosing the right cylinder, you can help to ensure the safety of your aerial work platform and the people who use it.

Aerial Work Platform Leveling Cylinder Specifications:

Product Name	Aerial Work Platform Leveling Cylinder
Features:	Adjust the angle of the aerial work platform
Bore diameter:	85mm～180mm
Rod diameter:	50mm～100mmStroke≤300mm
Pressure：	30MPa（Maximum pressure)
Leveling Cylinder Applications:	Aerial Work Platform

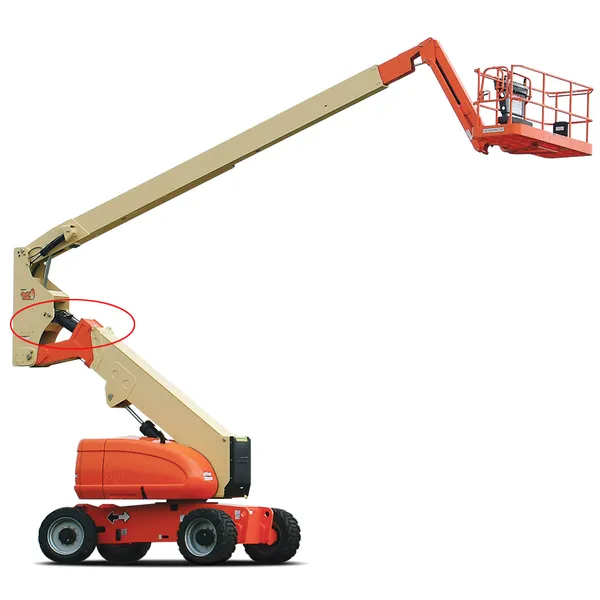

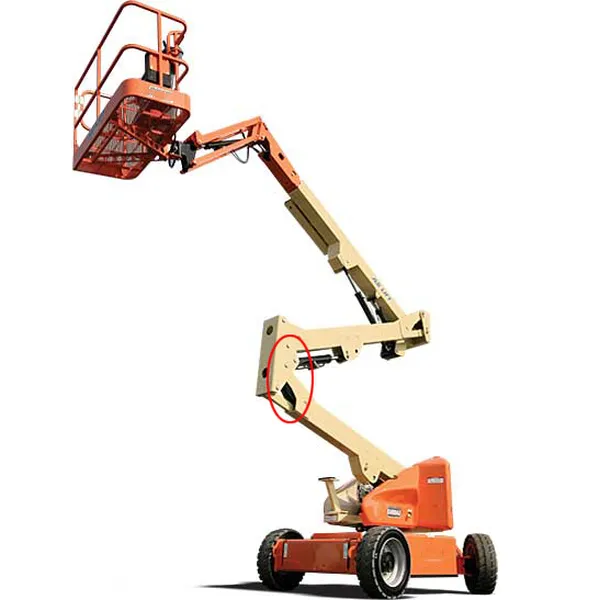

Aerial Work Platform Leveling Cylinder Features:

Aerial work platform leveling cylinders come with various features to enhance their performance and ensure the safety and stability of the platform. Here are some common features you may find in these leveling cylinders:1. Hydraulic System: Aerial work platform leveling cylinders operate using a hydraulic system. This system utilizes hydraulic fluid and pressure to extend or retract the cylinder's piston, allowing for precise adjustment of the platform's height and leveling.2. Independent Control: The aerial work platform leveling cylinders are typically designed to operate independently, meaning each corner of the platform can be adjusted separately. This allows the platform to compensate for uneven ground conditions and maintain a level working surface.3. Automatic Leveling: Many modern aerial work platforms are equipped with automatic leveling systems. These systems use sensors to detect any platform tilt or imbalance and automatically adjust the aerial work platform leveling cylinders to restore a level position. Automatic leveling enhances operator safety and reduces the risk of accidents caused by platform instability.4. Load Sensing: Some aerial work platform leveling cylinders incorporate load sensing technology. This feature enables the system to detect changes in the load on the platform and adjust the leveling cylinders accordingly. By adapting to varying loads, the cylinders help maintain stability and balance during different working conditions.5. Safety Locks: Aerial work platforms are often equipped with safety locks that engage when the platform reaches a specific height or angle. Aerial work platform leveling cylinders may include mechanisms that interact with these safety locks to ensure they are properly engaged and provide additional support and stability to the platform.6. Robust Construction: Aerial work platform leveling cylinders are typically built to withstand the demanding working conditions of aerial work platforms. They are constructed using durable materials such as steel or high-strength alloys to provide strength, stability, and resistance to wear and tear.7. Maintenance and Serviceability: Aerial work platform leveling cylinders are designed for ease of maintenance and serviceability. They may have accessible grease fittings, inspection ports, or other features that facilitate routine maintenance tasks, such as lubrication or seal replacement.

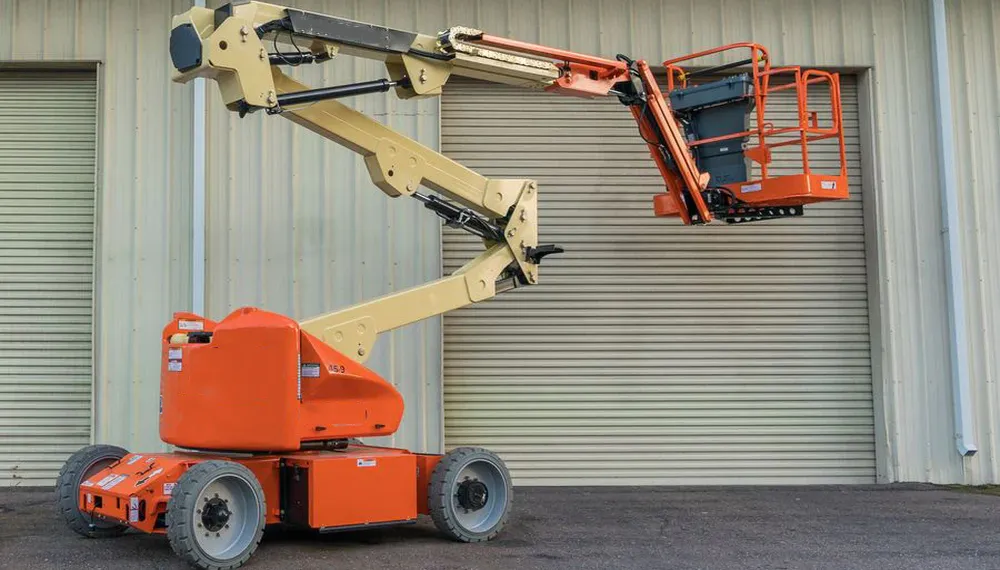

How Does the Aerial Work Platform Leveling Cylinder Work?

An aerial work platform leveling cylinder is a hydraulic cylinder that is used to level the platform of an aerial work platform (AWP). It is typically located at the base of the platform and is connected to the chassis of the AWP. When the cylinder is activated, it extends or retracts, raising or lowering the platform until it is level.

The aerial work platform leveling cylinder works by using the principles of hydraulics. Hydraulics is the use of liquid under pressure to power machines and devices. In the case of an aerial work platform leveling cylinder, the liquid is hydraulic fluid. The fluid is pumped into the cylinder, which causes the piston to extend. The piston is connected to the platform, so when the piston extends, the platform rises.

The amount of force that the cylinder can exert is determined by the pressure of the hydraulic fluid and the cross-sectional area of the piston. The higher the pressure, the more force the cylinder can exert. The larger the cross-sectional area of the piston, the less force the cylinder needs to exert to move the platform.

The aerial work platform leveling cylinder is controlled by a valve that is operated by the operator of the aerial work platform. The valve can be used to open or close the flow of hydraulic fluid to the cylinder. When the valve is open, fluid flows into the cylinder, causing the piston to extend. When the valve is closed, fluid flow stops and the piston retracts.

The leveling cylinder is an important safety feature of an aerial work platform. It ensures that the platform is level, which prevents the platform from tipping over and keeps the workers on the platform safe.

China Aerial Work Platform Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, small excavator bucket cylinders, construction machinery hydraulic cylinders, forklift hydraulic steering cylinders, crane luffing hydraulic cylinders and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.Raydafon is committed to providing customers with efficient hydraulic technology solutions and products, maintaining strong partnerships with customers, and leading the development of China’s hydraulic industry through more scientific solutions. Raydafon aims to make more contributions to the sustainable development of society, the construction of green cities, and building a better future.
