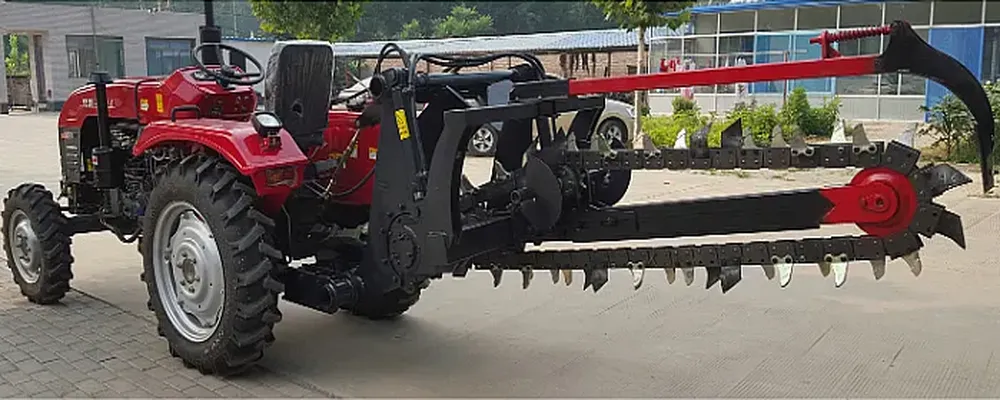

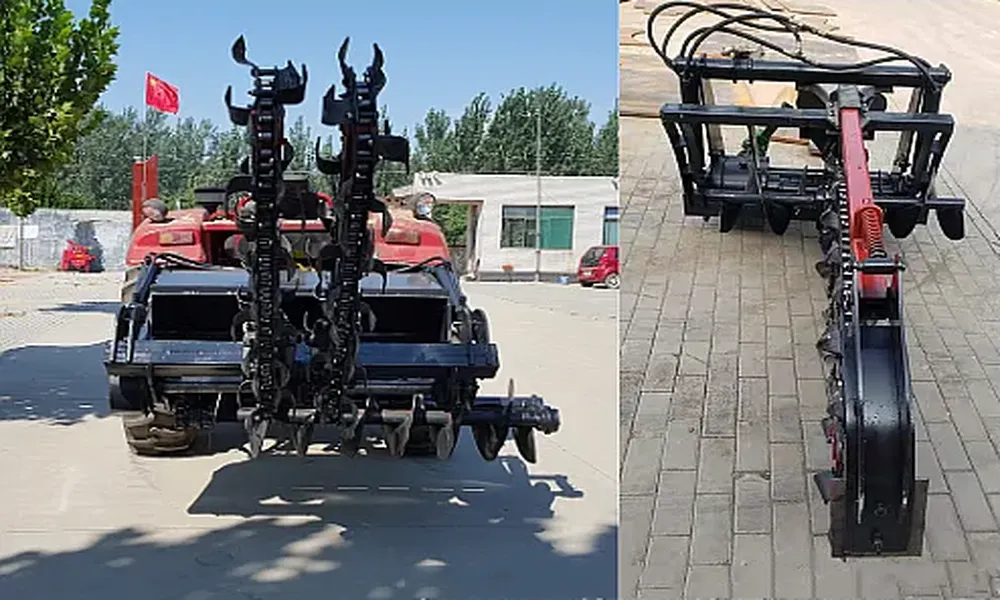

Agricultural Equipment Chain Trencher Digger

Introducing our top-of-the-range Agricultural Equipment Chain Trencher Digger, a piece of machinery designed to revolutionize trenching operations on farms. This high-productivity tool is a single chain trencher with a weight of 800kg. The product is brand new and comes with a warranty of 1 year, including warranty of core components. The primary core component of the trencher is the gearbox. The trencher is designed for agricultural trenching operations and is powered by a 50-80hp engine. It boasts of a trenching width of 15-20cm and a trenching depth of 1.5m. The trencher is three-pointed mounted and the material of the knife is a robust 65Mn Spring steel or carbide blade.

Key Advantages of the Agricultural Equipment Chain Trencher Digger

The Agricultural Equipment Chain Trencher Digger offers numerous advantages including:

1. 1. High Productivity: The trencher is designed for maximum efficiency and high yield in your trenching operations.
   2. Powerful Performance: With a matched power of 50-80hp, this trencher can handle tough trenching tasks with ease.
   3. Versatility: The trencher is suitable for a range of agricultural trenching operations.
   4. Reliability: With a warranty of 1 year, users can trust the reliability and durability of this trencher.
   5. Quality Components: The trencher is built with high-quality core components, including a robust gearbox.

1. User-friendly Design: Its three-point mounted design makes it easy to use and manoeuvre during operations.

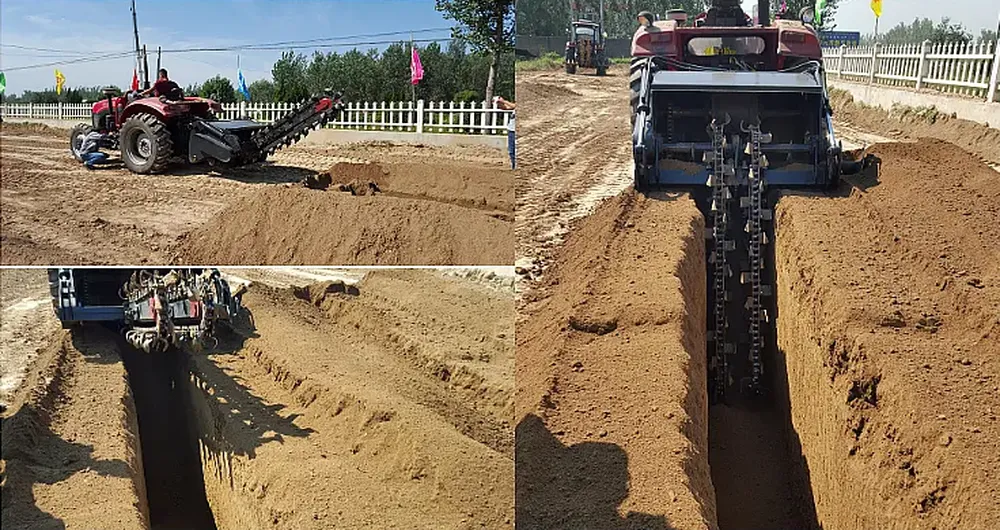

Applications of the Agricultural Equipment Chain Trencher Digger

The Agricultural Equipment Chain Trencher Digger is a versatile tool with numerous applications:

1. Agricultural Drainage: This trencher is perfect for creating drainage ditches in agricultural fields.
2. Landscaping: It can be used to dig trenches for landscaping purposes, such as creating borders or installing edging materials.
3. Installation of Irrigation Systems: The trencher is ideal for digging trenches for irrigation pipes.
4. Construction: It can be used in construction sites for digging trenches for laying cables or pipes.
5. Road Works: The trencher can be used in road construction for creating drainage ditches.
6. Farm Infrastructure: It can be used to install farm infrastructure like fences and water systems.

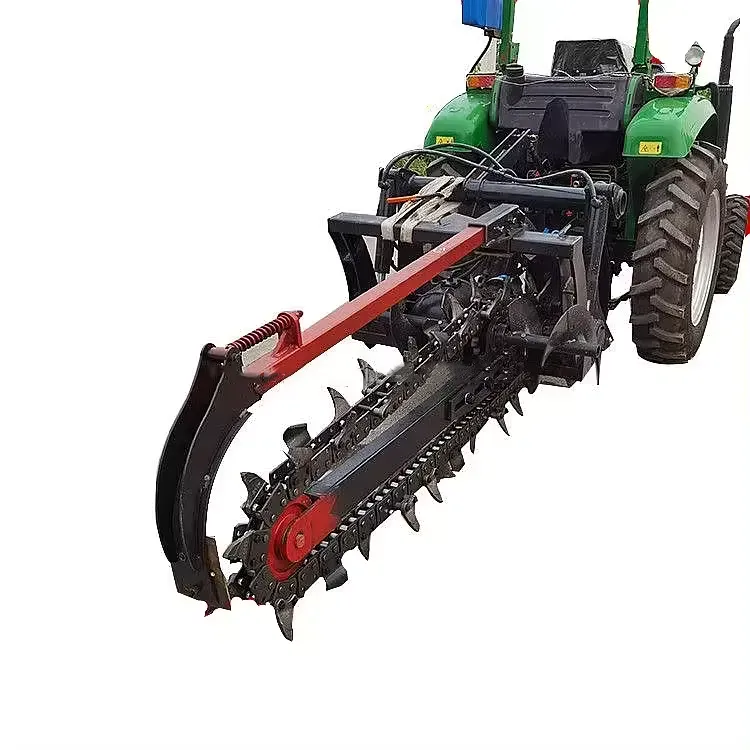

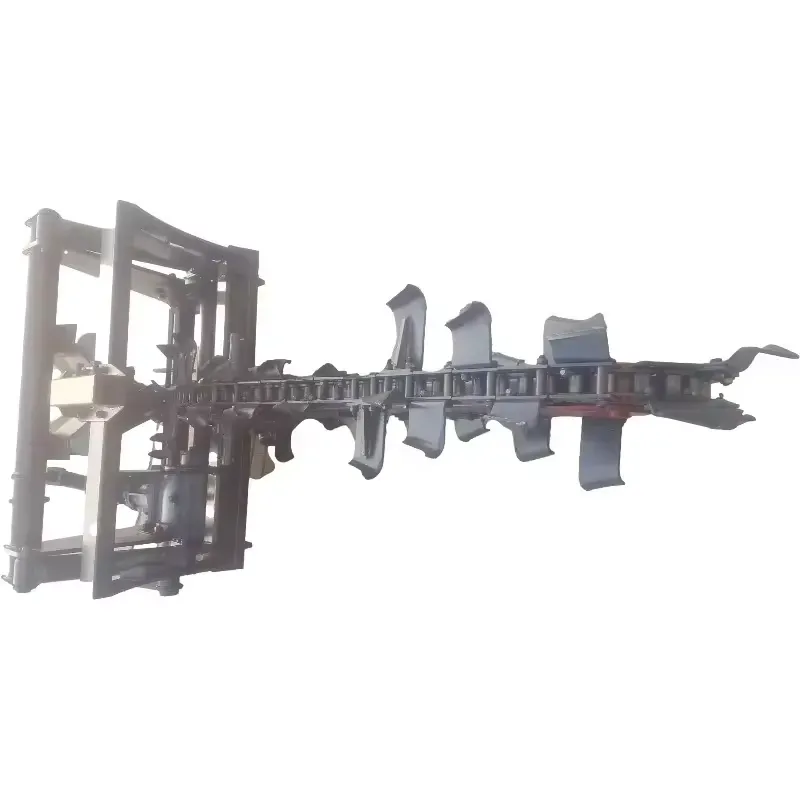

Key Components of the Tractor 3 Point Mounted Chain Trencher

The Tractor 3 Point Mounted Chain Trencher is a versatile and powerful tool for trenching operations. Understanding the key components of this equipment can enhance its efficient operation and proper maintenance. The key components include:

1. Three-Point Hitch: The three-point hitch allows the trencher to be attached to the tractor. It includes two lower arms and one upper arm, which connect to corresponding points on the trencher.
2. Power Take-Off (PTO) Shaft: The PTO shaft transfers mechanical power from the tractor to the trencher. It is crucial for driving the trencher's chain mechanism and comes with a protective shield for safety.
3. Chain with Digging Teeth: This is the primary digging component. The chain, equipped with teeth, rotates around a metal frame or boom and cuts through the soil. The teeth vary in design to suit different soil types and trenching requirements.
4. Boom: The boom supports the chain and determines the depth of the trench. Its length can be adjusted to change the trench depth, and some trenchers allow for boom angle adjustments to control the slope of the trench bottom.
5. Drive System: This system, including a gearbox and possibly a hydraulic motor, translates the power from the PTO shaft to the movement of the chain.
6. Soil Ejection System: This system removes excavated soil from the trench path. It often consists of a conveyor or auger mechanism, though simpler models may rely on the design of the chain and teeth to throw soil to the side.

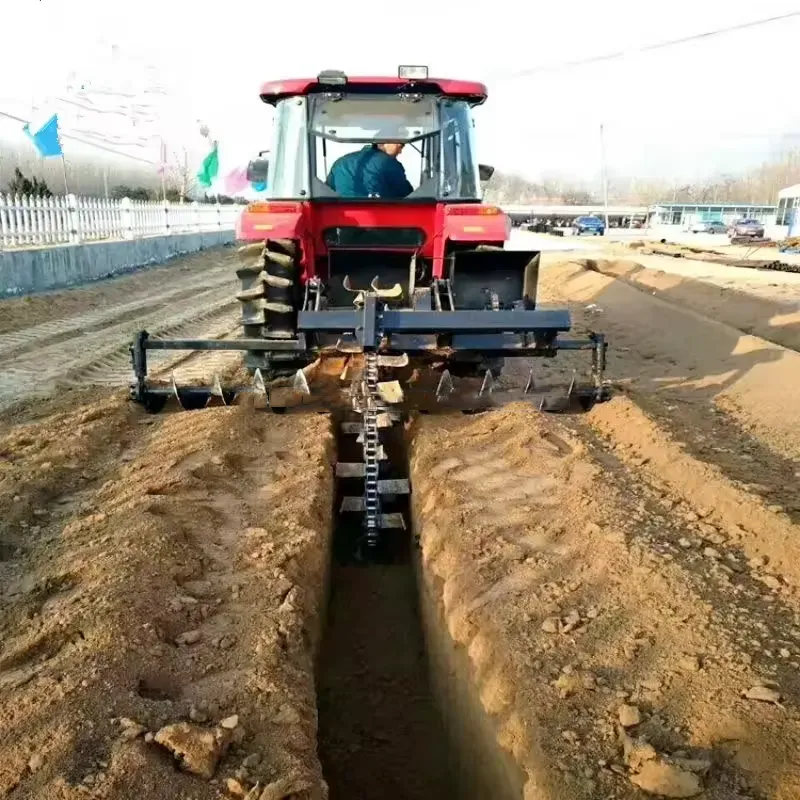

How Does the Tractor 3 Point Mounted Chain Trencher Work?

The Tractor 3 Point Mounted Chain Trencher works through a combination of tractor power and specialized trenching equipment design. Here??s a step-by-step breakdown of its operation:

1. Attachment and Power Source: The trencher is attached to the tractor via the three-point hitch. Once PTO mounted, the trencher is powered by the tractor??s PTO shaft. The PTO is a splined drive shaft that extends from the tractor and provides a method for transferring power from the tractor??s engine to the trencher.
2. Chain and Boom Operation: When the PTO is engaged, it drives the trencher's chain mechanism. The trencher??s chain is looped around a metal boom and is equipped with cutting teeth. As the chain rotates around the boom, the teeth cut into the soil, breaking it up and removing it from the trench path.
3. Depth Control: The depth of the trench is controlled by the length of the boom and the adjustment mechanism on the trencher. This can be set manually or through a hydraulic system, depending on the trencher model.
4. Movement and Trench Formation: As the tractor moves forward, the rotating chain digs a continuous trench in the soil. The speed of the tractor??s movement and the PTO rotation speed are factors that can affect the quality and uniformity of the trench.

How to Install the 3 Point Mounted Chain Trencher to Tractor

Installing a 3-point mounted chain trencher to a tractor involves several steps to ensure a secure and proper connection. The following steps provide a general overview of how to attach a chain trencher to a tractor:

1. Read Manuals: Start by thoroughly reading the operator's manuals for both the tractor and the trencher. Familiarize yourself with any specific mounting instructions and safety precautions. Check the tractor and trencher for any signs of wear or damage.
2. Positioning the Tractor and Trencher: Position the tractor close to the trencher so that the three-point hitch arms of the tractor are near the trencher's mounting points. Ensure that the trencher is stable and securely positioned on the ground.
3. Attaching the Trencher: Use the tractor's controls to lower the three-point hitch to a height that aligns with the trencher's mounting brackets. Attach the lower arms of the three-point hitch to the corresponding mounts on the trencher. Secure them with the locking pins provided.
4. Connecting the PTO Shaft: Align the PTO shaft on the trencher with the PTO stub on the tractor. Slide the PTO shaft onto the tractor's PTO stub. Ensure that the locking pin snaps into place, securing the shaft.
5. Final Checks: Walk around the tractor and trencher to make a final inspection. Ensure everything is correctly attached and secure. Before starting your trenching work, test the attachment in a safe, clear area to ensure it operates as expected.

Common Troubleshooting for the Chain Trencher Digger

Troubleshooting a tractor 3-point mounted chain trencher involves identifying and resolving common issues that may arise during its operation. Here are some common troubleshooting tips:

1. 1. Trencher Won't Start or Operate: Check the PTO shaft connection to both the tractor and the trencher. For models with hydraulic adjustments, check the hydraulic fluid levels and look for leaks in the lines.
   2. Trencher Chain Doesn??t Move: Verify that the tractor's PTO is engaged and the tractor is running at the correct RPM. An overly tight or loose chain can hinder movement. Adjust the chain tension according to the manufacturer's specifications.
   3. Inefficient Trenching or Poor Trench Quality: Inspect the chain for worn or missing teeth. Replace them as needed to maintain effective trenching. Ensure the trench depth is correctly set for the soil conditions and the task at hand.
   4. Trencher Vibrates Excessively: Check if the chain is evenly tensioned and not missing any teeth, which can cause imbalance. Inspect the trencher for any loose parts or connections that could be causing instability.

1. Excessive Wear on Chain or Teeth: Hard, rocky, or abrasive soil can increase wear. Consider using teeth and chains designed for specific soil types. Incorrect chain tension can lead to increased wear. Adjust according to the manufacturer's guidelines.
