Tillage Ditch with Chain Trencher for Digging Ditch

The Tillage Ditch with Chain Trencher is a high productivity tool designed for efficient agricultural trenching operations. This machinery comes with a one-year warranty and is particularly suited for farm use. Weighing approximately 800kg, this robust and durable product has been newly introduced to the market in 2024.

Advantages of Tillage Ditch with Chain Trencher

The Tillage Ditch with Chain Trencher boasts numerous benefits that make it stand out in the market:

1. High Productivity: This trencher has been designed to maximize productivity, making it a valuable tool for any agricultural operation.
2. Versatility: It is compatible with a range of power sources, with matched power ranging from 50 to 80hp.
3. Flexibility: With a trenching width of 15-20cm and a depth of 1.5m, this single chain trencher can be adjusted to meet various trenching requirements.
4. Sturdy Construction: The core components consist of a highly durable gearbox. The trencher teeth are made of 65Mn Spring steel or carbide blade, ensuring longevity and effectiveness.
5. Three-Pointed Mounted: The tillage ditch with chain trencher can be easily attached to the tractor for easy maneuverability.
6. Safe and Reliable: The provision of video outgoing-inspection and machinery test reports adds an extra layer of safety and reliability to the product.

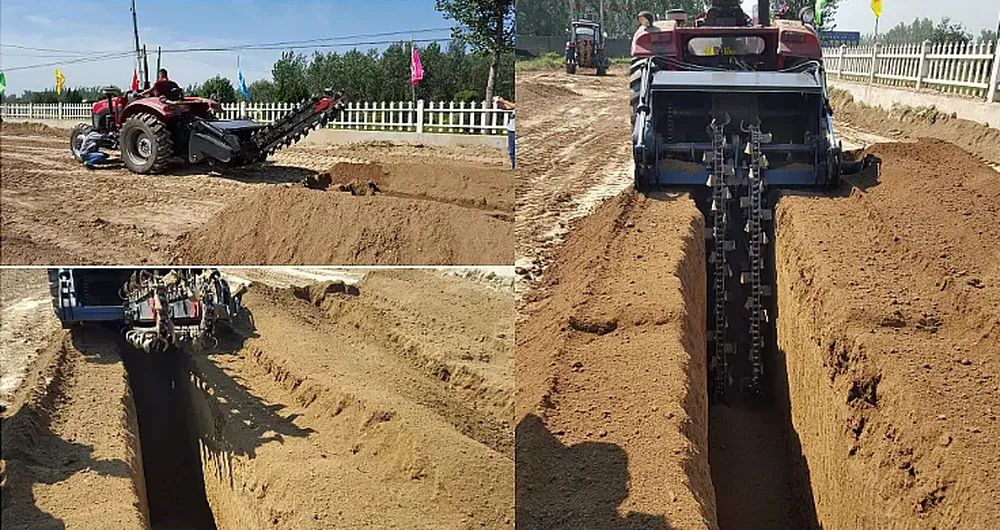

Applications of Tillage Ditch with Chain Trencher

The Tillage Ditch with Chain Trencher is versatile and can be used in various agricultural operations:

1. 1. Creating irrigation canals for water management.
   2. Digging trenches for laying underground pipes and cables.
   3. Soil preparation for planting crops.

1. Drainage ditch creation to prevent water logging on farms.
2. Construction of fence footings in agricultural settings.
3. Landscaping tasks, such as creating garden paths or decorative trenches.

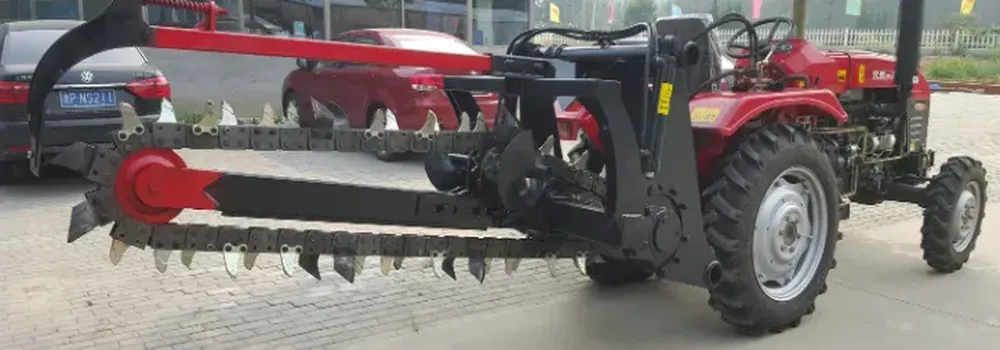

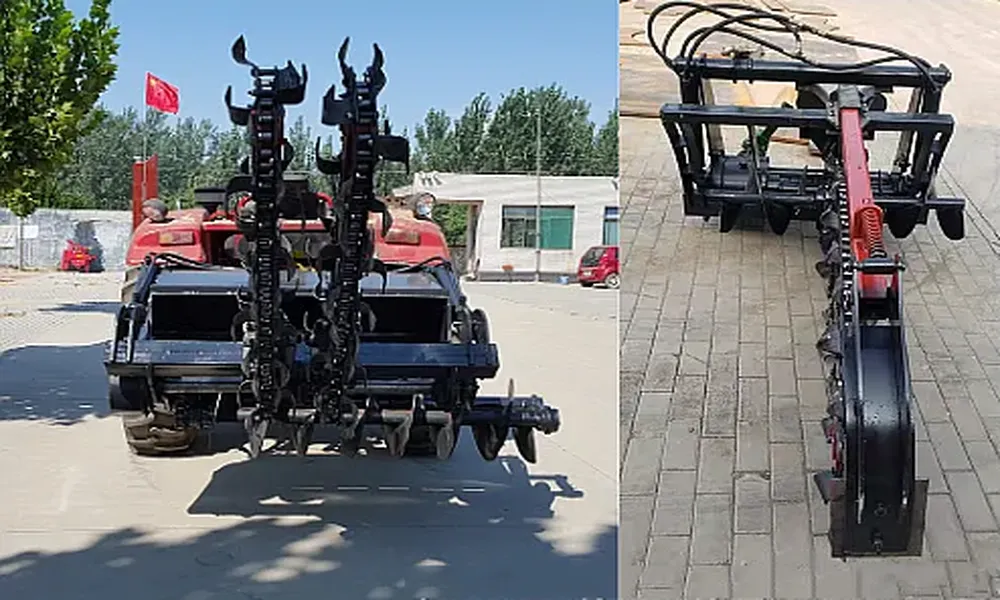

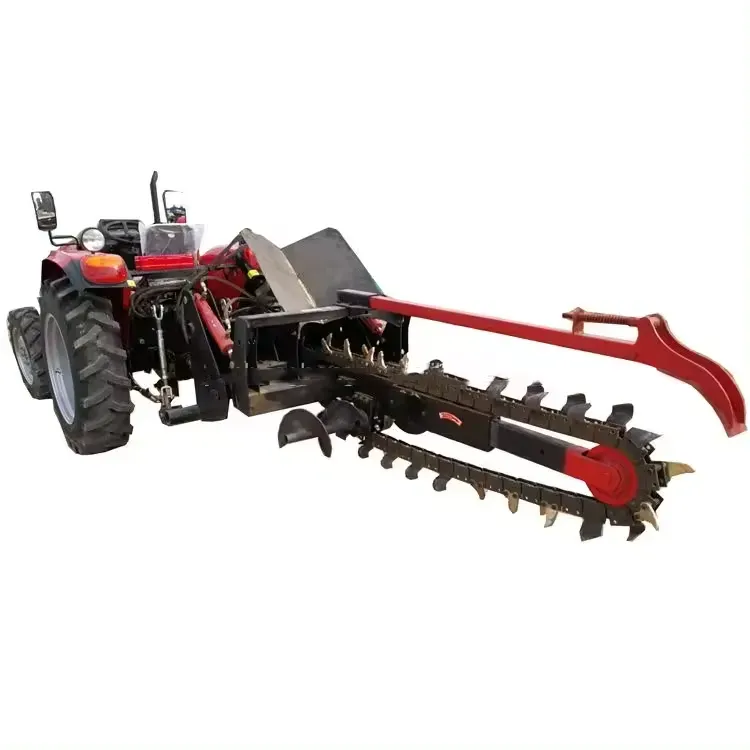

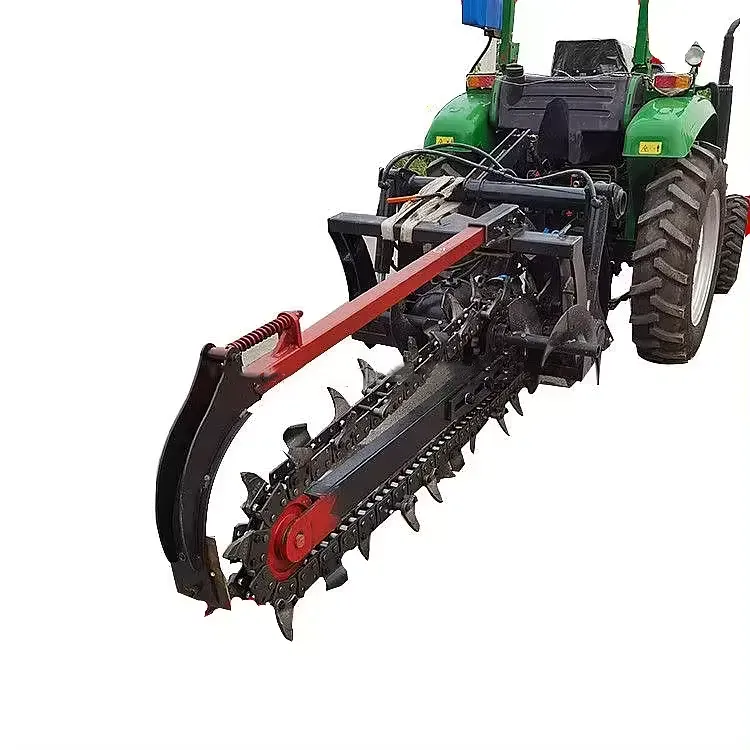

Key Components of the Tractor 3 Point Mounted Chain Trencher

The Tractor 3 Point Mounted Chain Trencher is a versatile tool for digging precise trenches. The key components of the Trencher include:

1. Three-Point Hitch: This allows the trencher to be attached to the tractor. The three-point hitch is a standard type of linkage system used on tractors to attach implements in a flexible manner.
2. Power Take-Off (PTO) Shaft: This transfers mechanical power from the tractor to the trencher, driving the trencher's chain mechanism.
3. Chain with Digging Teeth: The primary digging component, this chain rotates around a metal frame or boom, equipped with teeth that cut through the soil.
4. Boom: This supports the chain and determines the depth of the trench. The boom length can often be adjusted to change the trench depth.
5. Drive System: This includes a gearbox and possibly a hydraulic motor, depending on the trencher model. It translates the power from the PTO shaft to the movement of the chain.
6. Soil Ejection System: This removes excavated soil from the trench path, often consisting of a conveyor or auger mechanism.

How Does the Tractor 3 Point Mounted Chain Trencher Work?

The Tractor 3 Point Mounted Chain Trencher works through a combination of tractor power and specialized trenching equipment design. Here??s how it operates:

1. Attachment and Power Source: The trencher is attached to the tractor via the three-point hitch, and powered by the tractor??s PTO shaft.
2. Chain and Boom Operation: The PTO drives the trencher's chain mechanism, which cuts into the soil, breaking it up and removing it from the trench path.
3. Depth Control: The depth of the trench is controlled by the length of the boom and the adjustment mechanism on the trencher.

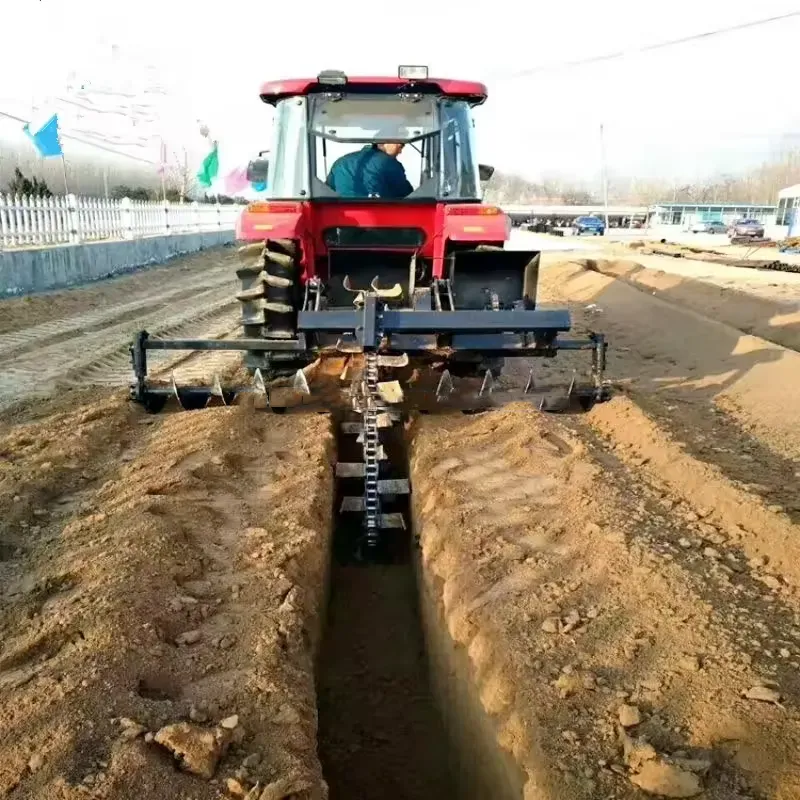

4. Movement and Trench Formation: As the tractor moves forward, the rotating chain digs a continuous trench in the soil.

How to Install the 3 Point Mounted Chain Trencher to Tractor

Installing a 3-point mounted chain trencher to a tractor involves several steps:

1. 1. Read Manuals: Start by thoroughly reading the operator's manuals for both the tractor and the trencher.
   2. Positioning the Tractor and Trencher: Position the tractor close to the trencher so that the three-point hitch arms of the tractor are near the trencher's mounting points.

1. Attaching the Trencher: Use the tractor's controls to lower the three-point hitch to a height that aligns with the trencher's mounting brackets.
2. Connecting the PTO Shaft: Align the PTO shaft on the trencher with the PTO stub on the tractor.
3. Final Checks: Walk around the tractor and trencher to make a final inspection.

Common Troubleshooting of the Tractor 3 Point Mounted Chain Trencher

Troubleshooting a tractor 3-point mounted chain trencher involves identifying and resolving common issues:

1. Trencher Won't Start or Operate: Ensure the PTO shaft is properly connected to both the tractor and the trencher.
2. Trencher Chain Doesn??t Move: Verify that the tractor's PTO is engaged and the tractor is running at the correct RPM.
3. Inefficient Trenching or Poor Trench Quality: Inspect the chain for worn or missing teeth.
4. Trencher Vibrates Excessively: Check if the chain is evenly tensioned and not missing any teeth. Inspect the trencher for any loose parts or connections.
5. Excessive Wear on Chain or Teeth: Hard, rocky, or abrasive soil can increase wear.

Why Choose Raydafon's Tractor Mounted Chain Trencher?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery. Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc.Our products are complete in specifications, excellent in performance, and reliable in quality. They are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.Raydafon is committed to providing professional, environmentally friendly, convenient, and efficient packaging services. We believe in ensuring the safety of your goods and providing you with a better buying experience.

Company Profile

Raydafon Machinery Manufacture Co., Ltd. is a trusted name in the agricultural machinery manufacturing industry. We specialize in a wide range of products including disc harrows, disc ploughs, disc ridgers, cultivators, corn seeders, furrow ploughs, hydraulic reversible plows, farm trailers, hole diggers, boom sprayers, rotary tillers, fertilizer spreaders, hydraulic two-way disc ploughs, plough disc blades, and harrow disc blades, among others.We are committed to providing top-quality products that enhance productivity and efficiency in various agricultural operations. Our products are designed to meet the highest standards of performance and durability.

After-Sales Services

At Raydafon Machinery Manufacture Co., Ltd., we believe in providing comprehensive after-sales services to ensure our customers have a seamless experience. Our team of skilled professionals is always ready to provide technical support, maintenance services, and prompt solutions to any product-related issues.

Get in Touch

If you are interested in our Tillage Ditch with Chain Trencher or any other product, please get in touch with us. We look forward to providing you with high-quality agricultural machinery and exceptional customer service.

Watch Our Product in Action
