Tractor 3 Point Linkage Chain Trencher for Agricultural Trenching Operations
  • Tractor 3 Point Linkage Chain Trencher for Agricultural Trenching OperationsTractor 3 Point Linkage Chain Trencher for Agricultural Trenching Operations

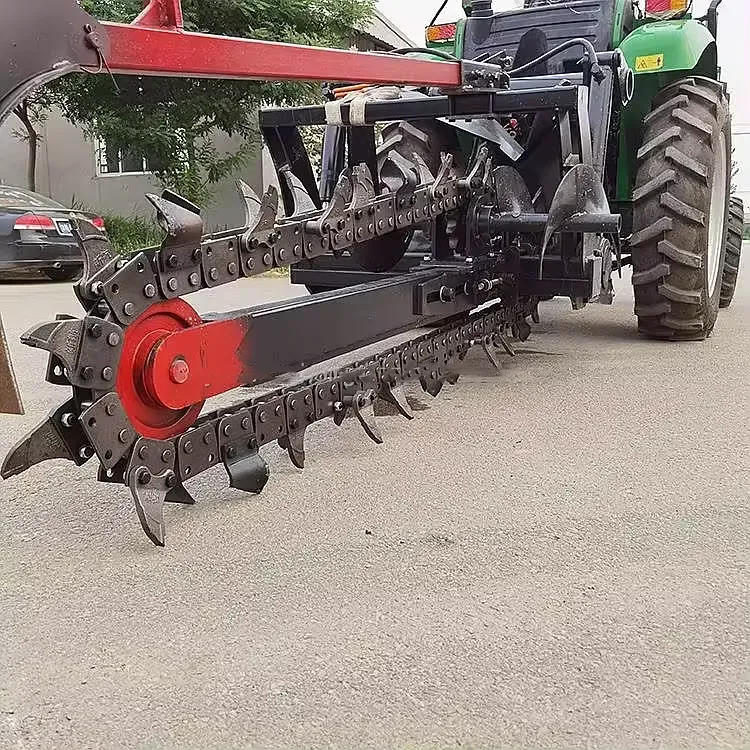

Tractor 3 Point Linkage Chain Trencher for Agricultural Trenching Operations

Introducing the Tractor 3 Point Linkage Chain Trencher by Raydafon Guoup—your ultimate solution for efficient agricultural trenching. Designed for heavy-duty use, it offers superior durability, precision digging, and seamless tractor compatibility, saving farmers time and effort. Ideal for irrigation and drainage tasks, this trencher ensures smooth operations and enhanced productivity. Experience unmatched reliability and performance, elevating your farming efficiency with every use. Upgrade to Raydafon Guoup and turn challenging trenches into effortless achievements.
[embed]https://youtu.be/f6nv2ByPjb8[/embed] A tractor 3-point linkage chain trencher is an agricultural and construction tool designed to dig narrow trenches for various purposes such as laying pipes, cables, drainage, and irrigation systems. This type of trencher is attached to and powered by a tractor using the three-point hitch system, a standard method of attaching implements to tractors. The device utilizes a heavy-duty digging chain, similar to that of a chainsaw but larger, which is driven by the tractor's power take-off (PTO) system. Discover the power and efficiency of our Tractor 3-point linkage chain trencher for sale. With a 1-year warranty and designed specifically for farm use, this trencher boasts a weight of 800 KG and comes with a machinery test report. It's a new product for 2024, featuring a robust gearbox as its core component. This high productivity, single chain trencher is perfect for agricultural trenching operations. The trencher requires a matched power of 50-80hp and offers a trenching width of 15-20cm and depth of 1.5m. It is designed with a three-point mounted linkage and uses a 65Mn spring steel or carbide blade. Tractor 3 Point Linkage Chain Trencher for Agricultural Trenching Operations

Specifications of Tractor 3 Point Linkage Chain Trencher

Product name
Tractor 3 point linkage chain trencher for sale
Trenching width
15-20cm
Trenching height
1.5m
No. of chain
single
Weight
about 800kg
Matched power
50-80hp
Working Environment
Soft Soil/Normal Land
Working Speed
100-400m/h

Advantages of the Tractor 3-point Linkage Chain Trencher

Using a tractor 3-point linkage chain trencher offers numerous advantages, particularly in terms of efficiency, precision, versatility, and cost-effectiveness for digging operations across various sectors like agriculture, construction, and landscaping. Here are some of the key advantages: 1. Efficiency: The trencher's design and power source from the tractor make it highly efficient for digging trenches. The rotating chain with sharp digging teeth or blades can quickly cut through soil, allowing for faster completion of trenching tasks compared to manual labor or alternative methods. 2. Versatility: Tractor 3-point linkage chain trenchers are versatile tools that can be used for a wide range of trenching applications. They can create trenches of different sizes and depths, making them suitable for tasks such as installing irrigation lines, laying utility cables, creating drainage systems, burying pipes, and more. The ability to adjust the boom angle and depth control wheel enhances their versatility. 3. Precise Digging: These trenchers offer precise digging capabilities, allowing for accurate trench dimensions. The operator can adjust the depth control wheel and monitor the trenching process from the tractor's seat, ensuring consistent trench depth throughout the project. This precision is crucial for applications where the trench dimensions need to meet specific requirements. 4. Increased Productivity: By utilizing a tractor's power and hydraulic system, the trencher enables increased productivity on the worksite. It can dig trenches at a faster pace, reducing the time and effort required for manual digging. This increased productivity translates to cost savings and allows for more efficient completion of projects. Tractor 3 Point Linkage Chain Trencher for Agricultural Trenching Operations

Applications of the Tractor 3-point Linkage Chain Trencher

The tractor 3-point linkage chain trencher is a highly versatile piece of equipment that finds applications in various fields, including agriculture, construction, and landscaping. Its ability to efficiently dig narrow, precise trenches makes it ideal for a range of tasks: (1) Irrigation Systems: The trencher is extensively employed in the installation of irrigation systems. It can quickly and accurately dig trenches for burying irrigation lines, ensuring efficient water distribution to crops or landscaping areas. This application is crucial in agricultural fields, nurseries, golf courses, and gardens. (2) Drainage Systems: Trenchers are utilized for creating trenches to install drainage systems, including French drains or subsurface drainage pipes. These systems help manage excess water and prevent waterlogging in fields, gardens, and construction sites. The trencher's ability to dig trenches of varying depths is beneficial for effective drainage installations. (3) Pipe Laying: The trencher is commonly used for laying various types of pipes, such as water pipes, sewer lines, or gas pipelines. It provides a fast and efficient method for excavating trenches and burying pipes, minimizing disruption to the surrounding area. This application is vital in construction projects, utility installations, and infrastructure development. (4) Cable Installation: Trenchers are widely employed in the installation of cables for telecommunications, electricity, or other utility services. They can quickly dig trenches for burying cables, ensuring safe and organized cable installations. This application is essential for expanding broadband networks, improving connectivity, and meeting the increasing demand for communication infrastructure. (5) Landscaping: The trencher is a valuable tool in landscaping projects. It can be used for tasks such as creating trenches for landscape lighting, burying cables for outdoor features like fountains or sound systems, or installing sprinkler systems. The trencher's precise digging capabilities help maintain the aesthetics of the landscape while accommodating necessary infrastructure. (6) Construction: In the construction industry, trenchers are utilized for a wide range of applications. They are commonly used for excavating trenches for foundation footings, underground utilities, or drainage systems. The trencher's efficiency and speed contribute to timely project completion and reduced labor costs. Tractor 3 Point Linkage Chain Trencher for Agricultural Trenching Operations

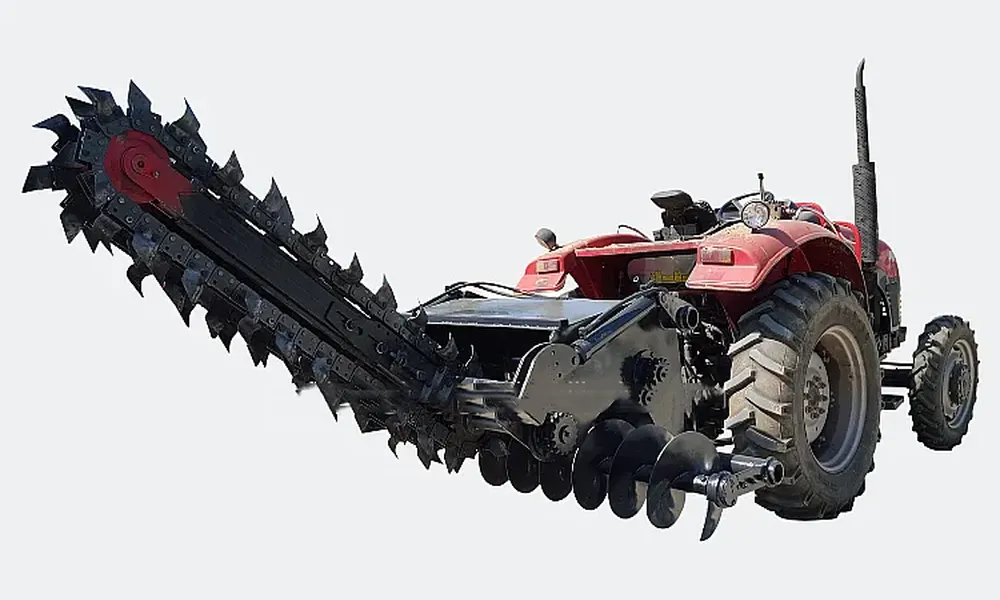

Key Components of the Tractor 3-point Linkage Chain Trencher

The tractor 3-point linkage chain trencher is an efficient and versatile piece of equipment used for digging precise trenches. It attaches to a tractor via the three-point hitch system and is powered by the tractor's power take-off (PTO). Understanding its key components is crucial for proper operation, maintenance, and troubleshooting. Here are the essential parts: 1. Three-Point Hitch
  • Purpose: Provides the means to securely attach the trencher to the tractor. This system includes two lower arms and an upper link, which facilitate easy connection and allow for adjustments in the trencher's angle and depth.
  • Components: Consists of two lower link arms and a top link that connects to the tractor at three points, offering stability and support.
2. Power Take-Off (PTO) Shaft
  • Purpose: Transfers power from the tractor to the trencher. The PTO shaft is a critical component that drives the trencher's chain mechanism.
  • Features: Comes with a protective cover to prevent accidents, ensuring the operator's safety.
3. Digging Chain
  • Purpose: The primary tool for trenching, this chain is equipped with cutting teeth designed to efficiently break through the soil.
  • Variability: Chains come in various sizes and tooth configurations to match different soil types and trenching requirements.
4. Boom
  • Purpose: Supports the digging chain and determines the depth of the trench being dug. The length and angle of the boom are adjustable to control trench depth.
  • Adjustability: Some trenchers allow for hydraulic or manual adjustments to the boom length for precise depth control.
5. Depth Control Mechanism
  • Purpose: Allows the operator to set and adjust the trench depth according to project requirements. This can be a manual adjustment or a hydraulic system in more advanced models.
  • Importance: Ensures that trenches are dug to a uniform and specific depth, which is crucial for tasks such as laying pipes or cables.
6. Drive System
  • Components: Includes gears and possibly a hydraulic motor that converts the PTO’s rotational energy into the movement needed to drive the digging chain.
  • Functionality: Ensures the efficient transfer of power to the trencher's chain, allowing for smooth operation.
7. Soil Ejection System
  • Purpose: Clears excavated soil from the trench path. Depending on the trencher model, this may involve a simple deflector plate or a more complex conveyor system.
  • Efficiency: Critical for keeping the trench clean and minimizing the need for additional cleanup.

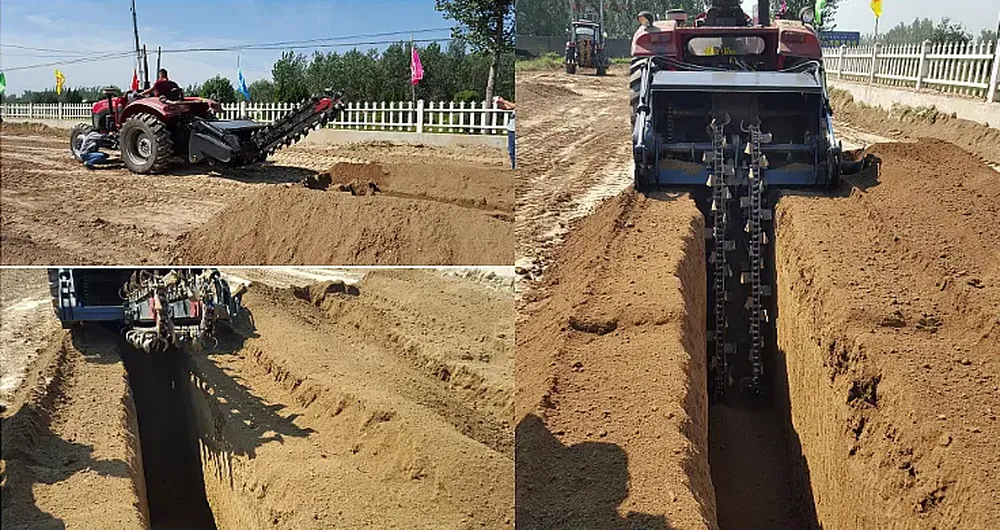

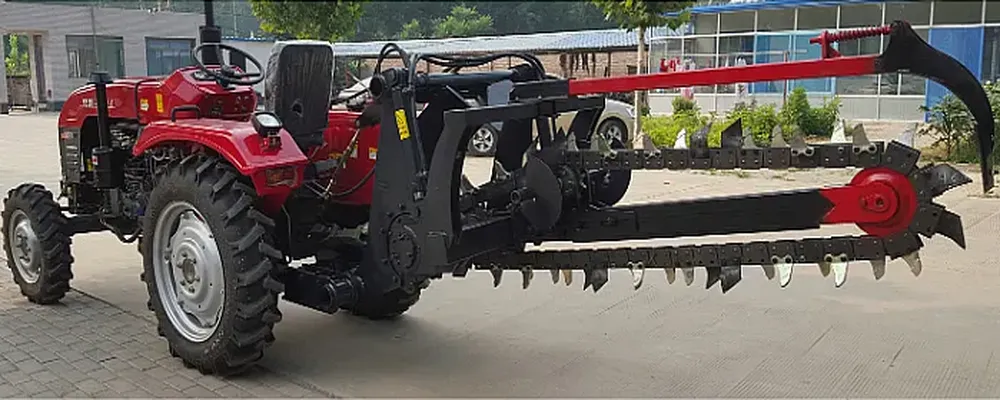

Tractor 3 Point Linkage Chain Trencher for Agricultural Trenching Operations

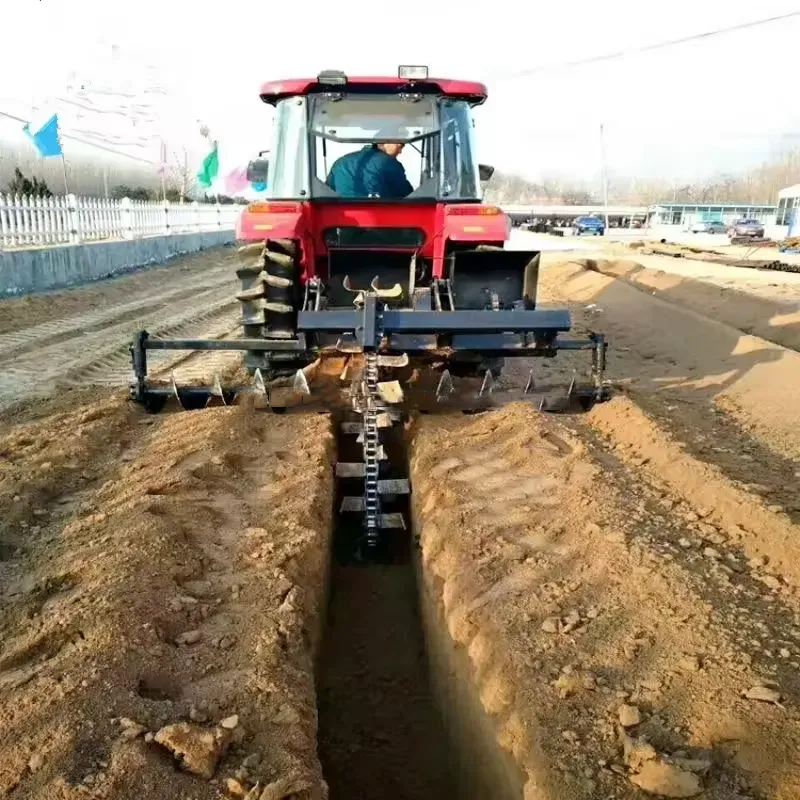

How Does the Tractor 3 Point Linkage Chain Trencher Work?

The tractor 3-point linkage chain trencher is a specialized tool designed for creating trenches in the soil, primarily for laying pipes, cables, or drainage systems. It is an efficient and effective equipment that combines the mechanical power of a tractor with a robust trenching mechanism. Here's a detailed look at how it operates: 1. Attachment and Power Source: Three-Point Hitch: The trencher is attached to the tractor using the three-point hitch system, a standard method for attaching implements to tractors. This system provides a secure attachment and allows for easy adjustment of the trenching depth. Power Take-Off (PTO): Once attached, the trencher is powered by the tractor's PTO. The PTO is a shaft that extends from the tractor and connects to the trencher, transferring the tractor's engine power to operate the trencher's chain. 2. Trenching Mechanism: Digging Chain: The heart of the trencher is its digging chain, which resembles a large chainsaw blade. This chain is equipped with cutting teeth and is mounted on a metal frame called a boom. The teeth are designed to cut through the soil efficiently. Boom: The boom determines the depth of the trench. It can be adjusted to various lengths, allowing the operator to set the desired trench depth according to the requirements of the project. Operation: When the PTO is engaged, it drives the digging chain around the boom. As the tractor moves forward, the rotating chain cuts into the soil, creating a trench. The design of the teeth and the speed of the chain rotation are crucial for effective soil removal and trench formation. 3. Soil Ejection: Ejecting Soil: As the trencher digs, the design of the chain and teeth allows for the excavated soil to be lifted out of the trench and deposited alongside it. This process keeps the trench clear for any installations, such as piping or cables. 4. Depth Control: Adjustable Depth: The depth of the trench is controlled via the three-point linkage system of the tractor, allowing the operator to adjust how deep the boom and chain dig into the soil. This adjustability is vital for various applications, ensuring that trenches are created at the correct depth for the task at hand. Tractor 3 Point Linkage Chain Trencher for Agricultural Trenching Operations

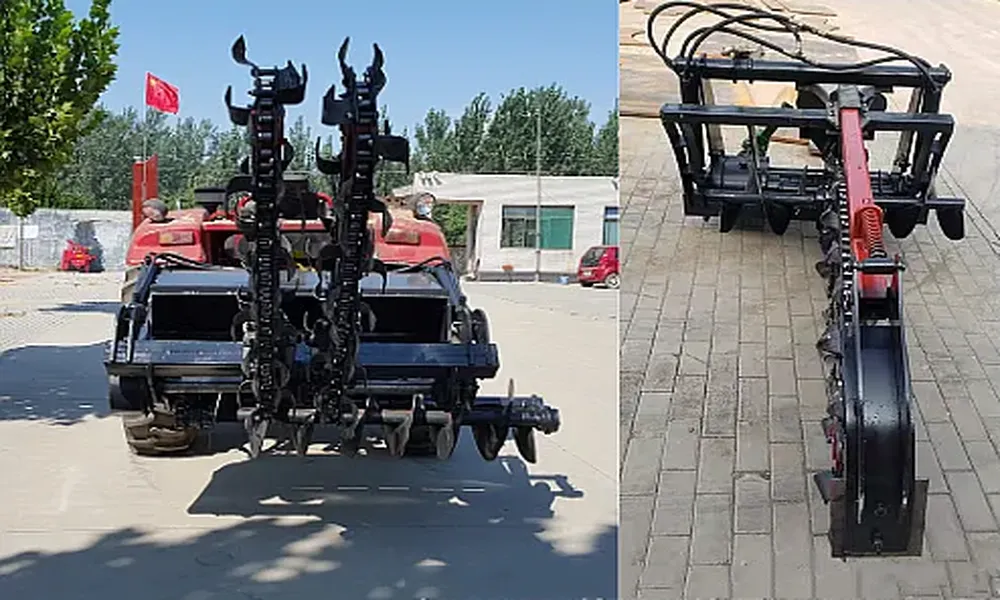

How to Install the 3 Point Mounted Chain Trencher to Tractor?

Installing a 3-point linkage chain trencher to a tractor involves several steps to ensure a secure connection and safe operation. Here’s a general guide to help you through the installation process:
  • Read the Manuals: Before starting, read the operator's manuals for both the tractor and the trencher to familiarize yourself with any specific requirements or precautions. Check both the trencher and tractor for any damage or wear that might affect operation. Ensure the PTO shaft and three-point hitch are in good condition.
  • Positioning the Tractor and Trencher: Move the tractor so that its rear three-point hitch is aligned with the trencher's mounting points. Ensure the tractor is on stable, level ground, and turn off the engine before attaching the trencher. If the trencher is not already in a stable position for attachment, adjust it so that it's properly aligned with the tractor’s three-point hitch.
  • Attaching the Trencher: Attach the lower arms of the three-point hitch to the mounting points on the trencher. Secure the arms in place using the locking pins provided. Connect the top link of the three-point hitch to the corresponding point on the trencher. Adjust the length of the top link to level the trencher as needed. Double-check that all connections are secure and that the pins are properly in place to prevent accidental detachment.
  • Connecting the PTO Shaft: Carefully align the PTO shaft on the trencher with the PTO stub on the tractor. Slide the PTO shaft onto the tractor's PTO stub, ensuring that it locks into place securely. The shaft should have some lateral movement to accommodate turning and movement over uneven ground. Ensure the protective guard over the PTO shaft is properly secured and in place to prevent accidents.
  • Final Checks: Do a final inspection of the attachment to ensure everything is correctly attached and secure. Look for any loose parts or potential issues. Start the tractor and engage the PTO at a low speed initially to ensure the trencher operates as expected. Watch for any unusual vibrations or noises that could indicate a problem.

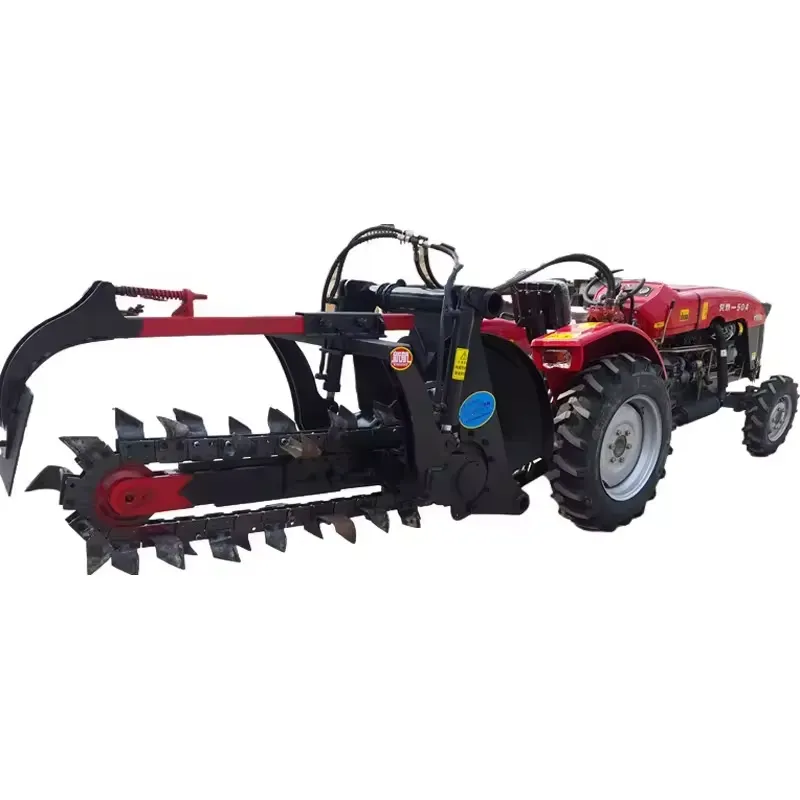

Tractor 3 Point Linkage Chain Trencher for Agricultural Trenching Operations

Common Troubleshooting of the Tractor 3 Point Linkage Chain Trencher

Troubleshooting common issues with a tractor 3-point linkage chain trencher involves diagnosing and resolving problems that may affect its operation. Here are several common troubleshooting tips to help keep your trencher running smoothly: 1. Trencher Won’t Start or Engage: Check the PTO Connection: Ensure the PTO shaft is correctly connected to both the tractor and the trencher. A misaligned or improperly connected PTO can prevent the trencher from starting. Inspect the Hydraulic System: If your model uses hydraulics for depth adjustment, check for any hydraulic fluid leaks or low fluid levels. 2. Chain Doesn’t Rotate or Stops Suddenly: PTO Engagement: Confirm that the tractor’s PTO is engaged and that the tractor is running at the correct RPM for trencher operation. Chain Tension and Blockages: Check the chain for proper tension and clear any debris or blockages that may impede movement. Overly tight or loose chains can also cause operational issues. Drive System Issues: Inspect the drive gears or hydraulic motors for damage or wear. These components are crucial for transmitting power to the chain. 3. Inefficient Trenching or Poor Quality Trenches: Worn or Damaged Teeth: Dull, worn, or missing teeth on the chain can greatly reduce trenching efficiency. Replace or sharpen the teeth as needed. Incorrect Depth Setting: Ensure the trenching depth is correctly adjusted for the task. Incorrect depth settings can affect the quality of the trench. Speed of Operation: Adjust your operational speed. Moving too quickly can result in poorly formed trenches, while too slow can cause unnecessary wear. 4. Excessive Vibration: Unbalanced Chain: Ensure the chain is evenly balanced and all teeth are intact. Missing teeth or an unbalanced chain can cause excessive vibration. Loose Components: Check for any loose parts or components on the trencher and tighten them. Vibration can loosen bolts and fixtures over time. Damaged Bearings or Bushings: Worn bearings or bushings in the trencher’s drive system can lead to excessive vibration and should be replaced. 5. Trencher Moves Slowly or Lacks Power: Tractor Power Output: Verify that the tractor is operating at the correct power output for the trencher. Insufficient power can affect trencher performance. Hydraulic System Pressure: For trenchers with hydraulic systems, check the system pressure. Low pressure can result in reduced power and efficiency. Drive System Wear: Check for wear or damage to the trencher’s drive belts, chains, or gears, which can impact power transmission. Tractor 3 Point Linkage Chain Trencher for Agricultural Trenching Operations

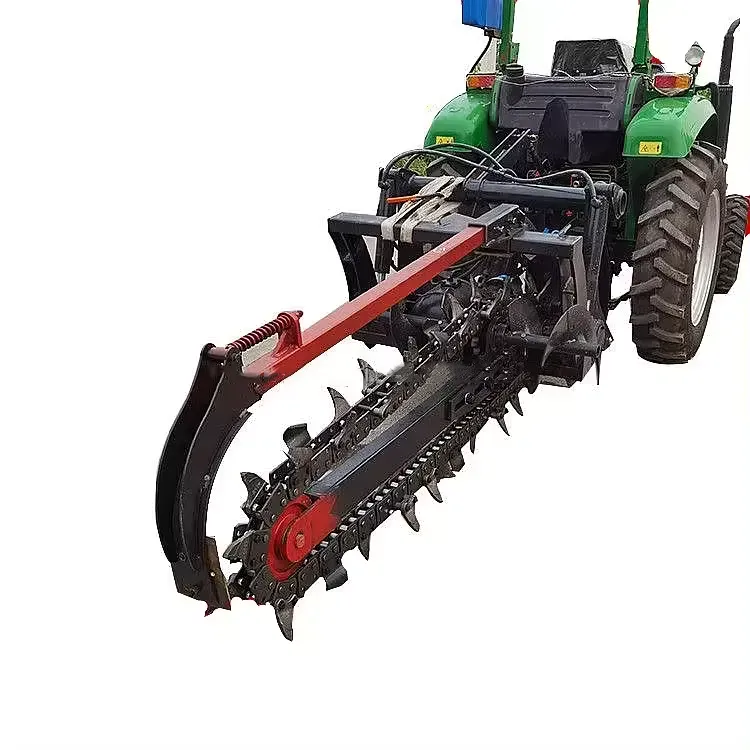

Why Choose Raydafon's Tractor Mounted Chain Trencher?

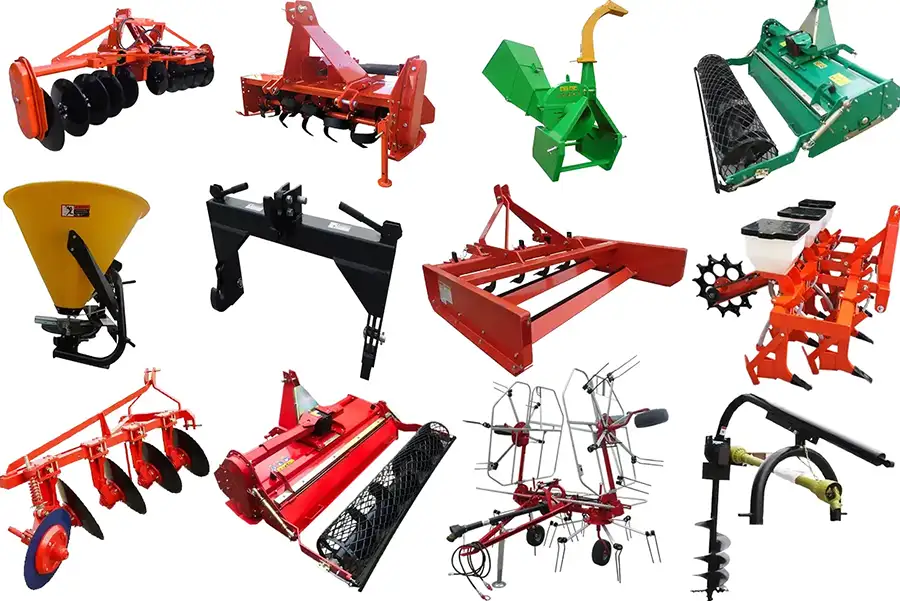

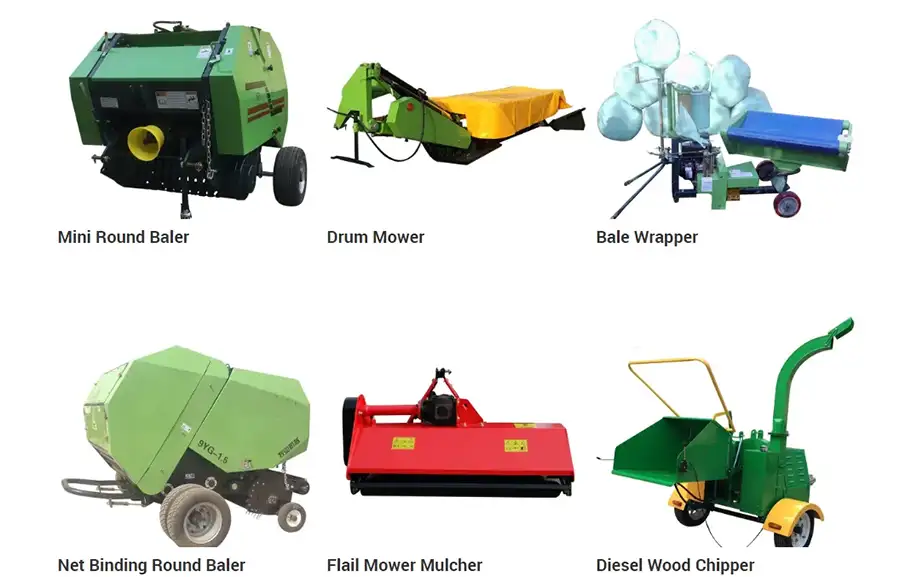

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery. Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, square baler, PTO wood chipper, diesel wood chipper, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. Tractor 3 Point Linkage Chain Trencher for Agricultural Trenching Operations Tractor 3 Point Linkage Chain Trencher for Agricultural Trenching Operations Our products are complete in specifications, excellent in performance, and reliable in quality. They are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. Raydafon is committed to providing professional, environmentally friendly, convenient, and efficient packaging services. We believe in ensuring the safety of your goods and providing you with a better buying experience.

Company Profile

Raydafon Machinery Manufacture Co., Ltd. is a trusted name in the agricultural machinery manufacturing industry. We specialize in a wide range of products including disc harrows, disc ploughs, disc ridgers, cultivators, corn seeders, furrow ploughs, hydraulic reversible plows, farm trailers, hole diggers, boom sprayers, rotary tillers, fertilizer spreaders, hydraulic two-way disc ploughs, plough disc blades, and harrow disc blades, among others. We are committed to providing top-quality products that enhance productivity and efficiency in various agricultural operations. Our products are designed to meet the highest standards of performance and durability. Tractor 3 Point Linkage Chain Trencher for Agricultural Trenching Operations

After-Sales Services

At Raydafon Machinery Manufacture Co., Ltd., we believe in providing comprehensive after-sales services to ensure our customers have a seamless experience. Our team of skilled professionals is always ready to provide technical support, maintenance services, and prompt solutions to any product-related issues.

Get in Touch

If you are interested in our Tillage Ditch with Chain Trencher or any other product, please get in touch with us. We look forward to providing you with high-quality agricultural machinery and exceptional customer service.
