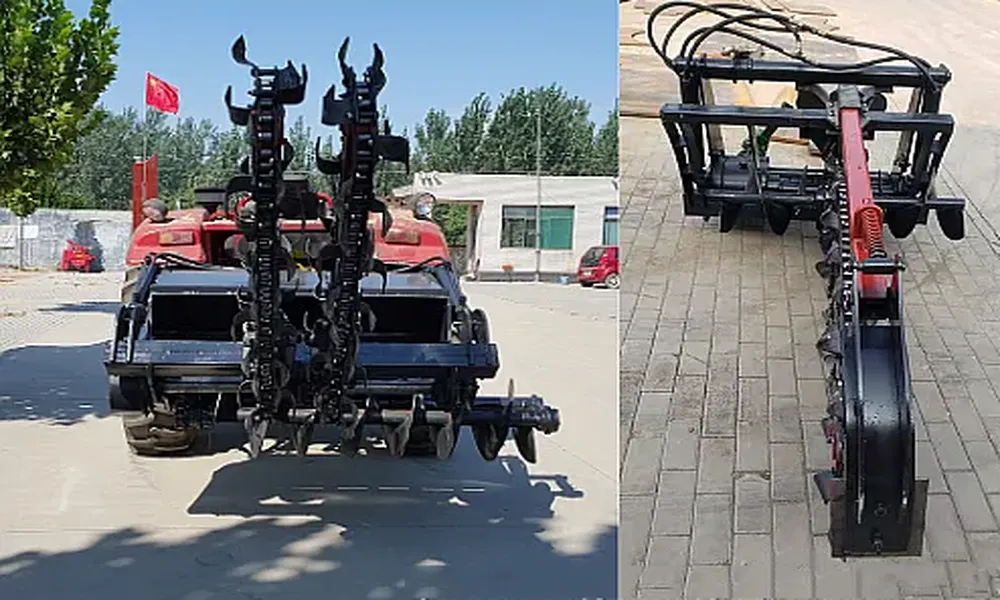

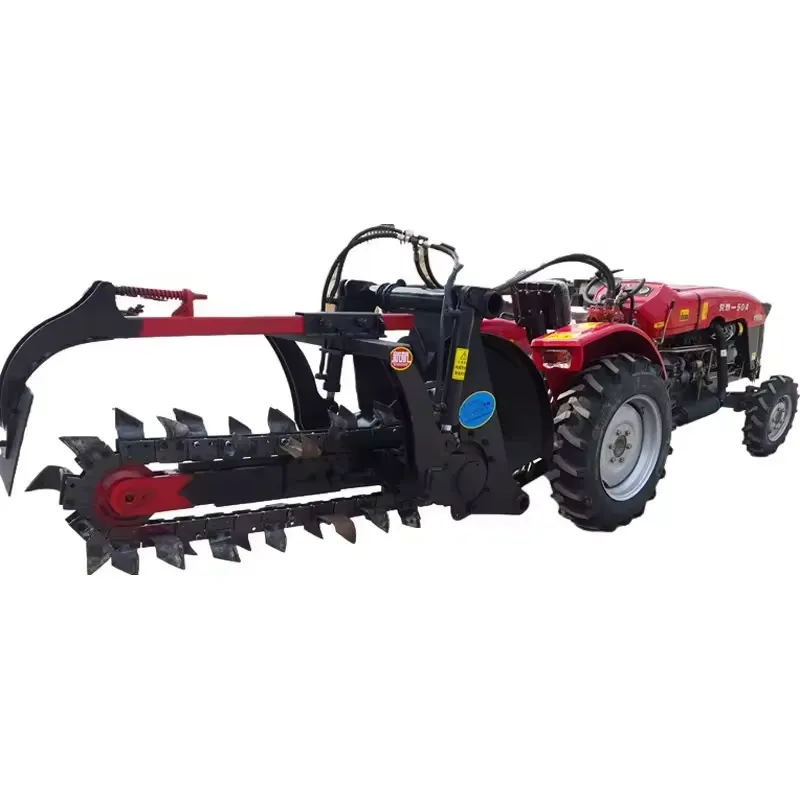

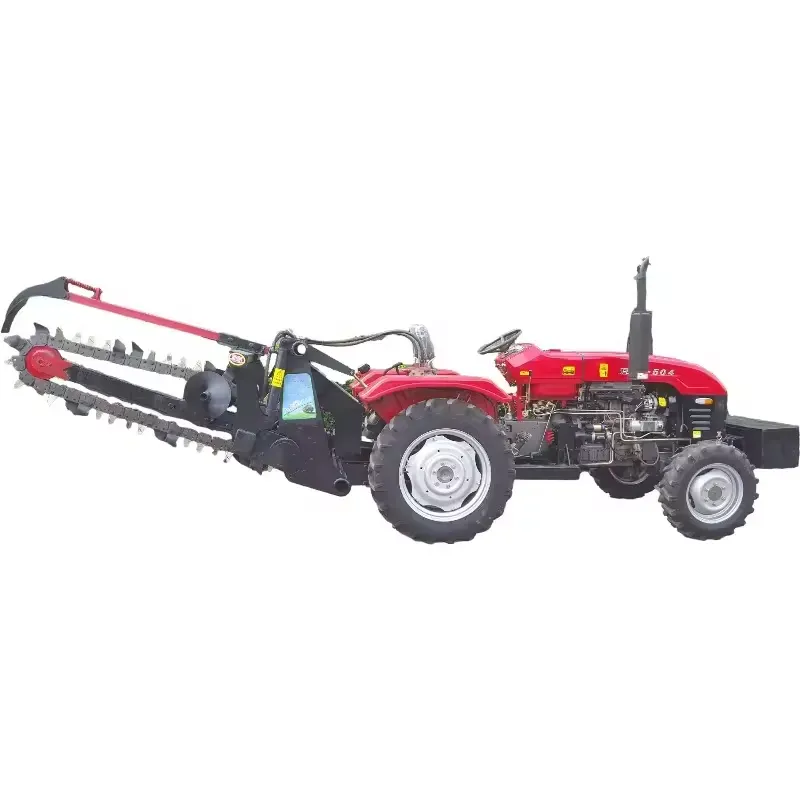

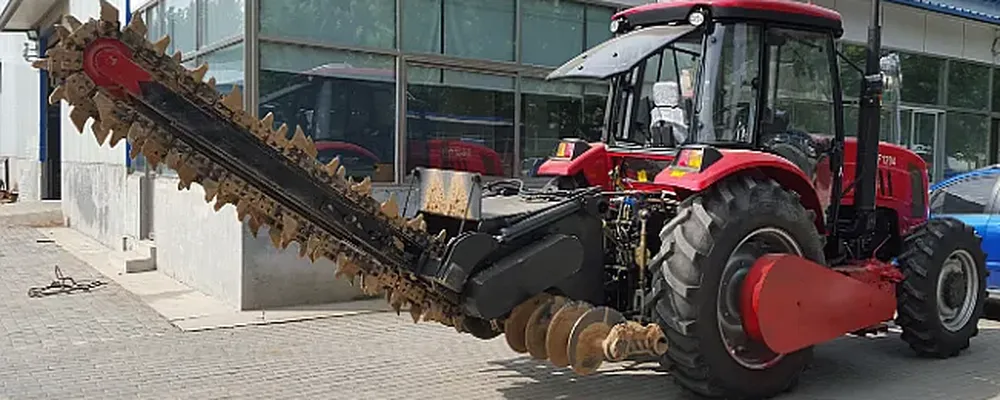

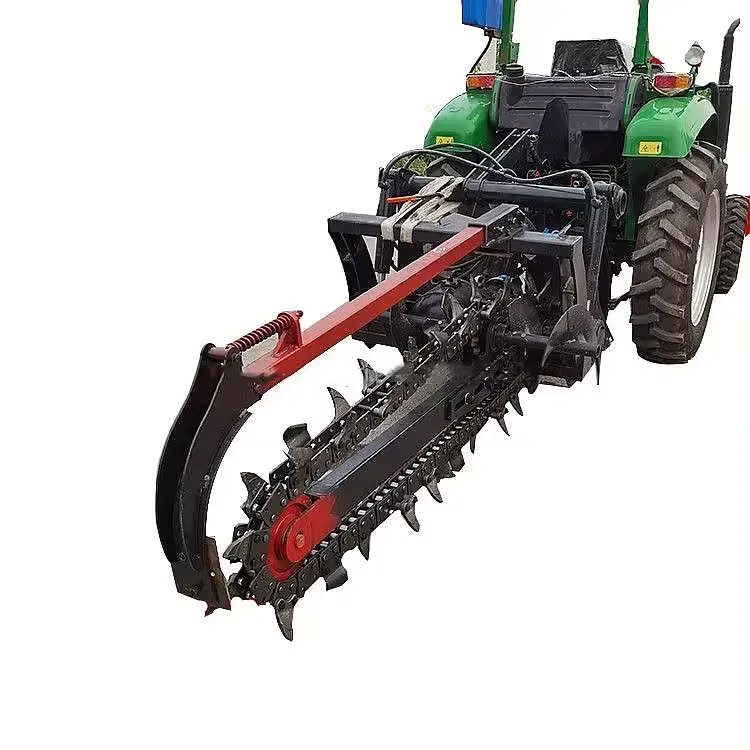

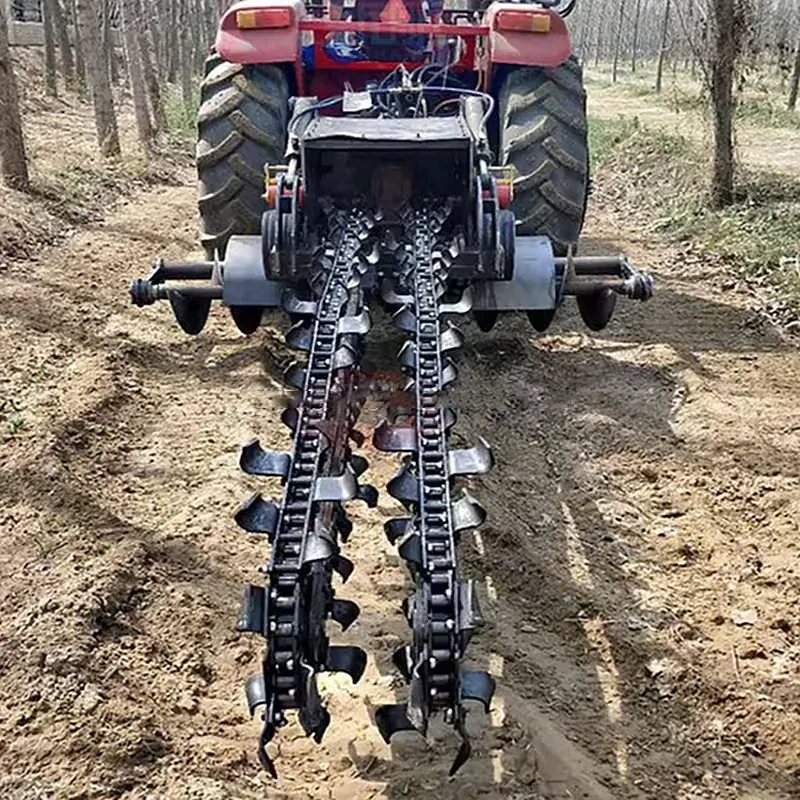

Four Wheel Tractor Drive Chain Trencher for Digging Ditch

[embed]https://youtu.be/f6nv2ByPjb8[/embed] A tractor drive chain trencher for digging ditches is a highly specialized piece of agricultural and construction equipment, designed to create trenches in the ground with precision and efficiency. This machinery is typically attached to and powered by a tractor, utilizing the tractor’s power take-off (PTO) system to drive a chain equipped with cutting teeth around a metal boom, effectively excavating a trench as it moves across the ground. The Four Wheel Tractor Drive Chain Trencher is a versatile and high-quality piece of machinery designed for agricultural trenching operations. With a weight of 800 KG, this trencher is suitable for farms and other applicable industries. It offers a warranty of 1 year, ensuring reliable performance and peace of mind for buyers. The trencher is a new product for 2024, equipped with a single chain trencher and a gearbox as its core components. This machinery is designed for high productivity, with a trenching width of 15-20 cm and a depth of 1.5m. Its matched power is 50-80hp and it comes with a three-pointed mounted linkage. The material of the knife is high-quality 65Mn Spring steel or carbide blade.

Specifications of Four Wheel Tractor Drive Chain Trencher

Product name	Four wheel tractor drive chain trencher
Trenching width	15-20cm
Trenching height	1.5m
No. of chain	single
Weight	about 800kg
Matched power	50-80hp
Working Environment	Soft Soil/Normal Land
Working Speed	100-400m/h

Benefits of Using the Four Wheel Tractor Drive Chain Trencher

The tractor drive chain trencher, when used for digging ditches and trenches, offers a plethora of benefits that streamline operations in agriculture, construction, and landscaping. Here’s a closer look at the advantages of employing this powerful equipment: 1. Increased Efficiency and Productivity: Compared to manual trenching methods, a tractor drive chain trencher significantly speeds up the process, allowing for the completion of projects in a fraction of the time. It enables continuous trenching with consistent speed and depth, enhancing productivity and operational efficiency on large projects. 2. Versatility in Applications: Whether it's laying irrigation systems, electrical conduits, drainage pipes, or foundations for fences, the trencher is adaptable to a wide range of trenching tasks. With the appropriate chain and teeth, it can efficiently cut through various soil types, from soft loam to hard clay and even rocky substrates. 3. Precision and Control: The ability to adjust the trench's width and depth ensures that the trench meets the exact specifications required for different projects, leading to more precise installations. The trencher creates a clean, narrow trench, minimizing disturbance to the surrounding area, which is especially beneficial in sensitive landscapes or cultivated land. 4. Customization: Depending on the model, tractor drive chain trenchers often come with interchangeable digging attachments or cutting teeth. This allows for customization based on the specific requirements of the project, such as varying trench widths or specialized digging needs. 5. Time and Labor Savings: By using a tractor drive chain trencher, projects that would otherwise require significant manual labor and time can be completed much faster. The trencher eliminates the need for manual digging, reducing labor costs and increasing overall productivity.

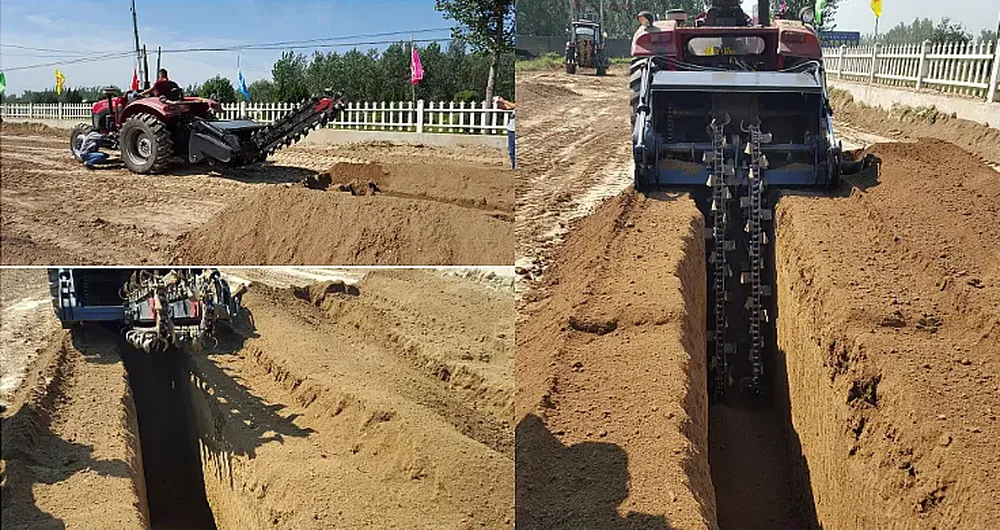

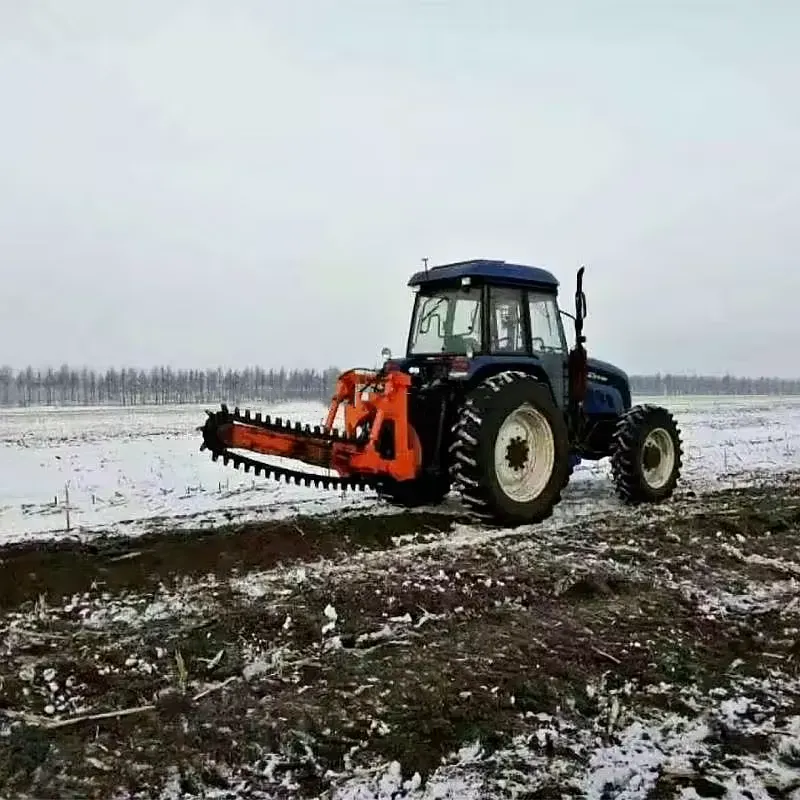

Four Wheel Tractor Drive Chain Trencher Common Applications

The Four Wheel Tractor Drive Chain Trencher is designed for a wide range of applications:

1. Agricultural Trenching: The trencher is perfect for creating trenches for irrigation systems, planting, or other farming needs.
2. Landscaping: It can be used for trenching operations in landscaping projects.
3. Construction: The trencher can be used in construction sites for creating trenches for cables, pipes, or other utilities.
4. Groundwork: It can be used for various groundwork operations, such as creating drainage systems.
5. Infrastructure Development: The trencher is ideal for trenching operations in infrastructure development projects.
6. Maintenance: It can be used for maintenance tasks, such as repairing existing trenches or creating new ones.

Key Components of the Four Wheel Tractor Drive Chain Trencher

The Tractor 3 Point Mounted Chain Trencher is a versatile and powerful tool for digging precise trenches. Understanding the key components of this equipment can help users operate it more efficiently and maintain it properly. Here are the essential parts of a 3-point mounted chain trencher:

• Three-Point Hitch: Allows the trencher to be attached to the tractor. The three-point hitch is a standard type of linkage system used on tractors to attach implements in a flexible manner. Typically includes two lower arms and one upper arm (the top link), which connect to corresponding points on the trencher.
• Power Take-Off (PTO) Shaft: Transfers mechanical power from the tractor to the trencher. The PTO shaft is crucial for driving the trencher's chain mechanism. Comes with a protective shield to prevent accidents and ensure safety during operation.
• Chain with Digging Teeth: The primary digging component, this chain rotates around a metal frame or boom, equipped with teeth that cut through the soil. The teeth can vary in design to suit different soil types and trenching requirements.
• Boom: Supports the chain and determines the depth of the trench. The boom length can often be adjusted to change the trench depth. Some trenchers allow for boom angle adjustments to control the slope of the trench bottom.
• Drive System: Includes a gearbox and possibly a hydraulic motor, depending on the trencher model. This system translates the power from the PTO shaft to the movement of the chain. Ensures efficient power transfer and controls the speed of the chain rotation.
• Soil Ejection System: Removes excavated soil from the trench path. This system often consists of a conveyor or auger mechanism, though simpler models may rely on the design of the chain and teeth to throw soil to the side. Optimized to minimize the amount of soil falling back into the trench.

How Does the Tractor 3 Point Mounted Chain Trencher Work?

The tractor 3-point mounted chain trencher works by leveraging the power and mobility of a tractor to perform efficient trenching operations. This specialized equipment is designed to create trenches for various purposes, such as laying pipes, cables, or drainage systems. Here’s a step-by-step explanation of how it operates: 1. Attachment and Power Source: Three-Point Hitch Connection: The trencher is attached to the tractor using the three-point hitch, a standard mounting system on tractors that provides a secure way to attach various implements. This system allows for quick attachment and detachment, as well as depth adjustment. Power Take-Off (PTO): Once attached, the trencher is powered by the tractor’s PTO shaft. The PTO is a splined drive shaft on the tractor that transfers power from the tractor’s engine to the trencher. 2. Trenching Mechanism: Chain and Boom: The trencher utilizes a heavy-duty chain that is equipped with cutting teeth. This chain is mounted on a metal frame or boom. The boom's length can often be adjusted to change the depth of the trench being dug. 3. Trenching Operation: When the tractor’s PTO is engaged, it drives the trencher's chain around the boom. As the tractor moves forward, the rotating chain digs into the soil, removing it and creating a trench. The speed at which the tractor moves and the speed of the chain's rotation can be adjusted to suit the soil conditions and the required trench dimensions. 4. Soil Ejection: As the chain digs into the ground and moves soil, the design of the chain and teeth allows for the excavated soil to be ejected to one side of the trench, keeping the trench clear for any installations (e.g., pipes or cables) and minimizing the need for additional soil removal or cleanup. 5. Depth Adjustment: The depth of the trench can be controlled through the tractor’s three-point hitch adjustment. This allows the operator to set the trench depth according to specific project requirements, providing flexibility for different types of trenching work.

How to Install the 3 Point Mounted Chain Trencher to Tractor

Installing a 3-point mounted chain trencher to a tractor involves a series of steps that ensure a secure and effective connection for trenching operations. Here is a general step-by-step guide for installing a 3-point mounted chain trencher: (1) Preparation: Familiarize yourself with the tractor and trencher operator’s manuals for specific installation instructions and safety precautions. Check both the tractor and the trencher for any damage or wear that might affect operation. Ensure that the PTO shaft and three-point hitch components are in good condition. (2) Positioning the Tractor and Trencher: Move the tractor so that its rear three-point hitch is aligned with the trencher's mounting points. Ensure the tractor is turned off, and it's on stable, level ground. If necessary, adjust the trencher so it's in the correct position for attachment. It should be stable and properly aligned with the tractor’s hitch points. (3) Attaching the Trencher: Attach the lower arms of the three-point hitch to the corresponding mounts on the trencher. Secure them with the locking pins provided. Connect the top link of the three-point hitch to the trencher. Adjust the top link to set the trencher at the desired angle for operation. Double-check that all pins and clips are securely in place to prevent accidental detachment during operation. (4) Connecting the PTO Shaft: Carefully align the PTO shaft of the trencher with the PTO stub on the tractor. Slide the shaft onto the stub, ensuring it locks into place securely. Make sure the PTO shaft guard is properly positioned and secure to prevent any accidents. (5) Final Checks and Testing: Conduct a final inspection to ensure the trencher is securely attached and the PTO shaft is correctly connected. Start the tractor and engage the PTO at a low speed to test the trencher’s operation. Ensure there are no unusual noises or vibrations, and that the trencher operates as expected. Make any necessary adjustments to the three-point hitch or PTO connection to ensure optimal operation.

Operation Precautions of the Tractor 3 Point Mounted Chain Trencher

Operating a tractor 3-point mounted chain trencher involves handling heavy machinery and sharp components, making safety and precaution paramount. Here are essential operation precautions to ensure safe and efficient trenching: Equipment Preparation

• Inspect Before Use: Conduct a thorough inspection of the trencher and tractor. Look for loose bolts, worn teeth, proper chain tension, and ensure all safety guards are in place.
• Check Hydraulic and PTO Systems: Make sure the hydraulic systems (if applicable) and PTO shaft are in good working condition, without leaks or damages.

During Operation

• Start Slowly: Begin trenching at a slow speed to ensure the trencher is functioning correctly before proceeding at full operation speed.
• Avoid Overloading: Do not overload the trencher by trying to trench too deeply too quickly. Adjust the depth gradually, especially in hard or rocky soil.
• Monitor Trencher Performance: Regularly check the trencher for clogs or jams. If you notice any issues, stop the tractor and trencher, and inspect for obstructions.
• Be Mindful of Utilities: Always know the locations of underground utilities before trenching. Accidentally cutting through cables, pipes, or lines can result in severe consequences.

Handling and Maneuvering

• Operate on Stable Ground: Avoid trenching on steep slopes or uneven terrain where the tractor could tip or slide, compromising operator safety.
• Sharp Turns: Be cautious when making turns with the trencher attached; wide turns are recommended to prevent equipment damage.

After Use

• Clean and Inspect: After each use, clean the trencher, removing soil and debris. Inspect it for any signs of wear or damage, especially the chain, teeth, and PTO shaft.
• Storage: Store the trencher in a dry, covered area to protect it from the elements and prevent rust.

Emergency Preparedness

• Know How to Stop: Familiarize yourself with the tractor and trencher's emergency stop procedures. In case of an emergency, knowing how to quickly shut down the equipment can prevent injuries and damage.

Maintenance

• Regular Maintenance: Follow a regular maintenance schedule as recommended by the manufacturer. This includes checking the chain tension, lubricating moving parts, and replacing worn teeth.
• Hydraulic System Care: For trenchers with hydraulic adjustments, regularly check the hydraulic fluid levels and look for leaks.
